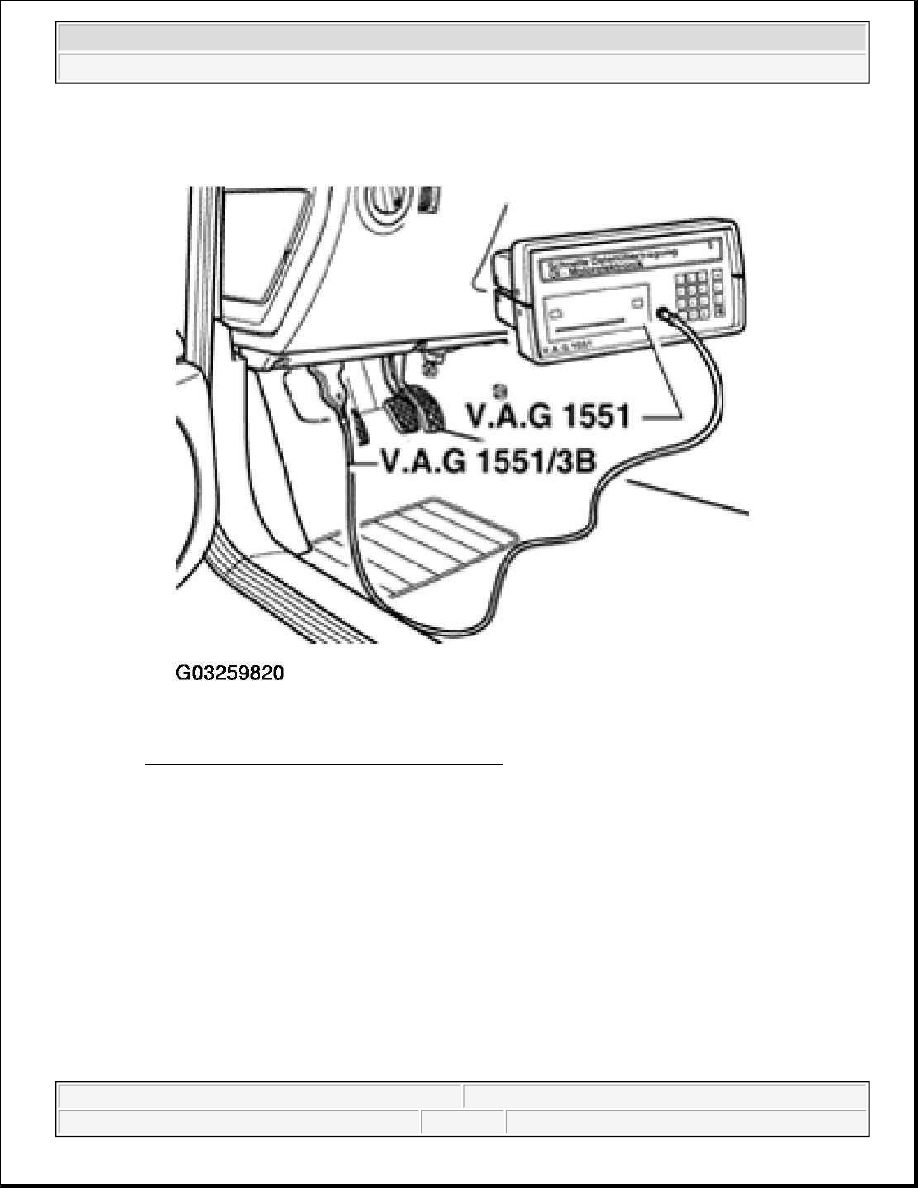

Fig. 34: Connecting VAG 1551/1552 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

* Appears alternately



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

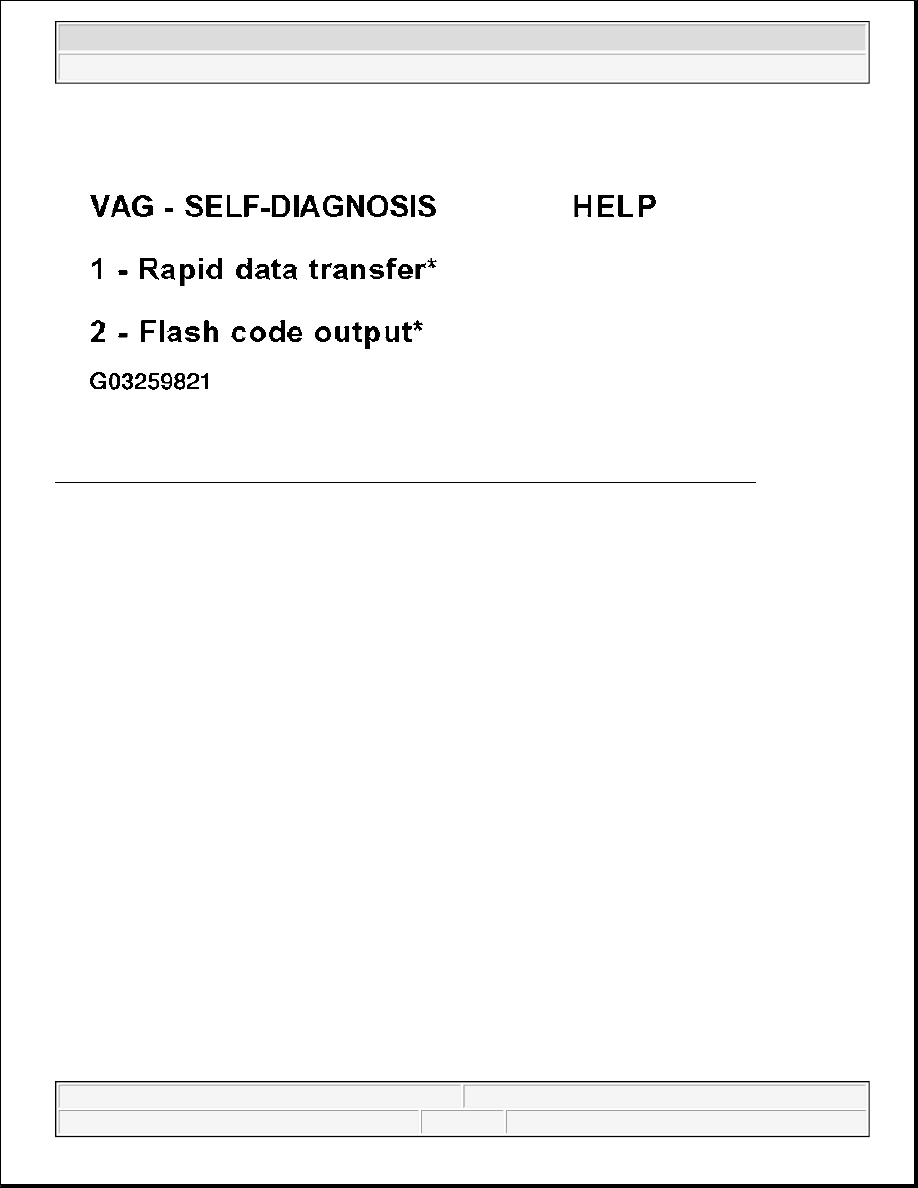

Fig. 35: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (1 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch ignition on.

z

Switch printer on with the Print key (warning lamp in the key will light up).

z

Press key 1 for "Rapid data transfer" operating mode.

Indicated on display:

NOTE:

z

If display remains blank, check VAG 1551 voltage supply according to
wiring diagram.

z

Additional operating instructions can be called up with the scan tool HELP
key.

z

The --> key advances the program sequence.

z

In operating mode 1 "Rapid data transfer" function 00 "Automatic test
sequence" can be carried out. The DTC memory of all vehicle control units
is checked automatically with function 00..

NOTE:

See SYSTEM WIRING DIAGRAM article.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



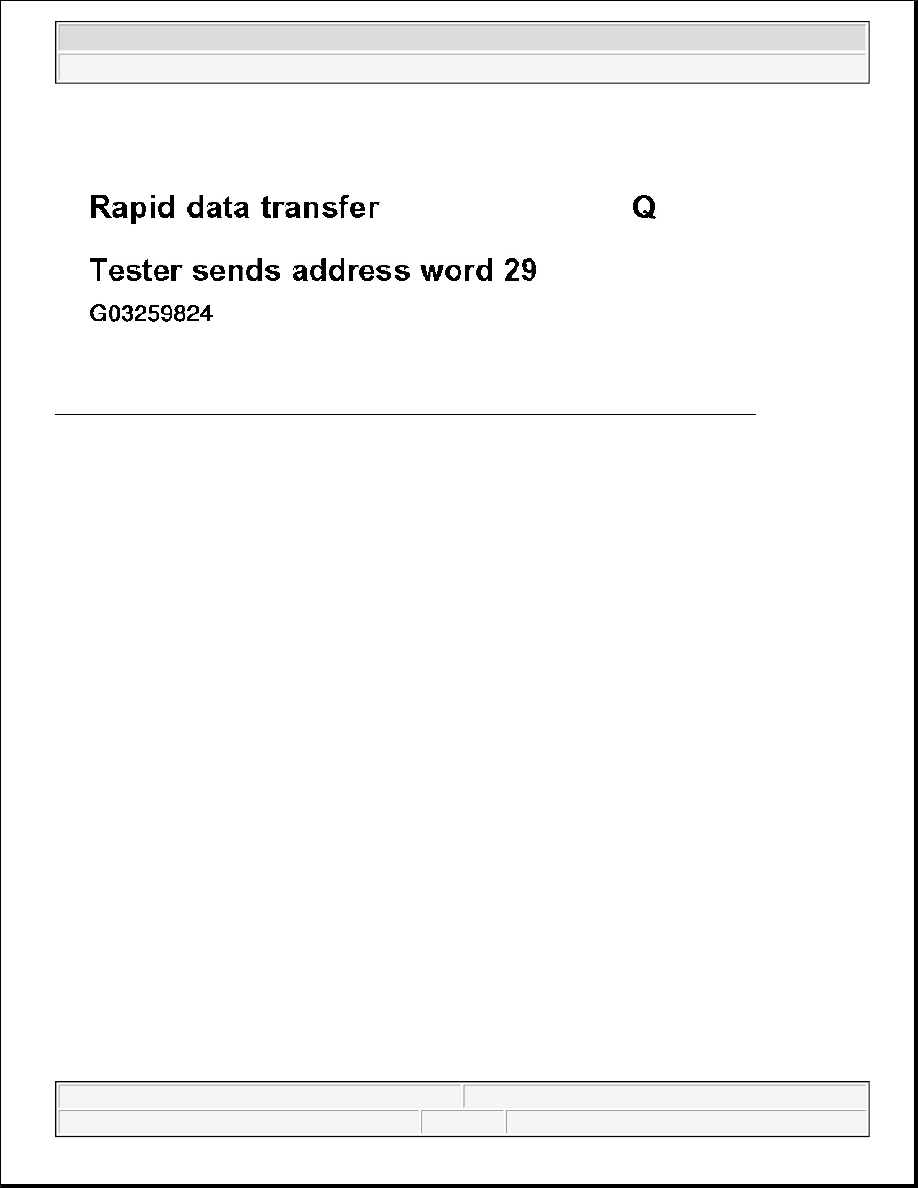

Fig. 36: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (2 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -2- and -9- to select "Light control, left" address word "29".

Indicated on display:

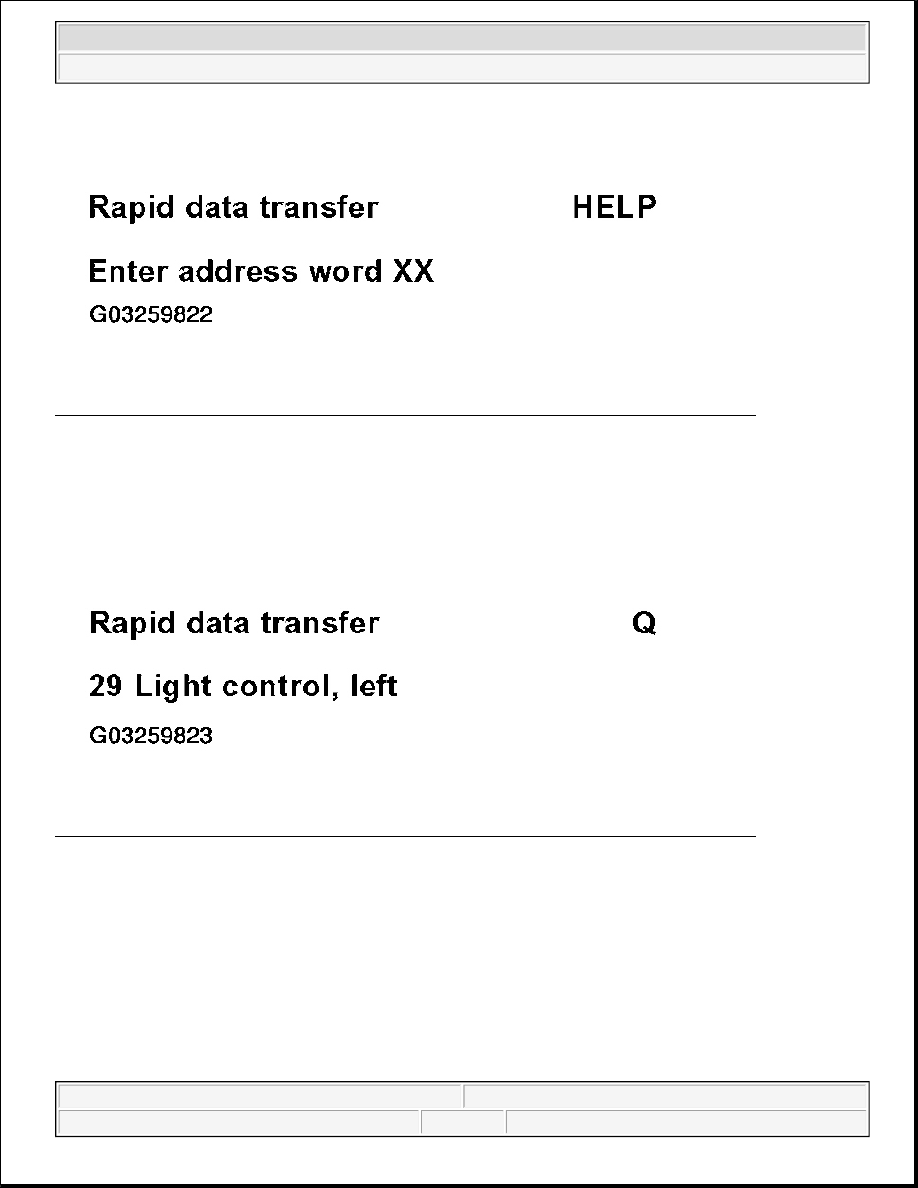

Fig. 37: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (3 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 38: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (4 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking

Indicated on display

Upper line:

z

Part No. of control module (Part and version numbers illustrated here are examples only.)

z

System designation (headlight range control)

z

Version number (Part and version numbers illustrated here are examples only.)

Bottom line:

z

Coding number (Dependent on type of drive.)

z

Dealership number

z

Press --> key.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
