Volkswagen New Beetle. Manual - part 633

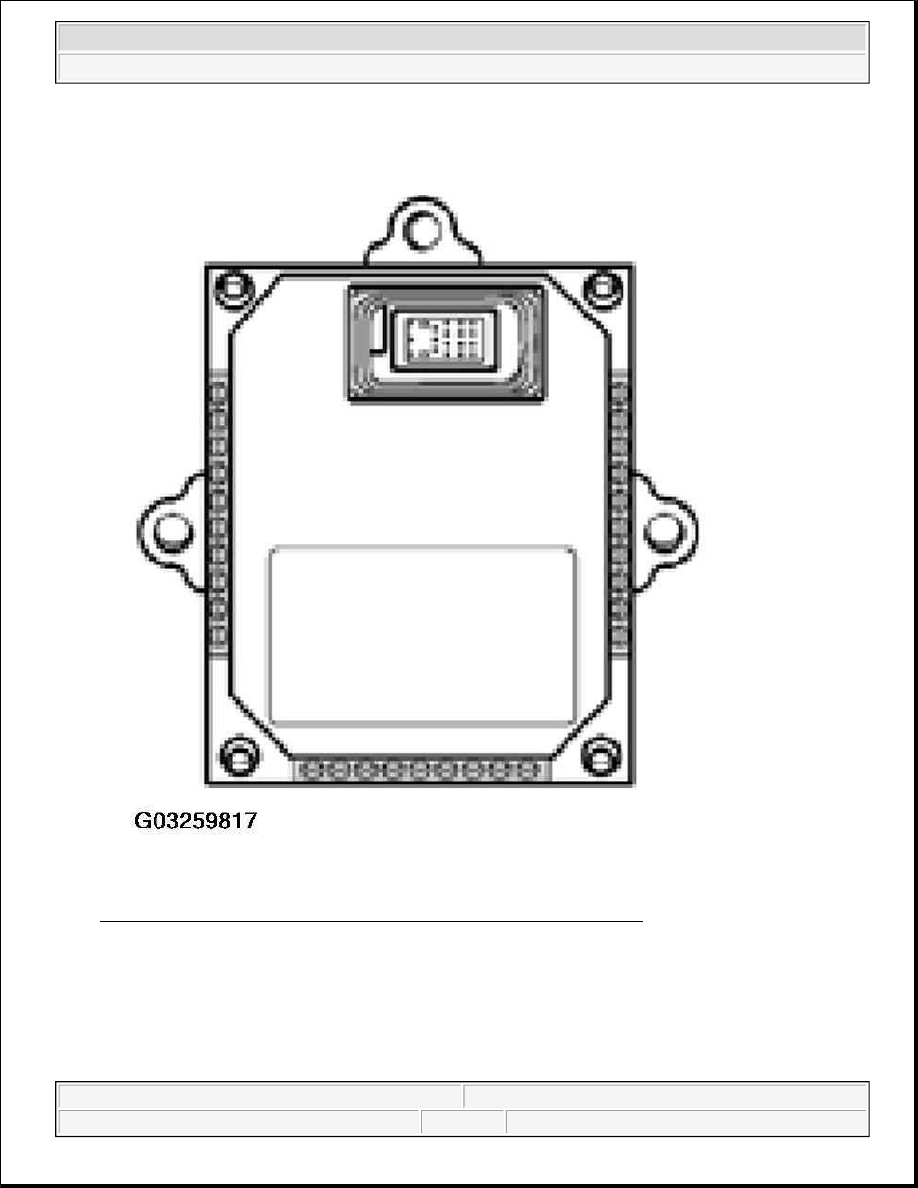

Fig. 31: Removing Module Screws To Separate Module From Retainer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove screws and separate module from retainer.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-, REMOVING AND INSTALLING

Removing

z

Turn steering to full left lock.

z

Remove nuts -arrows-.

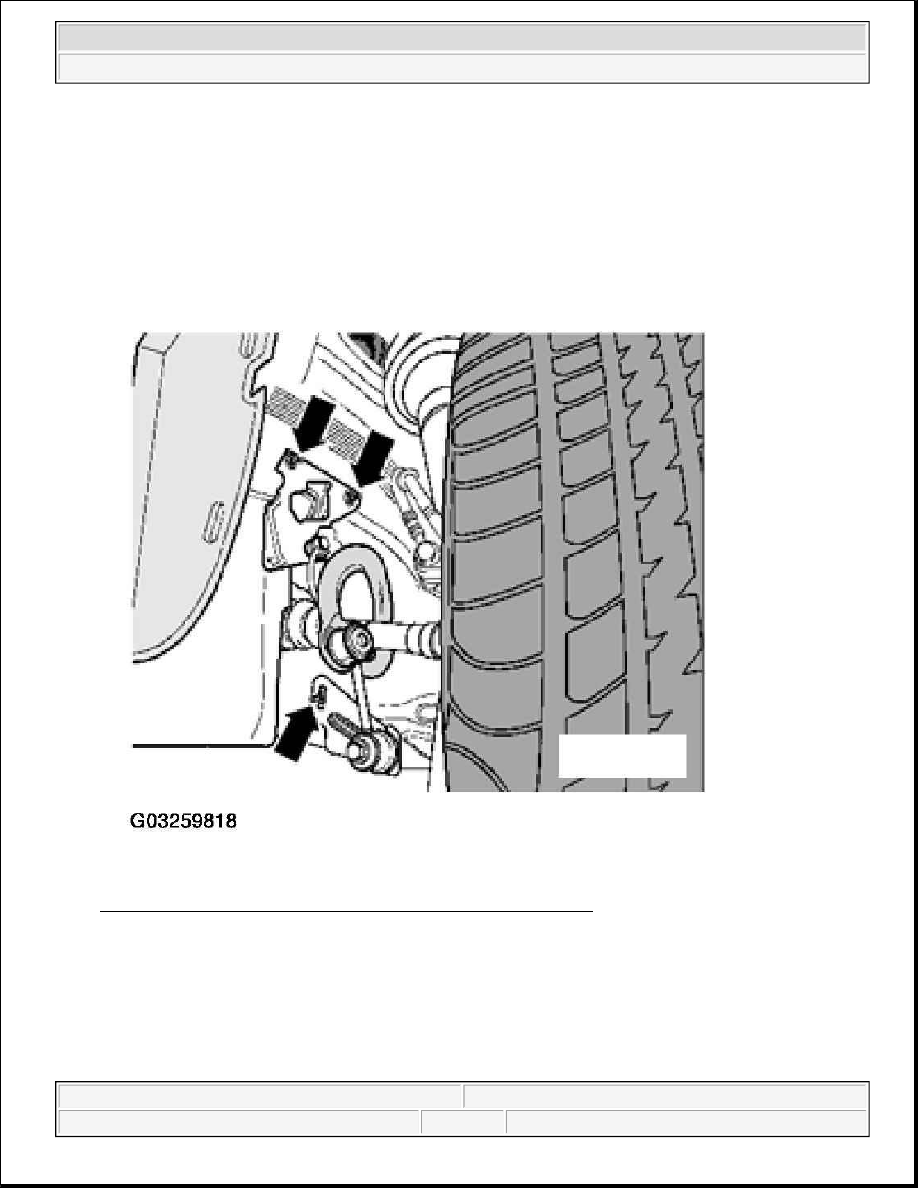

Fig. 32: Removing Left Front Level Control System Sensor Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove sensor with retainer.

z

Disconnect electrical connection.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Adjust level sensor, See LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-,
ADJUSTING .

LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-, ADJUSTING

Special tool, testers, and auxiliary items needed

z

VAG 1551/1552 Scan Tool (ST) or VAS 5051 Vehicle Diagnostic Testing and Information System tester.

z

VAG 1551/3B Adapter Cable

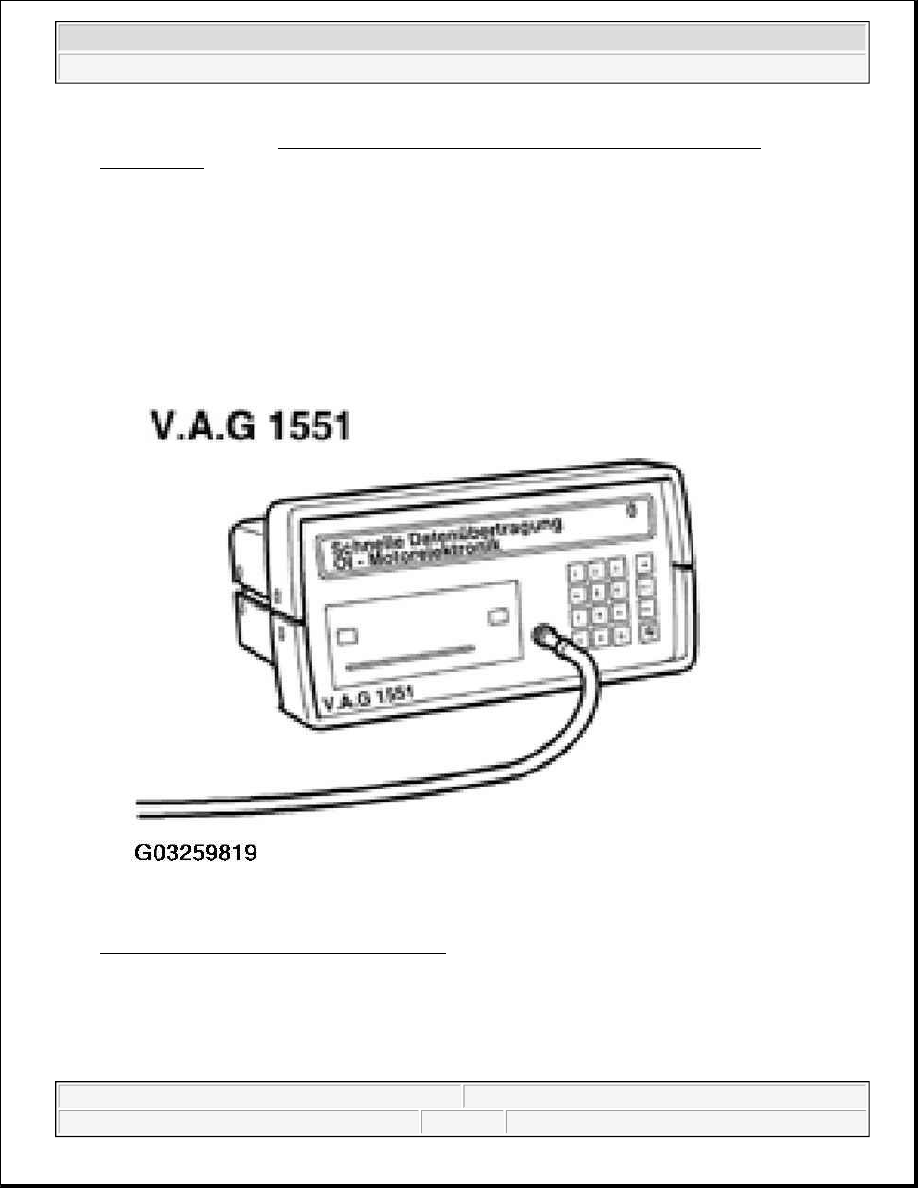

Fig. 33: Identifying Vag 1551/1552 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites

z

Vehicle must be standing on all four wheels on a flat level surface.

z

Handbrake lever must be in off position and a drive gear must not be selected.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Steering must be in straight-ahead position.

z

Vehicle must be unoccupied and not loaded.

z

Vehicle must not be moved during basic settings process (i.e.: opening and closing of doors, people
leaning on vehicle, people entering vehicle is not permitted).

z

If vehicle was raised using a lifting platform/hoist or a vehicle/workshop jack, then it must be rolled back
and forth several times so that the springs etc. settle, before starting adjustments.

VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service System,
selecting functions

See ON BOARD DIAGNOSTIC (OBD), FUNCTION .

VAG 1551/1552 Scan Tool (ST), connecting and selecting functions (function 01)

Prerequisites:

z

All fuses OK., according to wiring diagram

z

Voltage supply OK. (minimum 9.0 V).

{

Connect Scan Tool (ST) using cable VAG 1551/3B.
