Volkswagen New Beetle. Manual - part 617

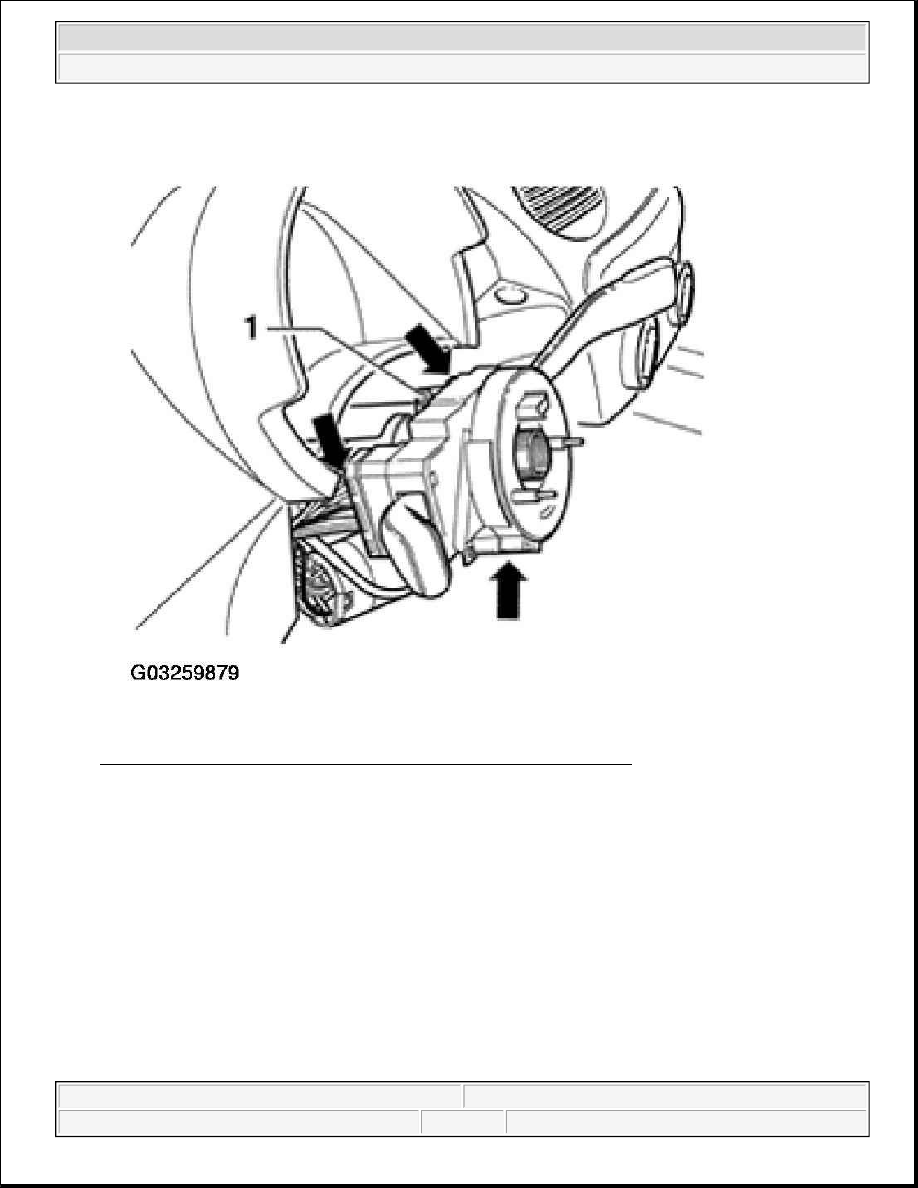

Fig. 93: Removing Socket Head Bolt From Steering Column Switches
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connectors (arrows) from steering column switches.

z

Remove steering column switches.

Installing

z

Install in reverse order of removal.

STEERING COLUMN SWITCHES, CONNECTOR ASSIGNMENTS

Switches for windshield wiper and washer system

A - 6-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1 - 4 - Open

5 - Windshield wiper intermittent regulator to automatic intermittent washer/wiper relay

6 - Windshield wiper intermittent regulator -terminal 31

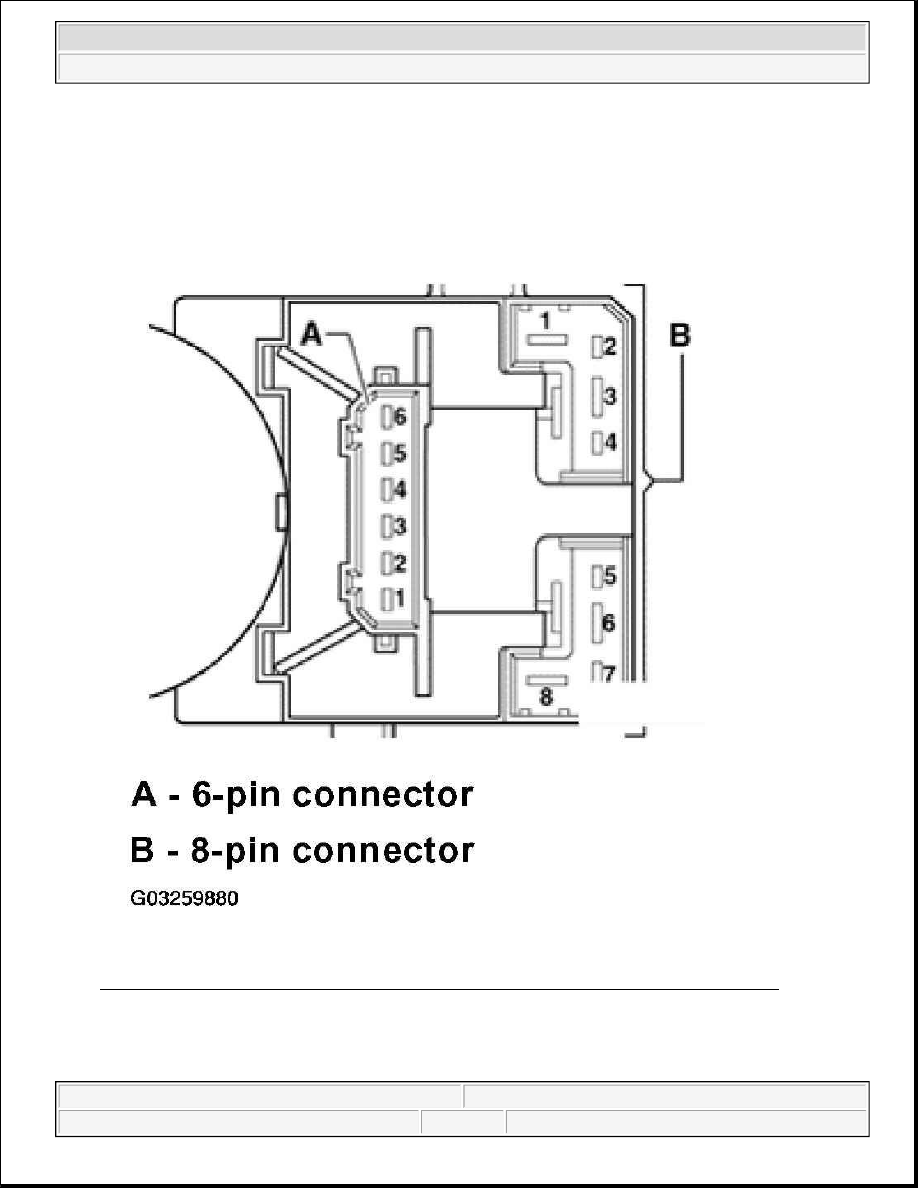

Fig. 94: Identifying Steering Column Switch Connector A (6-Pin) & Connector B (8-Pin)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

B - 8-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1. Windshield wiper switch - terminal 53

2. Windshield wiper switch - terminal 31

3. Windshield wiper switch - terminal 53e

4. Windshield wiper switch - terminal 53c

5. Windshield wiper switch - rear window wiper

6. Windshield wiper switch - terminal 53b

7. Windshield wiper switch - intermittent operation

8. Windshield wiper switch - terminal 53a

Switches for turn signals, high and low beam, headlight dimmer/flasher switch and parking light

C - 12 pin connector

1. Headlight dimmer/flasher switch - terminal 30 (B+)

2. Headlight dimmer/flasher switch - terminal 30 (B+)

3. Turn signal switch - terminal L

4. Parking light switch - terminal P

5. Turn signal switch - terminal 49a

6. Horn plate - terminal 71

7. Headlight dimmer/flasher switch - terminal 56

8. Headlight dimmer/flasher switch - terminal 56b

9. Parking light switch - terminal PL

10. Parking light switch - terminal PR

11. Turn signal switch - terminal R

12. Headlight dimmer/flasher switch - terminal 56a

NOTE:

The following list refers to items in Fig. 94 .

NOTE:

The following list refers to items in Fig. 95 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

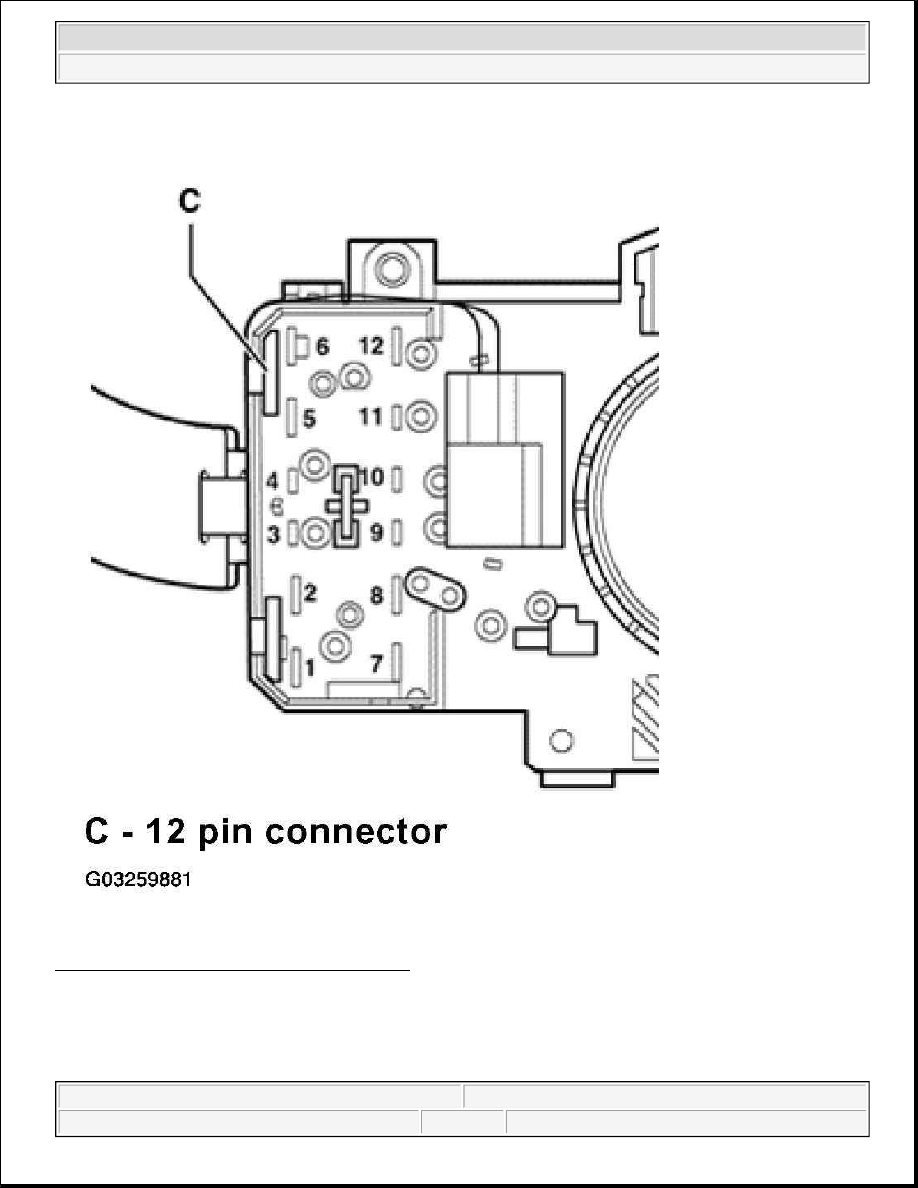

Fig. 95: Identifying Connector C (12-Pin) Pins
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Switch for cruise control system

D - 10-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
