Volkswagen New Beetle. Manual - part 615

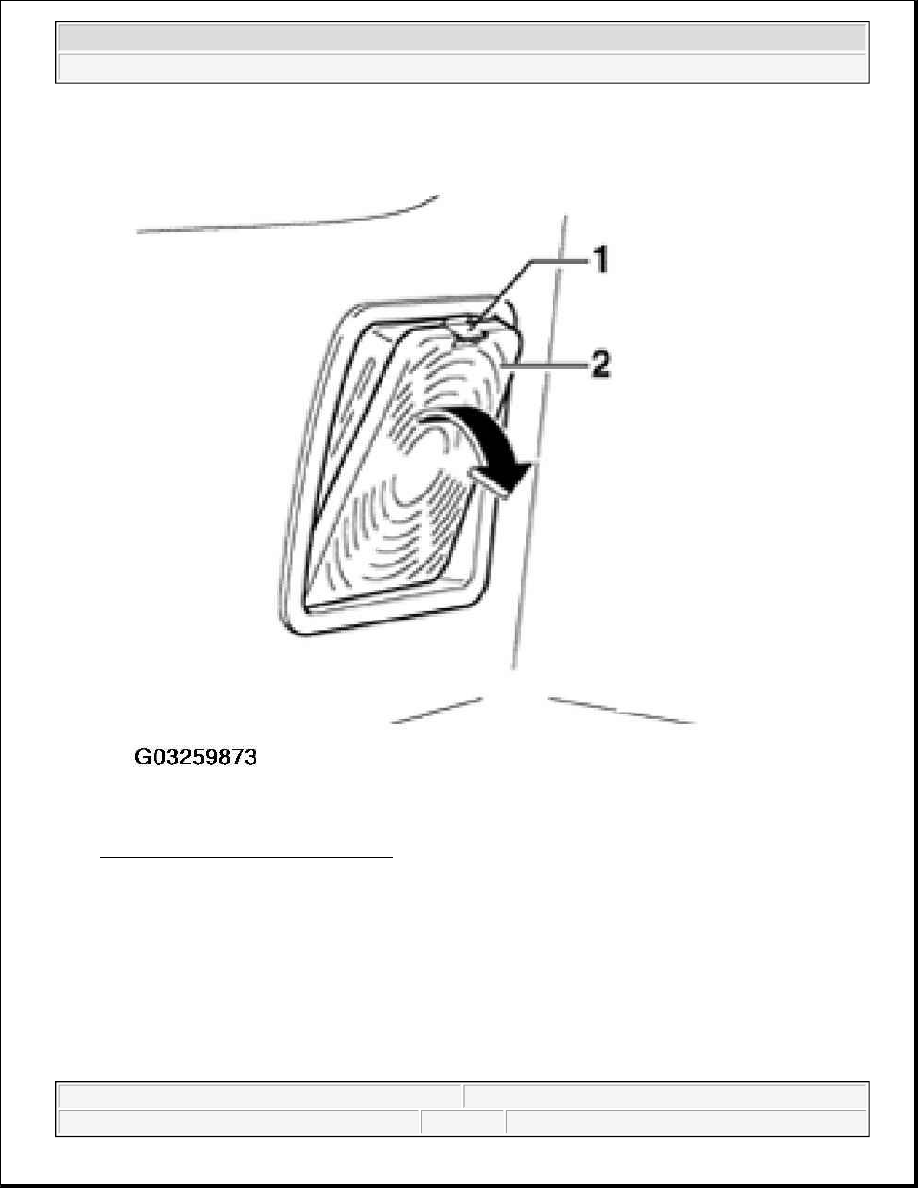

Fig. 87: Removing License Plate Light
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Insert license plate light in bumper.

z

Press in upper retaining tab -1- and lock in position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



LICENSE PLATE LIGHT BULB, REPLACING

Removing

z

Remove license plate light. See LICENSE PLATE LIGHT .

z

Turn bulb holder in direction shown -arrow- and remove from housing.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

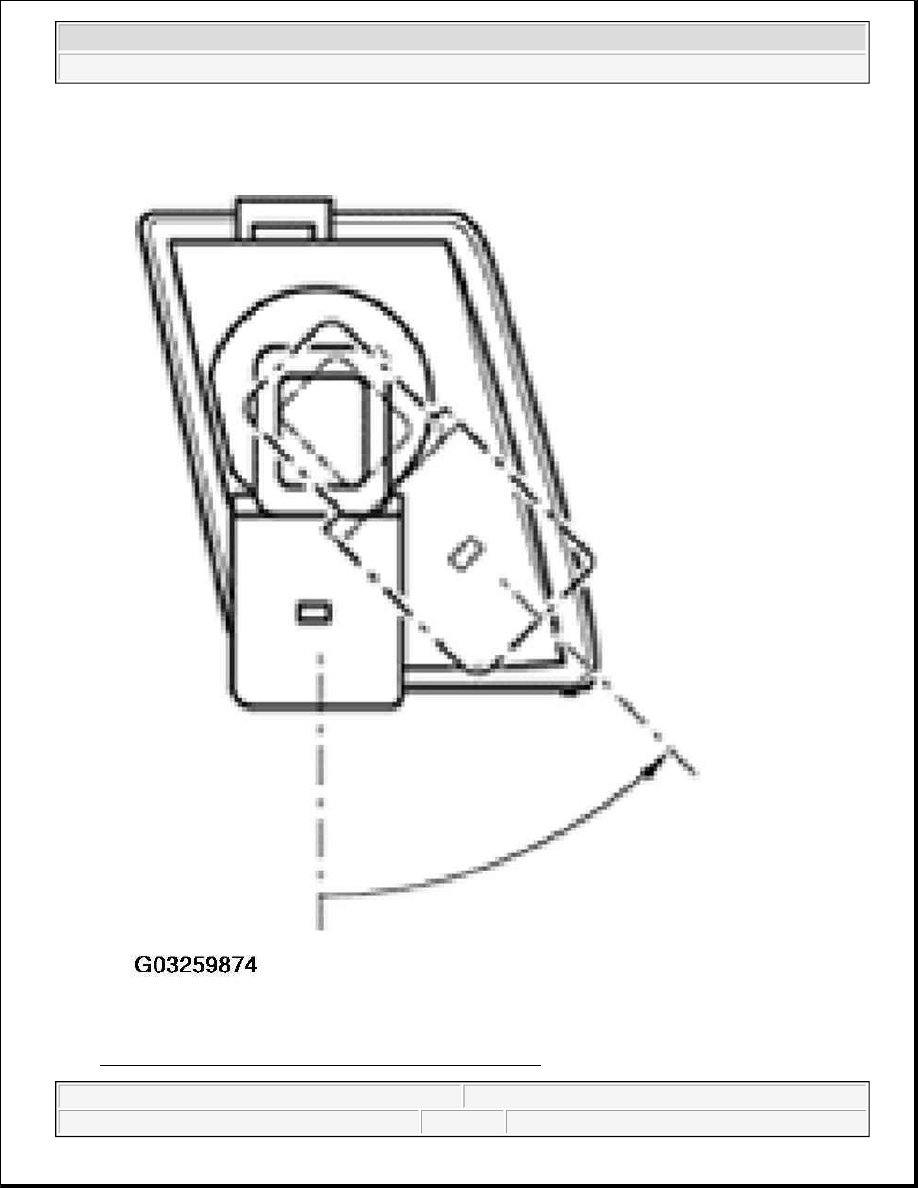

Fig. 88: Removing License Plate Light Bulb From Holder



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull out bulb (12V/5W), do not turn.

Installing

z

Install in reverse order of removal.

z

When installing, make sure bulb holder engages in housing by turning in opposite direction shown -
arrow-. See Fig. 88 .

STEERING COLUMN SWITCHES

STEERING COLUMN SWITCHES, REMOVING AND INSTALLING

Special tools and equipment

VAG1332 torque wrench (40 - 200 N.m)

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch off ignition and remove ignition key.

z

Disconnect negative ( - ) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified. See BATTERY, DISCONNECTING AND RECONNECTING .

WARNING:

Airbags and related equipment (e.g. steering wheel) must only be
disassembled, assembled and repaired by trained VW Service Department
personnel.

z

Before working on any airbag, steering wheel or steering column
components, first always disconnect the battery.

z

Make sure that no person is in the vehicle when connecting the
negative ( - ) battery terminal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
