Volkswagen New Beetle. Manual - part 562





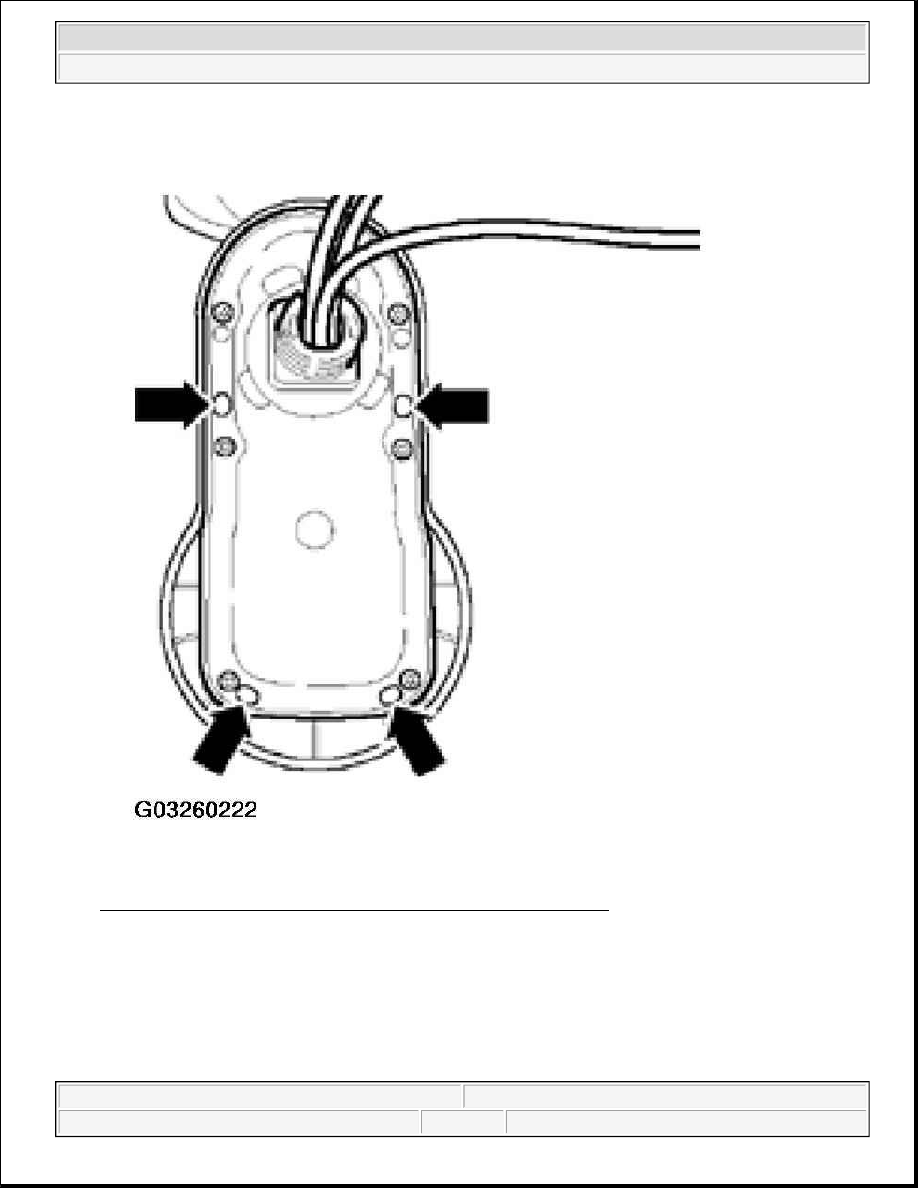

Fig. 36: Removing Water Channel Clip From Mounting On Guide
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Slide rear guide -1- in guide rail -4- in direction of -arrow- until the locking lug guide -3- is released.

z

Pull rear guide -1-, locking lug guide -3- and guide channel -2- together out from guide rails -4-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle



Fig. 37: Sliding Rear Guide In Guide Rail
Courtesy of VOLKSWAGEN OF AMERICA, INC.

WATER DRAIN HOSES, CLEANING

Front & rear water drain hoses:

Front water drain hoses:

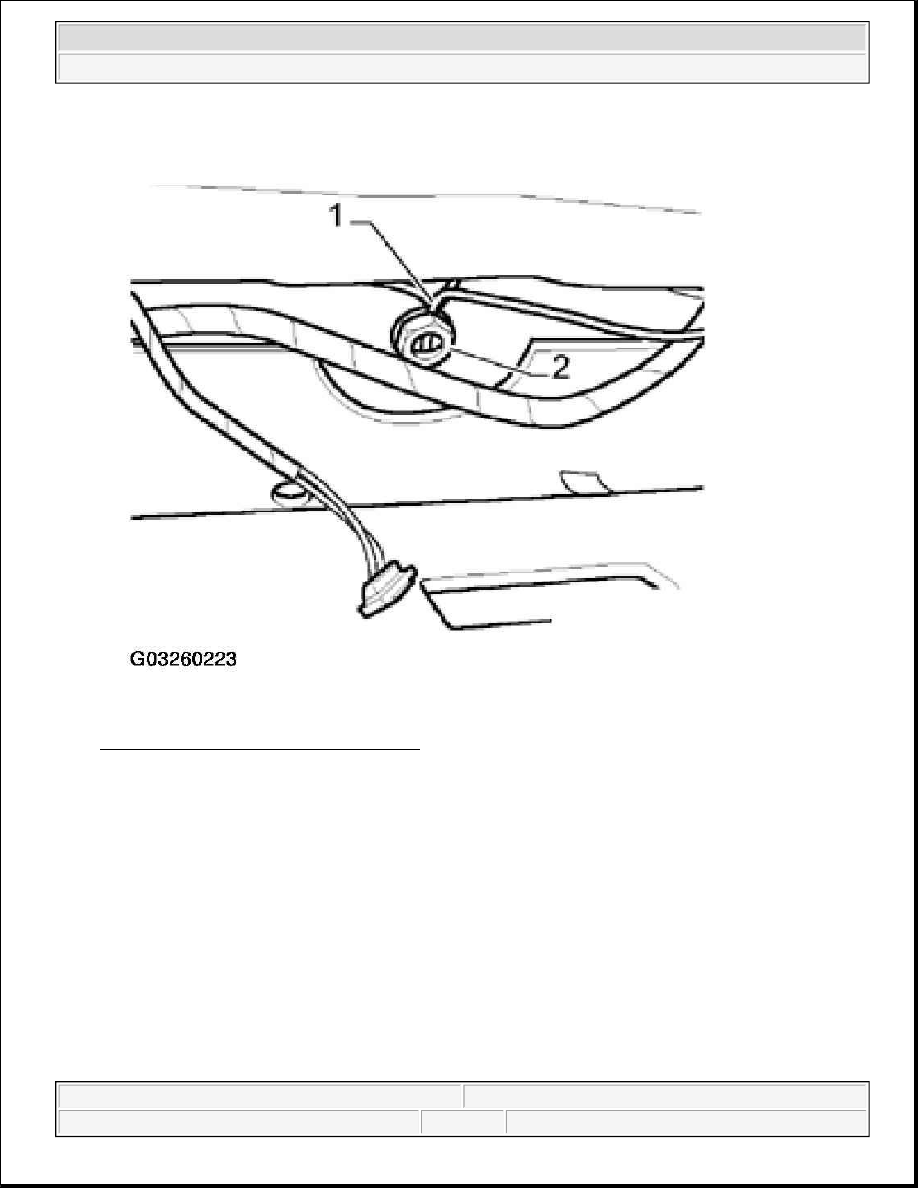

The front water drain hoses -1- run in the A-pillars and end with a water drain valve -2- in the plenum chamber.
Clean from sliding/tilting sunroof aperture.

1. Front water drain hoses.

2. Front water drain valve.

NOTE:

Always replace guide with cable as a pair.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle



NOTE:

It is recommended that a probe is used for the cleaning process (locally
manufactured from a piece of speedometer cable approx. 1500 mm (60 in.)
long).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle

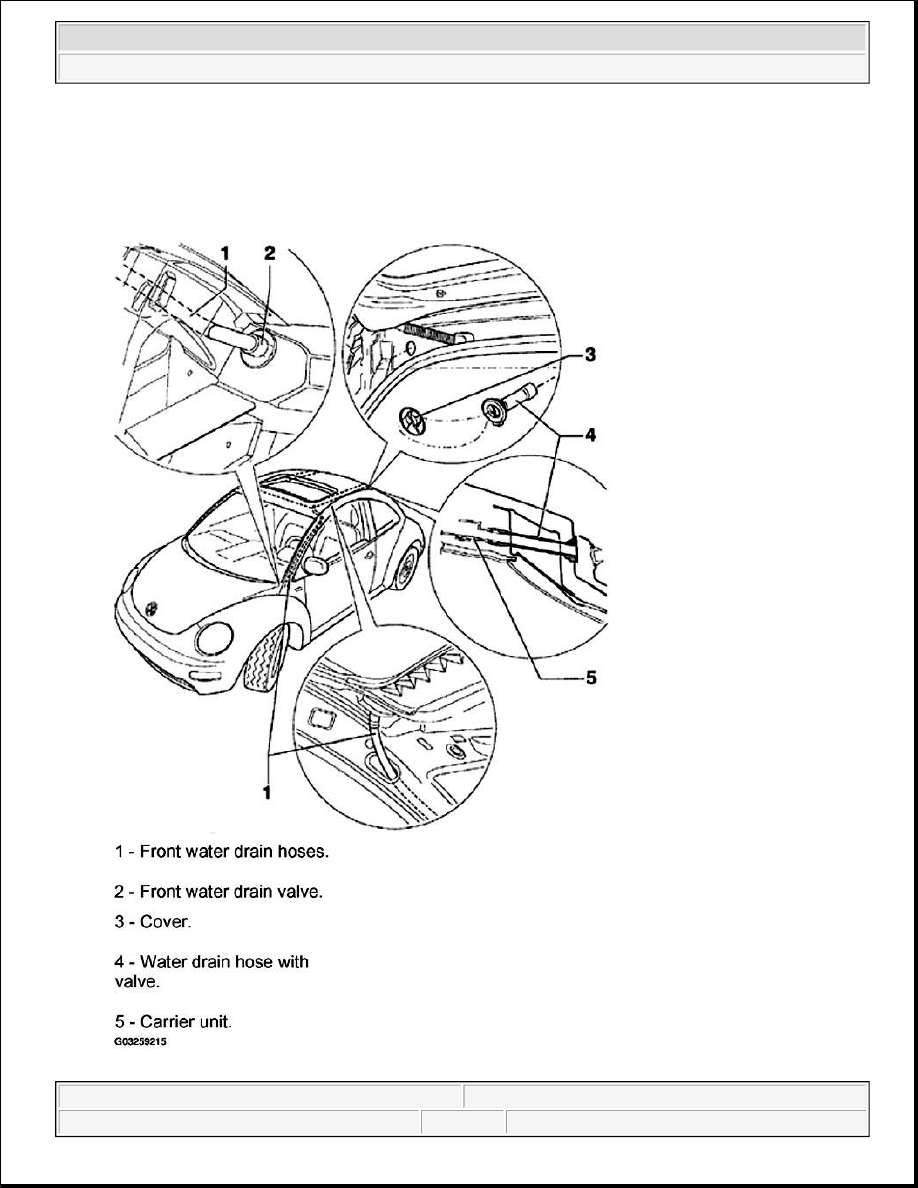

Fig. 38: Identifying Water Drain Hoses
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Rear water drain hoses:

The rear water drain valves -4- are installed directly onto the sliding/tilting sunroof water drains and exits
under the tailgate in the roof channel. The cleaning can be performed from the rear end by removing
cover -3-.

3. Cover.

4. Water drain hose with valve.

5. Carrier unit.

NOTE:

It is recommended that a probe is used for cleaning process (locally
manufactured from a piece of speedometer cable or similar).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle
