Volkswagen New Beetle. Manual - part 557





z

Remove rearward screws -arrow- on left and right-hand sides. Pull slide out to rear and take out sun blind
-1-.

Fig. 17: Removing Rearward Screws On Left And Right-Hand Sides
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DRIVE FOR SLIDING/TILTING SUNROOF, REMOVING

NOTE:

Remove and install drive for sliding/tilting sunroof only when the roof is closed
("0"position).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle



z

Disconnect battery Ground (GND) strap from battery.

z

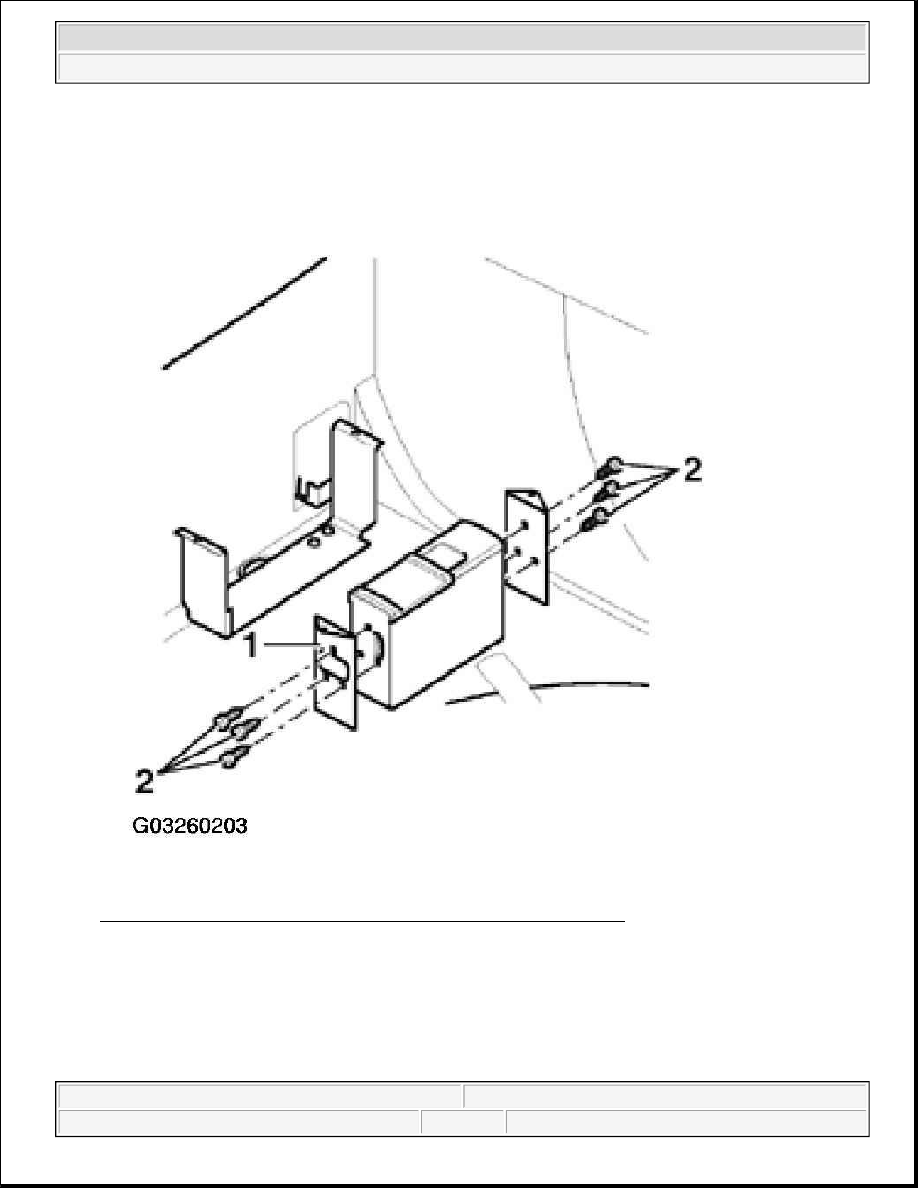

Unclip trim -1- in direction of arrow and remove.

Fig. 18: Removing Trim Clip



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

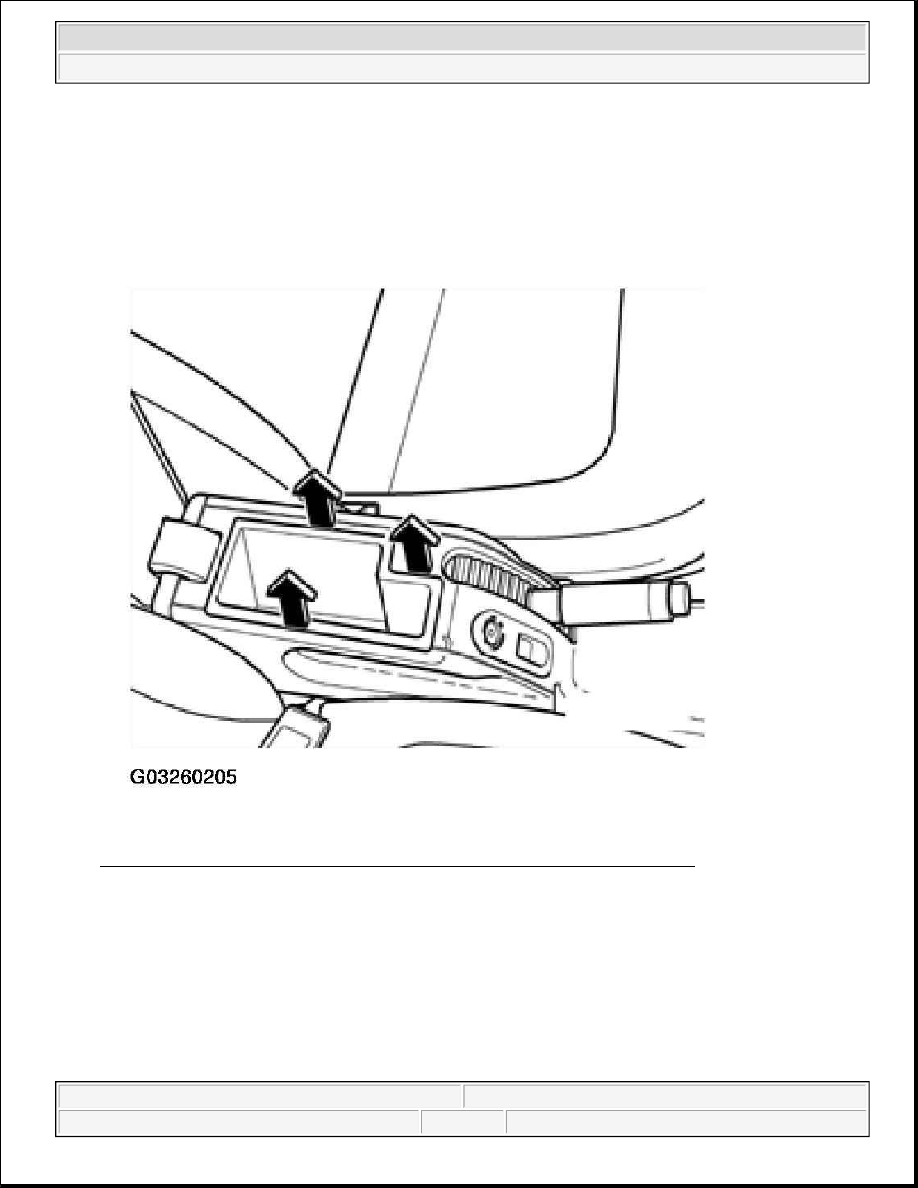

Remove screws -1- and carefully unclip retaining frame locking lugs -arrows- of the automatic pre-
selector.

Fig. 19: Removing Retaining Frame Locking Lugs Of Automatic Pre-Selector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

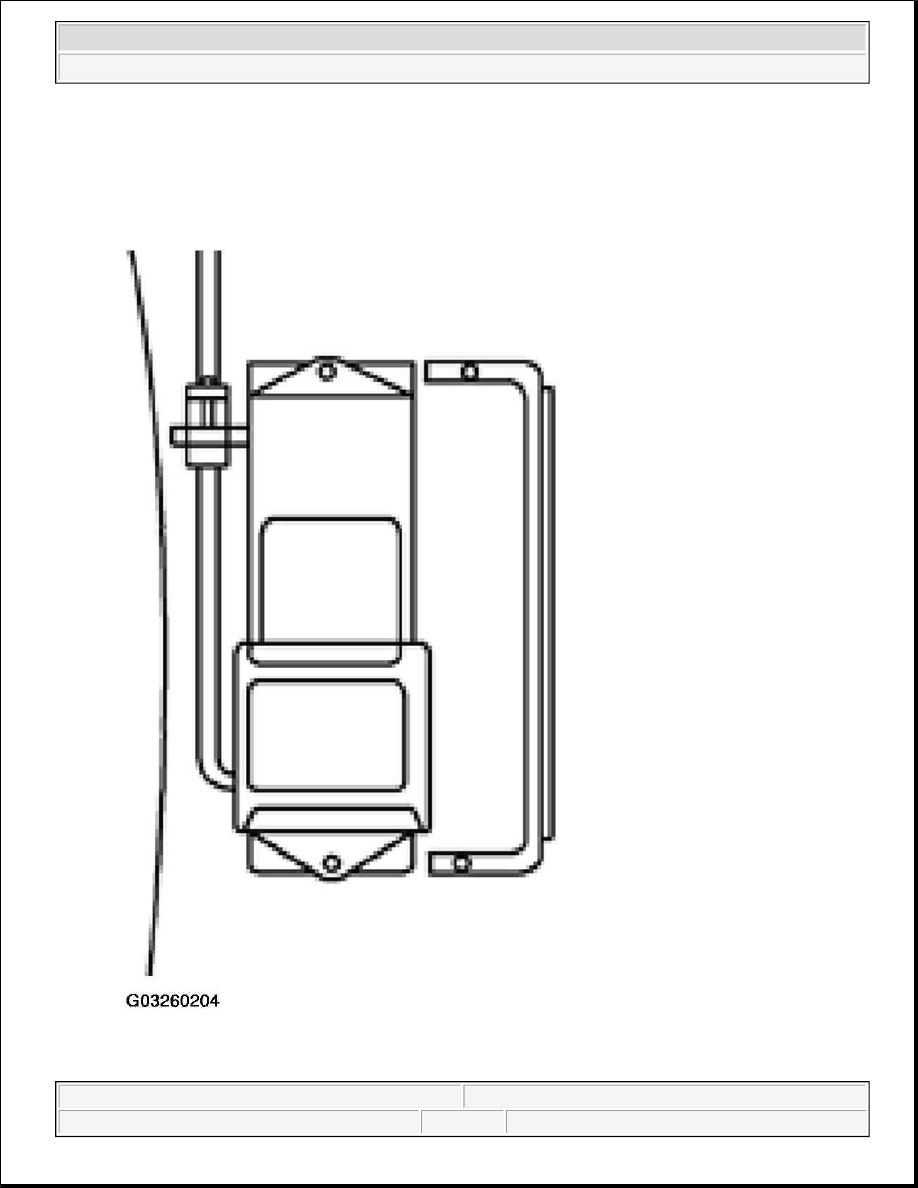

Disconnect connection -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle



Fig. 20: Disconnecting Automatic Pre-Selector Connection
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

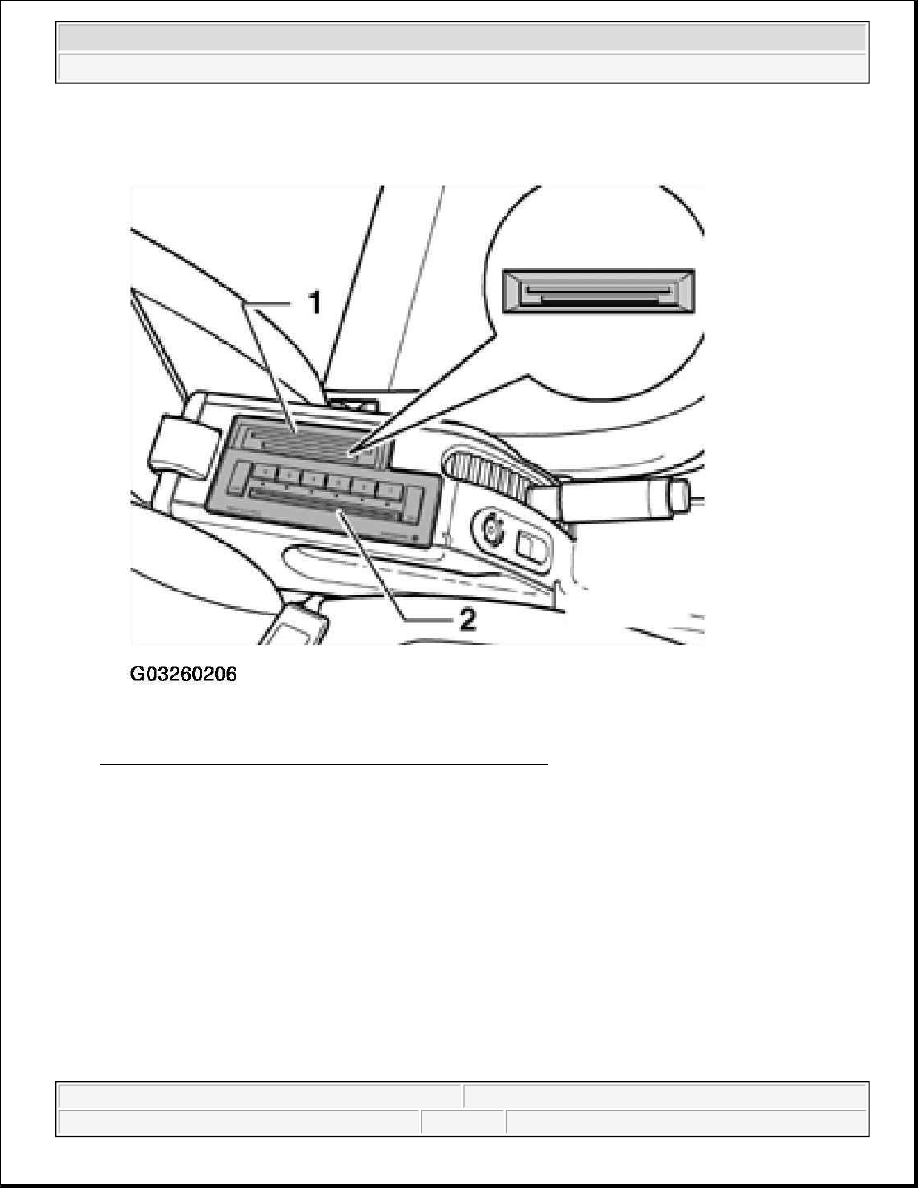

Pull rear edge of trim -1- (with clock) downward off roof trim and unhook trim along forward edge.

z

Disconnect connection -2- for interior light (and clock).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Sunroof - New Beetle
