Fig. 57: Installing Locking Knob Onto Locking Rod
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Locking knob in "locked" condition can project approx. 0...2 mm above door trim.

Removing left-hand door

z

Release locking knob by turning 180° clockwise.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Remove locking knob upward.

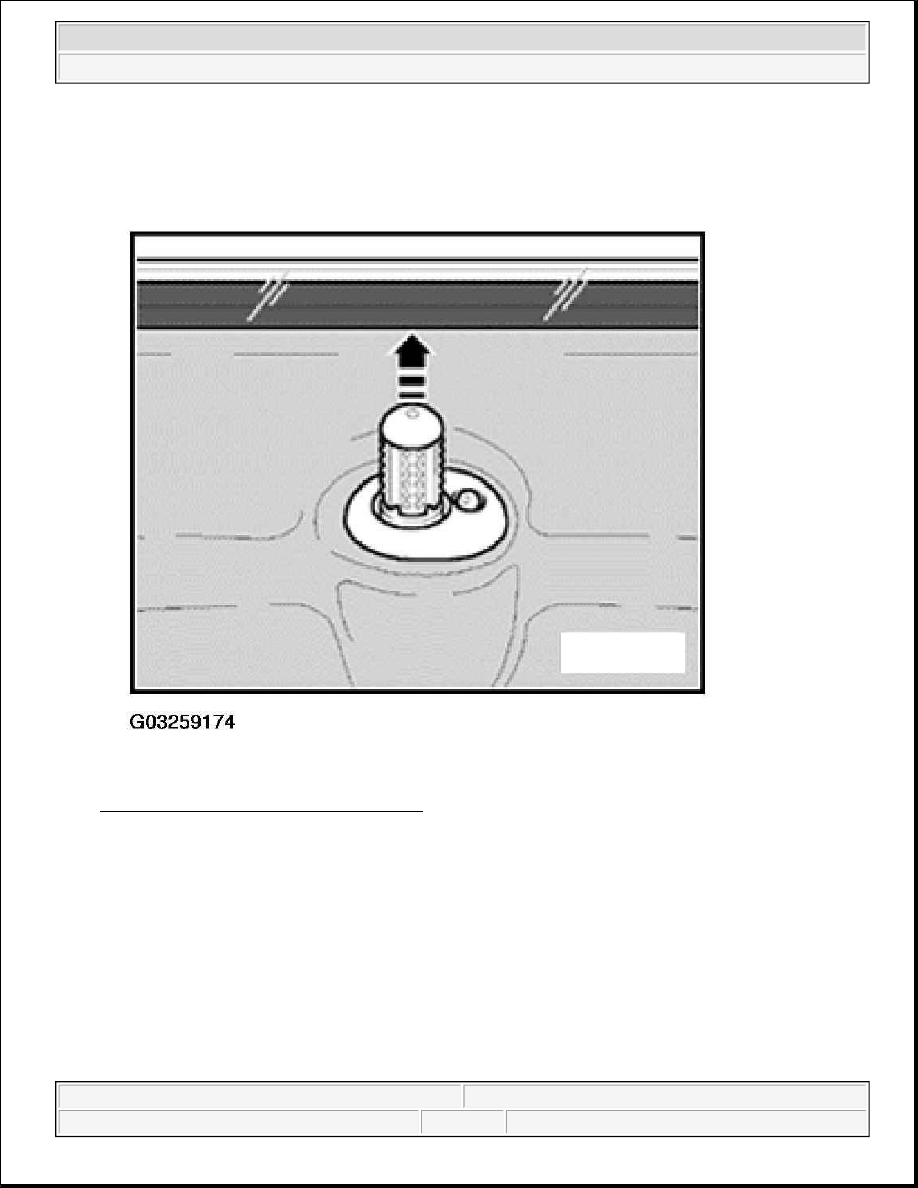

Fig. 58: Removing Locking Knob Upward
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing left-hand door

z

Install locking knob onto locking rod with mark (small dot) on top toward vehicle interior.

z

Press locking knob onto locking rod until the fluted section is flush with height of door trim.

z

Turn locking knob 180° clockwise.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

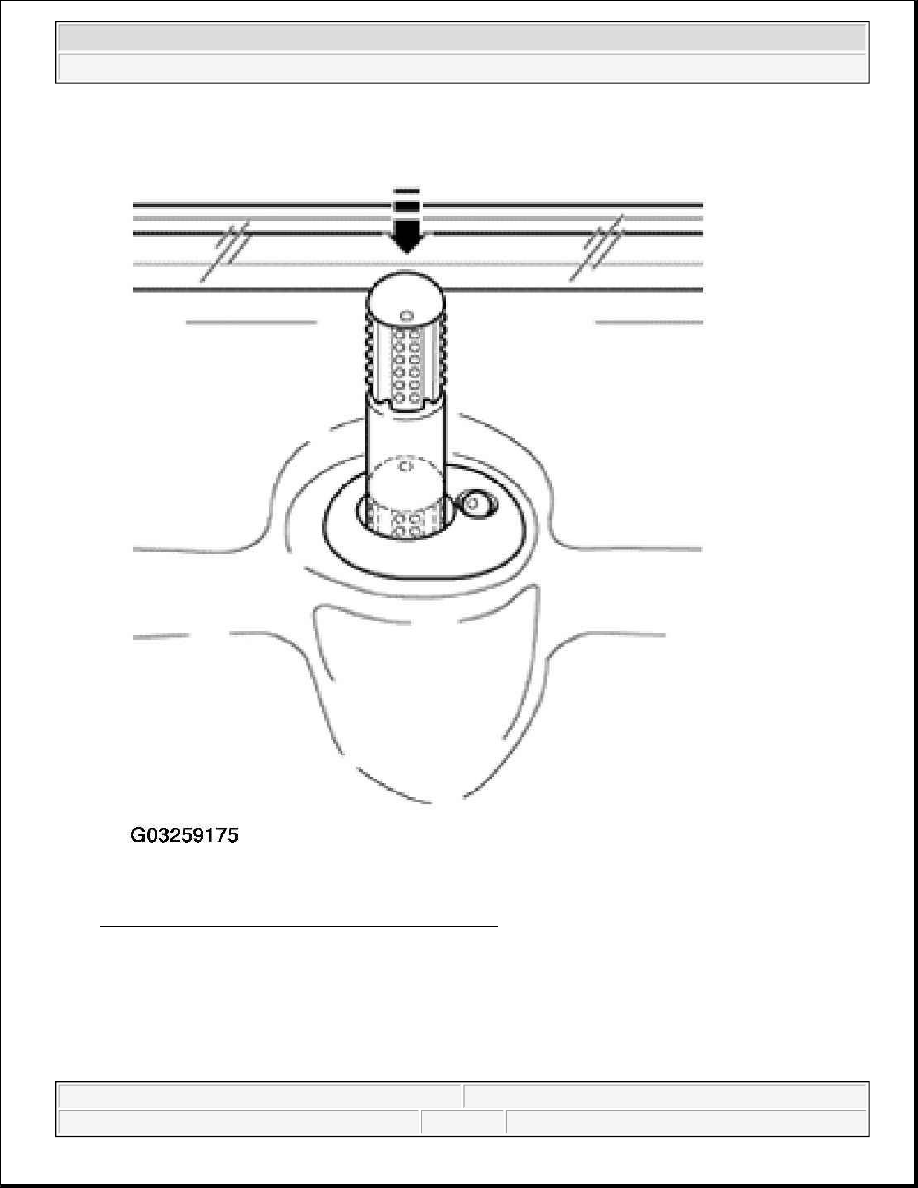

Fig. 59: Installing Locking Knob Onto Locking Rod
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Locking knob in "locked" condition can project approx. 0...2 mm above door trim.

DOOR SEALS, ASSEMBLY OVERVIEW (CONVERTIBLE)

In series production, door seals have a sealant applied to them, and they are then placed on door flange and



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



rolled on.

NOTE:

z

If they are removed sealant will spread on the inside of seal and flanks will
be bent out slightly. If seal is then reinstalled there is no guarantee that it
will fit tightly and seal.

z

Therefore each seal which is removed completely should be replaced by a
"tap-on" seal.

z

If a seal has been partially removed, squeeze the sides together before
refitting.
