z

Battery voltage

below 9.5 V

z

Too many

consumers on

performance or

radio

inoperative

consumers.

00850
Control Output Active,
Radio Amplifier

z

Short circuit to
ground

Only for vehicles with

sound systems

z

Short circuit

between connector

-T20- terminal 6

and ground

z

Sound system

inoperative

z

Check for short circuit

to ground according to

wiring diagram.

00852
Loudspeaker front

z

Short circuit

z

Open circuit

z

Short circuit to

ground in wiring to

one front

loudspeaker

z

Open circuit in

wiring to one front

bass loudspeaker

z

One front

loudspeaker is

inoperative

z

One front bass

loudspeaker is

inoperative

Short circuit between wiring

is only recognized during

Output Diagnostic Test

Mode (DTM).

z

Check wiring

according to wiring

diagram.

z

Check wiring

according to wiring

diagram.

00853
Loudspeaker rear

z

Short circuit

z

Open circuit

z

Short circuit to

ground to one rear

loudspeaker

z

Open circuit in

wiring to one rear

loudspeaker

z

One rear

loudspeaker is

inoperative

z

One rear

loudspeaker

inoperative

Short circuit between wiring

is only recognized during

output Diagnostic Test Mode

(DTM).

z

Check wiring

according to wiring

diagram.

z

Check wiring

according to wiring

diagram.

00855
Connection to CD
Changer

z

No
communication

z

Open circuit to

CD-changer

z

CD-changer

inoperative

z

Check wiring

according to wiring

diagram.

00856
Radio Antenna

z

Short circuit

z

Open circuit

z

Antenna cable not

connected

z

Poor radio

performance or

radio

inoperative

z

Poor radio

performance or

z

Check antenna cable

according to wiring

diagram

z

Check antenna cable

according to wiring

diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03)

The output Diagnostic Test Mode (DTM) is part of the electrical check.

Output DTM checks for a short circuit between the speaker wires.

After output Diagnostic Test Mode (DTM), check DTC memory.

Initiating output Diagnostic Test Mode

z

Connect VAG1551 scan tool, select "Rapid data transfer" operating mode 1, switch ignition on and enter
"Radio" address word 56.

Indicated on display

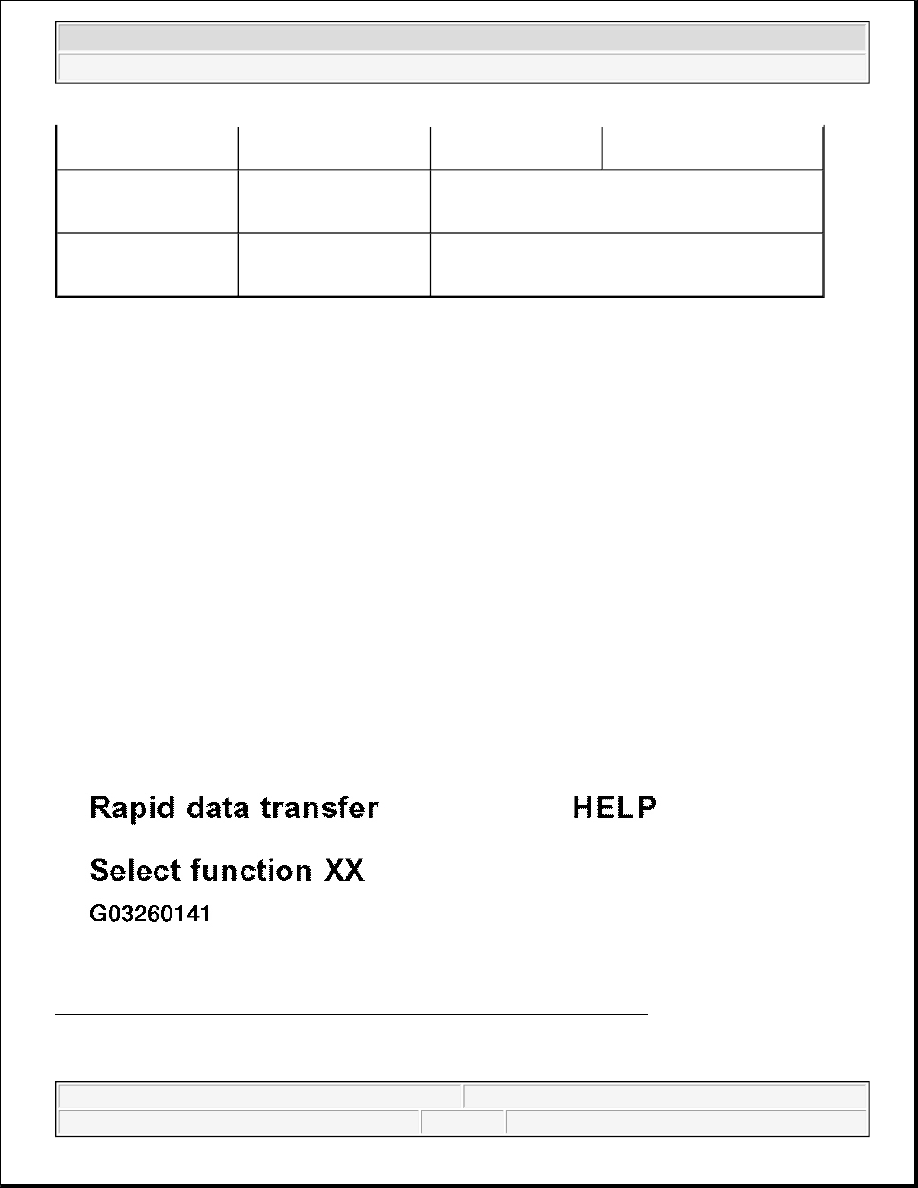

Fig. 16: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (1 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode".

radio

inoperative

01044
Control Module
incorrectly coded

z

Radio not coded

z

This DTC cannot be erased. Radio must be

coded.

65535
Control Module
Malfunctioning

z

Radio faulty

z

Replace radio.

NOTE:

z

Output Diagnostic Test Mode (DTM) cannot be initiated, or will be
interrupted if engine is running or vehicle is moving.

z

The -C- button can be used to exit the test sequence at any time.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Indicated on display

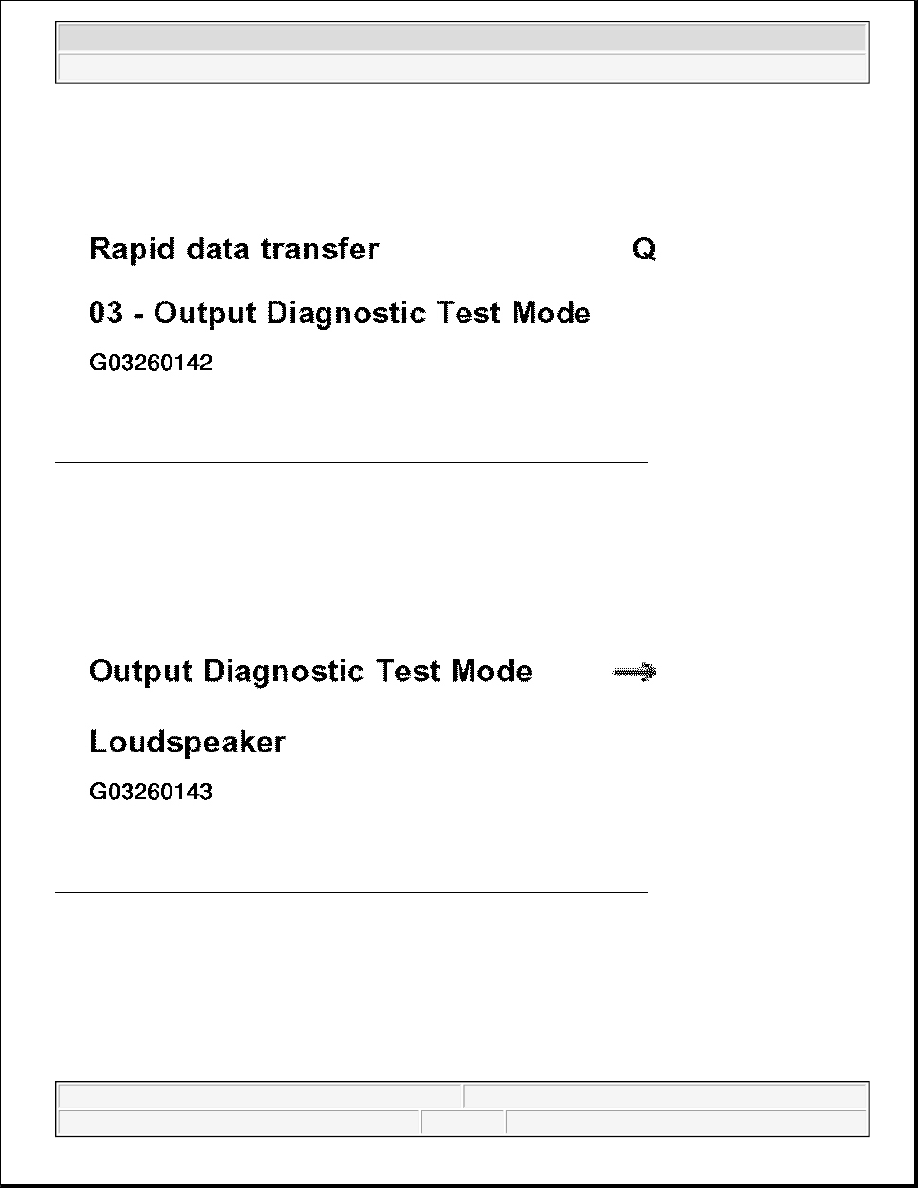

Fig. 17: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (2 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 18: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (3 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

A short loud tone is heard.

z

Press -->button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

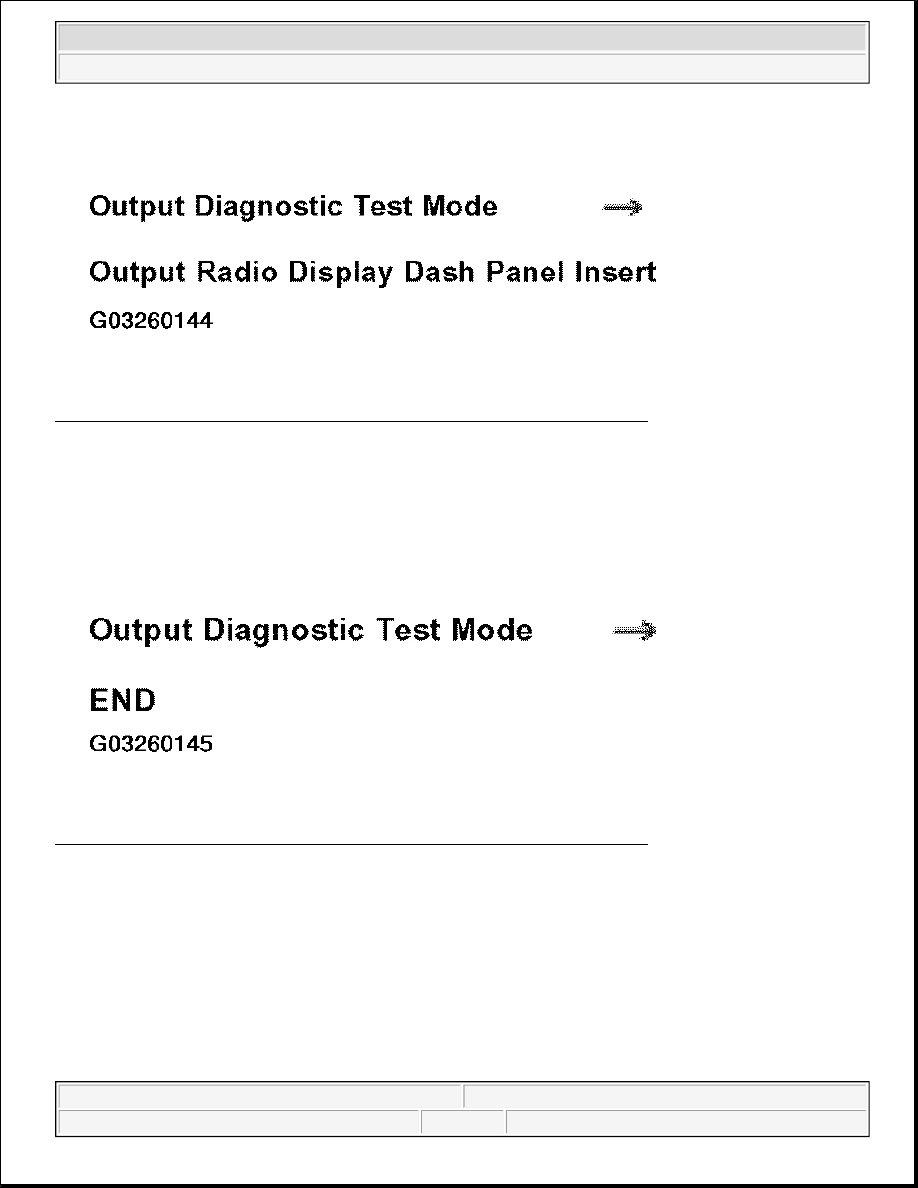

Fig. 19: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (4 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

Indicated on display

Fig. 20: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (5 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
