Volkswagen New Beetle. Manual - part 434

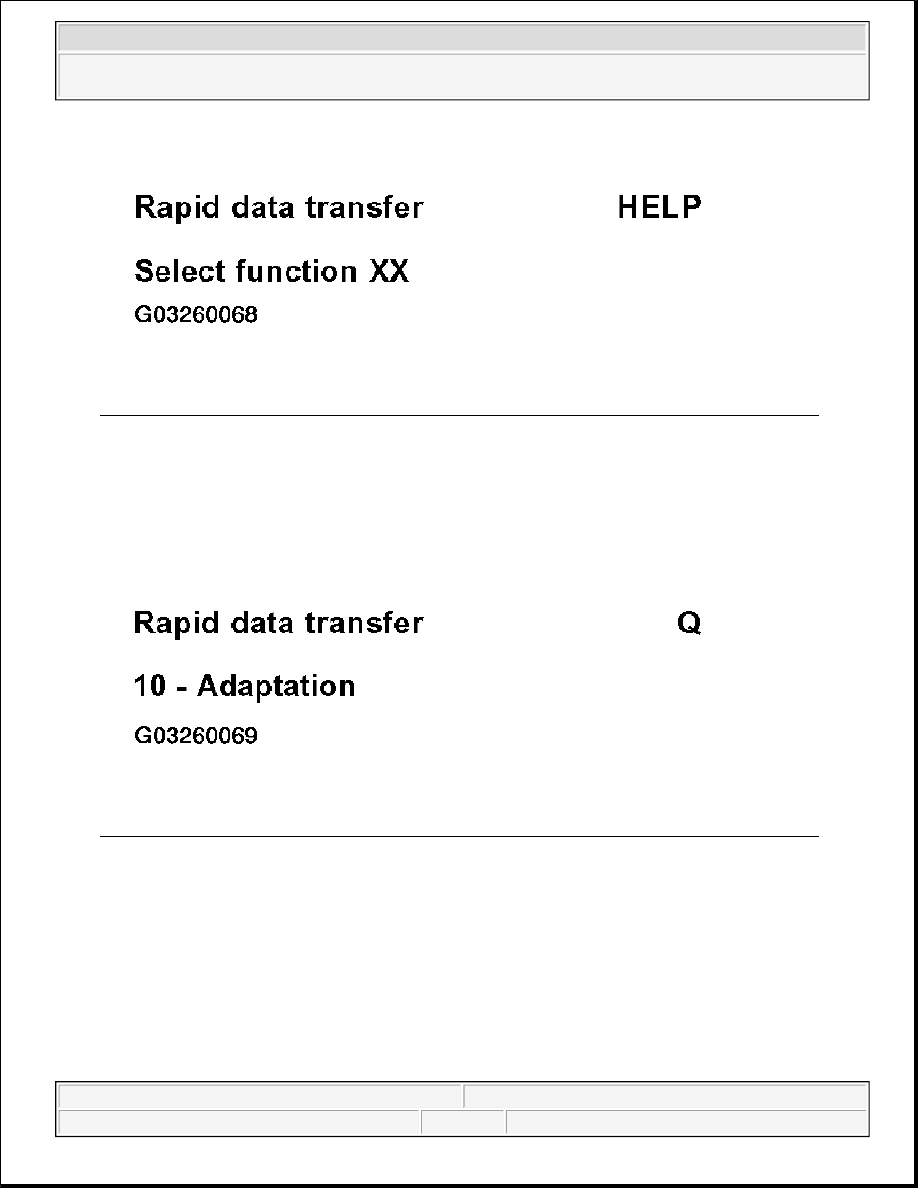

Fig. 168: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (17 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Distance impulse number (K number), reading

The distance impulse number is a constant used by the instrument cluster to calculate speed and distance
travelled.

z

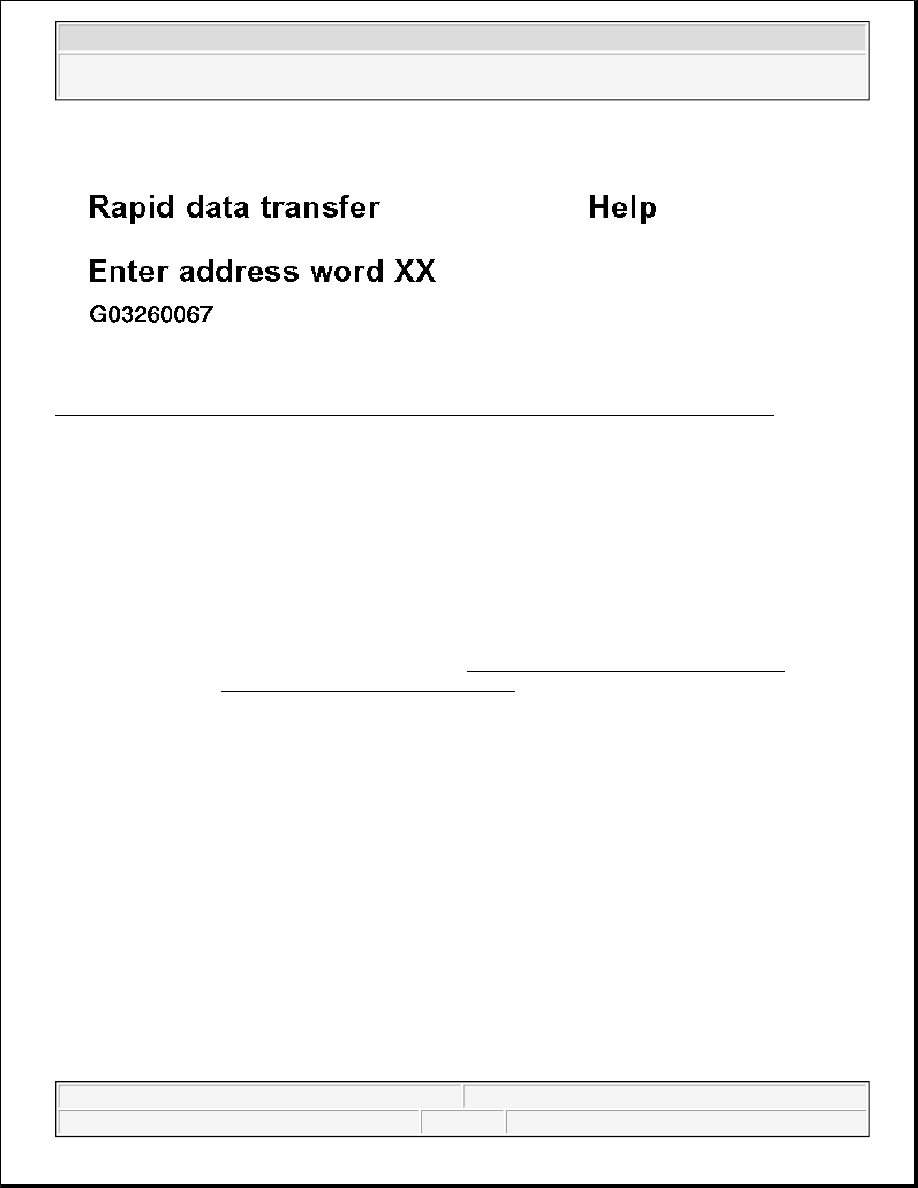

Connect scan tool VAG 1551, select operating mode 1 "Rapid data transfer", switch on ignition and enter
address word 17 "Instrument cluster".

After control module identification and immobilizer identification number are displayed:

z

Press -Q- button to confirm input.

Indicated on display (select function):

z

Press buttons -1- and -0- to select function 10 "Adaptation".

NOTE:

z

The distance impulse number (K number) is preset from the manufacturer
and cannot be changed.

z

To change the distance travelled number, a code number corresponding to
the vehicle engine/gearbox combination must be entered using function 07
"Code Control Module". See INSTRUMENT CLUSTER UP TO 10.00
MODELS, CODING (FUNCTION 07) .

z

For instrument clusters with a display in miles, the distance impulse
number will still be displayed for kilometers.

z

Distance impulse number for miles can be converted to kilometers
(Distance impulse number for kilometers x 1.609 = distance impulse
number for miles).

z

Interrupt reading of distance impulse number by pressing C button on
VAG 1551.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 169: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (18 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

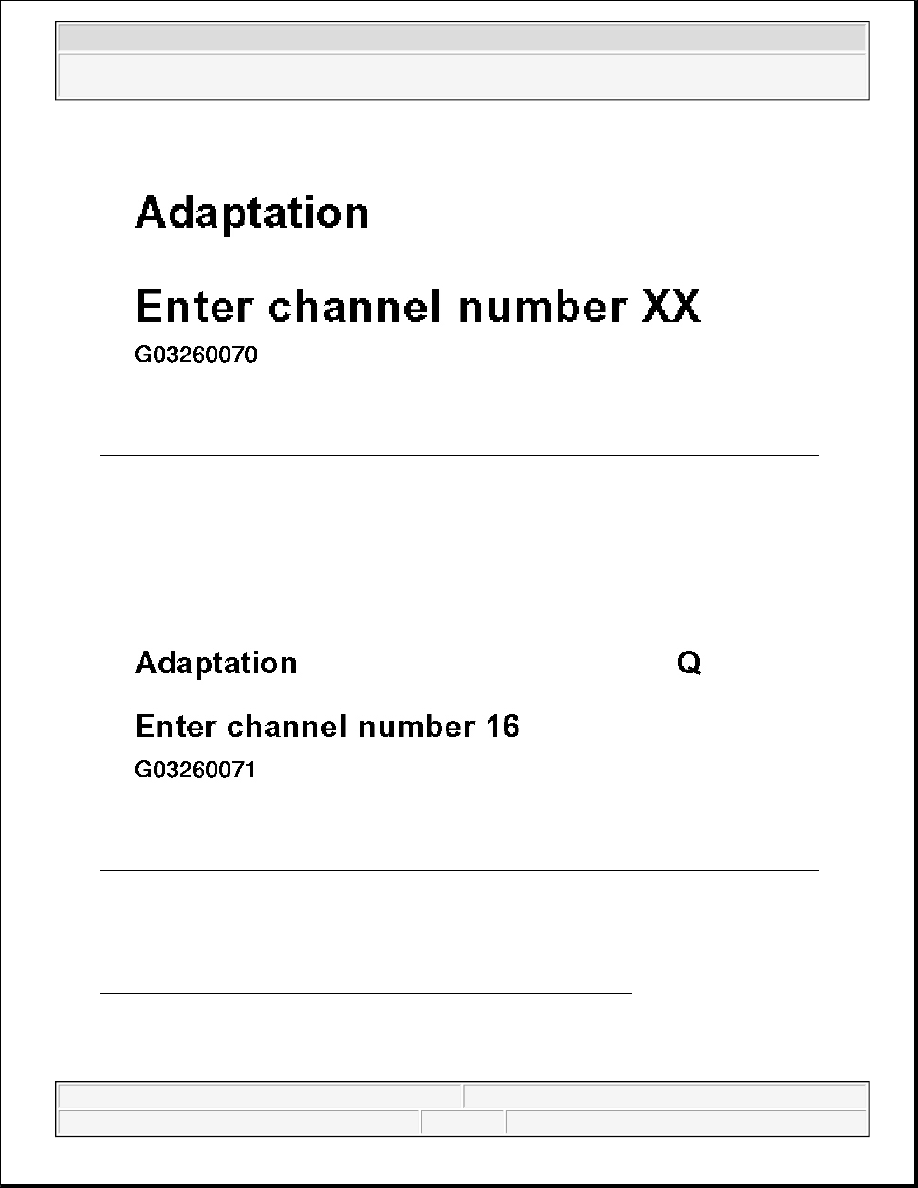

Fig. 170: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (19 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -1- and -6- to select channel 16.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

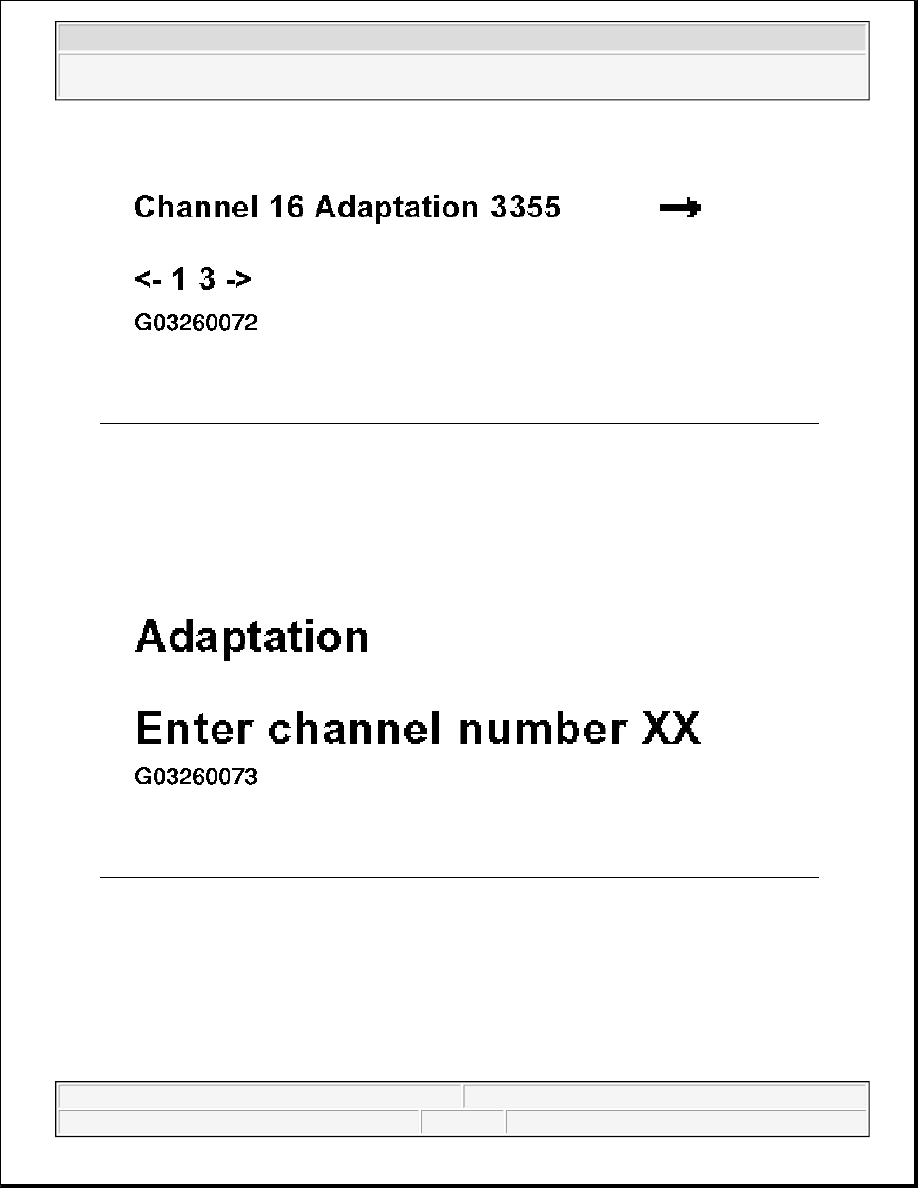

Fig. 171: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (20 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 172: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (21 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Compare distance impulse number for vehicle engine/gearbox combination with table. See
INSTRUMENT CLUSTER CODE TABLE (UP TO 10.00 MODELS) .

z

Interrupt reading of distance impulse number by pressing -C- button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 173: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (22 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press "C" button.

Fig. 174: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (23 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -0- and -6- to select function 06 "End output".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
