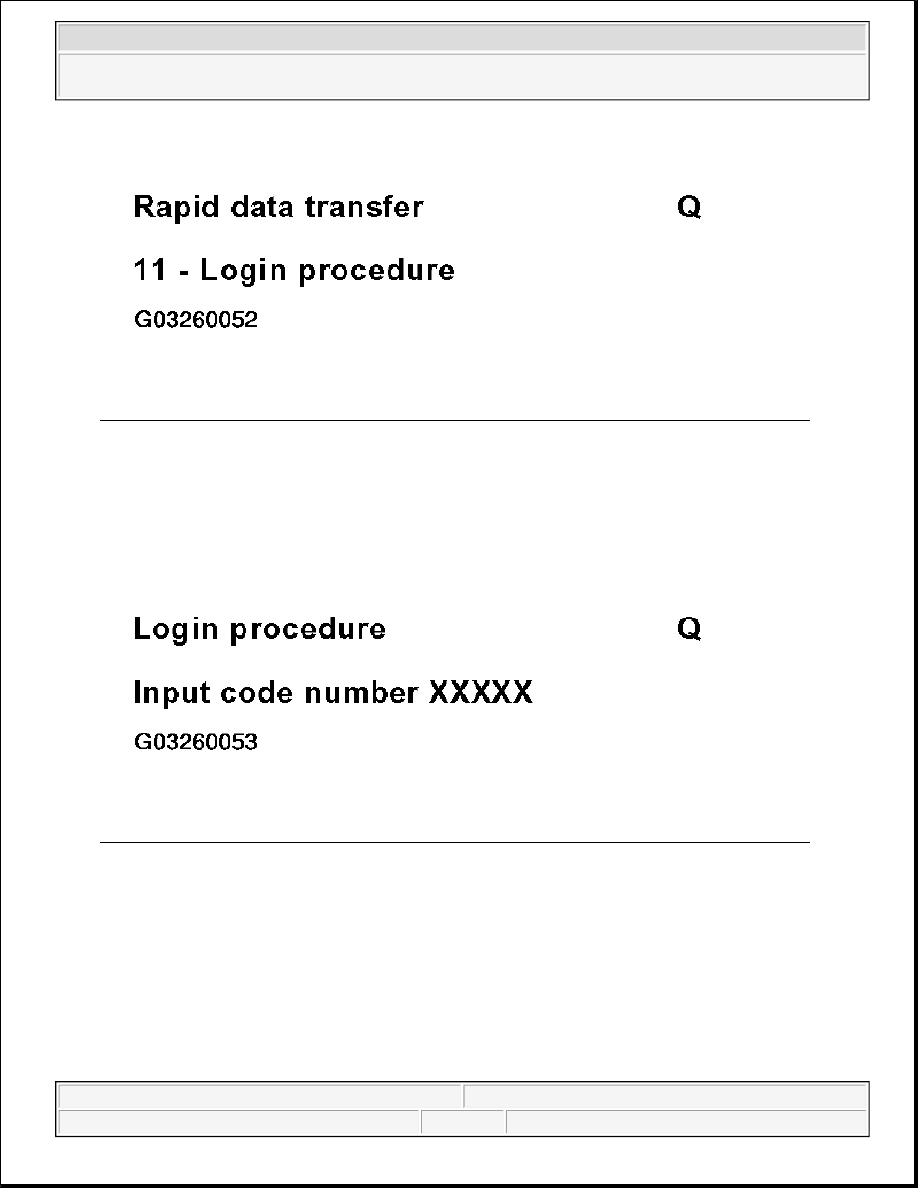

Fig. 153: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (2 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

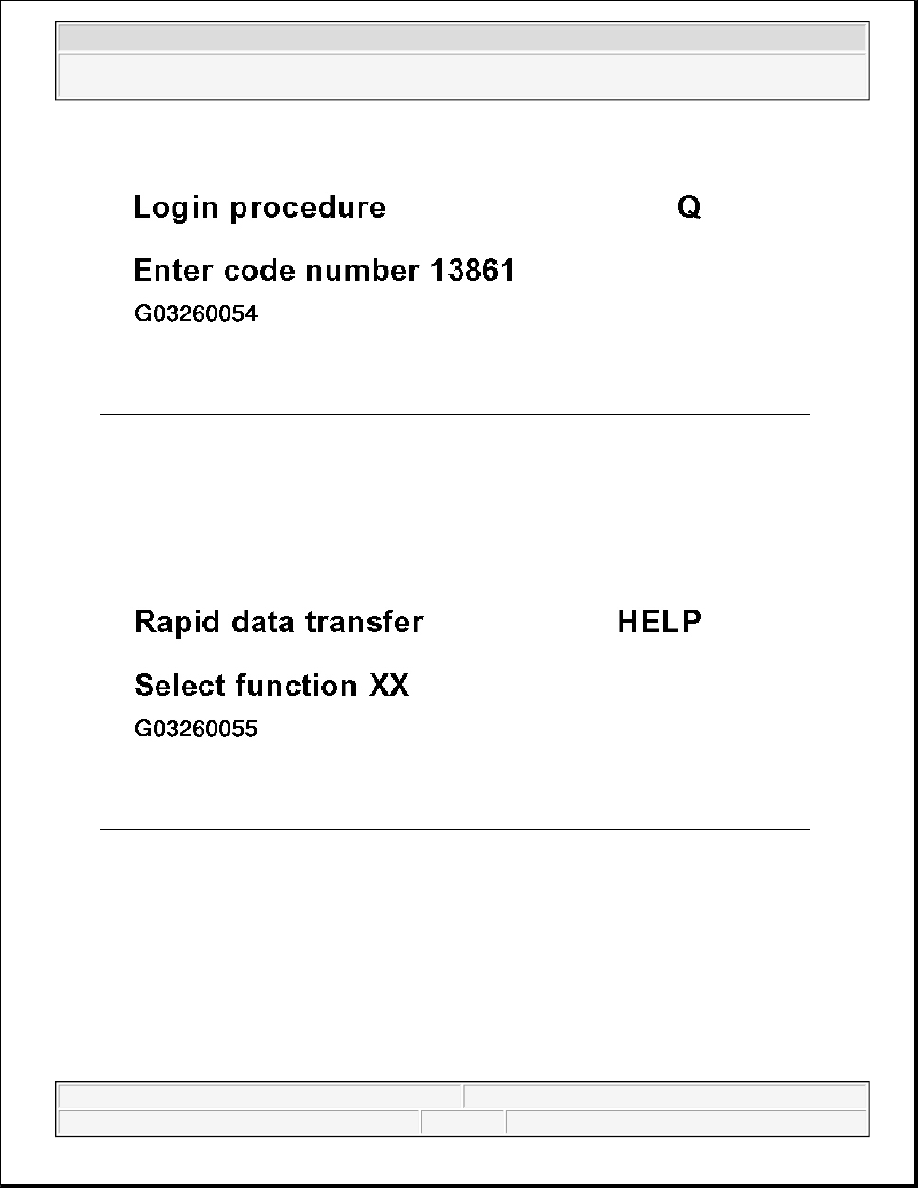

Input code number 13861.

Fig. 154: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (3 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

If a wrong code is entered, "FAIL" appears in odometer display.

In this case, battery terminal 30 must be disconnected and reconnected and the login procedure repeated using
the correct code.

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 155: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (4 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

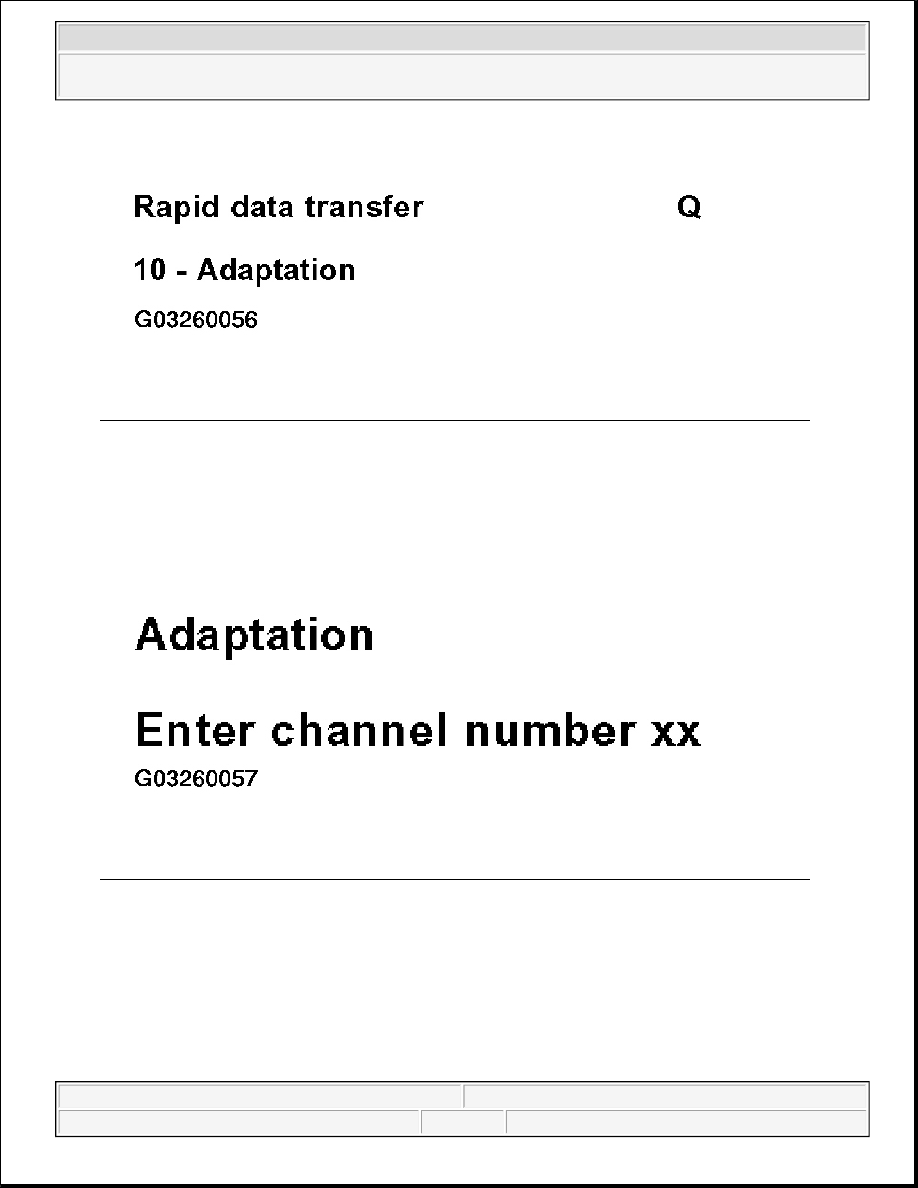

Press buttons -1- and -0- to select function 10, "Adaptation".

Fig. 156: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (5 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 157: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (6 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

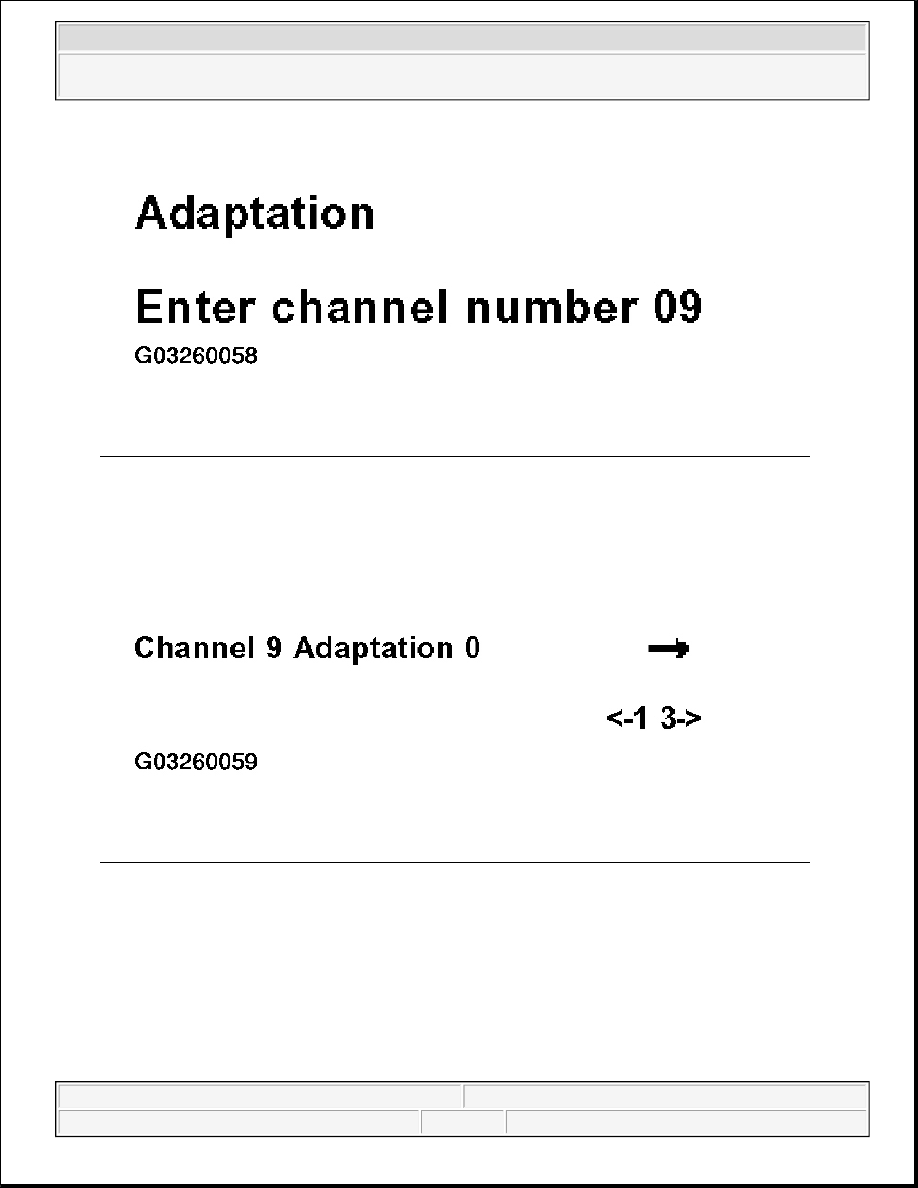

Press buttons -0- and -9- to select channel 09.

Fig. 158: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (7 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 159: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (8 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicated on display:

z

Move forward in program by pressing --> button.

Fig. 160: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (9 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Input adaptation value (odometer reading) using VAG 1551/1552 button pad.
