Volkswagen New Beetle. Manual - part 366

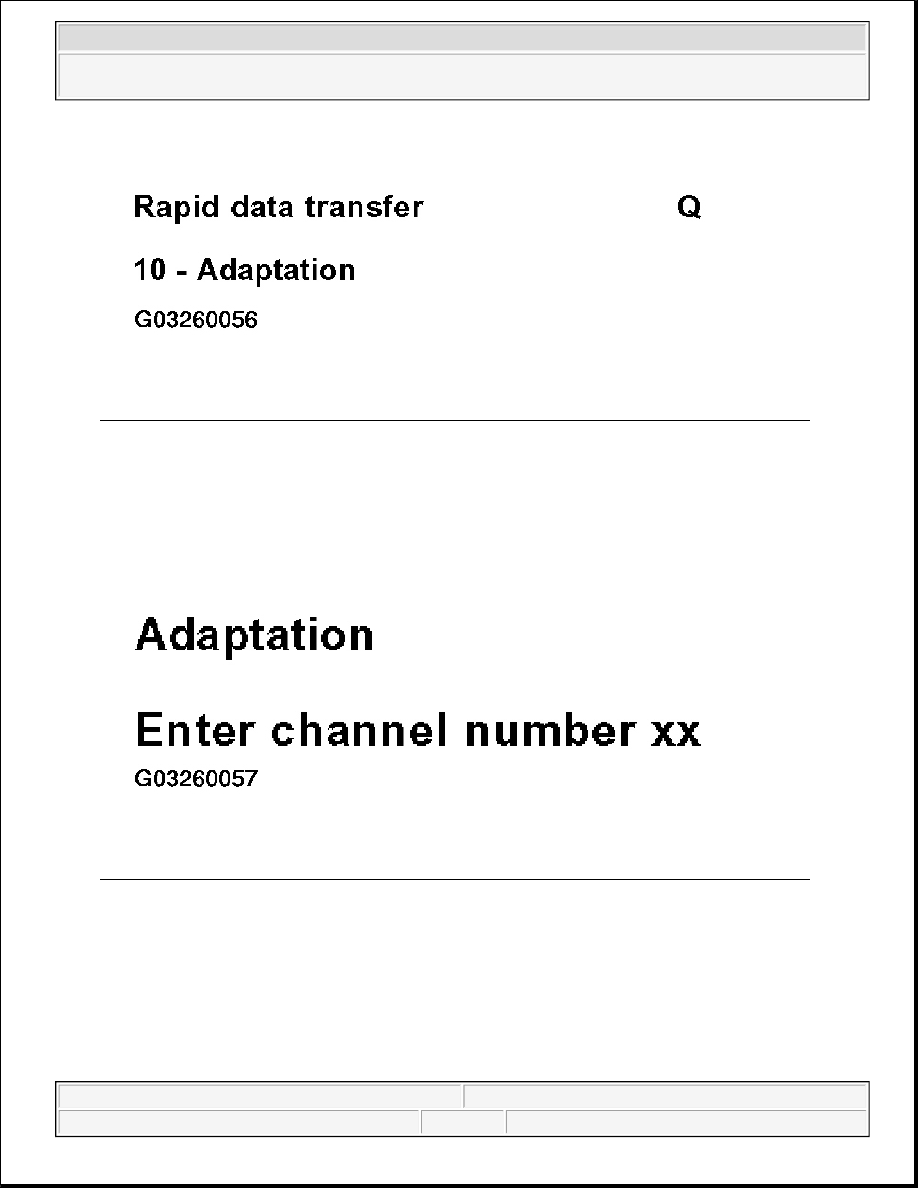

Fig. 157: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (6 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -0- and -9- to select channel 09.

Fig. 158: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (7 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

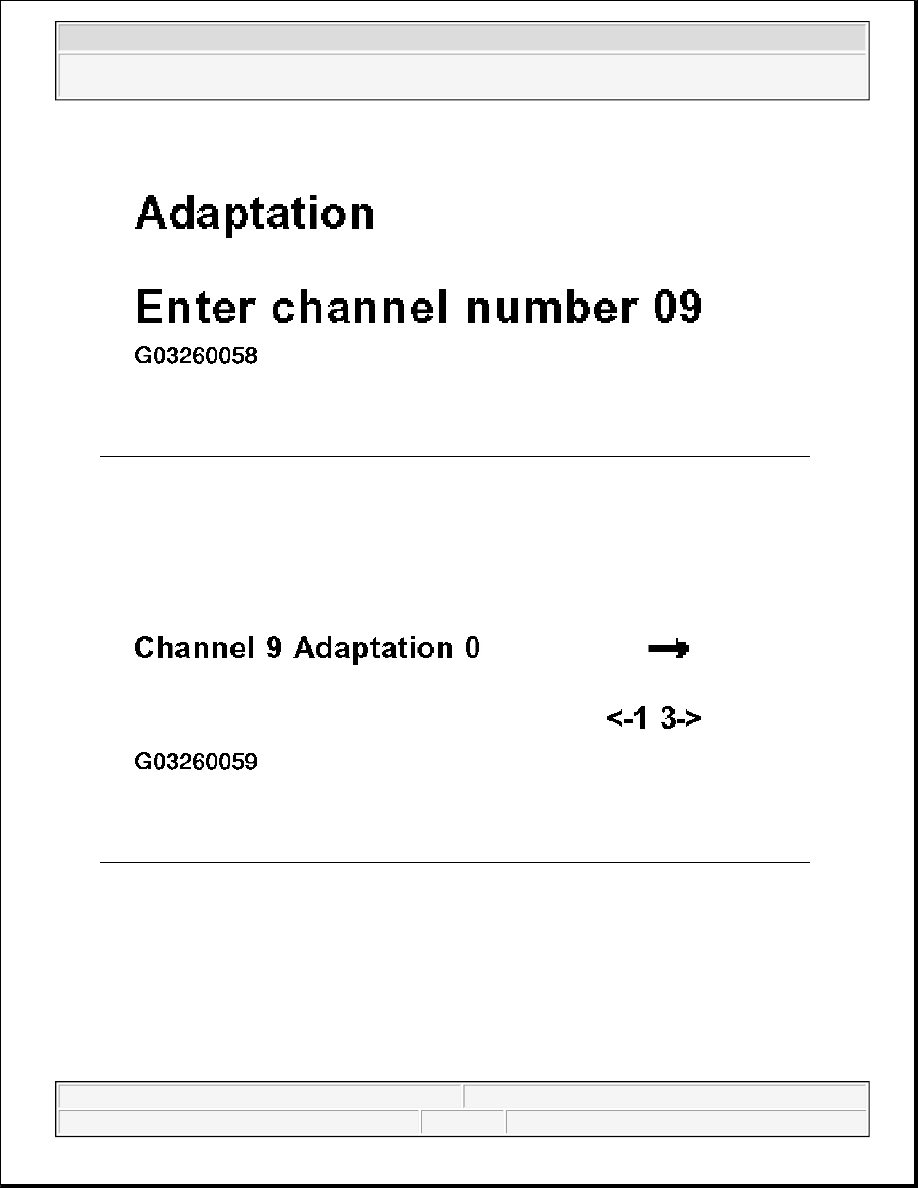

Fig. 159: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (8 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicated on display:

z

Move forward in program by pressing --> button.

Fig. 160: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (9 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Input adaptation value (odometer reading) using VAG 1551/1552 button pad.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 161: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (10 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The last position of the odometer reading must be rounded off to the nearest 10.

For US models, first convert miles to kilometers (e.g., 55704 mi X 1.609 = 89627 km)

An odometer reading of 89627 kilometers produces an adaptation value of: 08963

ODOMETER ADAPTATION CHART

z

Input adaptation value using VAG 1551/1552 button pad.

Indicated on display:

z

Press -Q- button to confirm input.

X

-

-

-

-

Hundred thou.: 100000 ... 655350 km

-

X

-

-

-

Ten thousands: 10000 ... 90000 km

-

-

X

-

-

Thousands: 1000 ... 9000 km

-

-

-

X

-

Hundreds: 100 ... 900 km

-

-

-

-

X

Tens: 10 ... 90 km

-

-

-

-

-

Ones: round up to next ten



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

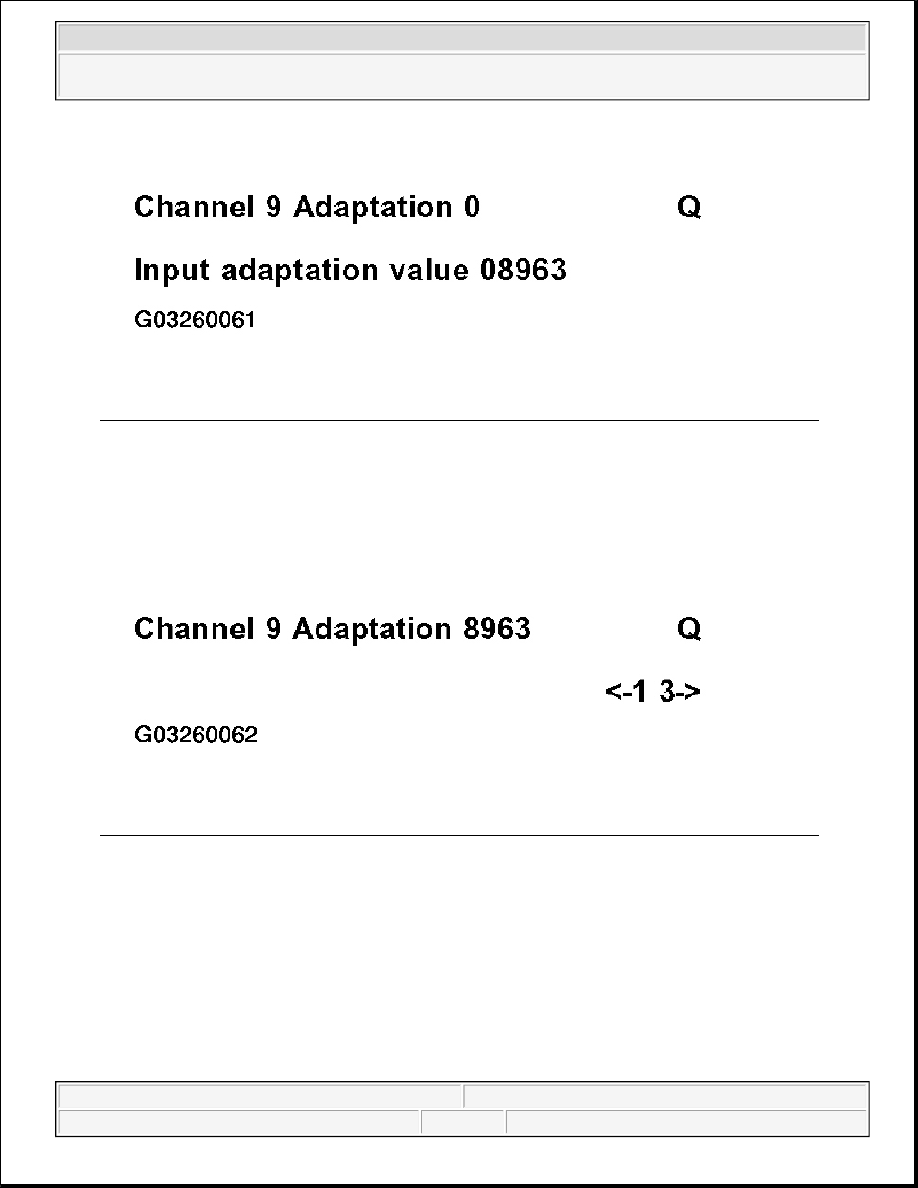

Fig. 162: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (11 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 163: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (12 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

If adaptation value is not correct, e.g. a false entry:

z

Press -C- button to input correct value .

z

Press -Q- button to confirm input .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
