Volkswagen New Beetle. Manual - part 331

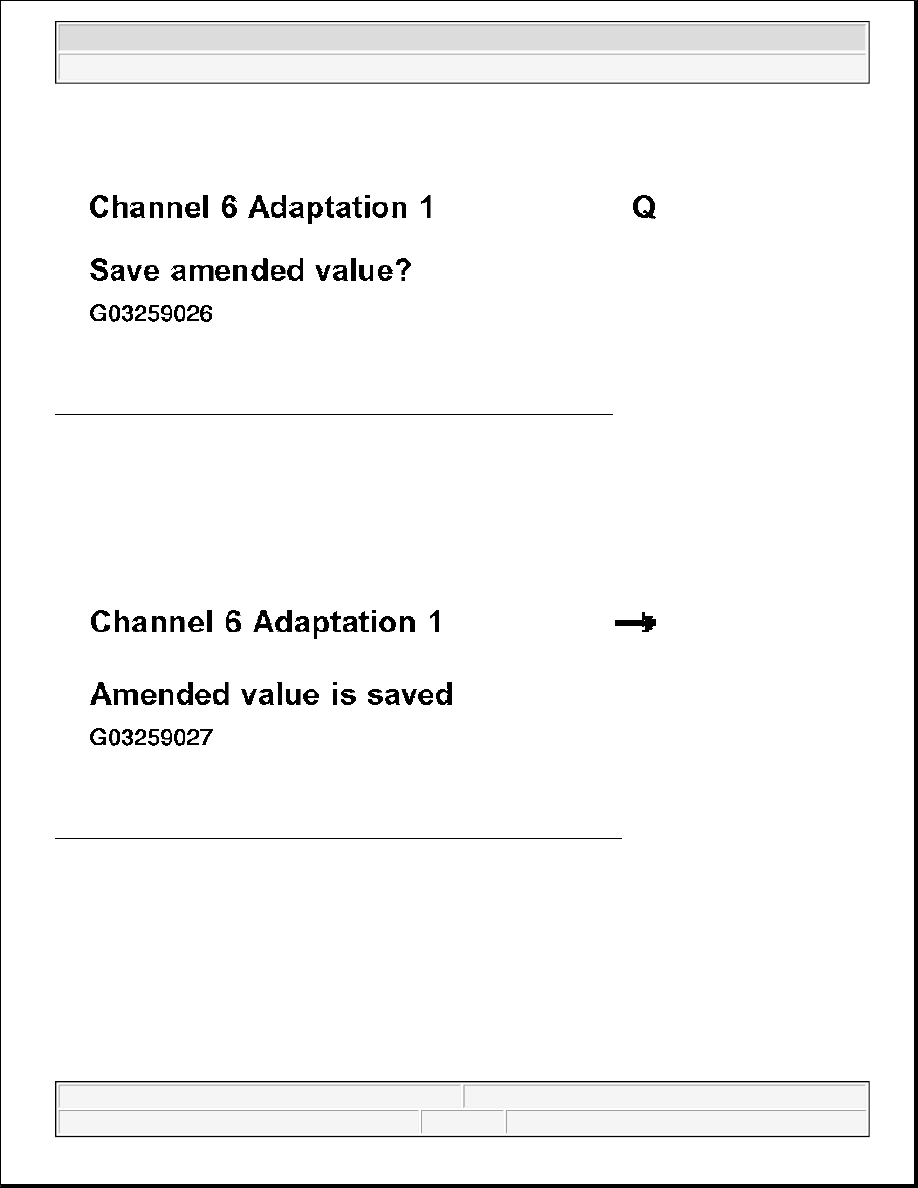

Fig. 226: Scan Tool Display - Central Locking System Function (9 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 227: Scan Tool Display - Central Locking System Function (10 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

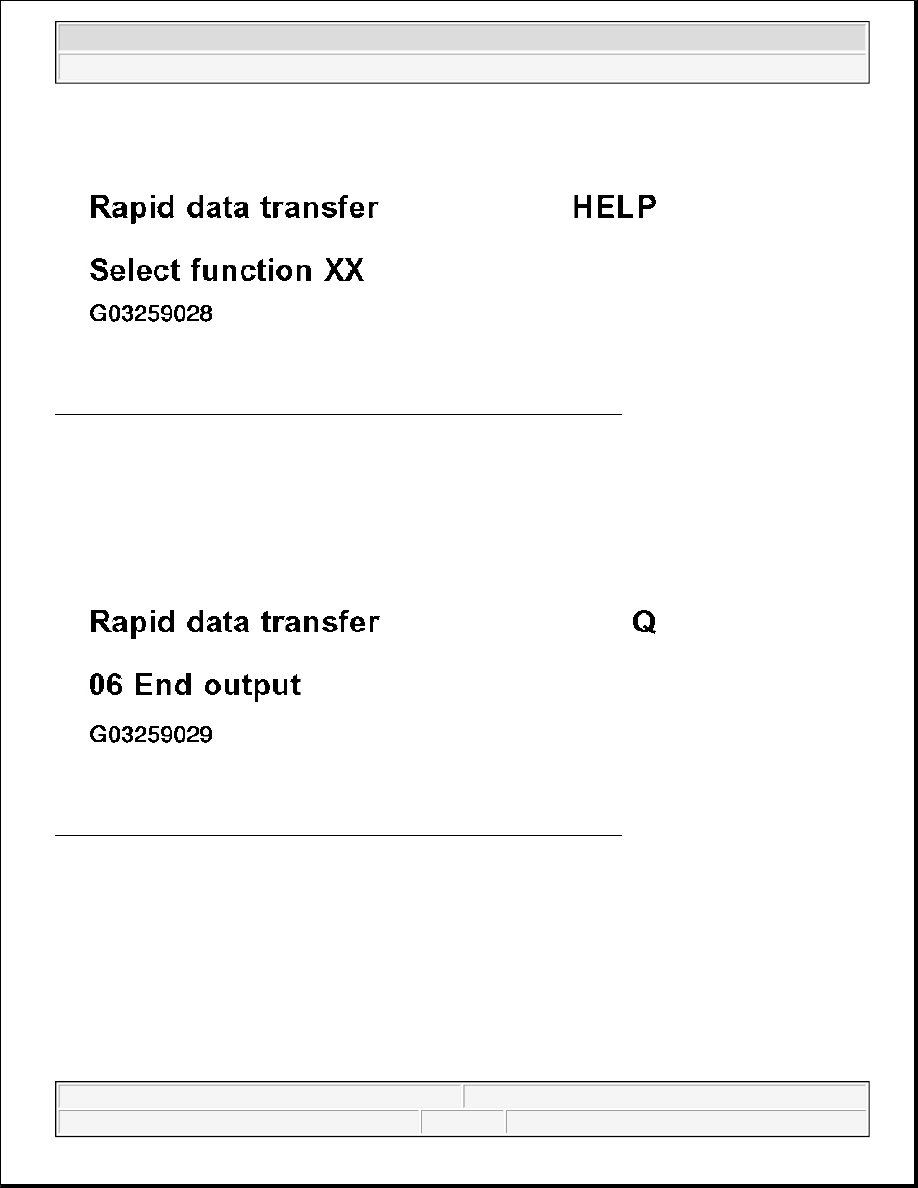

Fig. 228: Scan Tool Display - Central Locking System Function (11 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 229: Scan Tool Display - Central Locking System Function (12 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

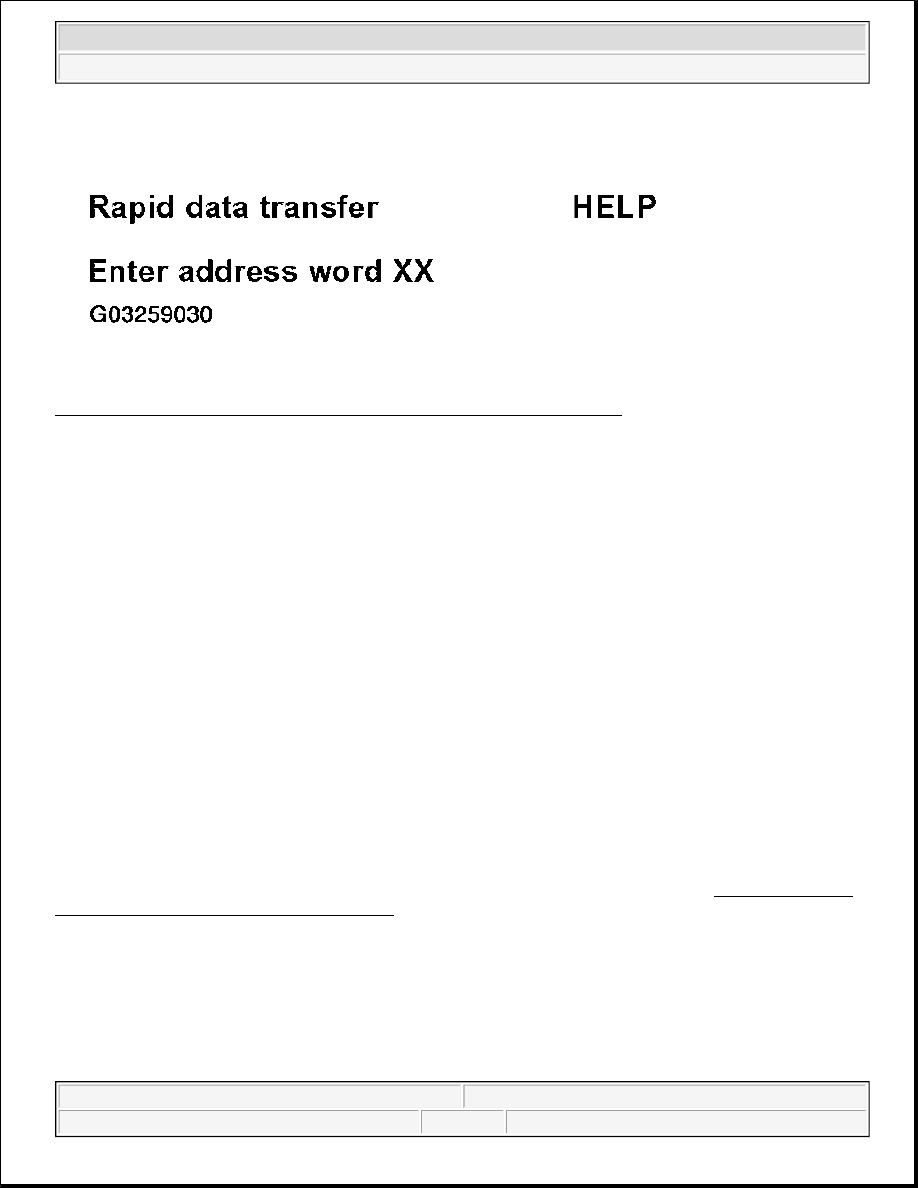

Fig. 230: Scan Tool Display - Central Locking System Function (13 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

REAR SPOILER, ON BOARD DIAGNOSIS (OBD)

FUNCTIONAL DESCRIPTION

The rear spoiler raises automatically when the vehicle speed reaches 150 km/h (approx. 94 mph). If, at this
speed the sunroof is open or raised then the sunroof will close automatically.

If the vehicle speed drops below 130 km/h (approx. 81 mph) the rear spoiler will lower automatically. The
sunroof will open again.

The Rear spoiler control module -J223- detects malfunctions in the rear spoiler system and stores these in a non-
volatile memory.

Using On Board Diagnosis (OBD) the malfunctions can be read and repairs undertaken using Guided Fault
Finding.

A malfunction in the rear spoiler system is indicated via the rear spoiler warning lamp -arrow- when in the
automatic mode. The warning lamp also lights up when rear spoiler is raised manually; see REAR SPOILER,
MANUALLY RAISING AND LOWERING
.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

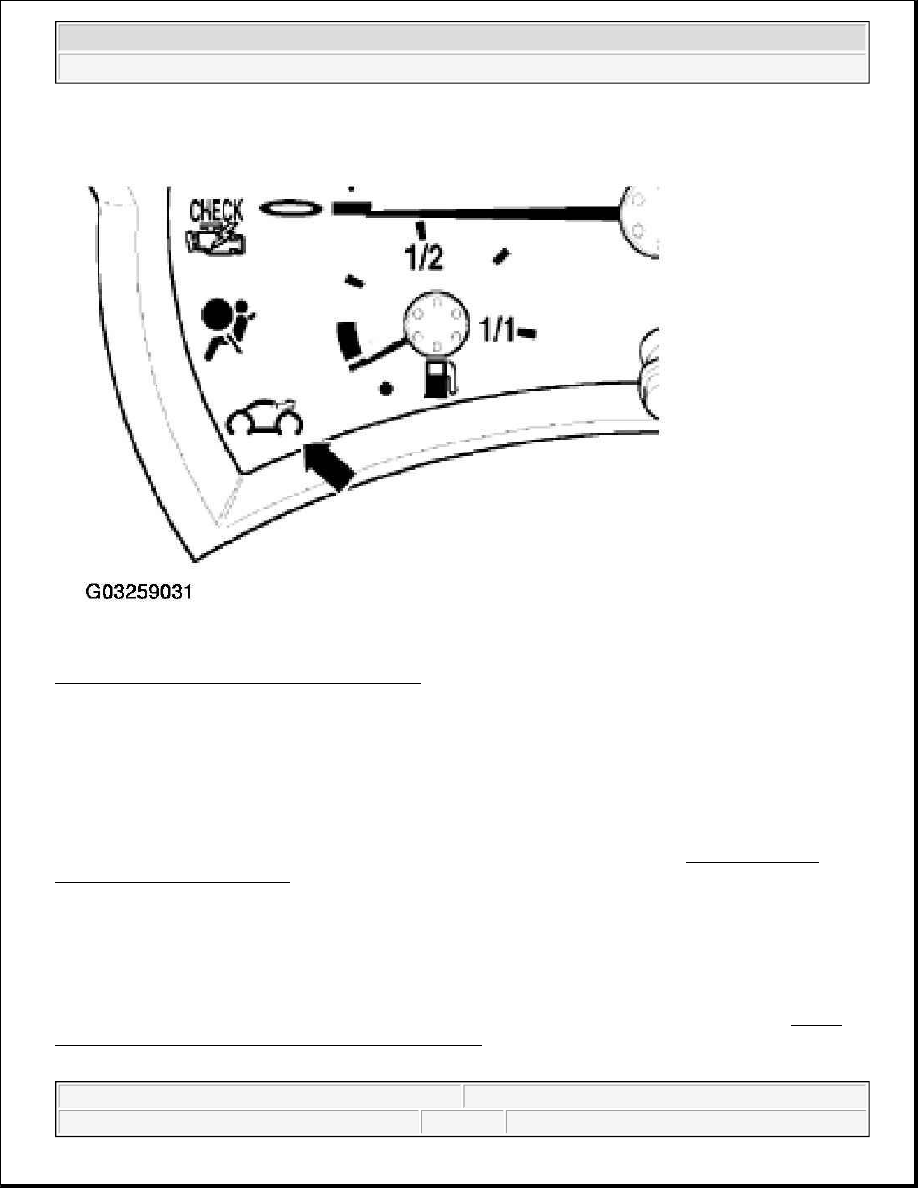

Fig. 231: Locating Rear Spoiler Warning Lamp
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After the ignition is switched on, the warning lamp comes on for about 4 seconds and then goes out again.

A malfunction is present if the warning lamp lights up again. Check DTC memory; see DTC MEMORY,
CHECKING (FUNCTION 02)
 .

After having changed the Rear spoiler control module -J223- or after interrupting the voltage supply, the control
module is initialized when the spoiler is raised and lowered manually for the first time (or a vehicle speed of 20
km/h is reached). When doing this, the control module ending points (rear spoiler lowered and raised) are
detected and stored.

During this initialization the gradual lowering for the "manual" lowering and raising is not active; see REAR
SPOILER, MANUALLY RAISING AND LOWERING
.

WARNING:

The behavior of the vehicle can change at high speeds if the spoiler does
not move into the raised position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
