Volkswagen New Beetle. Manual - part 329

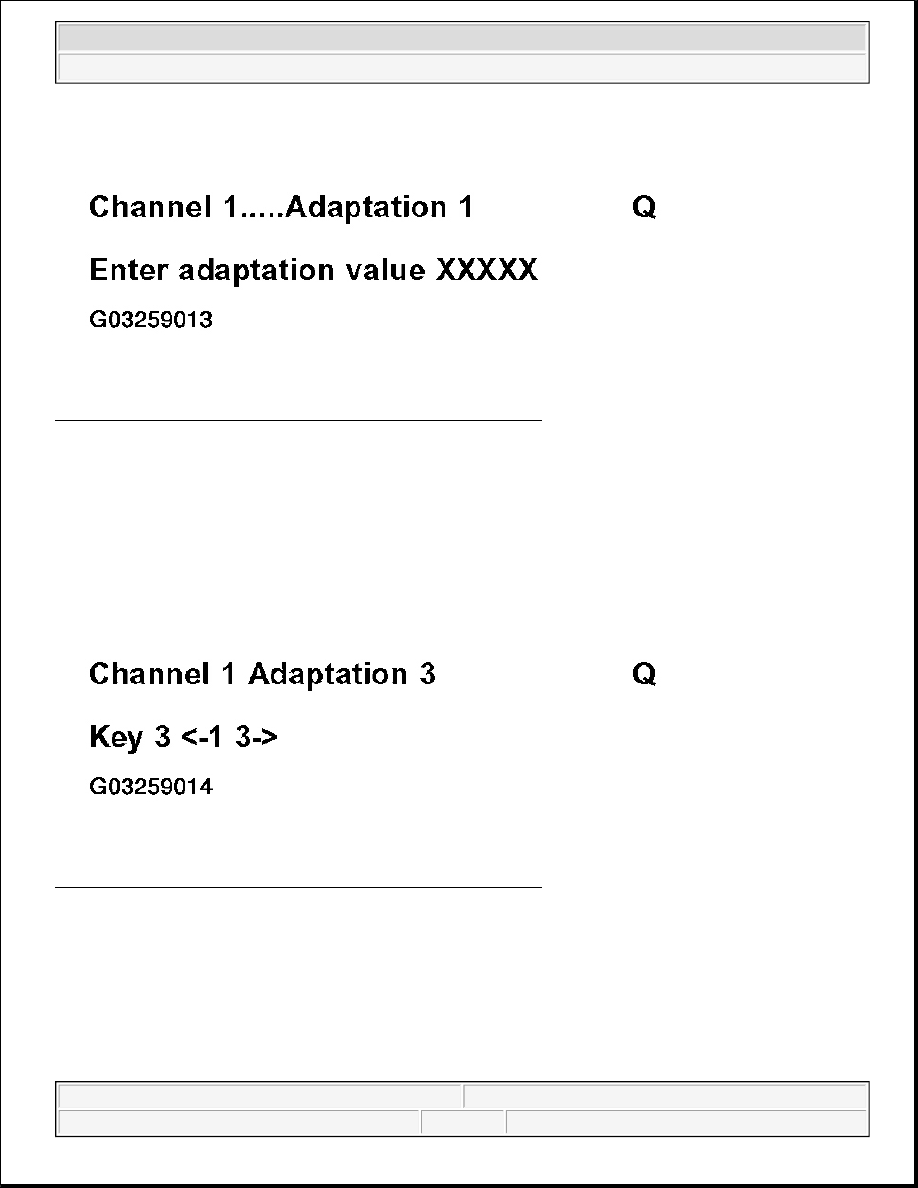

Fig. 213: Scan Tool Display - Adapting Ignition Keys (11 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press the -0- button four times and then enter the number of all ignition keys to be adapted, including the
existing key, (e.g. 00003); max. Qty of 4 possible.

z

Confirm entry with -Q- button.

Indicated on display: Number of radio wave key to be "learned".

Fig. 214: Scan Tool Display - Adapting Ignition Keys (12 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

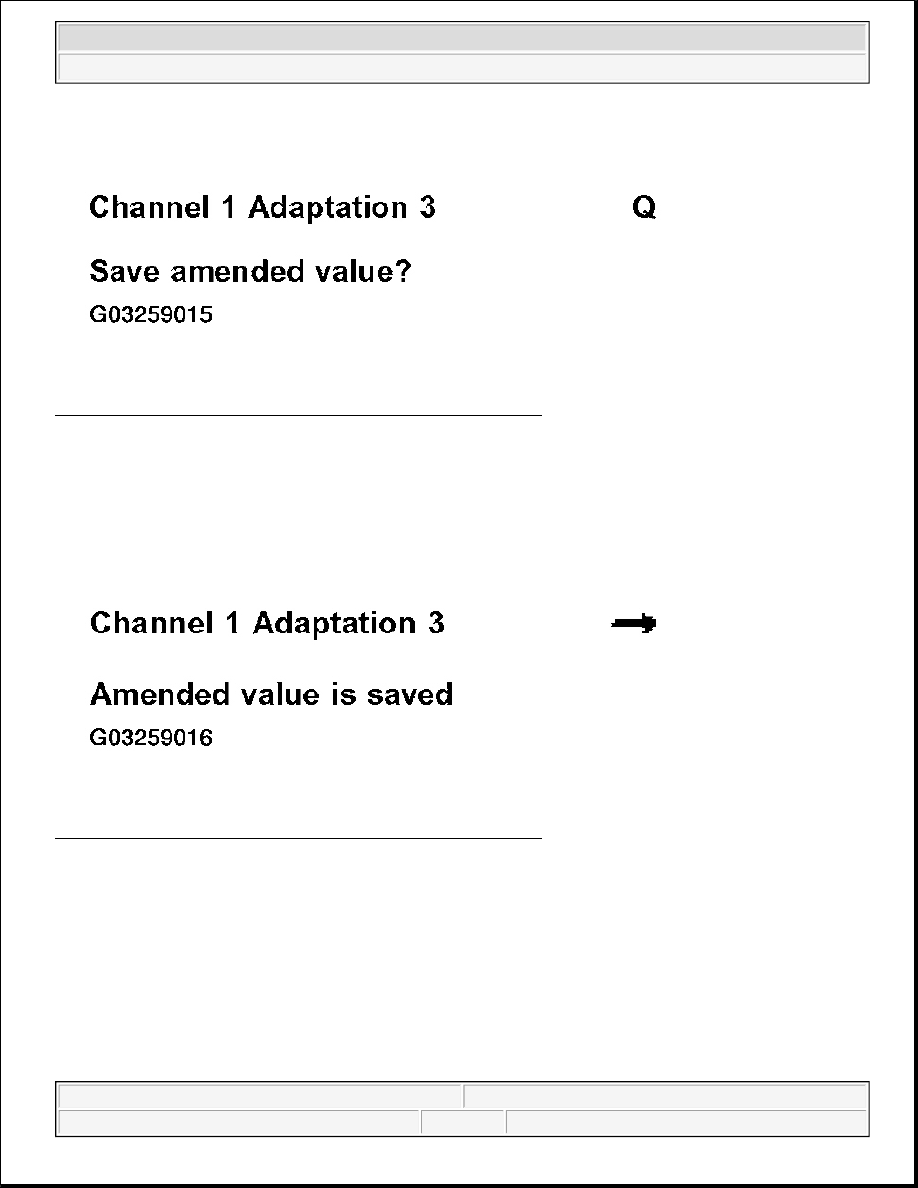

Fig. 215: Scan Tool Display - Adapting Ignition Keys (13 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

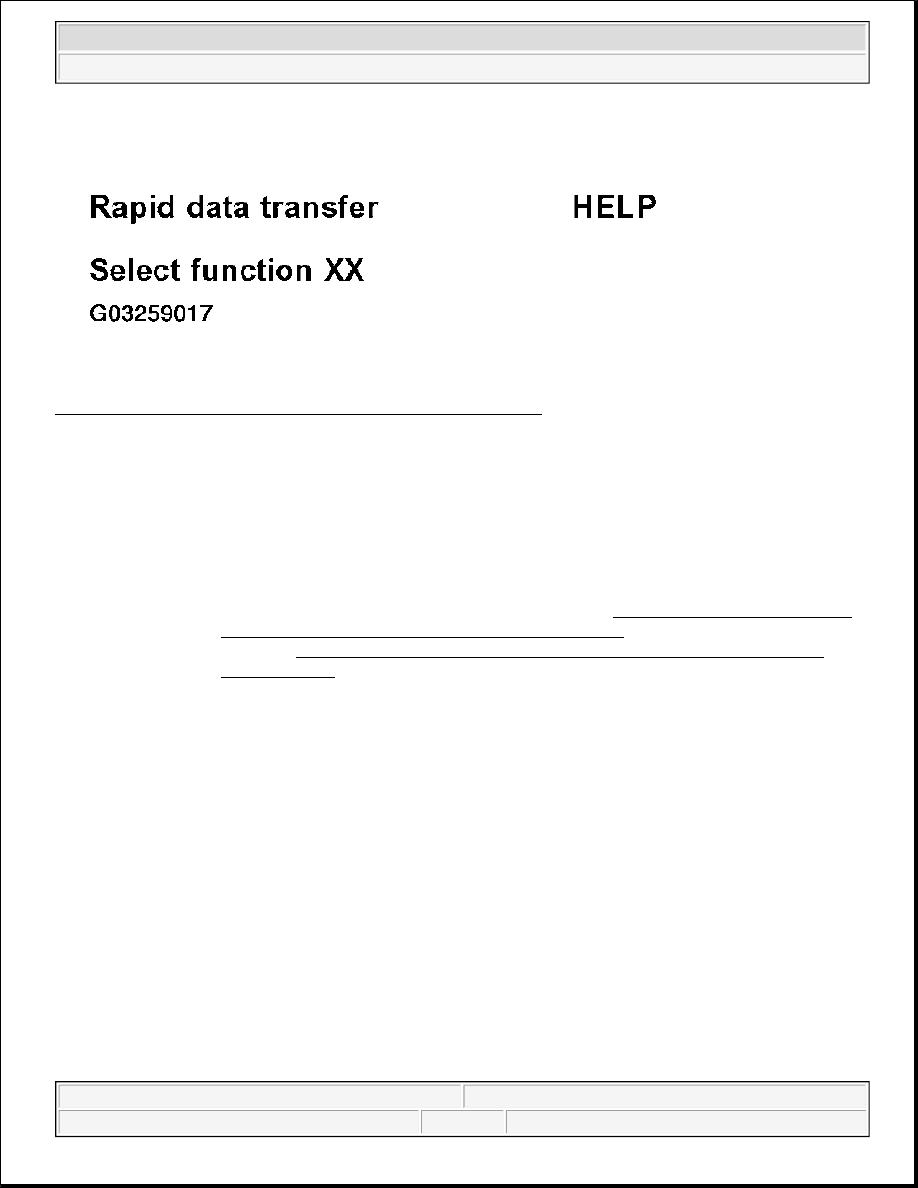

Fig. 216: Scan Tool Display - Adapting Ignition Keys (14 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 217: Scan Tool Display - Adapting Ignition Keys (15 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate button on each of the radio wave remote control keys to be learned/taught once, for at least 1
second (3 keys in above example).

z

Switch off ignition and remove ignition key.

z

Perform functional check (e.g. 3) of radio wave keys.

The adaptation of ignition keys is automatically terminated when:

z

Number of keys to be adapted is reached.

z

A button of one of the keys to be "learned" is pressed frequently.

z

Permissible matching period of 15 seconds is exceeded (DTC is stored).

z

Select function 02 "Interrogate DTC memory". If there is no DTC stored, the matching of the keys has
been successfully completed.

NEW ADDITIONAL KEY, ADAPTING

NOTE:

z

A successful adaptation can be proven in read measured value block
(Function 08), display group number 006, see BREAK DOWN OF DISPLAY
CONTENT FOR DISPLAY GROUP NUMBER 006 ; or display group number
009, see BREAK DOWN OF DISPLAY CONTENT FOR DISPLAY GROUP
NUMBER 009 .

z

All 3 keys (see example) can be learned/taught in one adaptation
sequence.

z

After the functions have been completed the V.A.G 1551 returns to the
mentioned start position.

z

When adapting all keys (pressing a button), 15 seconds must not be
exceeded.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Insert a mechanically correct (old) ignition key in the ignition lock.

z

Switch on ignition.

z

Using a new (not taught / not learned) key, mechanically lock the vehicle (e.g. drivers door) and then
operate one of the remote control buttons on key.

z

After a pause of more than one second, operate one of the remote control buttons on key a second time.

z

The adaptation sequence is complete and will be confirmed by the vehicle by a feedback horn beep.

The various functions listed in the table can be called up by selecting channel numbers 03...10 and adapted.

CENTRAL LOCKING SYSTEM FUNCTIONAL VARIATIONS

CENTRAL LOCKING SYSTEM FUNCTIONAL VARIATIONS

The adaptation shown here is only an example.

Indicated on display:

z

Press buttons -1- and -0- (10 selects the "Adaptation" function).

Channel
number

Significance

Measured value

03

Auto-lock/Unlock: Vehicle is locked automatically when reaching a

speed of 15km/h (approx. 9.5 mph)

on=1 off = 0

04

Auto-lock/Unlock: Vehicle is unlocked automatically when

removing ignition key from ignition lock

on=1 off = 0

05

IM switch off: Interior monitor (IM) is activated/deactivated by

pressing central locking "lock" twice

on=1 off = 0

06

Horn tone for unlock: Confirmation sound when unlocking

(1)

on=1 off = 0

07

Horn tone for lock: Confirmation sound when locking

(1)

on=1 off = 0

08

Indicators flash when unlocking: Confirmation flash of turn signals

when unlocking

on=1 off = 0

09

Indicators flash when locking: Confirmation flash of turn signals

when locking

on=1 off = 0

10

Adjusting alarm horn: Programming alarm horn to react when

triggered to meet the relevant statutory regulations for the respective

country

1 = Rest of Europe 2=

Germany 3= UK

(1)

No longer permitted in Germany according to current statutory regulations.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
