Volkswagen New Beetle. Manual - part 328





z

Confirm entry with -Q- button.

Indicated on display:

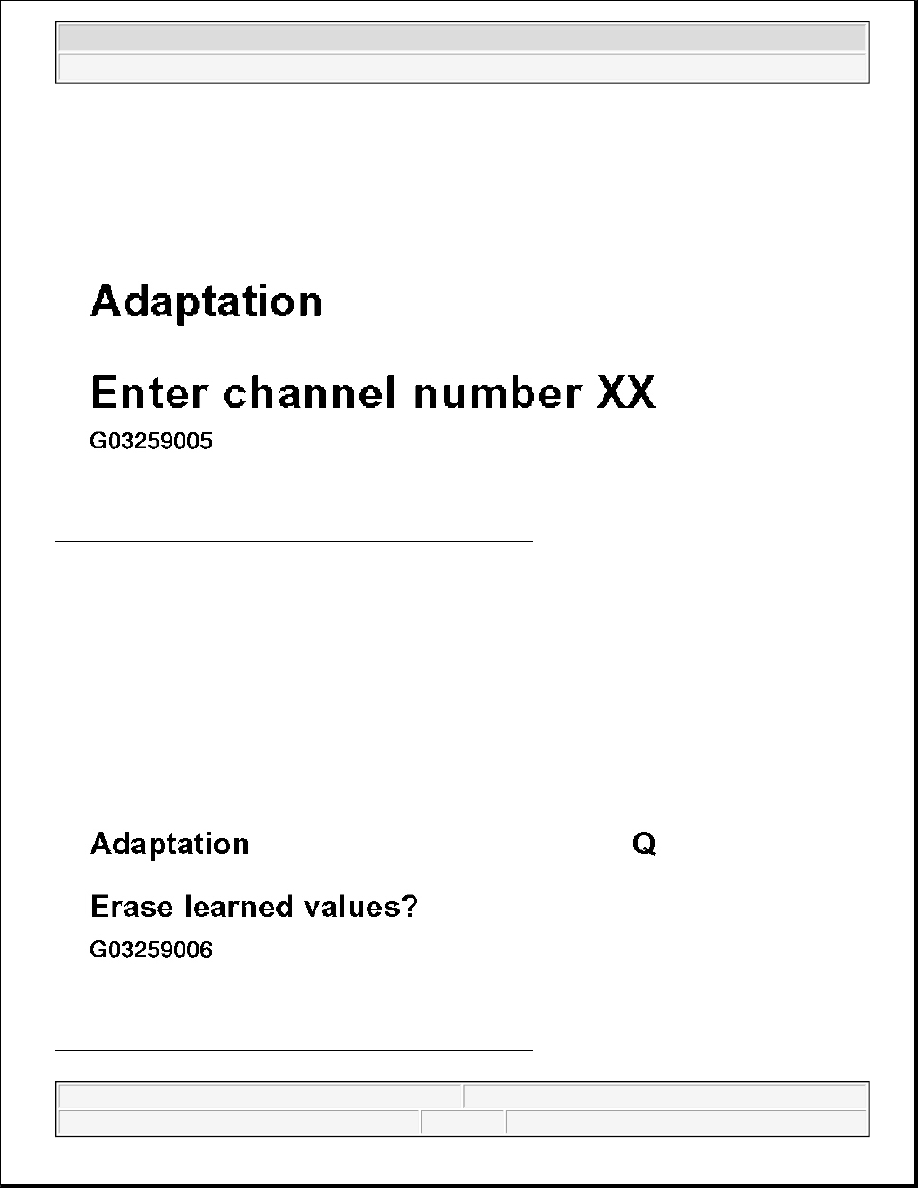

Fig. 205: Scan Tool Display - Adapting Ignition Keys (3 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -0- (all keys are erased with channel number 00).

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 206: Scan Tool Display - Adapting Ignition Keys (4 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

It is not possible to match a new or additional key (s) without erasing existing
learned/matched key (s).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Confirm entry with -Q- button.

Indicated on display:

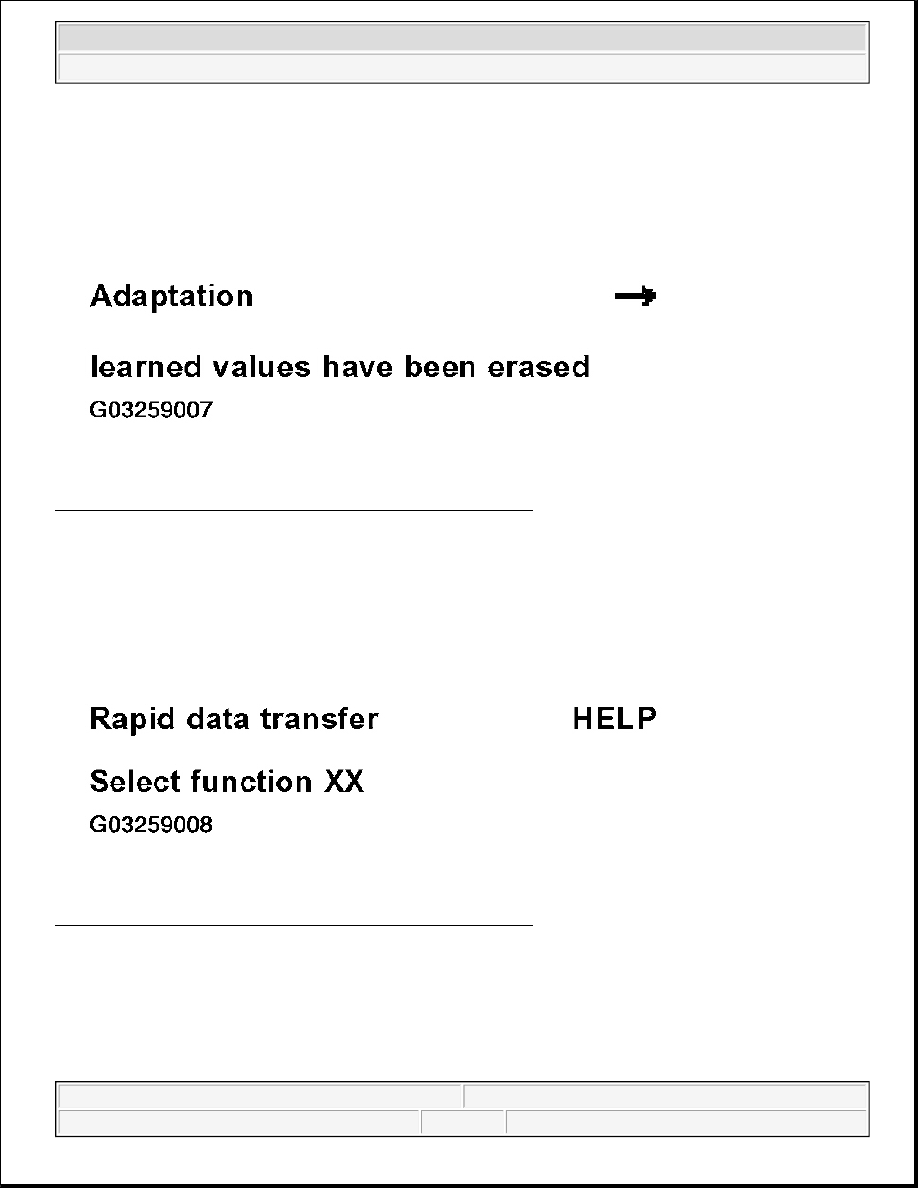

Fig. 207: Scan Tool Display - Adapting Ignition Keys (5 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

Fig. 208: Scan Tool Display - Adapting Ignition Keys (6 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -1- and -0- (10 selects the "Adaptation" function).

Indicated on display:

z

Confirm entry with -Q- button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

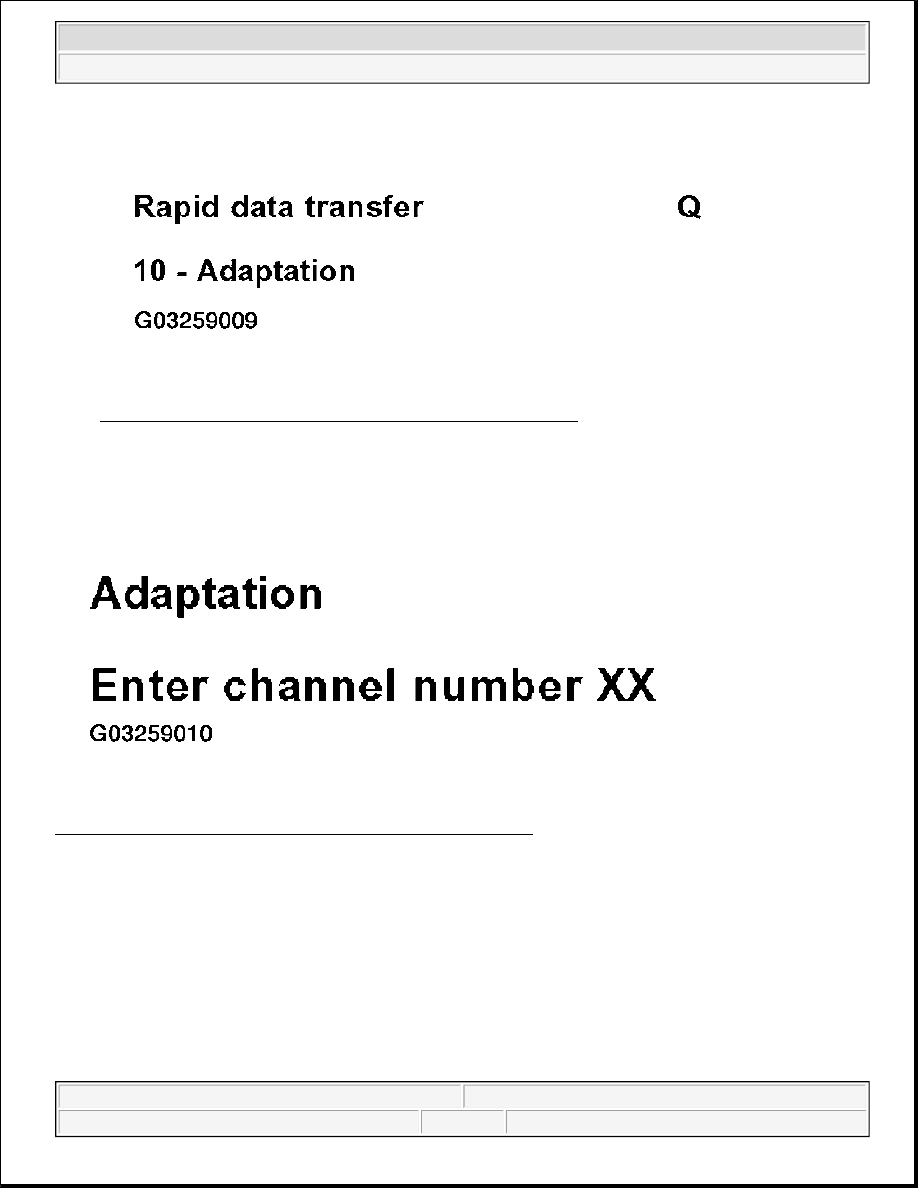

Fig. 209: Scan Tool Display - Adapting Ignition Keys (7 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 210: Scan Tool Display - Adapting Ignition Keys (8 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -1-. (all keys are "learned" with channel number 01.)

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

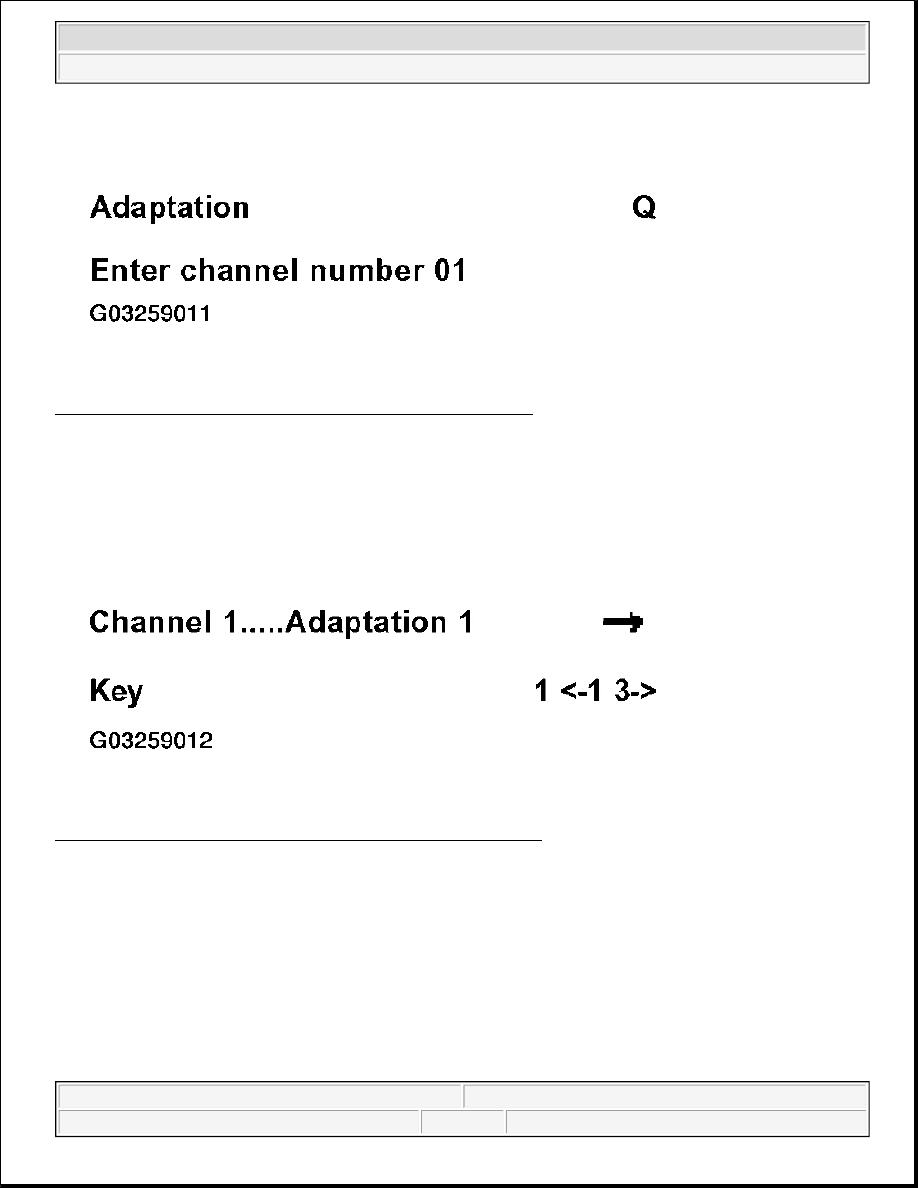

Fig. 211: Scan Tool Display - Adapting Ignition Keys (9 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 212: Scan Tool Display - Adapting Ignition Keys (10 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The top line displays number of keys to be learned (Standard =1). Select number of keys with buttons -1-
through -3-.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
