Volkswagen New Beetle. Manual - part 325





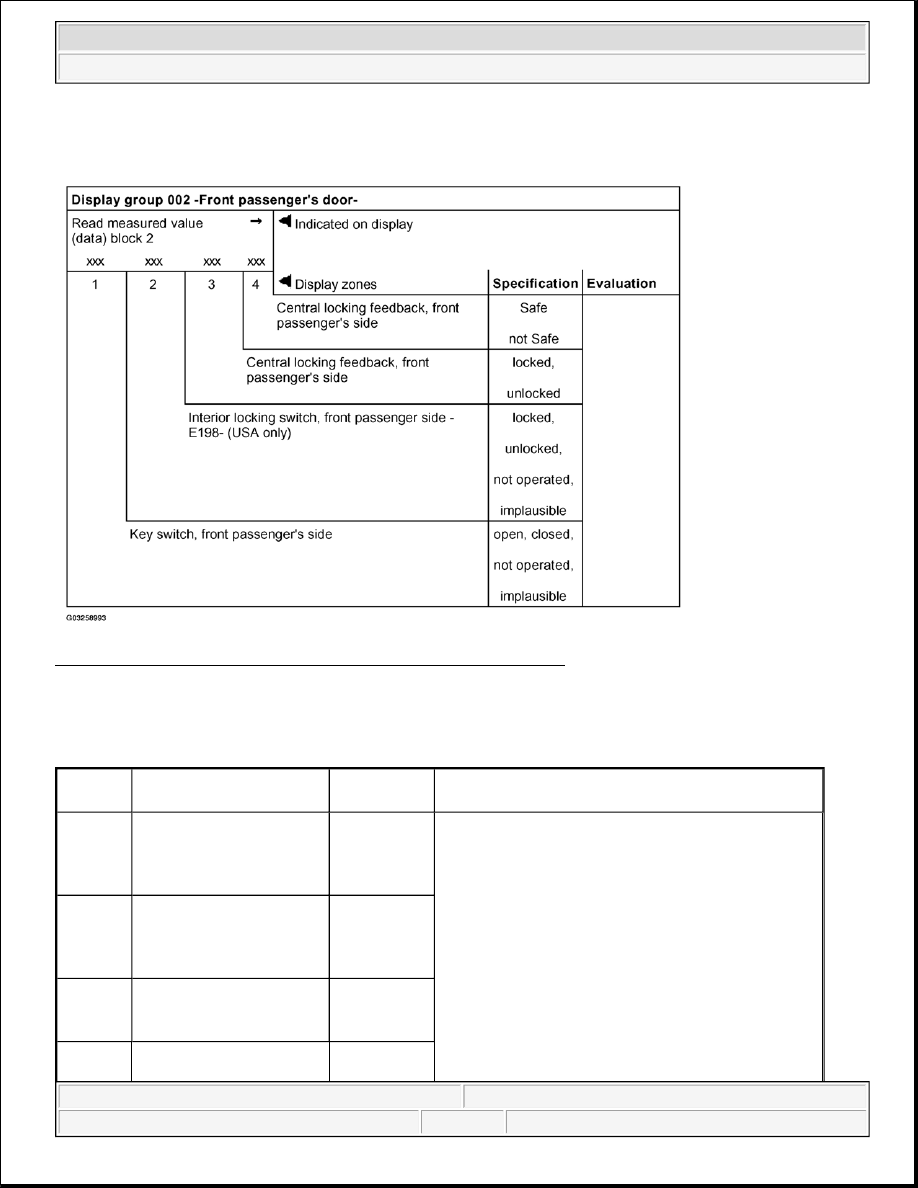

Break down of display content for display group number 002

Fig. 193: Break Down Display Group 002 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 002

EVALUATING DISPLAY GROUP NUMBER 002 - CENTRAL LOCKING

Display
zone

Designation

Display

contents

Corrective action

1

Key switch, front

passenger's side

open

closed

not operated

implausible

z

Visual check of wiring

z

Check lock mechanics

z

Check that connections of relevant current

circuit are correctly connected and fit tightly

together while simultaneously observing

display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Erase DTC memory

z

Perform functional check

2

Interior locking switch,

front passenger side -

E198- (USA only)

locked,

unlocked,

not operated,

implausible

3

Central locking feedback

locked, front passenger's

side

locked

unlocked

4

Central locking feedback

Safe



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

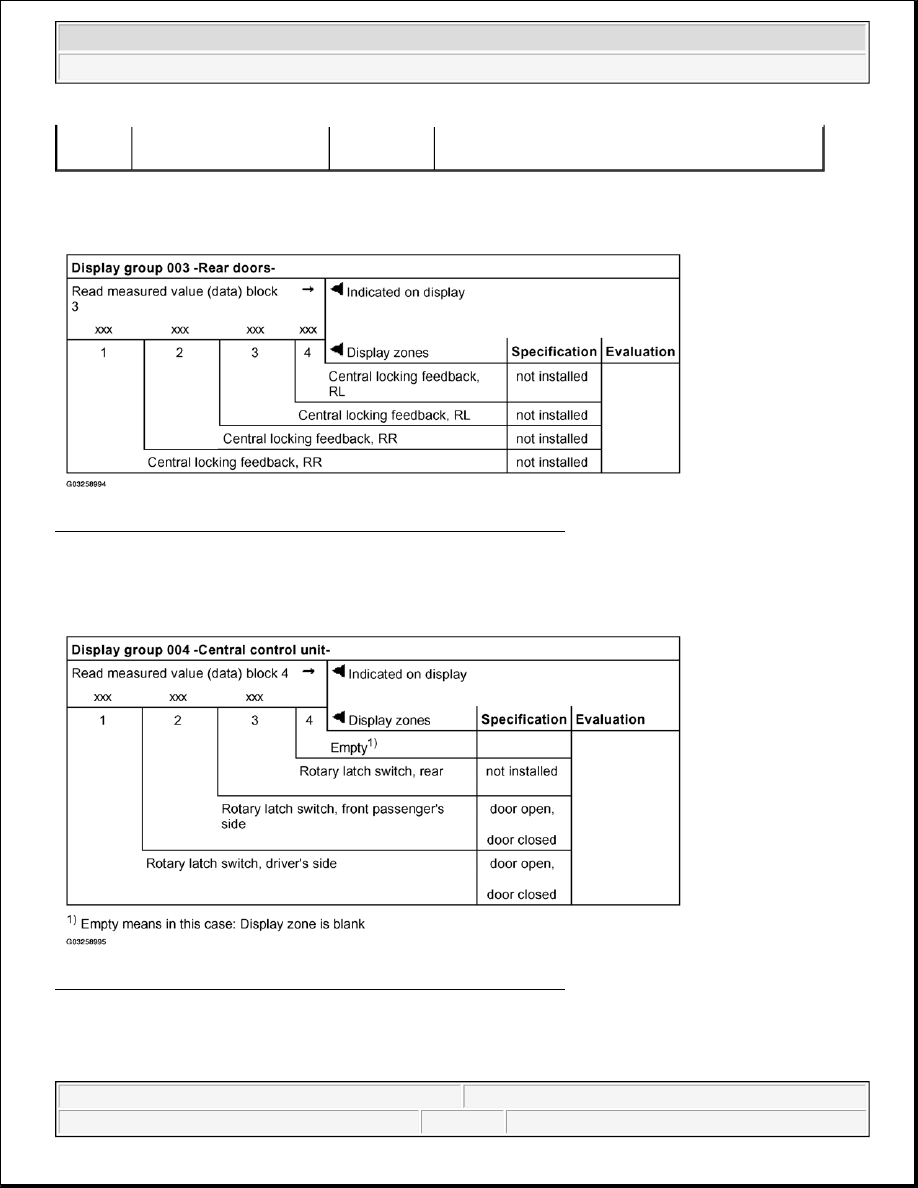

Break down of display content for display group number 003

Fig. 194: Break Down Display Group 003 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Break down of display content for display group number 004

Fig. 195: Break Down Display Group 004 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 004

"safe", front passenger's

side

not Safe

z

Check DTC memory again



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



EVALUATING DISPLAY GROUP NUMBER 004 - CENTRAL LOCKING

Break down of display content for display group number 005

Fig. 196: Break Down Display Group 005 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 005

Display
zone

Designation

Display

contents

Corrective action

1

Rotary latch switch,

driver's side

door open,

door closed

z

Visual check of wiring

z

Check that connections of relevant current circuit are

correctly connected and fit tightly together while

simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace relevant

component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Rotary latch switch,

front passenger's side

door open,

door closed

3

Rotary latch switch,

rear

not

installed



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



EVALUATING DISPLAY GROUP NUMBER 005 - CENTRAL LOCKING

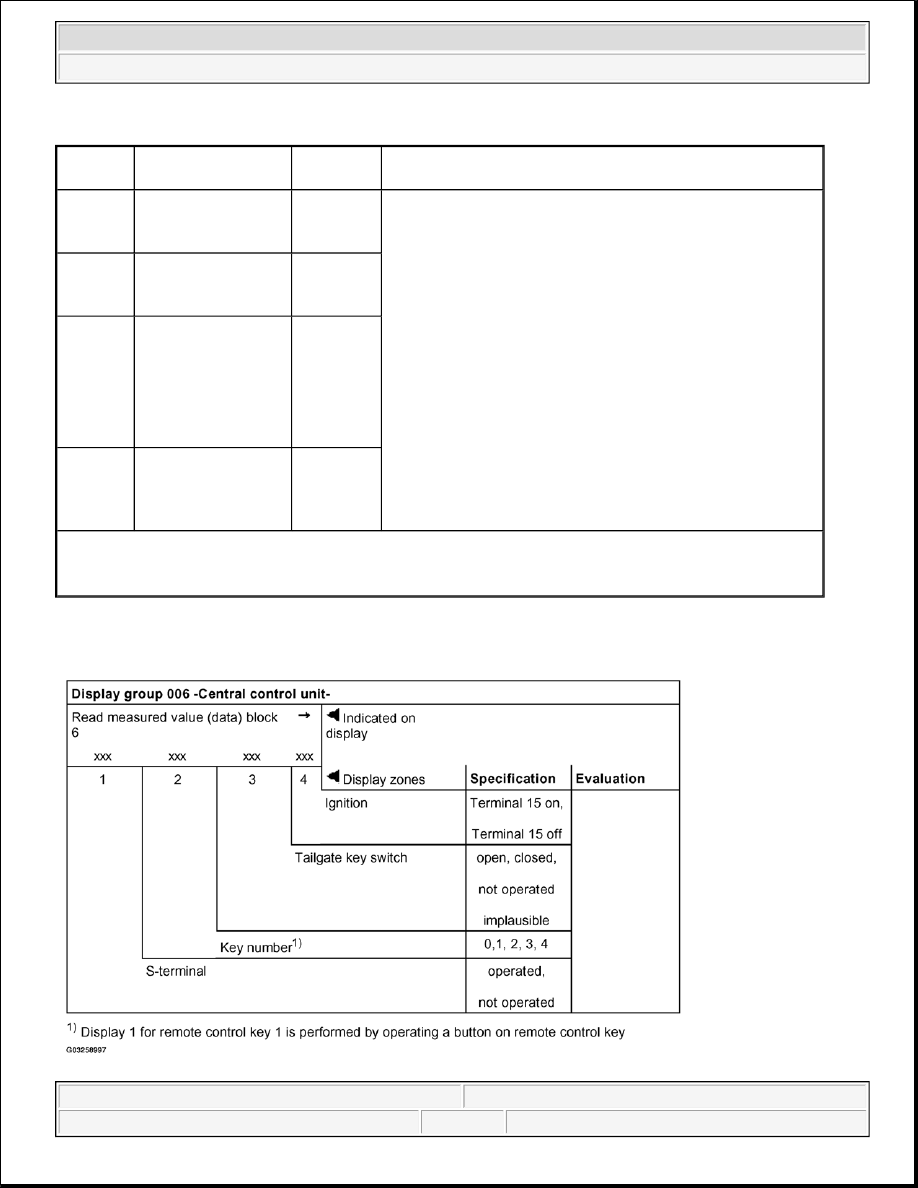

Break down of display content for display group number 006

Display
zone

Designation

Display

contents

Corrective action

1

Central locking

temperature switch-

off

yes, no

z

Visual check of wiring

z

Check that connections of relevant current circuit are

correctly connected and fit tightly together while

simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace relevant

component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

z

Adapt remote control unit again if necessary

(Function 10, Adaptation)

2

Speed signal

mv = km/h

(Steps:

2km/h)

3

Remote control unit

key button

open,

closed,

RLR

(1)



Panic

(2)



(with 0 or

1)

4

Interior monitor

sensor

yes

no

not

installed

(1)

Only vehicles for USA, RLR= RearlidRemote release

(2)

Only vehicles for USA, alarm system and turn signal lights are activated



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
