Volkswagen New Beetle. Manual - part 323





DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (01356)

DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (01389, 01483 & 65535)

passenger's side

central locking

lock unit -F221-

faulty

GROUP NUMBER 002 , display zone 1 for

front passengers side

z

Replace drivers side central locking lock unit -

F220-

z

Replace front passengers side central locking lock

unit -F221-

V.A.G 1551 print-out

Possible cause

Corrective action

01365
Interior locking switch,
driver's side -E150- Interior
locking switch, front
passenger's side -E198- Short
to ground (GND)

z

Wiring or

connections faulty

z

Interior locking

switch, driver's side

-E150- faulty

z

Interior locking

switch, front

passenger's side -

E198- faulty

z

Check wiring and connections referring

to Electrical Wiring Diagram

z

Read measured value block; Display

group number 001, see DISPLAY

GROUP OVERVIEW , display zone 2

z

Read measured value block; Display

group number 002, see BREAK

DOWN OF DISPLAY CONTENT

FOR DISPLAY GROUP NUMBER

002 , display zone 2

z

Replace interior locking switch, driver's

side -E150-

z

Replace interior locking switch, front

passenger's side -E198-

V.A.G 1551 print-out

Possible cause

Corrective action

01389
Open tailgate/trunk lid
unlocking switch -F124-
Short to ground (GND)

(1)

z

Wiring or

connections faulty

z

Lock mechanism

mechanics stiff or

lock cylinder stiff

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Check lock mechanism mechanics and

return to serviceable condition

z

Replace lock cylinder

z

Read measured value block; Display group

number 006, see BREAK DOWN OF

DISPLAY CONTENT FOR DISPLAY
GROUP NUMBER 006
 , display zone 3

01483
Activation of tailgate
remote release undefined
switching status

z

Wiring or

connections faulty

z

Check wiring and connections referring to

Electrical Wiring Diagram

65535
Control unit faulty

z

Control unit faulty

z

Replace control unit

(1)

is set when operated longer than 5 minutes



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



OUTPUT DIAGNOSTIC TEST MODE (DTM)

The components displayed in the Output Diagnostic Test Mode (DTM) can differ depending upon the
equipment fitted to the vehicle. For example on vehicles without ATA there will be no step "1" as listed in the
table below.

The Output Diagnostic Test Mode (DTM) activates the components in DIAGNOSTIC TEST MODE (DTM)
in the stated sequence.

DIAGNOSTIC TEST MODE (DTM)

Work sequence

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING .

Indicated on display:

Step

Display in tester

Reaction

1

Alarm horn (for anti-theft alarm)

z

Horn sounds continuously

2

Turn signal lights activation (for anti-theft

alarm)

z

Activated continuously (lights up

continously)

3

Interior light, reading lights

z

Interior and reading lights are activated

4

Signal "Close" sunroof

z

Sliding roof closes

(1)

5

Central locking "Safe" warning lamp -K133-

z

"Safe" -LED lights up

6

Instrument illumination

z

Instrument illumination active

(2)

7

END

z

Information: End of regular final control test

(1)

When performing Output Diagnostic Test Mode (DTM) the "signal close sliding sunroof", the
ignition and S-terminal must be inactive (no key in ignition/starter switch) and one of the front doors
must be open.

(2)

Switch in operating unit



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

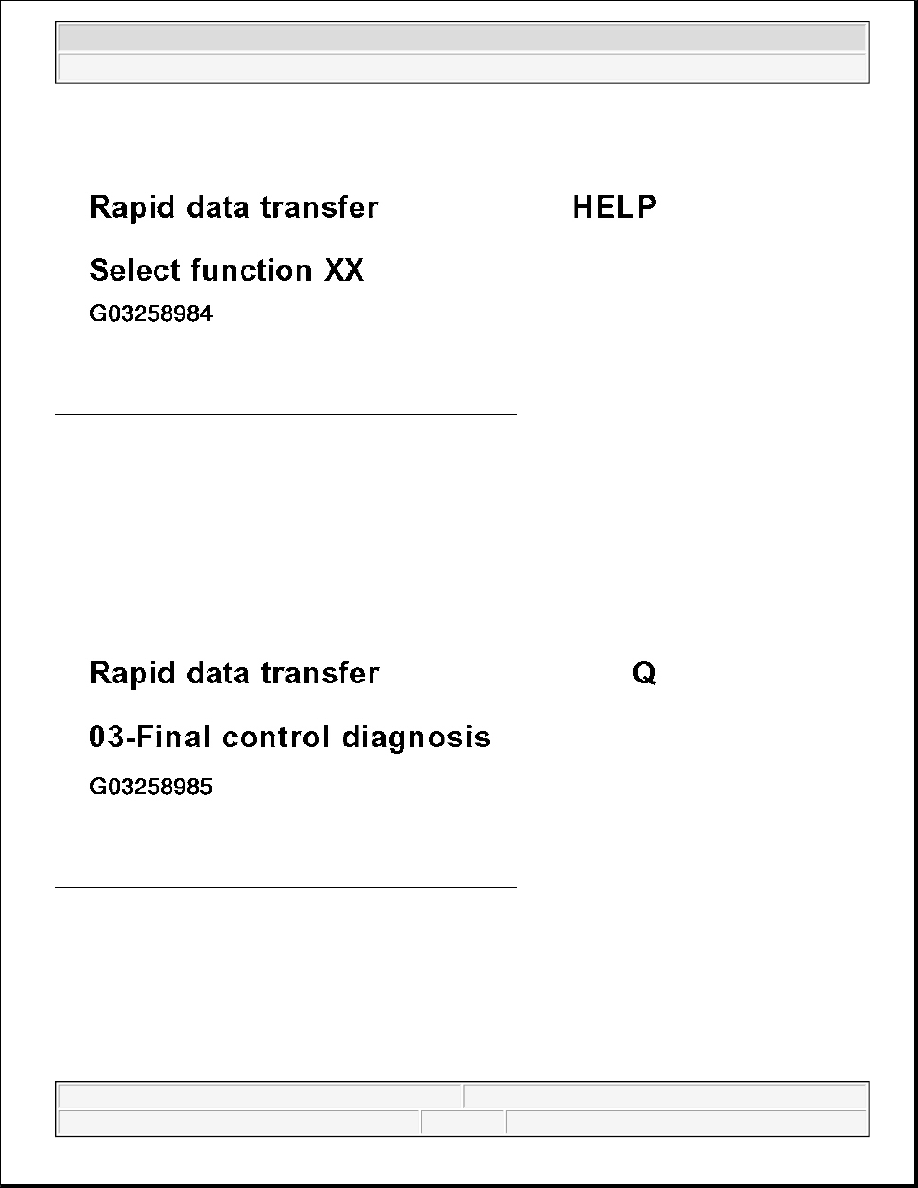

Fig. 184: Scan Tool Display - Central Locking DTM (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate scan tool taking into account the information on the display:

z

Input 03 for "Final control diagnosis" function.

z

Switch off ignition and remove ignition key from ignition lock.

Indicated on display:

Fig. 185: Scan Tool Display - Central Locking DTM (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 186: Scan Tool Display - Central Locking DTM (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Switch from test step to test step using the --> key: See table on OUTPUT DIAGNOSTIC TEST MODE
(DTM)
 .

The Output Diagnostic Test Mode (DTM) can be aborted by pressing the -C- button.

z

Press --> button.

If a component does not function:

z

Continue Output Diagnostic Test Mode (DTM) to the end.

Reintroducing Final control diagnosis (Output Diagnostic Test Mode (DTM)) is possible only after terminating
the On Board Diagnosis (OBD) and switching the ignition off and on again.

MEASURED VALUE (DATA) BLOCK, READING

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING .

The measured value block is divided into 10 display group numbers. The assignment of the individual display
zones can be taken from the display group overview. See DISPLAY GROUP OVERVIEW .

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
