No oil changes are required.

CHECKING FLUID LEVEL

Remove oil filler plug. See Fig. 5 -Fig. 8 . Oil level should be up to lower edge of filler hole. Add if necessary.
Install filler plug and tighten to 18 ft. lbs. (25 N.m). On 012 transaxle, ensure correct filler plug is used.
Transaxle case is either aluminum or magnesium. On 02J transaxle, when transaxle is filled with NEW fluid,
start engine and engage transaxle through all gears. Allow transaxle to engage for 2 minutes. Turn engine off
and check oil level. Fill as necessary.

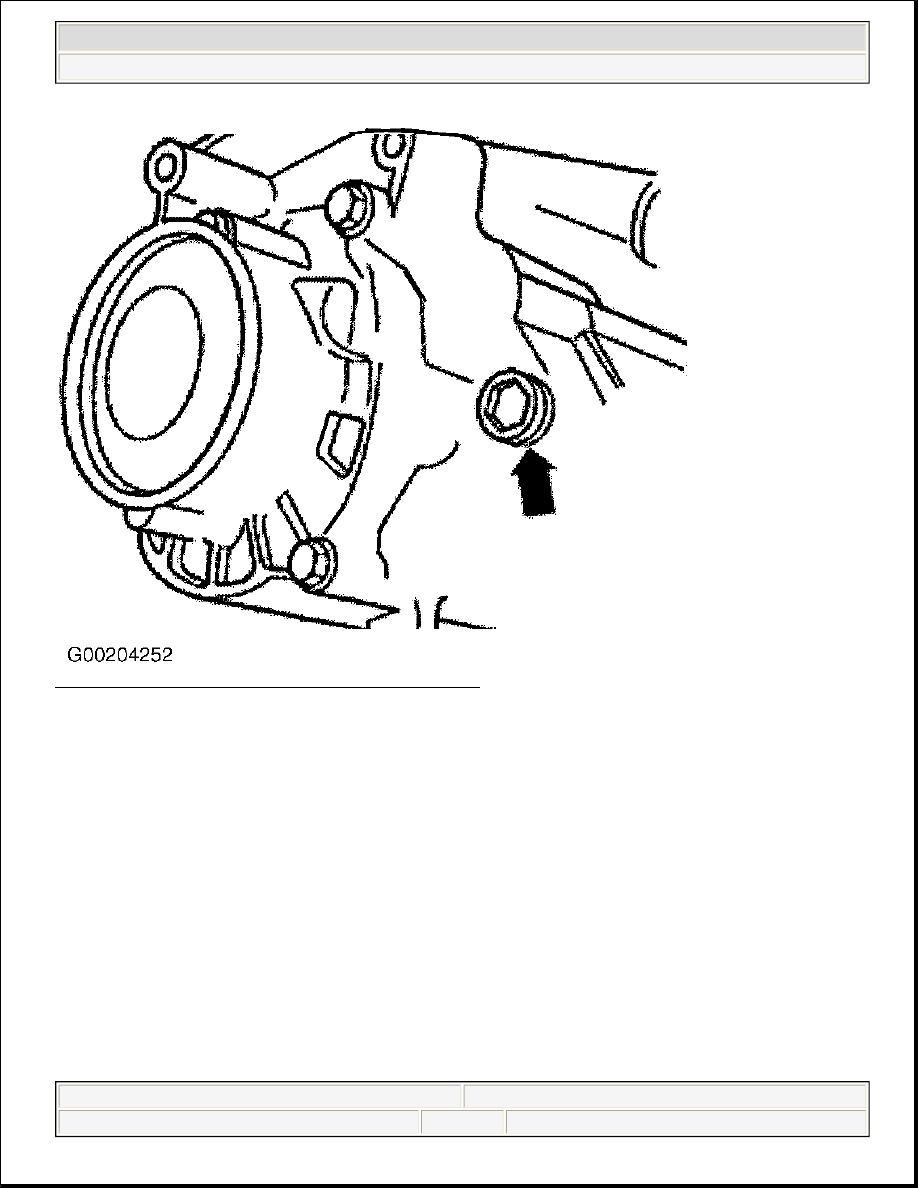

Fig. 5: Checking Transaxle Fluid Level (012 Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:22 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

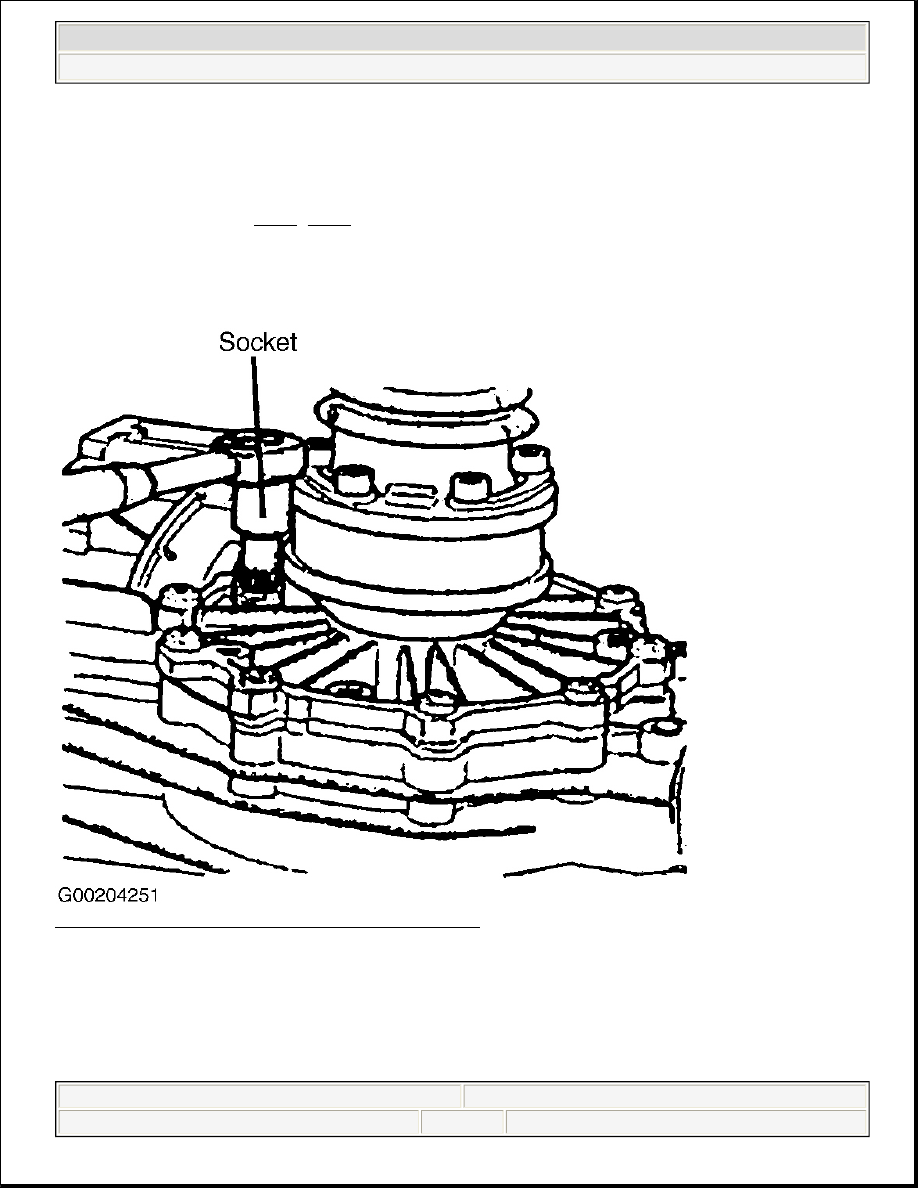

Fig. 6: Checking Transaxle Fluid Level (020 Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:22 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

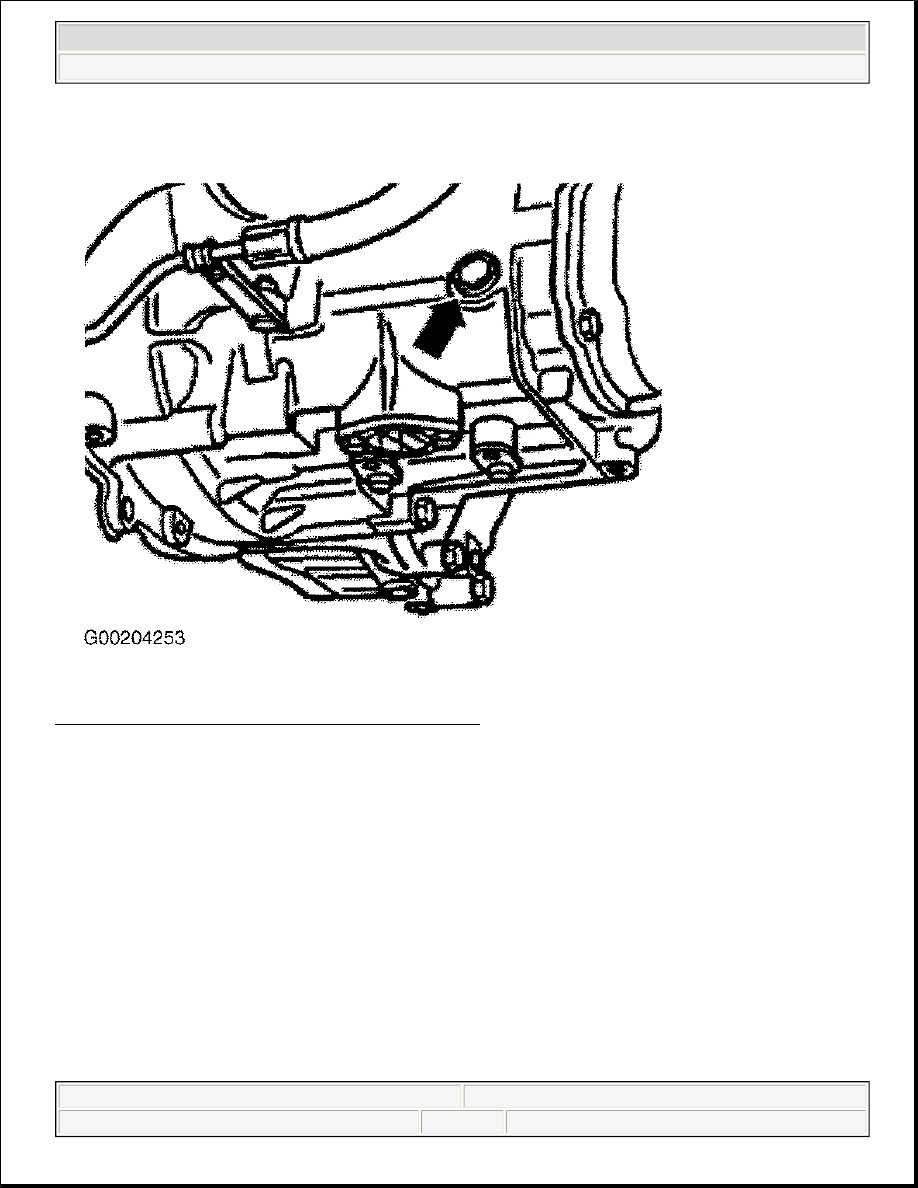

Fig. 7: Checking Transaxle Fluid Level (02J Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:22 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

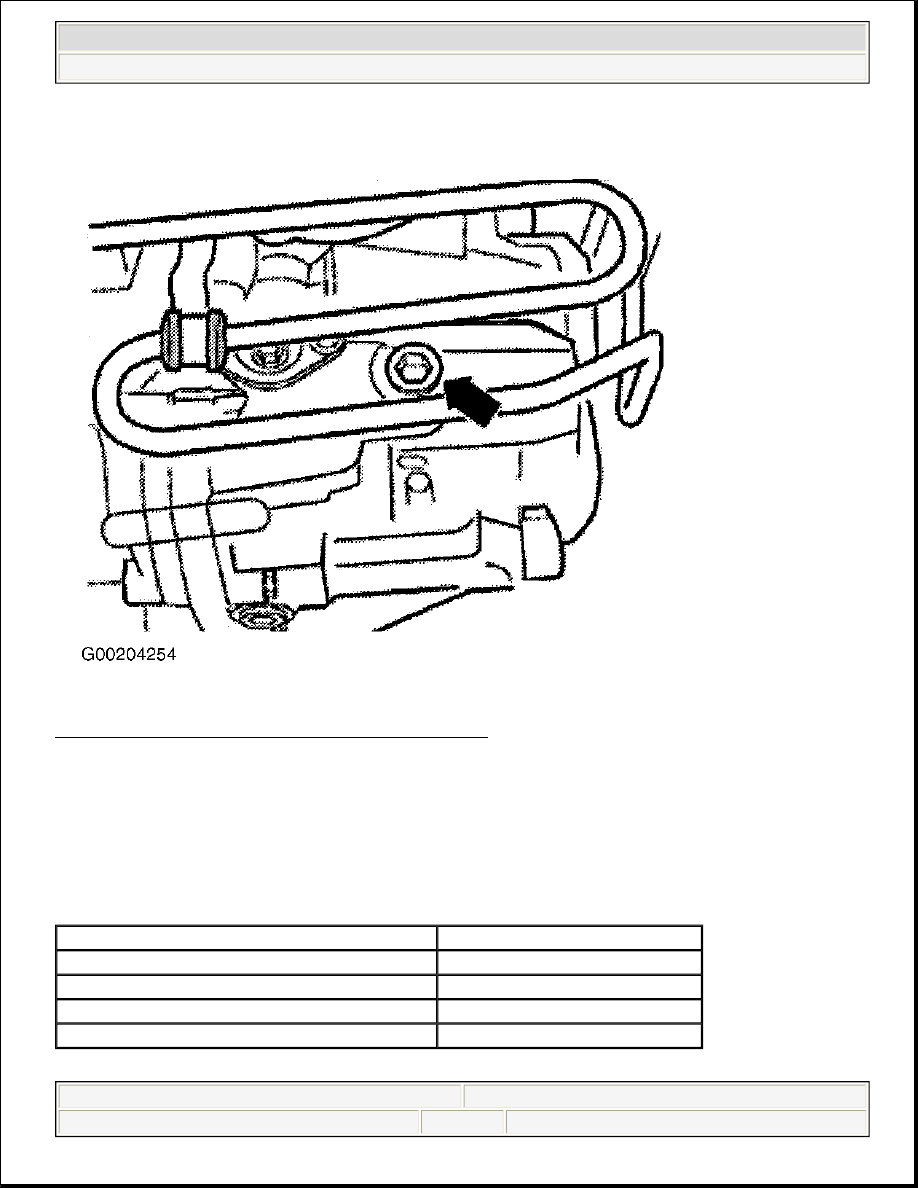

Fig. 8: Checking Transaxle Fluid Level (02M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

RECOMMENDED FLUID

Manufacturer recommends API G50 75W-90 synthetic gear oil.

FLUID CAPACITIES

TRANSAXLE REFILL CAPACITIES

Application

Qts. (L)

012

2.4 (2.3)

020

2.0 (1.9)

02J

2.1 (2.0)

02M

2.4 (2.3)
