Volkswagen New Beetle. Manual - part 2574

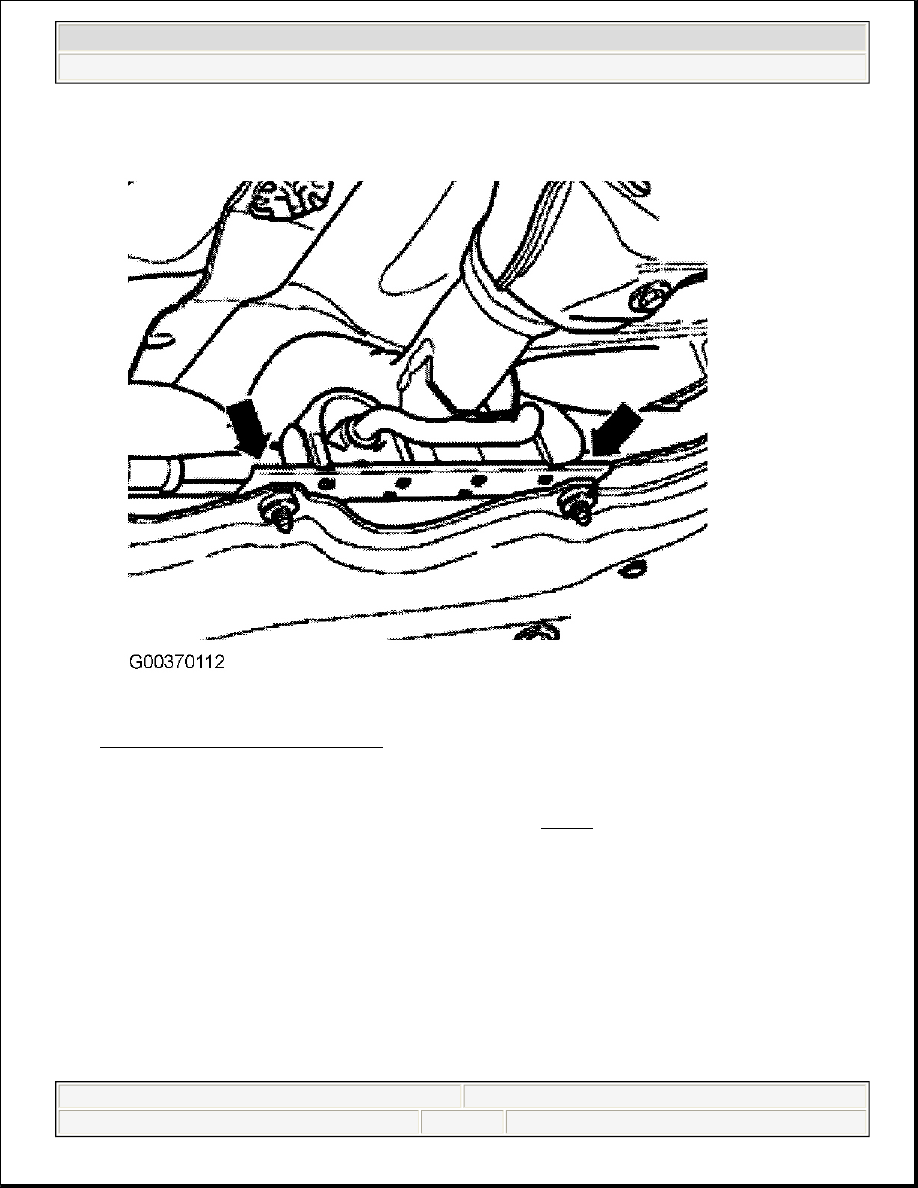

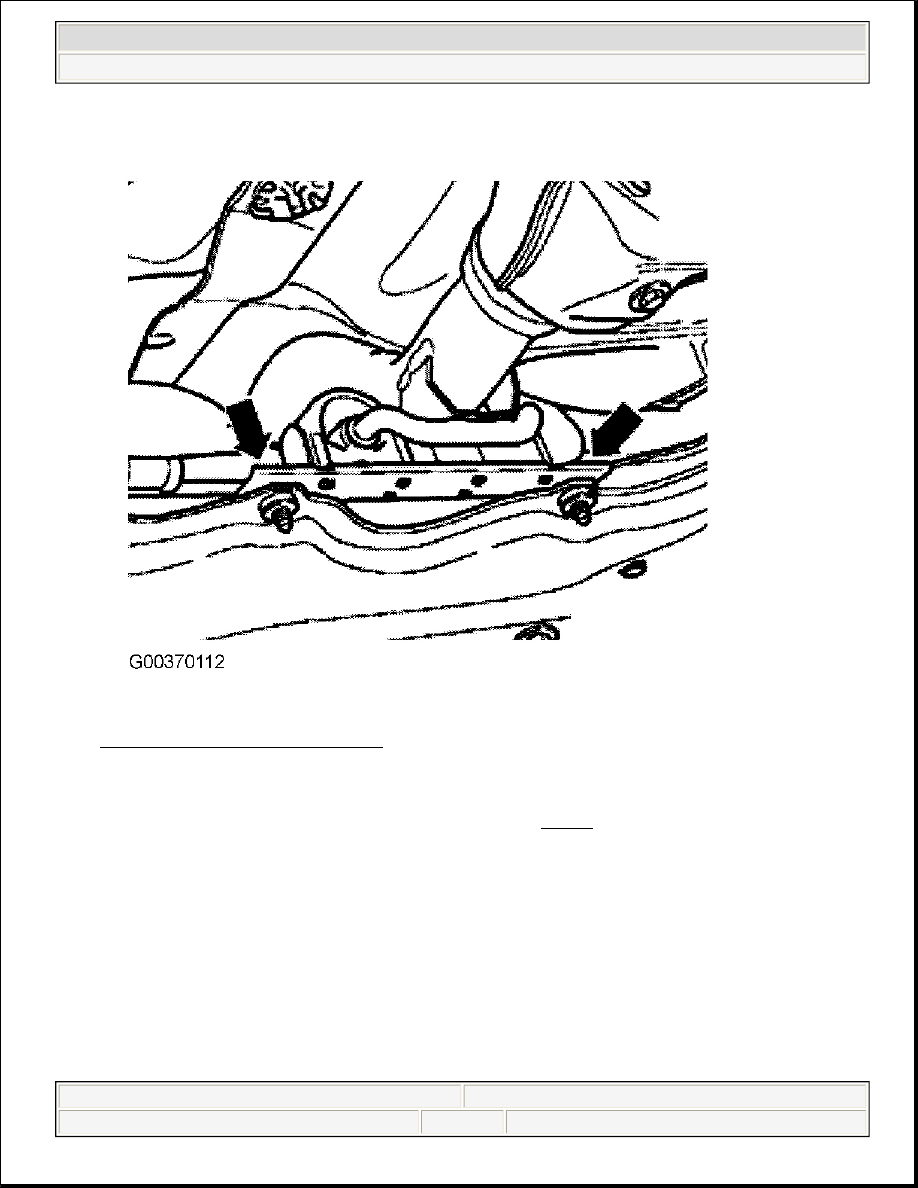

Fig. 33: Removing Exhaust Supports
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. To install, reverse removal procedure. Cable locks have holes for securing onto gear selector lever or

relay lever. Holes in cable locks have various diameters. See Fig. 34 . Cable locks no longer need to be
replaced following disassembling.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

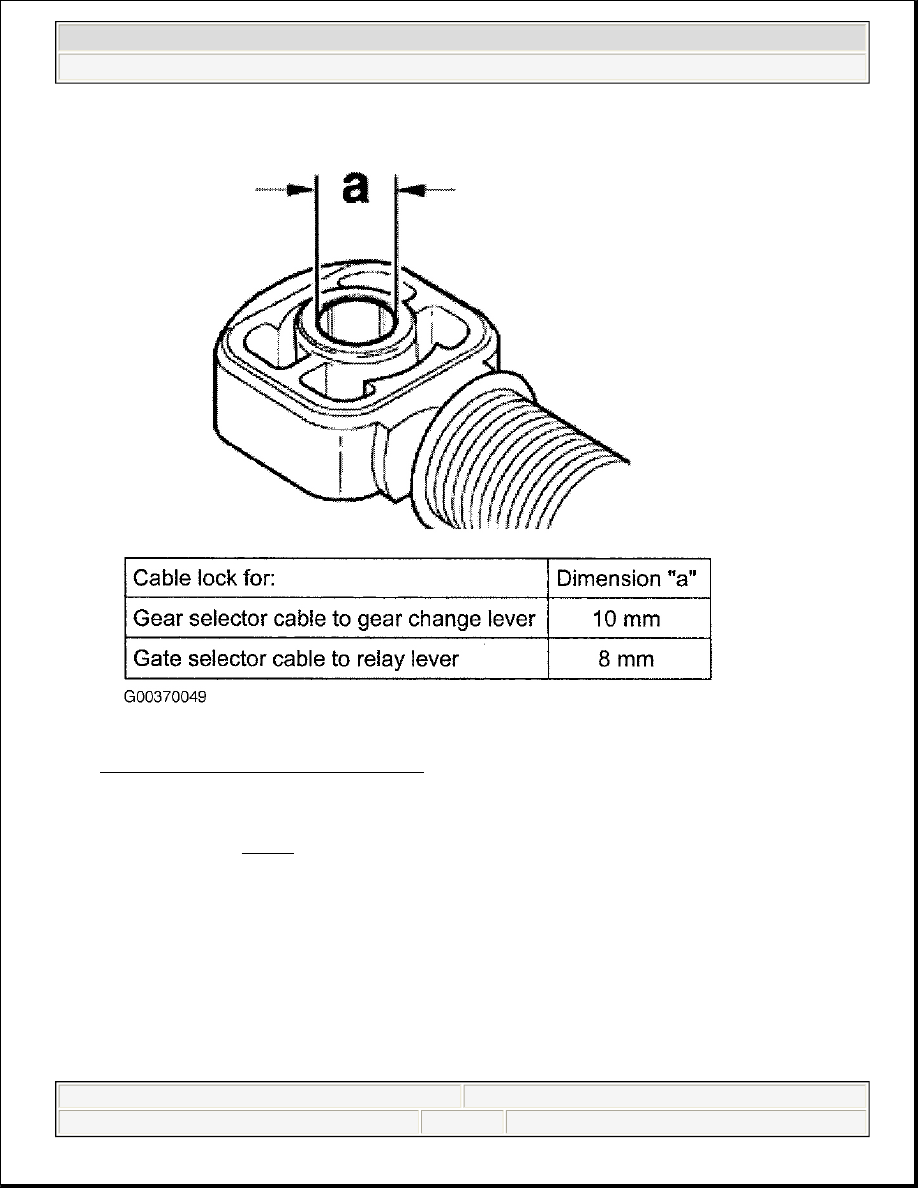

Fig. 34: Identifying Cable Lock Allocation
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. Spread a small quantity of Polyurea grease (G 000 450 02) on pins (arrows) of gear change lever (1) and

relay lever (2). See Fig. 35 . Always replace securing clips (3 and 4) after disassembling. Secure gear
selector cable with securing clip (3) and gate selector cable with securing clip (4).



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

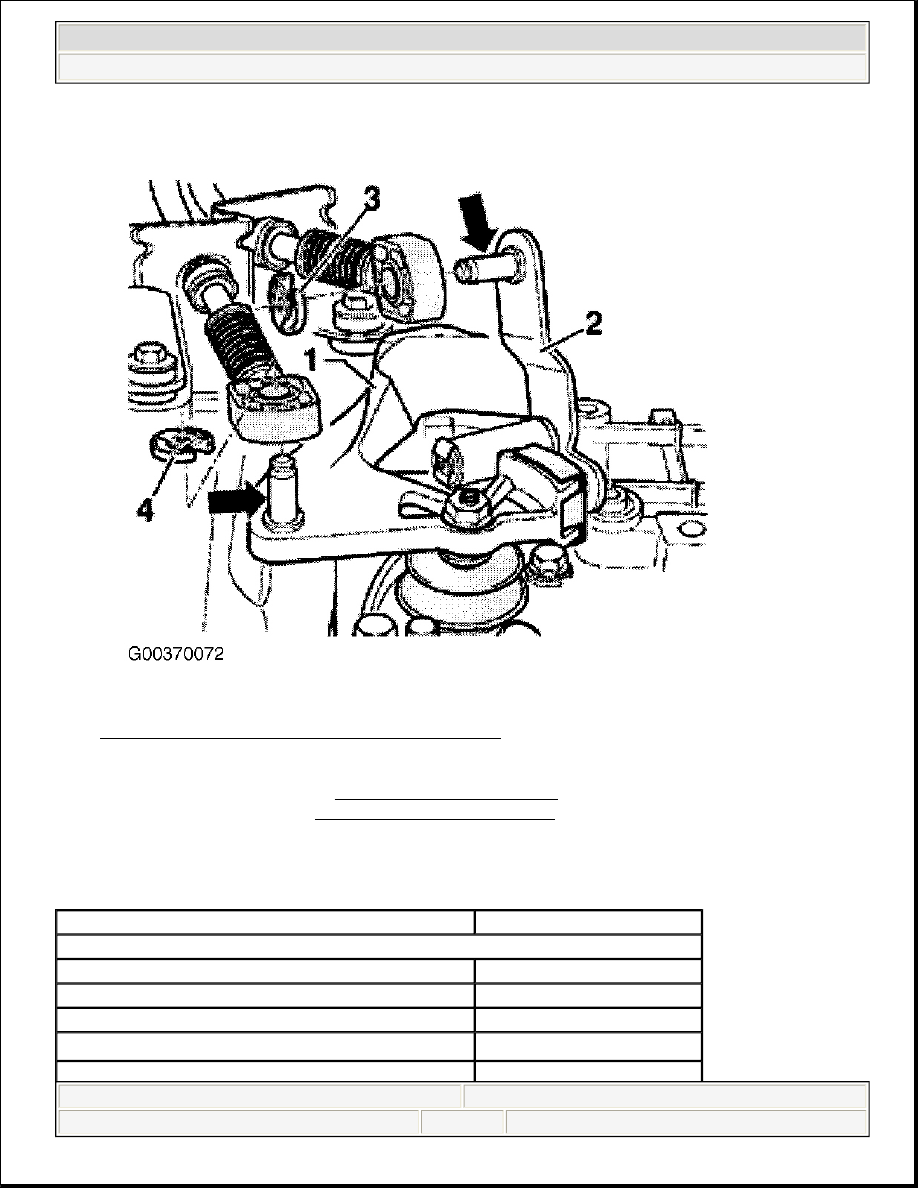

Fig. 35: Installing Gear & Gate Selector Cable Clips
Courtesy of VOLKSWAGEN UNITED STATES, INC.

9. Adjust selector mechanism. See SELECTOR MECHANISM under ADJUSTMENTS. Tighten bolts

and nuts to specification. See TORQUE SPECIFICATIONS .

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Axle Shaft-To Transmission Flange Bolt

M8

30 (40)

M10

52 (70)

Back-Up Light Switch

15 (20)

Ball Joint-To-Lower Control Arm Bolts

(1)

15 (20)



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

Flange Shaft-To-Transmission Bolt

18 (25)

Gearshift Selector Assembly

Gear Selector Cable Mount Bolt

18 (25)

Gear Selector Lever Self-Locking Nut

(1)

18 (25)

Shift Housing-To-Body

18 (25)

Support Bracket Bolt

18 (25)

Selector Housing Nut

18 (25)

Selector Lever-To-Transmission

15 (20)

Transmission Oil Filler Plug

(1)

22 (30)

Wheel Lug Bolt

89 (120)

(1)

Always replace with NEW fastener.
