Volkswagen New Beetle. Manual - part 2565





Fig. 56: Pulling In Sleeve (Oil Seal Not Attached)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Axle Shaft-To Transmission Flange Bolt

M8

30 (40)

M10

52 (70)

Flange Shaft-To-Transmission Bolt

18 (25)

Gearshift Selector Assembly

Balance Weight-To-Selector Lever

18 (25)

Cover Plate Bolt

18 (25)

Gear Selector Cable Bolt

18 (25)

Gear Selector Lever Nut

18 (25)

Relay Lever Nut

11 (15)

Support Bracket Bolt

18 (25)

Selector Cable-To-Selector Lever

18 (25)

Selector Lever-To-Transmission

18 (25)

Reversing Light Switch (From 6/99)

15 (20)

Transmission Oil Filler Plug

18 (25)

Wheel Lug Bolt

89 (120)



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:09 AM

Page 66

© 2004 Mitchell Repair Information Company, LLC.

2002-04 MANUAL TRANSMISSIONS

Servicing - New Beetle (5 & 6 Speed, 02M)

IDENTIFICATION

On 02M transmission, identification tag is located on transmission, identifying code letters and date of
manufacture. See Fig. 1 .



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)





2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:33 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

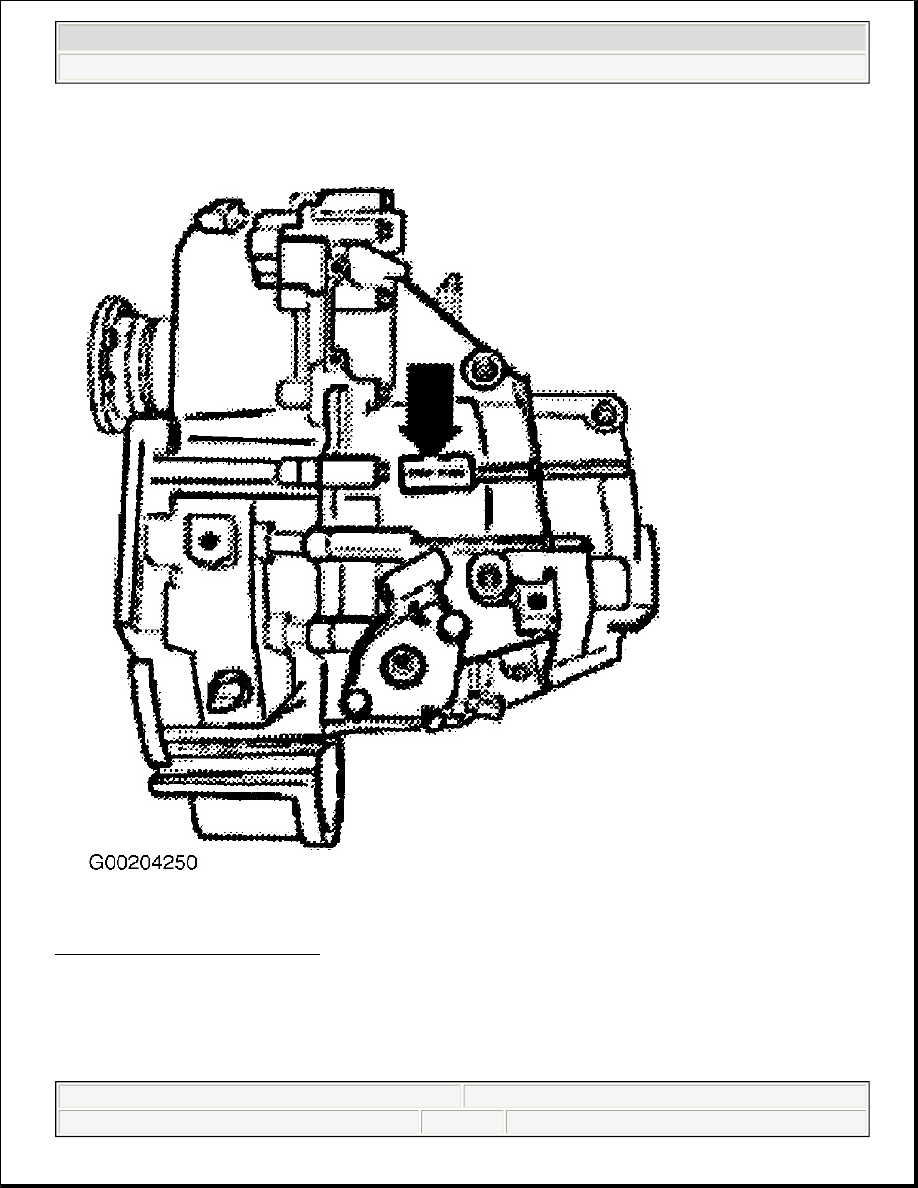

Fig. 1: Locating Identification Tag
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LUBRICATION

SERVICE INTERVALS



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

No oil changes are required.

CHECKING FLUID LEVEL

Remove oil filler plug. See Fig. 2 . Oil level should be up to lower edge of filler hole. Add if necessary. Install
NEW filler plug and tighten to 22 ft. lbs. (30 N.m). When filling with NEW oil, remove plug (arrow). Top off
oil to lower edge of fill hole. Install NEW filler plug.

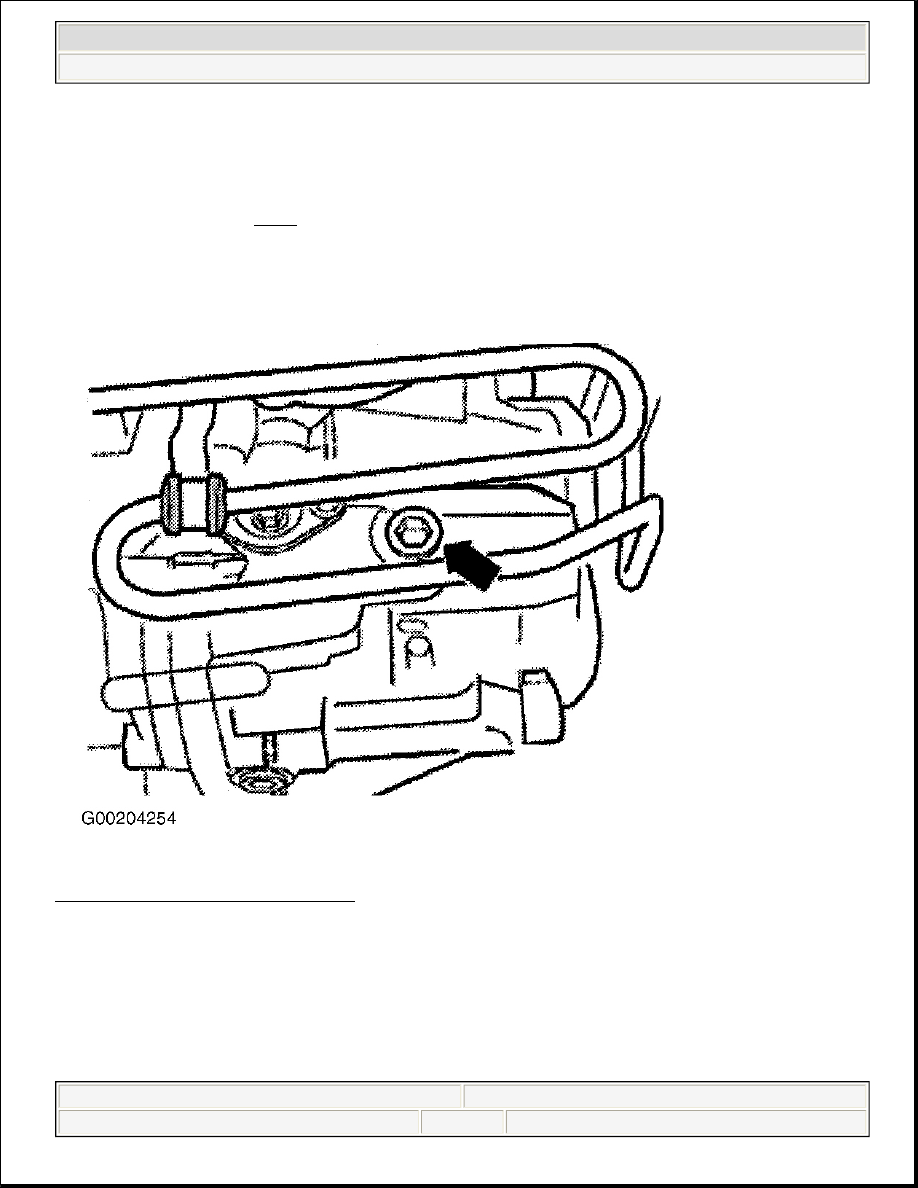

Fig. 2: Checking Transaxle Fluid Level
Courtesy of VOLKSWAGEN UNITED STATES, INC.

RECOMMENDED FLUID

Manufacturer recommends API G51 75W-90 SYNTHETIC gear oil.

FLUID CAPACITIES



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
