Volkswagen New Beetle. Manual - part 2526





z

Checking for wear. See Installation position 1st and 2nd gear locking collar/synchro-hub .

z

Check lugs for scoring

z

Installation position. See Installation position synchro-ring (inner-ring)

19. 2nd gear wheel

z

Installation position. See Installation position 2nd gear wheel

20. Needle roller bearing

z

For 2nd gear

21. Thrust washer

22. Sleeve for 3rd gear needle roller bearing

z

Pressing off with 2nd gear wheel. See Pressing off 3rd and 4th gear synchro-hub/locking collar,
2nd, 3rd and 4th gear wheels with transmission housing needle roller bearing sleeve


z

Pressing on Pressing on needle roller bearing sleeve for 3rd gear

23. Needle roller bearing

z

For 3rd gear

24. 3rd gear wheel

25. 3rd gear synchro-ring

z

Checking for wear. See Checking synchro-ring for wear

26. Locking collar with 3rd and 4th gear synchro-hub

z

Press off with 2nd gear wheel (item 19) and 3rd gear wheel (item 24). See Pressing off 3rd and
4th gear synchro-hub/locking collar, 2nd, 3rd and 4th gear wheels with transmission housing
needle roller bearing sleeve


z

Disassembling. See Disassembling and assembling 3rd and 4th gear locking collar and
synchro-hub


z

Installation position locking collar/synchro-hub. See Installation position 3rd and 4th gear
locking collar/synchro-hub


z

Assembling locking collar/synchro-hub. See Disassembling and assembling 3rd and 4th gear
locking collar and synchro-hub
 and Assembling 3rd and 4th gear locking collar/synchro-hub

z

Pressing on Pressing on 3rd and 4th gear synchro-hub with locking collar

27. Sleeve

z

For needle roller bearing

z

Press off with locking collar and 3rd and 4th gear synchro-hub (item 26). See Pressing off 3rd and
4th gear synchro-hub/locking collar, 2nd, 3rd and 4th gear wheels with transmission housing
needle roller bearing sleeve


z

Pressing on Pressing on sleeve for 4th gear needle roller bearing

28. Needle roller bearing

z

For 4th gear

29. 4th gear synchro-ring

z

Checking for wear. See Checking synchro-ring for wear

30. 4th gear wheel



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



31. Thrust washer

32. Needle roller bearing

z

For output shaft

z

Removing and installing. See Driving out needle roller bearing

33. Transmission housing

34. Sleeve

z

For output shaft needle roller bearing

z

Pressing off. See Pressing off 3rd and 4th gear synchro-hub/locking collar, 2nd, 3rd and 4th
gear wheels with transmission housing needle roller bearing sleeve


z

Pressing on Pressing on sleeve for output shaft needle roller bearing

35. 5th gear wheel

z

Removing and installing. See Assembly sequence

36. Saucer spring washer

z

Installation position. See Installation position of dished spring for gear wheel and 5th gear
synchro-hub securing bolts:


37. Torx socket head bolt M10, 80 N.m

z

Installed portion on bolt head holds saucer spring washer in position



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 109: Disassembled View Of Output Shaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pulling out small tapered roller bearing outer race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



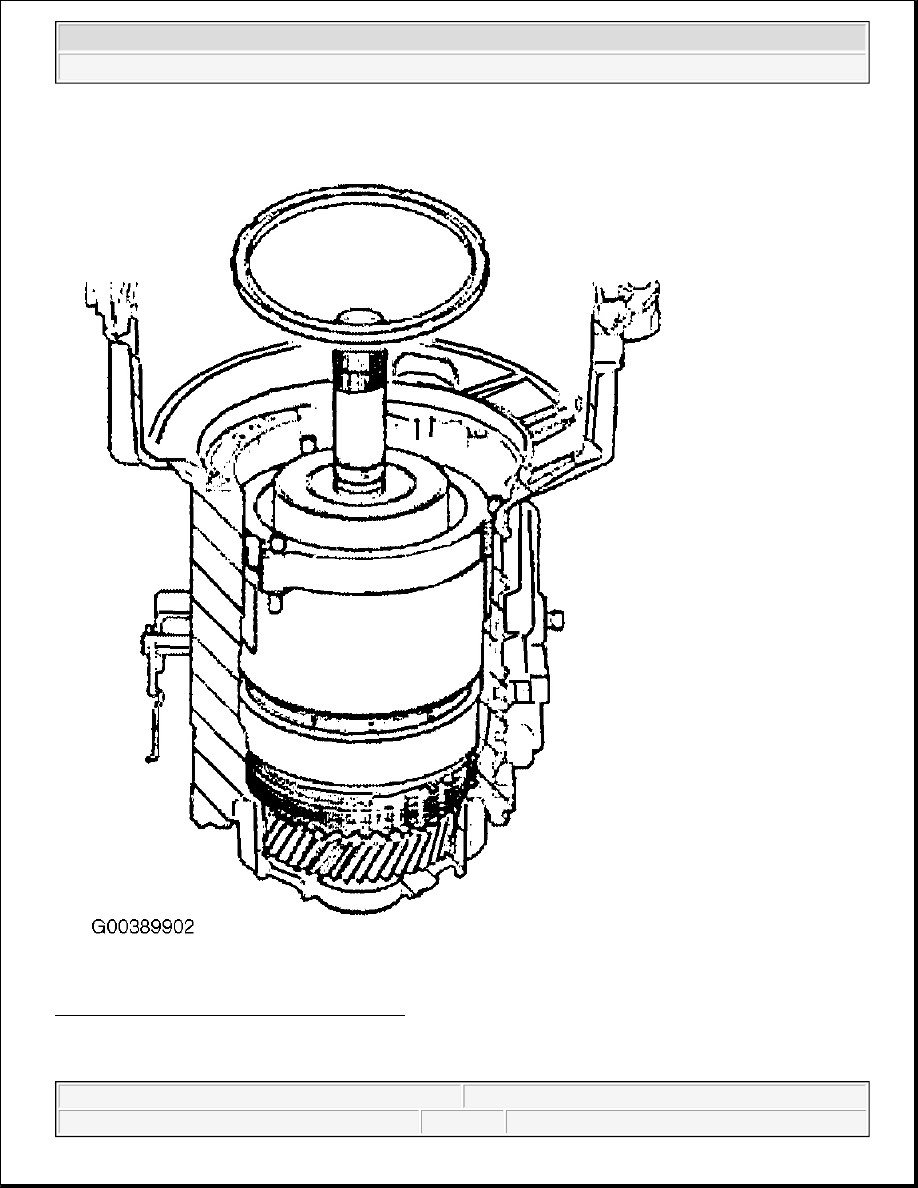

Fig. 110: Pulling Out Small Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Internal extractor 37 ... 46 mm, e.g. Kukko 21/6

B. Counter support, e.g. Kukko 22/2

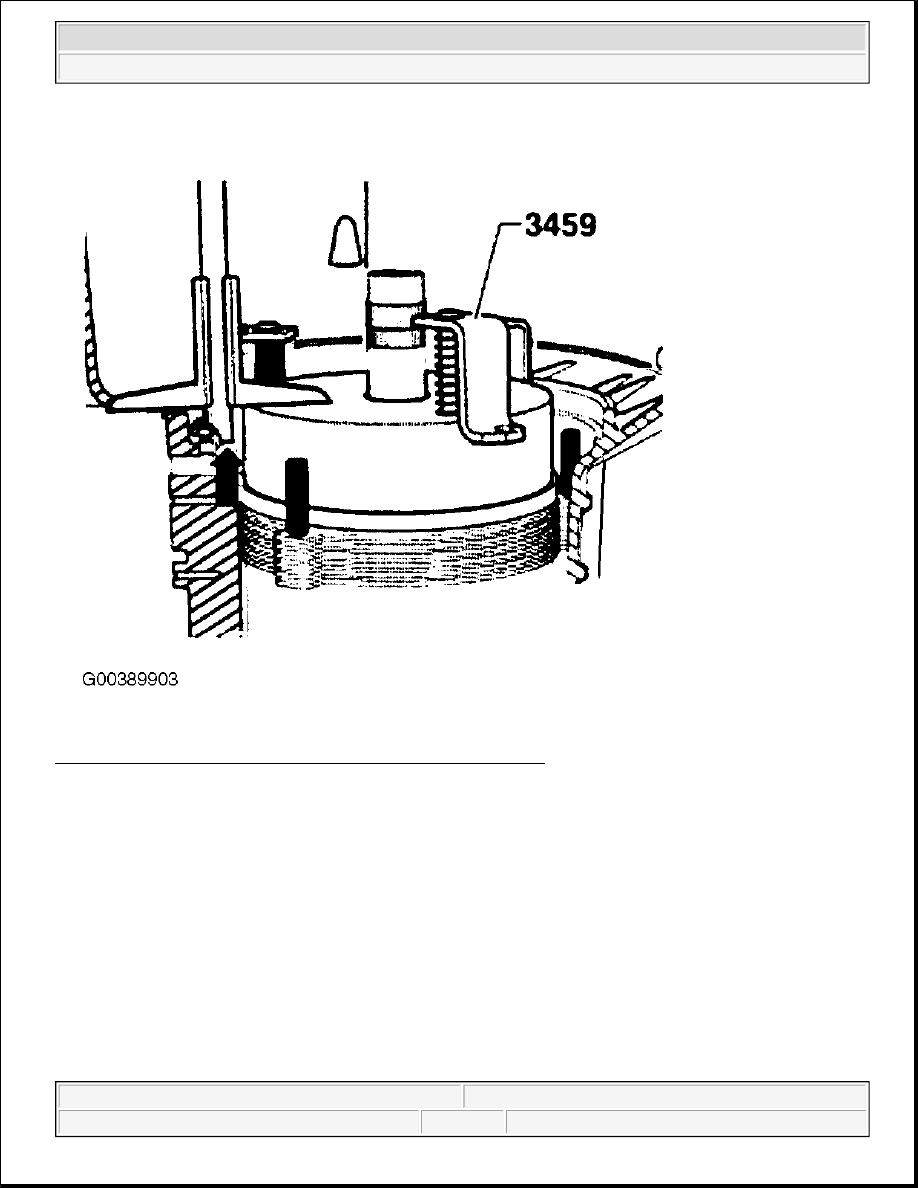

Pressing in small tapered roller bearing outer race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
