Volkswagen New Beetle. Manual - part 2523





z

Transmission housing

z

Clutch housing

z

Input shaft

z

4th gear wheel

or the

z

Tapered roller bearings

Adjustment overview. See Adjustment overview

z

Press tapered roller bearing outer race without shim into transmission housing onto stop, using VW 510.

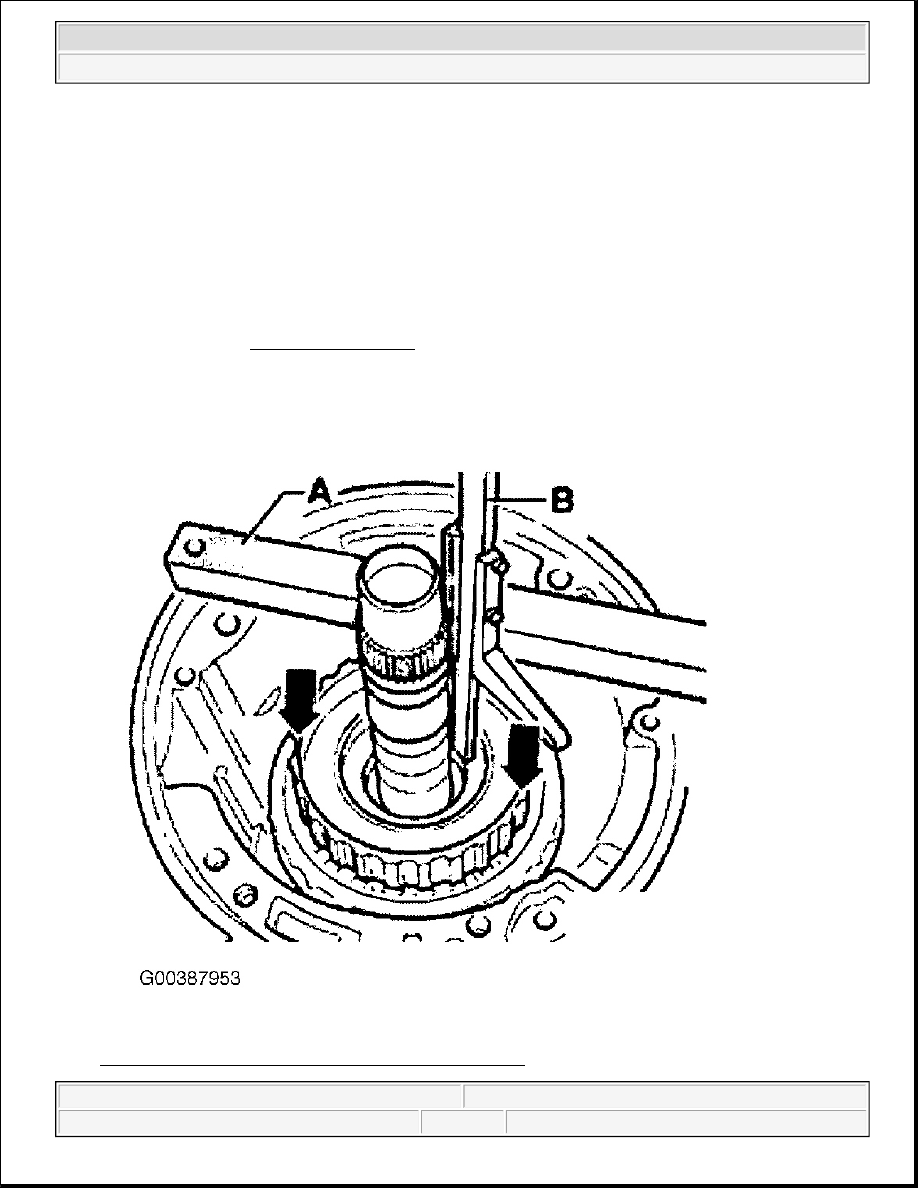

Fig. 102: Installing Tapered Roller Bearing Outer Race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install input shaft in clutch housing and assemble transmission housing. Tighten hex head bolts to 25 N.m
and then turn an additional 90°.

z

Install dial indicator in clutch housing (large tapered roller bearing in transmission housing).

z

Before taking any measurements, rotate input shaft to allow bearings to settle. Set dial gauge to "O" with
1 mm preload.

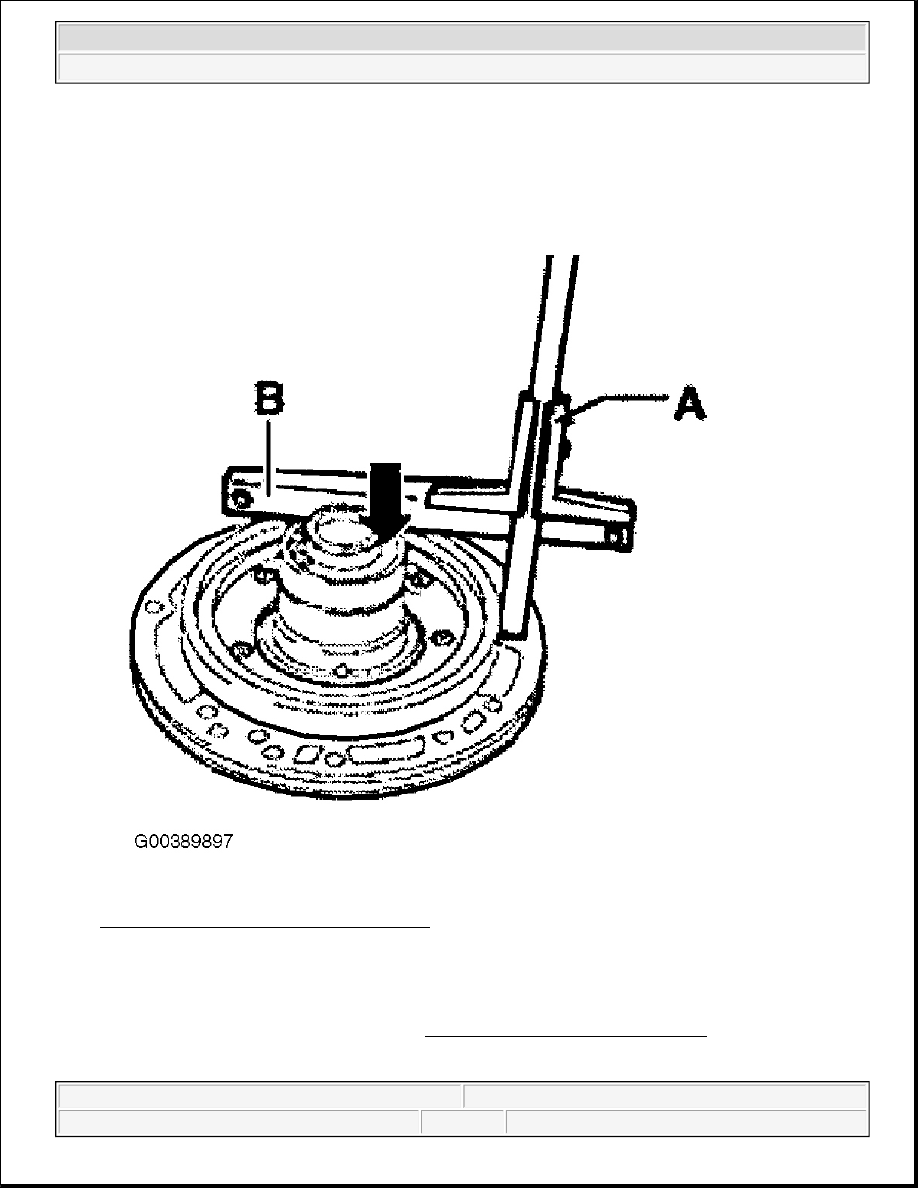

Fig. 103: Installing Dial Indicator In Clutch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

This preparation is to be repeated for each subsequent measurement,
otherwise the gauge will not return to the starting position.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Press input shaft in direction of dial indicator (arrow).

z

Read and note clearance indicated on dial indicator (example 1.21).

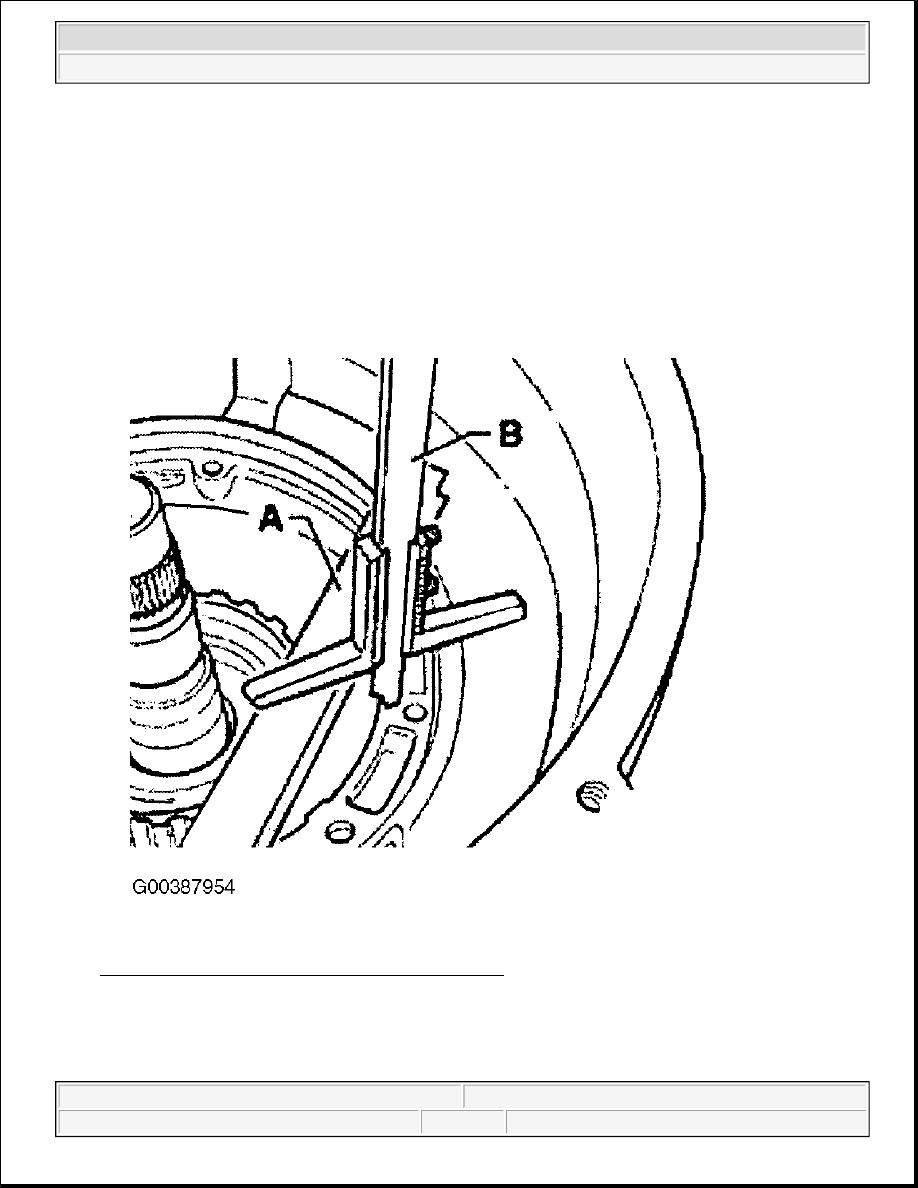

Fig. 104: Measuring Input Shaft Clearance
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Determine thickness of shim from table. See TABLE OF ADJUSTMENT SHIMS .

z

Remove input shaft and press tapered roller bearing outer race out of transmission housing using VW
447i.

NOTE:

Dial indicator does not return to original position.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Press tapered roller bearing outer race together with 1.175 shim into transmission housing using VW 510.

z

Assemble transmission housing and tighten hex head bolts to 25 N.m and then turn an additional 90°.

Table of adjustment shims

ADJUSTMENT SHIMS (INPUT SHAFT)

Measured

Shim

bearing clearance (mm)

Thickness (mm)

Part No.

0.671 ... 0.699

0.650

02A 311 140

0.700 ... 0.724

0.675

02A 311 140 A

0.725 ... 0.749

0.700

02A 311 140 B

0.750 ... 0.774

0.725

02A 311 140 C

0.775 ... 0.799

0.750

02A 311 140 D

0.800 ... 0.824

0.775

02A 311 140 E

0.825 ... 0.849

0.800

02A 311 140 F

0.850 ... 0.874

0.825

02A 311 140 G

0.875 ... 0.899

0.850

02A 311 140 H

0.900 ... 0.924

0.875

02A 311 140 J

0.925 ... 0.949

0.900

02A 311 140 K

0.950 ... 0.974

0.925

02A 311 140 L

0.975 ... 0.999

0.950

02A 311 140 M

1.000 ... 1.024

0.975

02A 311 140 N

1.025 ... 1.049

1.000

02A 311 140 P

1.050 ... 1.074

1.025

02A 311 140 Q

1.075 ... 1.099

1.050

02A 311 140 R

1.100 ... 1.124

1.075

02A 311 140 S

1.125 ... 1.149

1.100

02A 311 140 T

1.150 ... 1.174

1.125

02A 311 140 AA

1.175 ... 1.199

1.150

02A 311 140 AB

1.200 ... 1.224

1.175

02A 311 140 AC

1.225 ... 1.249

1.200

02A 311 140 AD

1.250 ... 1.274

1.225

02A 311 140 AE

1.275 ... 1.229

1.250

02A 311 140 AF

1.300 ... 1.324

1.275

02A 311 140 AG

1.325 ... 1.349

1.300

02A 311 140

1.350 ... 1.374

1.325

02A 311 140

1.375 ... 1.399

1.350

02A 311 140 A
02A 311 140 A

1.400 ... 1.424

1.375

02A 311 140 A

02A 311 140 B

1.425 ... 1.449

1.400

02A 311 140 B



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
