Volkswagen New Beetle. Manual - part 2501





Fig. 32: Identifying Reverse Shaft Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Align selector plates.

z

Install transmission housing.

Install reverse shaft support bolts (arrow) as follows:

z

Insert bolt -a-, remove stud (see Illustration V34-2s008), insert bolt -b- and hand tighten.

NOTE:

The selector segments must be positioned in the grooves on the locking
collars.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Tightening sequence:

1. Bolt -a- 30 N.m

2. Bolt -b- 30 N.m

Fig. 33: Sectional View Of Gear Assembly



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install pivot pin (arrow) for selector forks. To do this align selector mechanism with a screwdriver so that
relevant pivot pin can be installed.

Fig. 34: Installing Pivot Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install selector shaft cover



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Install selector shaft as follows:

z

Place selector plates in neutral.

z

Locate lug (arrow -1-) in recess in transmission housing. Position selector shaft so that selector finger
(arrow -2-) is inserted in selector plates.

Fig. 35: Installing Selector Shaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install selector shaft cover.

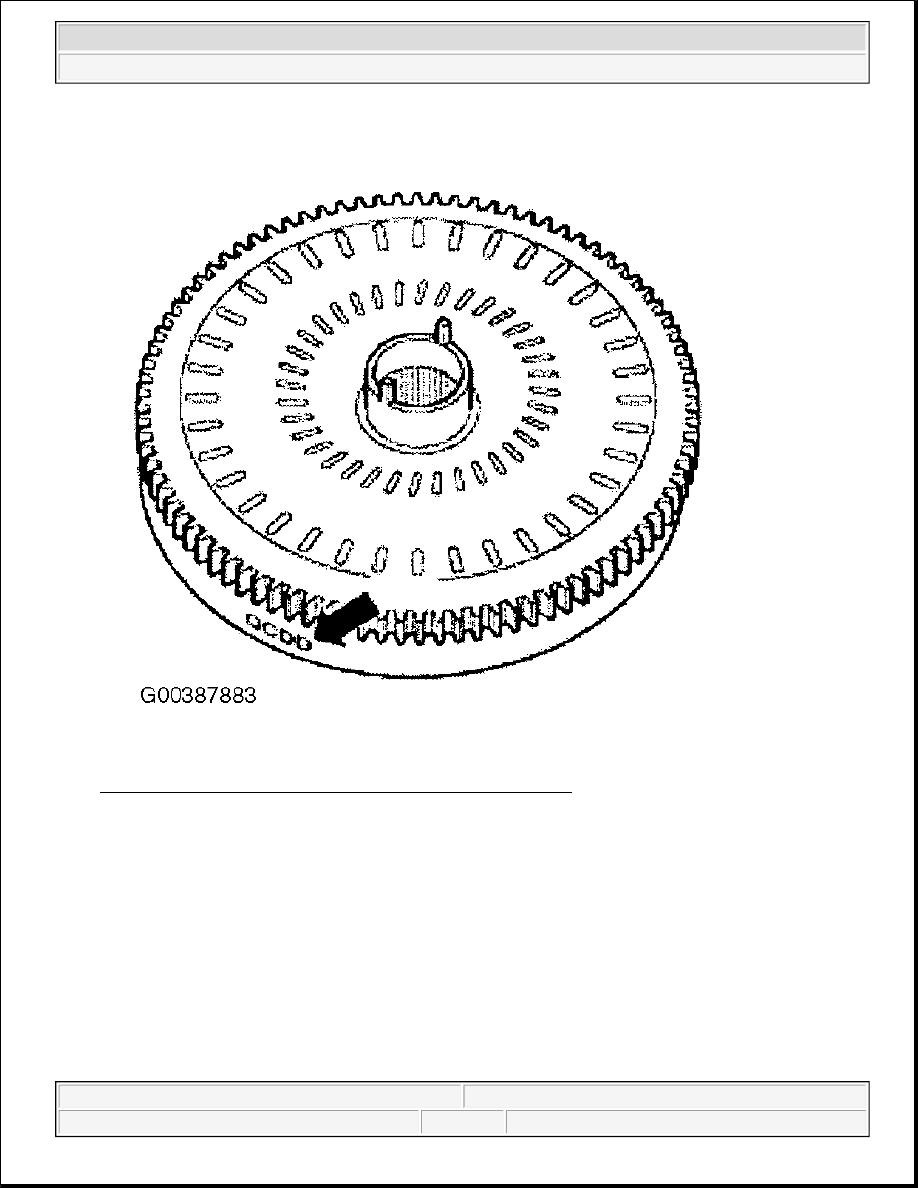

Installation position 5th gear wheel

The circumferential groove (arrow) faces to transmission housing.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
