INPUT SHAFT, OUTPUT SHAFT AND DIFFERENTIAL - ADJUSTMENT OVERVIEW

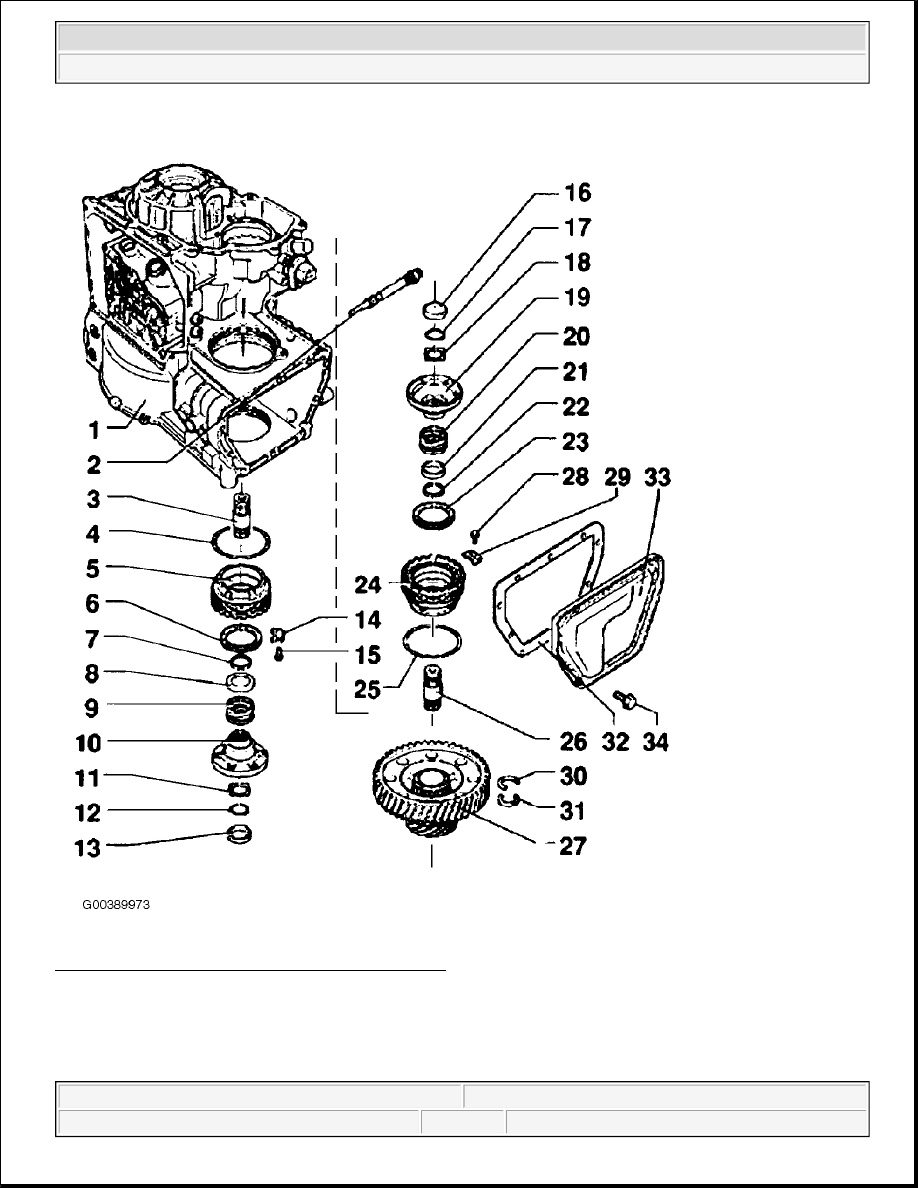

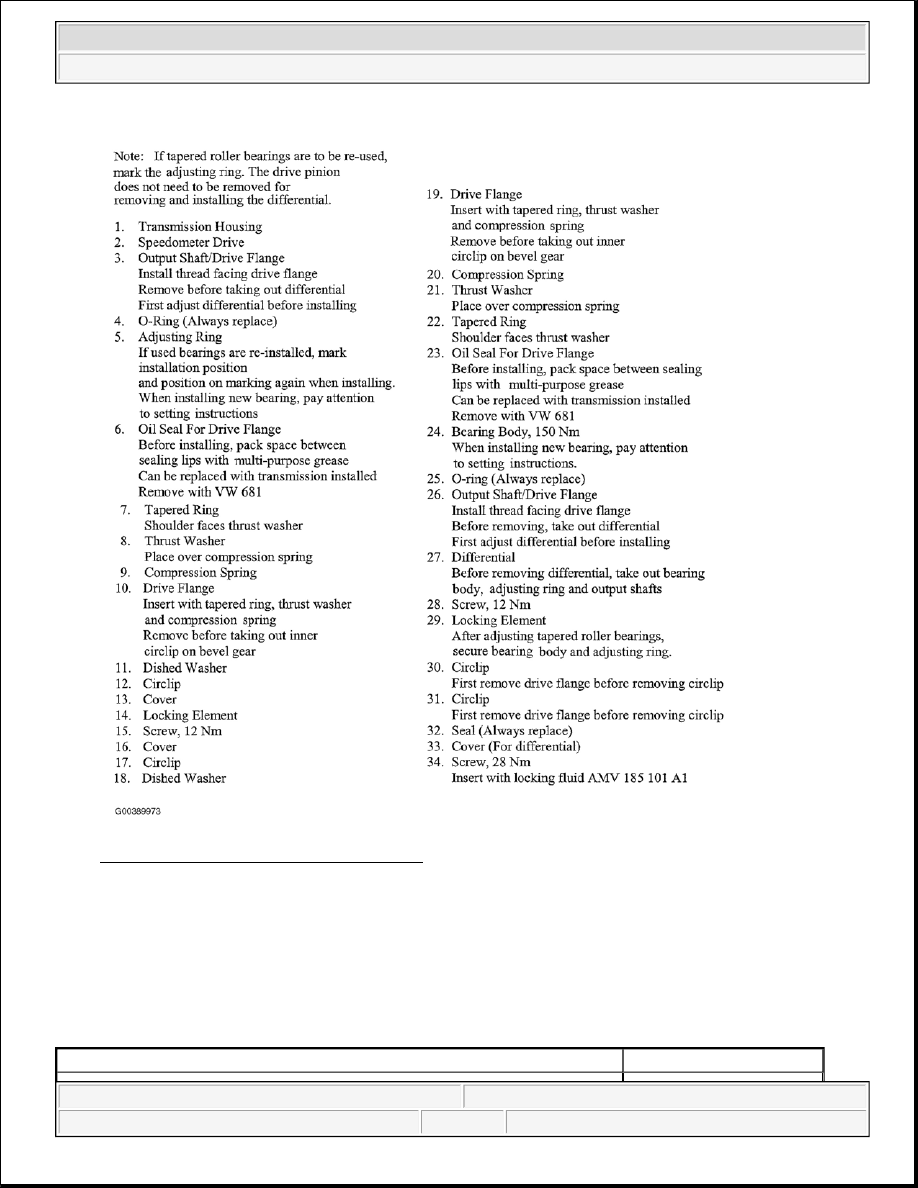

DIFFERENTIAL, ADJUSTING

Special tools and equipment

z

VW 387 Universal dial gauge bracket

z

VW 385/17 End measuring plate

z

30-205 Thrust plate

z

VW 407 Press tool

z

Measuring dial gauge

NOTE:

If repairs have been carried out to the transmission it is necessary to adjust the
input shaft, output shaft or differential if components have been replaced which
have a direct effect on the adjustment of the transmission. Refer to the
following table to avoid unnecessary adjustment:



Input shaft

See INPUT SHAFT,

ADJUSTING

Output shaft

See OUTPUT

SHAFT,

ADJUSTING

Differential

See DIFFERENTIAL,

ADJUSTING

Parts
replaced:

Transmission

housing

x



x

Clutch housing

x

x

x

Input shaft

x





Output shaft (final

drive)



x



Differential housing





x

Input shaft tapered

roller bearing

x





Output shaft

tapered roller

bearing



x



Differential tapered

roller bearing





x

4th gear wheel

x







2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 181: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The differential must be adjusted, when

z

Transmission housing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Clutch housing

z

Differential housing

or the

z

Differential tapered roller bearing

have been replaced.

Adjustment overview. See ADJUSTMENT OVERVIEW .

z

Press tapered roller outer race into clutch housing using press plate 30-205. See REMOVING .

z

Press tapered roller outer race into transmission housing, without adjustment shim, using press plate 30-
205. See REMOVING .

z

Insert differential into clutch housing.

z

Install transmission housing and tighten 5 bolts to 25 N.m.

z

Mount dial gauge and "0" with 1 mm preload.

z

Move differential up and down and recall play indicated on dial gauge (Example: 0.70 mm)

NOTE:

Tapered roller bearing inner and outer races are paired. Do not
interchange!



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 182: Measuring Differential End Play
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Determining shim thickness

The specified bearing preload is obtained by adding a constant figure (0.40 mm) to the reading obtained.

Example:

DETERMINING SHIM THICKNESS - DIFFERENTIAL BEARING PRELOAD

Reading

0.70 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
