Volkswagen New Beetle. Manual - part 2474





Fig. 132: Assembling 3rd And 4th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.


The locking collar has been pushed over the synchro-hub.

If the locking pieces are inner hollow

z

Insert locking pieces and install springs 120° off-set. Angled end of spring must locate in hollow locking
piece.

If the locking pieces are not inner hollow

z

Insert locking pieces and install springs 120° off-set. The spring must locate with the angled ends of the
locking pieces.

Installation position 3rd and 4th gear locking collar/synchro-hub

Fig. 133: Identifying Installation Position 3rd And 4th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Chamfer (arrow) faces to 4th gear.

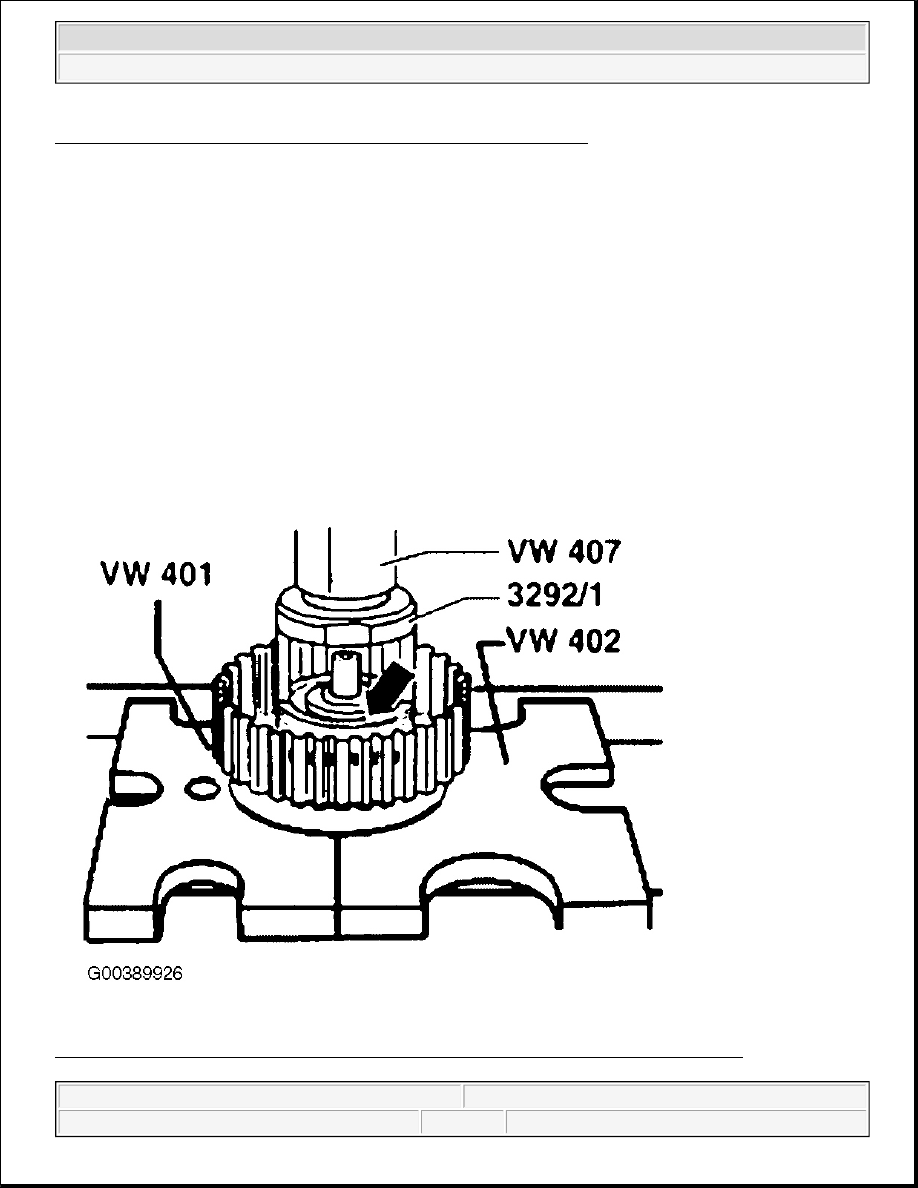

Pressing on 3rd and 4th gear synchro-hub with locking collar

Fig. 134: Pressing On 3rd And 4th Gear Synchro-Hub With Locking Collar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing on sleeve for 4th gear needle roller bearing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 135: Pressing On Sleeve For 4th Gear Needle Roller Bearing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing on sleeve for output shaft needle roller bearing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 136: Pressing On Sleeve For Output Shaft Needle Roller Bearing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

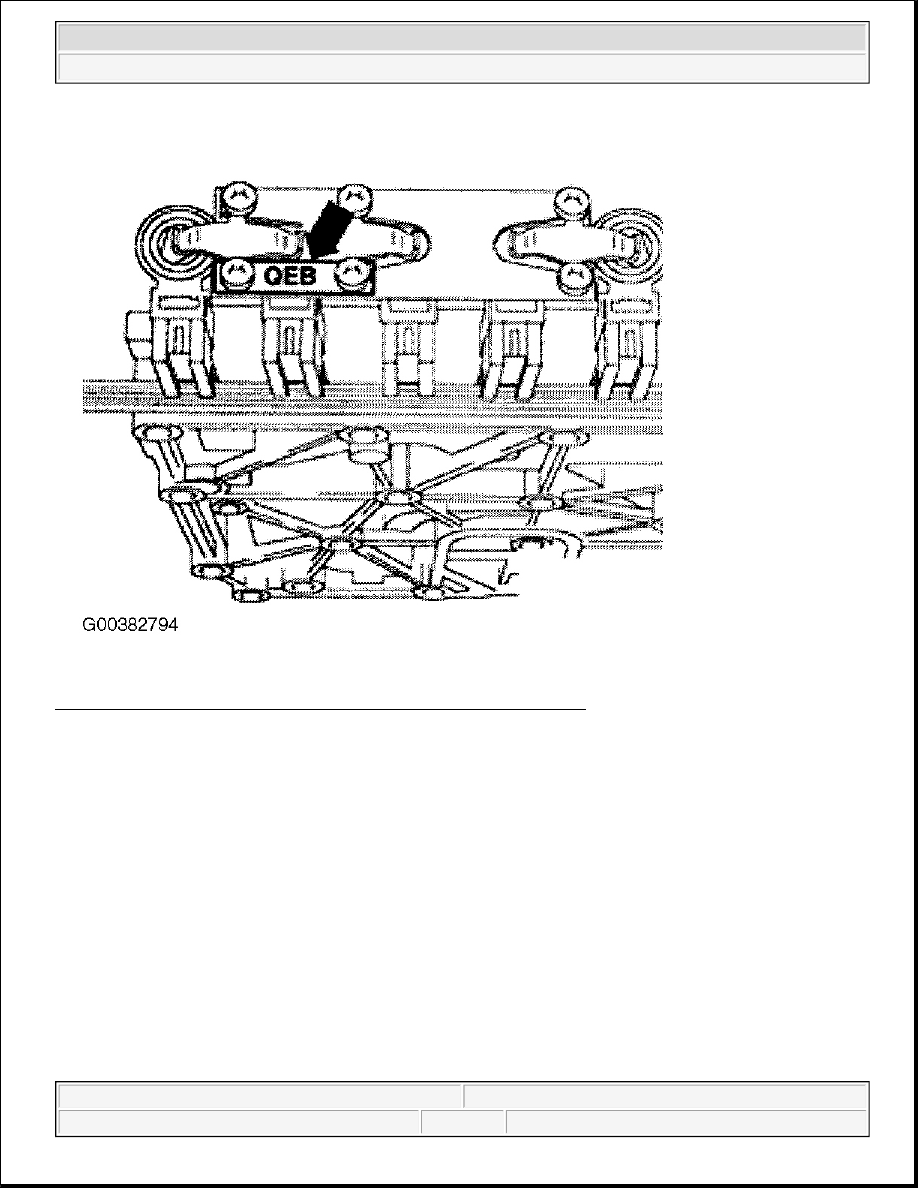

Synchronizer for 1st gear has been modified, from transmission build date 02 05 0



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
