Volkswagen New Beetle. Manual - part 2473





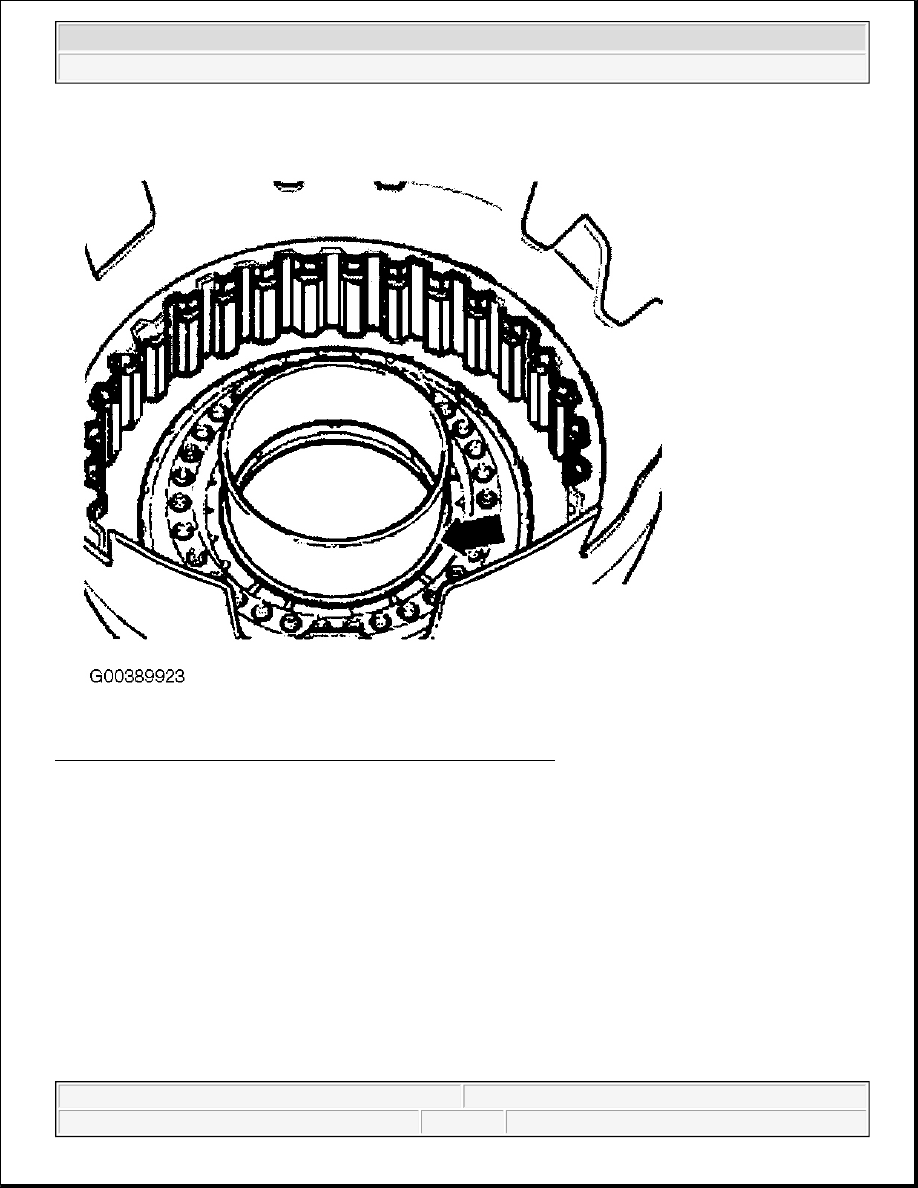

Fig. 129: Identifying Installation Position 2nd Gear Wheel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The higher shoulder -A- faces to 1st gear -B-. The recesses in the shoulder (arrows) locate with the lugs of the
outer-ring (arrow. See Installation position outer-ring )

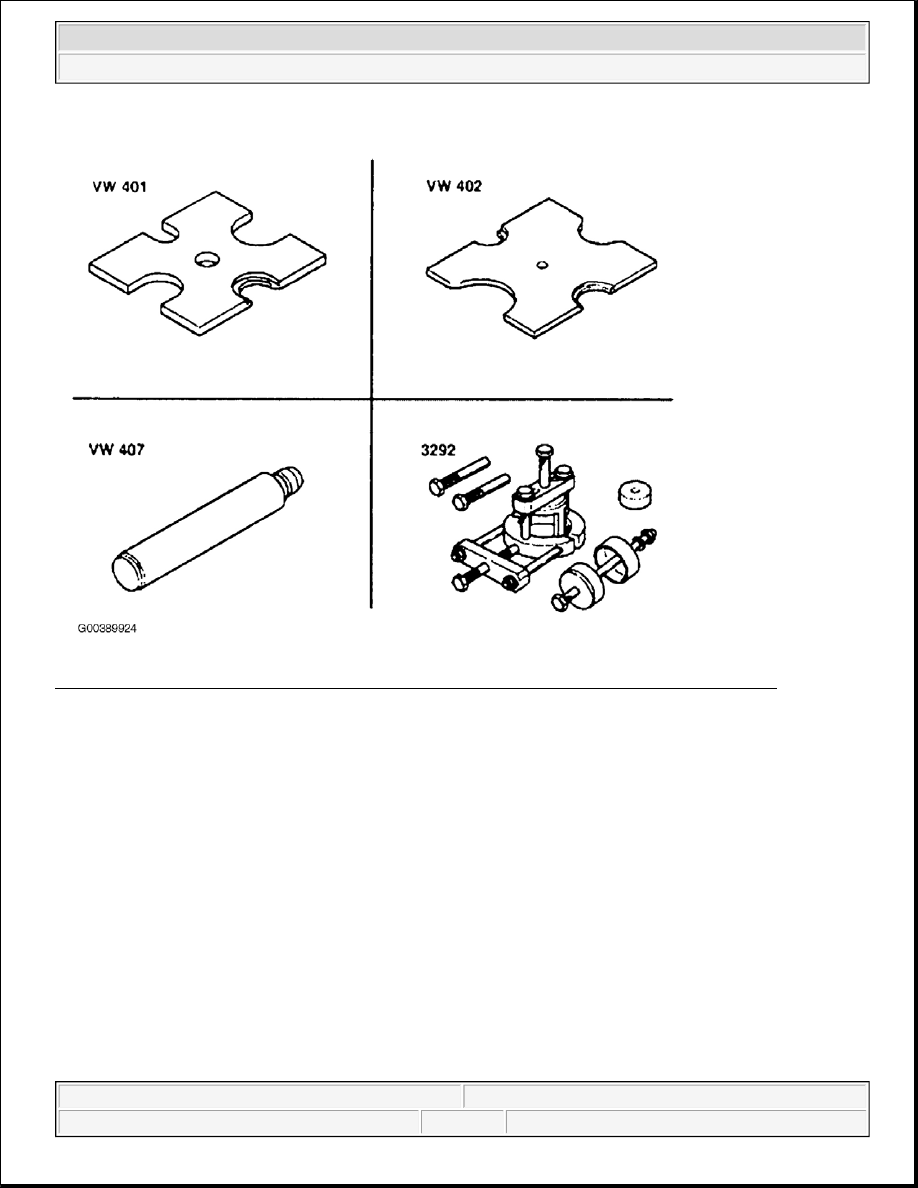

Pressing on needle roller bearing sleeve for 3rd gear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

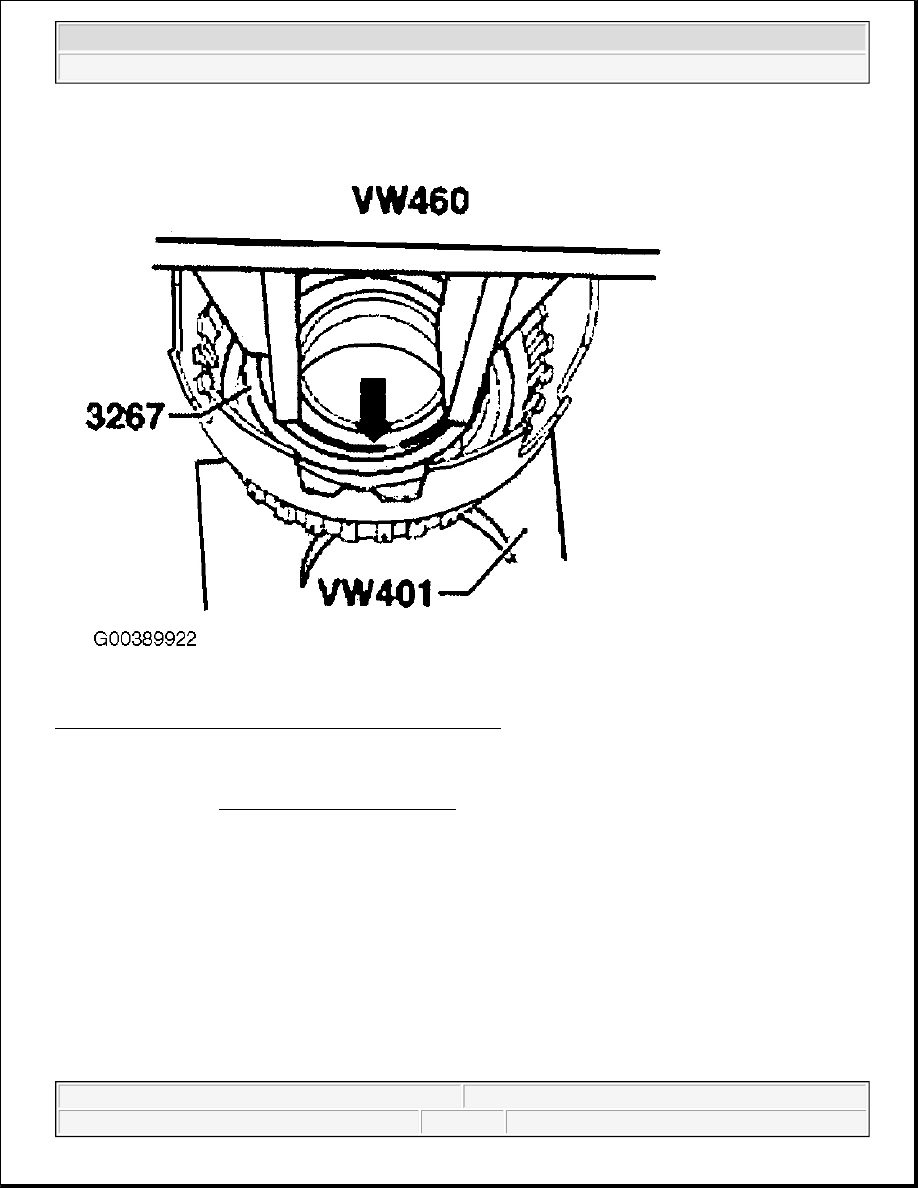

Fig. 130: Pressing On Needle Roller Bearing Sleeve For 3rd Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Disassembling and assembling 3rd and 4th gear locking collar and synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 131: Disassembling And Assembling 3rd And 4th Gear Locking Collar And Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Spring

2. Locking piece

3. Locking collar

4. Synchro-hub

{

Slide locking collar over synchro-hub.

The recesses for locking pieces in synchro-hub and locking collar must align.

Assembling 3rd and 4th gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
