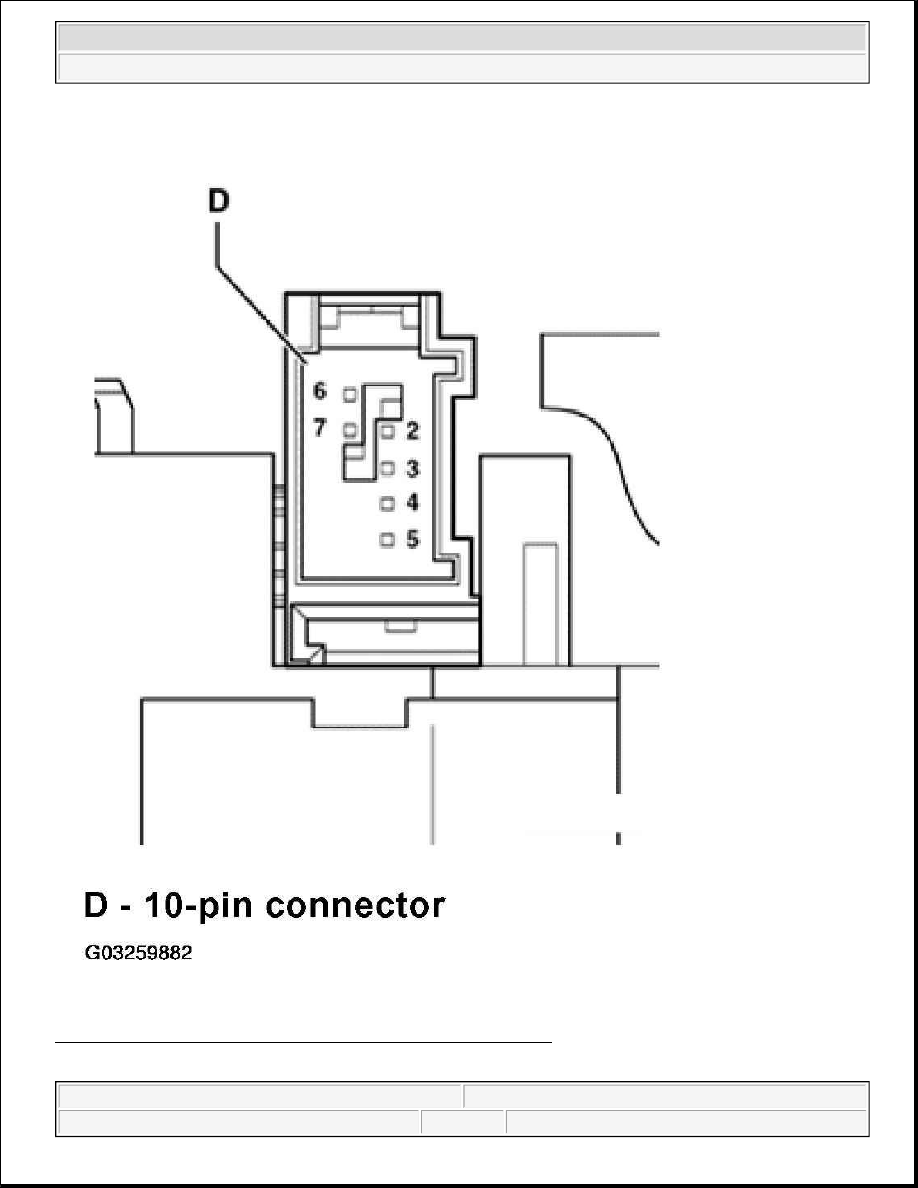

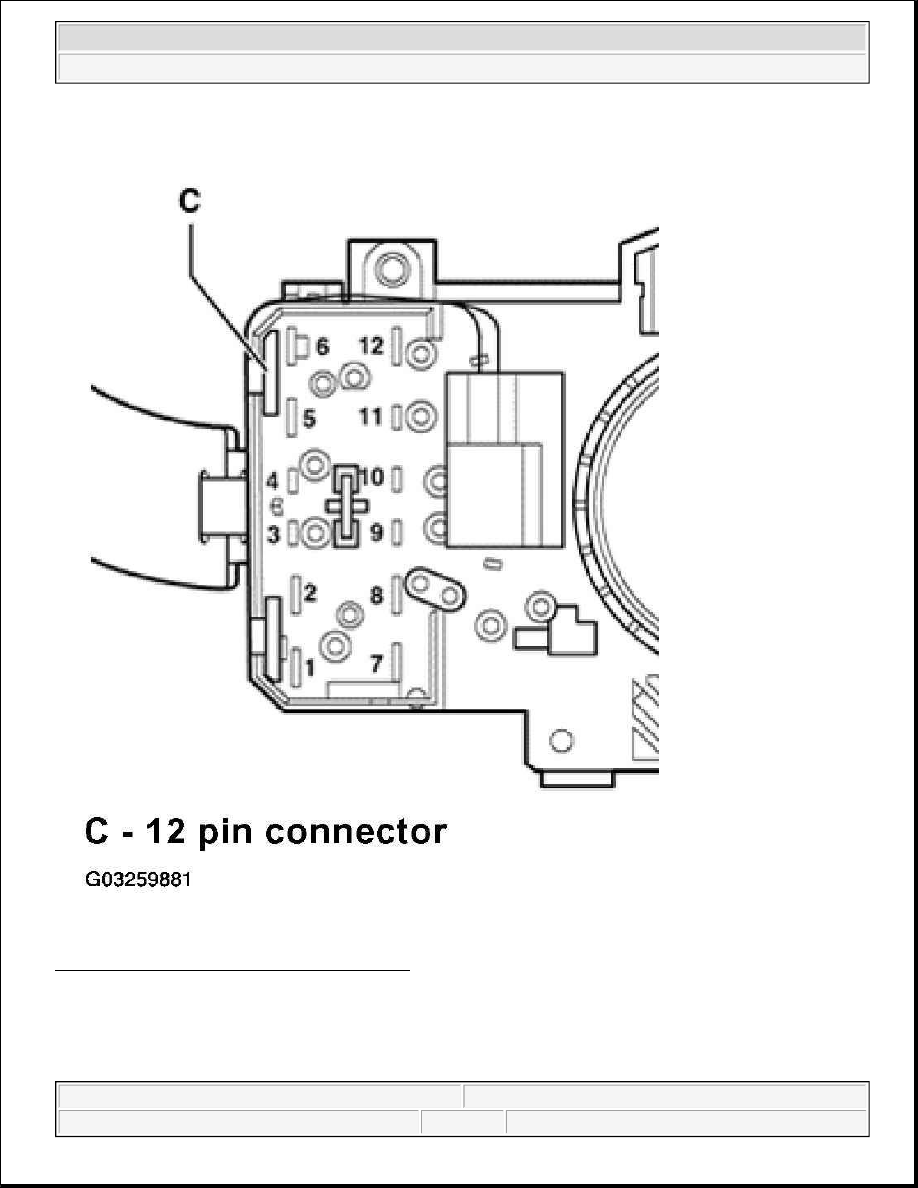

1. Windshield wiper switch - terminal 53 2. Windshield wiper switch - terminal 31 3. Windshield wiper switch - terminal 53e 4. Windshield wiper switch - terminal 53c 5. Windshield wiper switch - rear window wiper 6. Windshield wiper switch - terminal 53b 7. Windshield wiper switch - intermittent operation 8. Windshield wiper switch - terminal 53a Switches for turn signals, high and low beam, headlight dimmer/flasher switch and parking light C - 12 pin connector 1. Headlight dimmer/flasher switch - terminal 30 (B+) 2. Headlight dimmer/flasher switch - terminal 30 (B+) 3. Turn signal switch - terminal L 4. Parking light switch - terminal P 5. Turn signal switch - terminal 49a 6. Horn plate - terminal 71 7. Headlight dimmer/flasher switch - terminal 56 8. Headlight dimmer/flasher switch - terminal 56b 9. Parking light switch - terminal PL 10. Parking light switch - terminal PR 11. Turn signal switch - terminal R 12. Headlight dimmer/flasher switch - terminal 56a NOTE: The following list refers to items in Fig. 94 . NOTE: The following list refers to items in Fig. 95 .
2003 Volkswagen New Beetle GLS 1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
|
