Volkswagen New Beetle. Manual - part 246





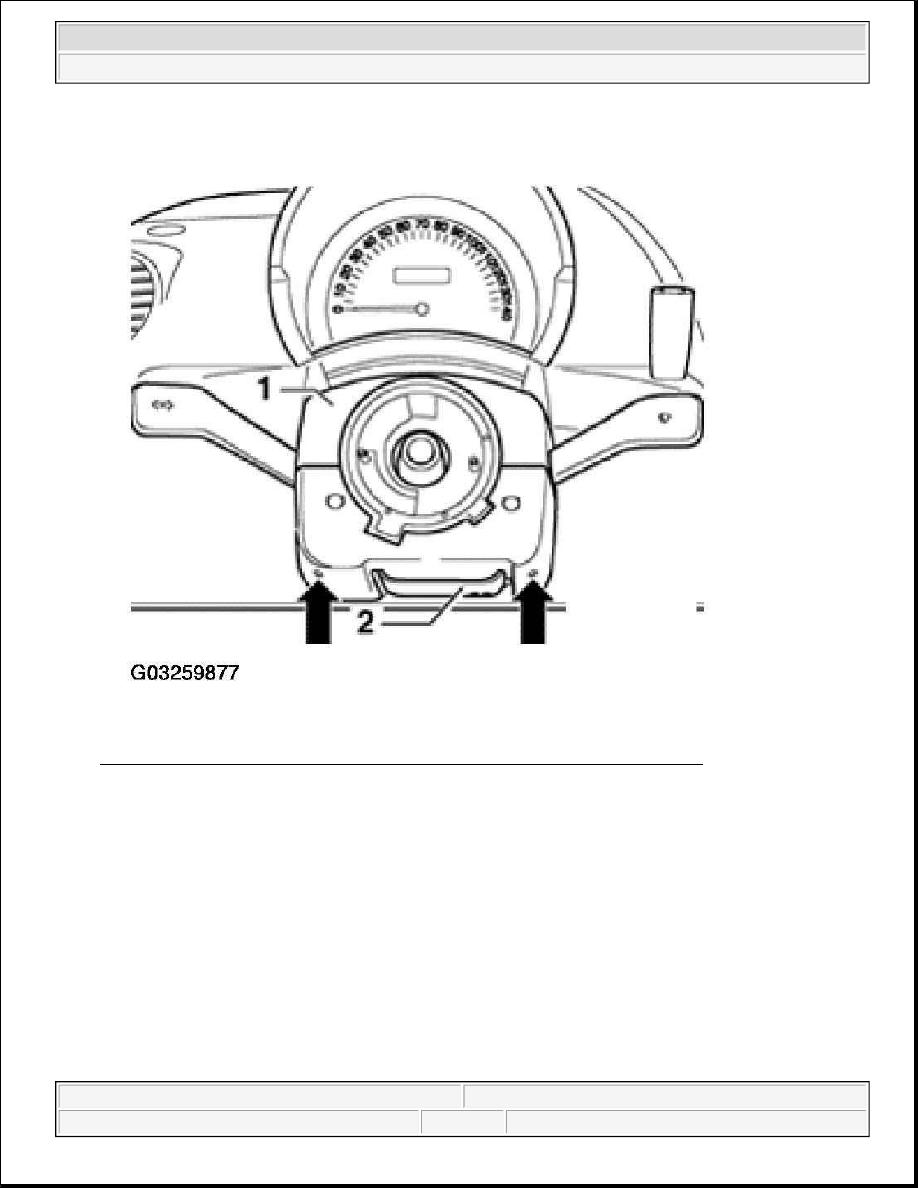

Fig. 91: Removing Two Phillips-Head Screws & Steering Column Switch Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove upper steering column switch trim -1-.

z

Remove four Phillips-head screws (arrows).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



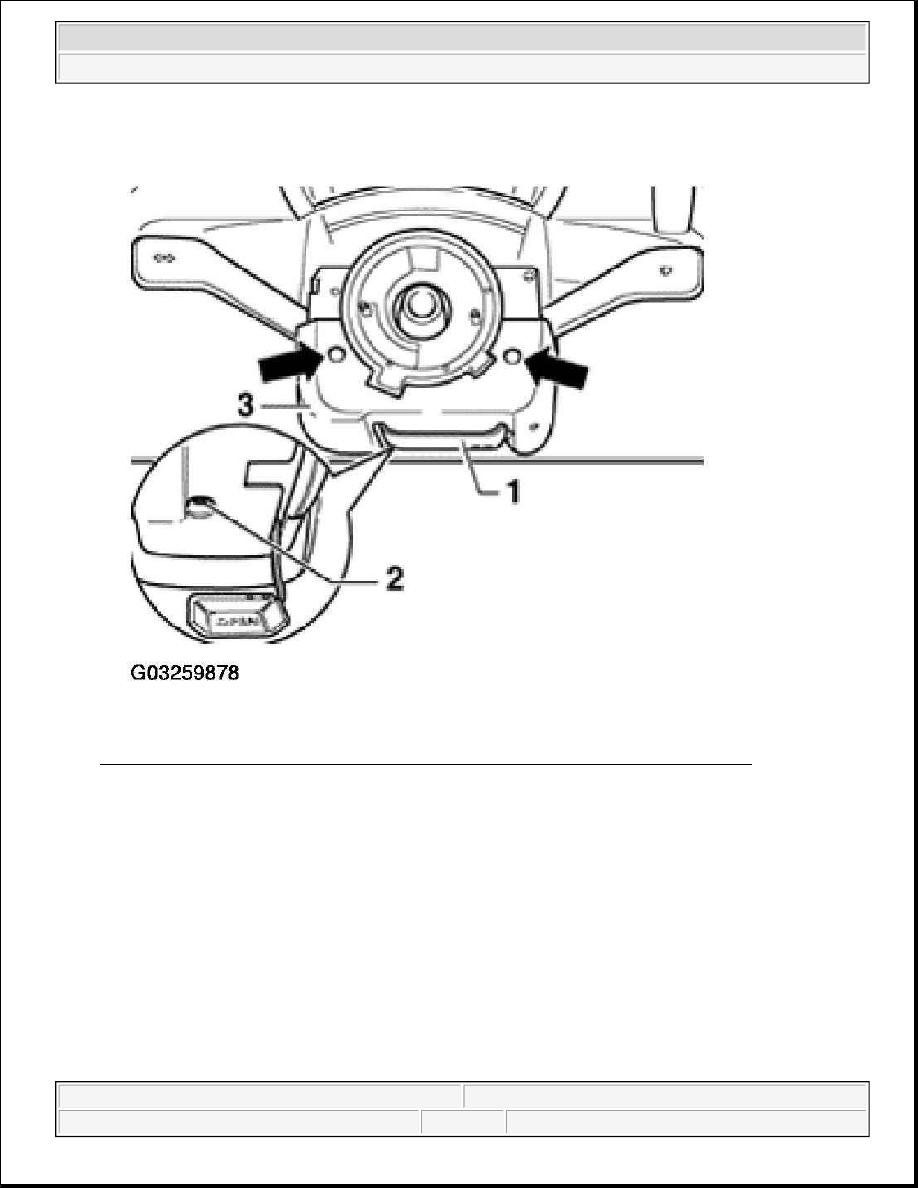

Fig. 92: Removing Four Phillips-Head Screws - Lower Steering Column Switch Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove socket head hex bolts -1-.

z

Release steering wheel height adjustment -2-.

z

Remove lower steering column switch trim -3-.

z

Remove socket head bolt -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

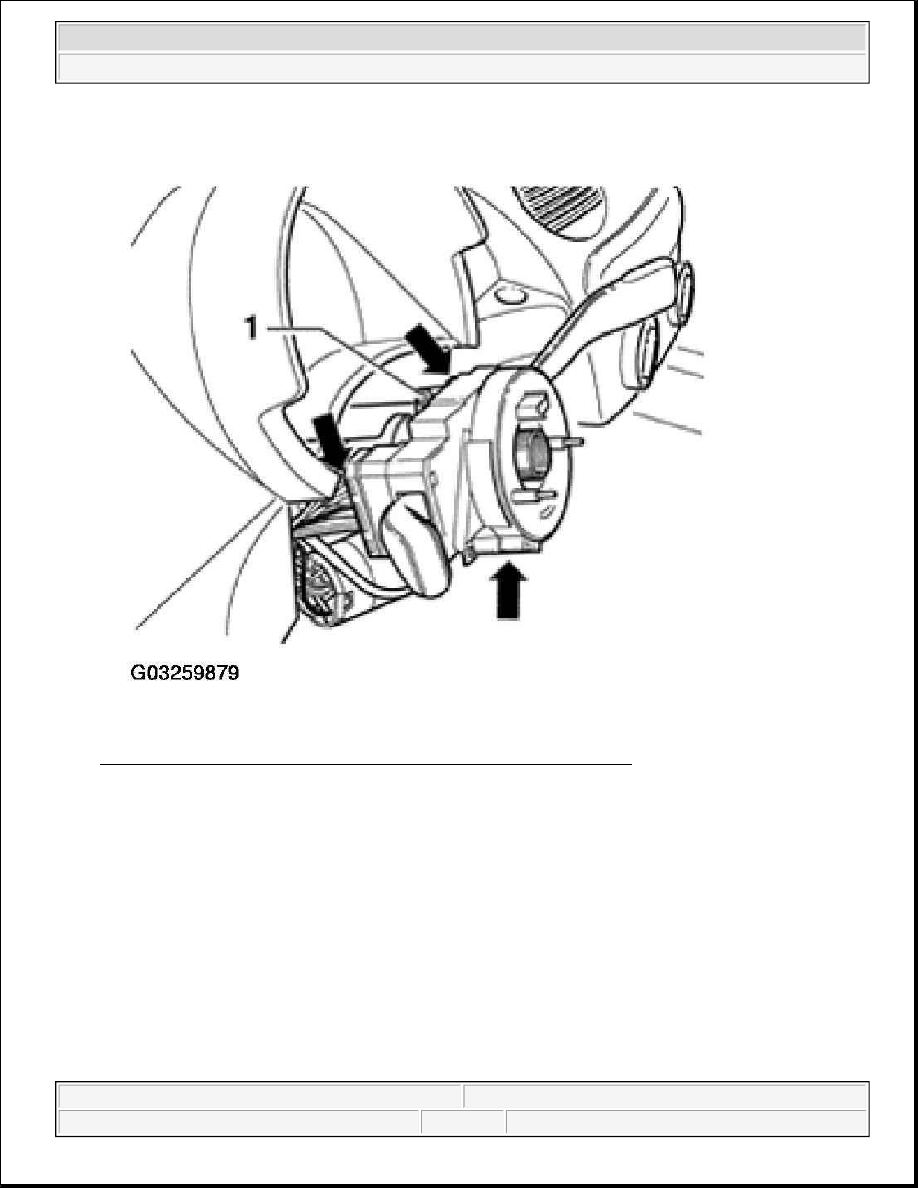

Fig. 93: Removing Socket Head Bolt From Steering Column Switches
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connectors (arrows) from steering column switches.

z

Remove steering column switches.

Installing

z

Install in reverse order of removal.

STEERING COLUMN SWITCHES, CONNECTOR ASSIGNMENTS

Switches for windshield wiper and washer system

A - 6-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1 - 4 - Open

5 - Windshield wiper intermittent regulator to automatic intermittent washer/wiper relay

6 - Windshield wiper intermittent regulator -terminal 31

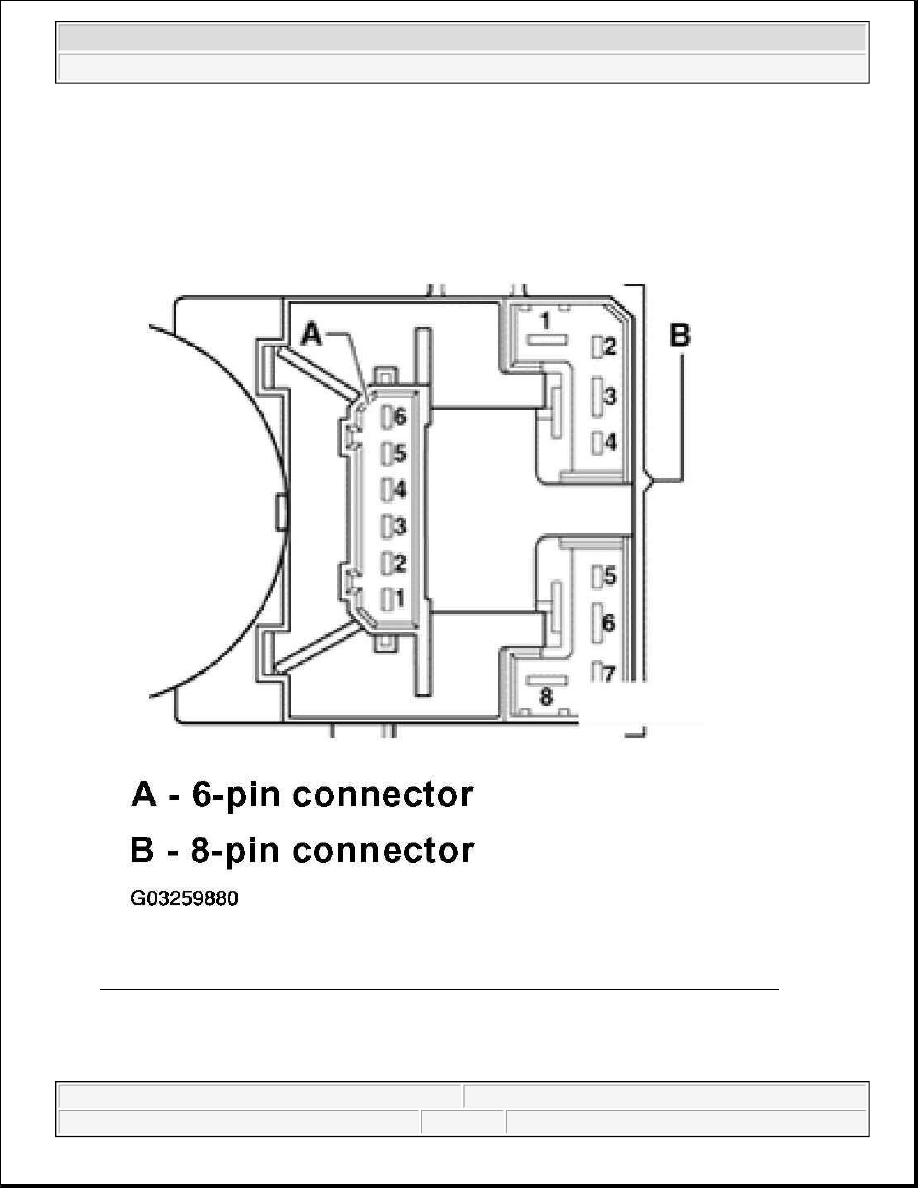

Fig. 94: Identifying Steering Column Switch Connector A (6-Pin) & Connector B (8-Pin)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

B - 8-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
