2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

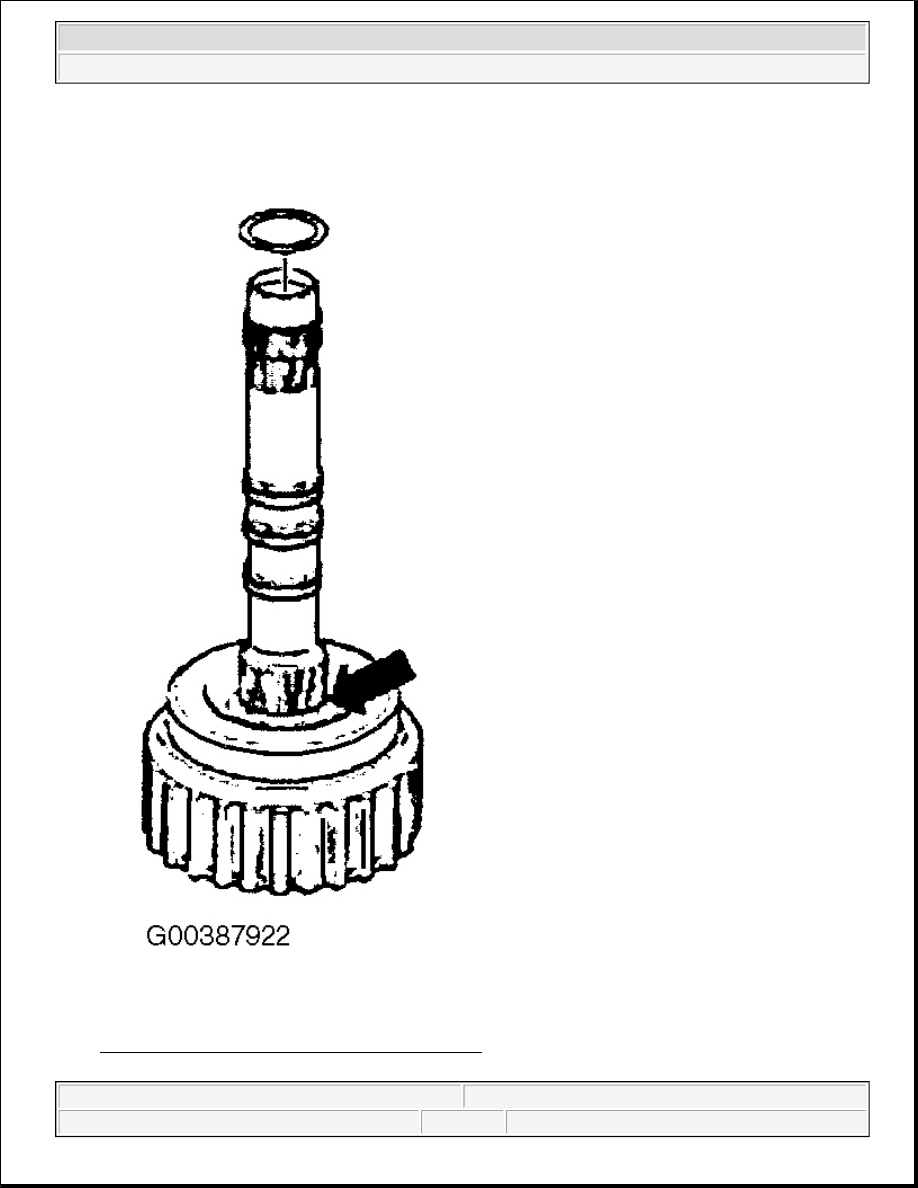

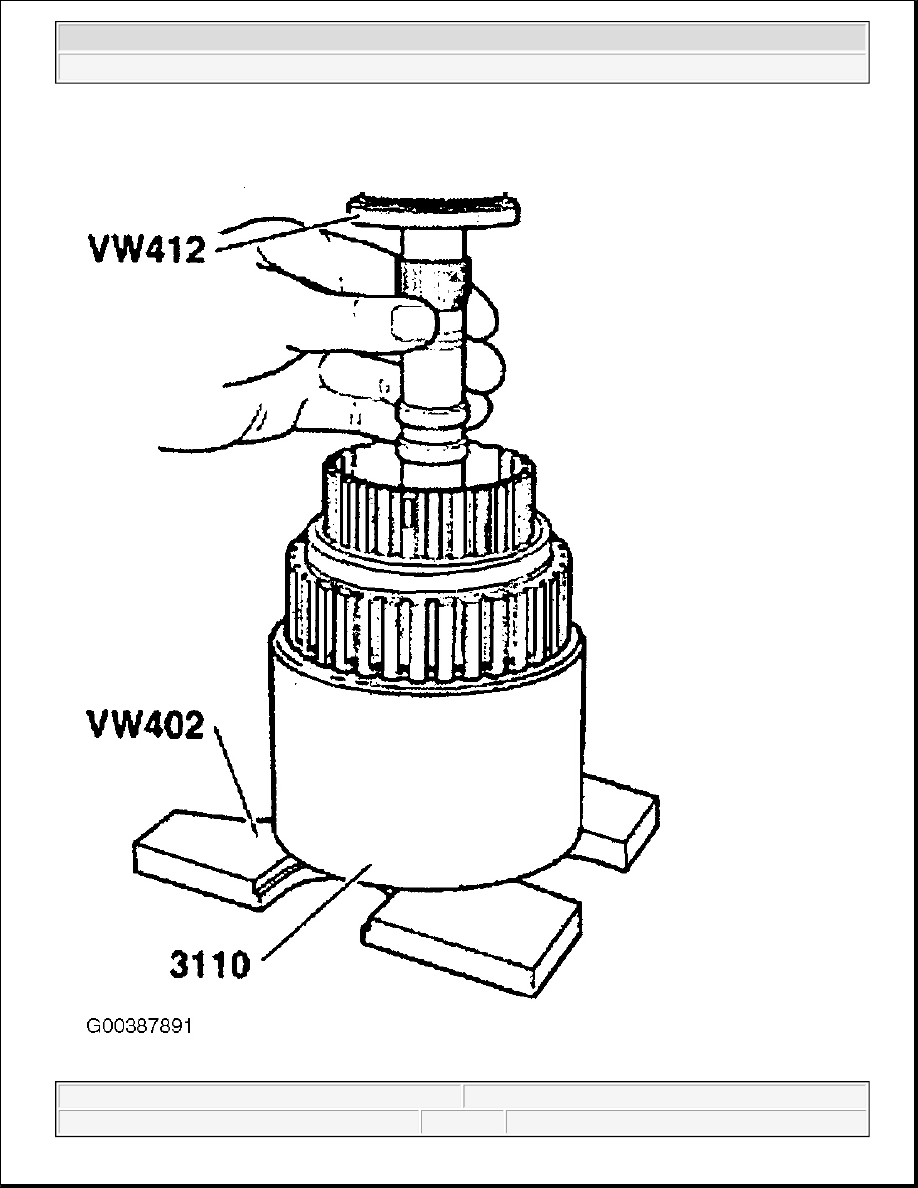

Fig. 65: Installing Oil Seal Onto Stop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SELECTOR MECHANISM ON TRANSMISSION SIDE, AS OF 06.99, DISASSEMBLING AND
ASSEMBLING

Special tools and equipment

z

VW 401 Press plate

z

VW 408 A Press tool

z

VW 423 Tube

z

VW 439 Guide pin

z

VW 447 i Thrust plate

z

1 -Kukko21/3 Internal puller



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 66: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



1. Selector shaft

z

As of date of manufacture September 4th 2000 the locating sleeve has been changed in order to
guide the switching gear into the 4th gear gap when shifting down from 5th to 4th gear. See
Selector mechanism cover and selector shaft changed

2. Stop ring

3. Ball sleeve

z

Removing. See Removing ball sleeve from selector mechanism cover

z

Pressing in. See Pressing ball sleeve into selector mechanism cover

4. Selector mechanism cover

z

As of date of manufacture of September 4th 2000, with additional bolt in order to guide the
switching gear into the 4th gear gap when shifting down from 5th to 4th gear. See Selector
mechanism cover and selector shaft changed


5. Reversing light switch, 20 N.m

z

Lightly coat lug with MoS

2

 grease

6. Cap

z

For transmission breather

7. Relay lever

z

Installation position. See GEAR LEVER

8. Bushing

9. Oil seal

z

Pry out with screwdriver

z

Installing. See Installing oil seal onto stop

10. Circlip

11. Hex nut, 25 N.m

z

Self-locking

z

Always replace

12. Gear selector lever

z

Install so that master spline aligns with selector shaft

z

Can be replaced with selector mechanism installed

z

Installation position. See GEAR LEVER

13. End cover

NOTE:

The following list refers to items in Fig. 67 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
