Volkswagen New Beetle. Manual - part 2444





Fig. 38: Measuring Synchro-Ring And Gear Gap
Courtesy of VOLKSWAGEN OF AMERICA, INC.

5TH GEAR SYNCHRO-RING GAP AND WEAR LIMIT

z

Install 5th gear wheel with needle roller bearing

z

Place 5th gear synchro-ring on gear wheel

z

Assembly 5th gear synchro-hub/locking collar before installing. See Assembling 5th gear locking
collar/synchro-hub
 .

Installation position 5th gear synchro-hub/locking collar

Gap -a-

New

Wear limit

5th gear

1.1... 1.7 mm

0.5 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 39: Identifying Installation Position 5th Gear Synchro-Hub/Locking Collar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The pointed teeth of the locking collar (arrow -1-) and the high shoulder of the synchro-hub (arrow -2-) face the
transmission housing.

The mountings (arrow -3-) of the syncro-hub are inline with the cast locking pieces of the syncro-ring (arrows
in 5th gear synchro-ring with cast locking pieces (arrows) ).

5th gear synchro-ring with cast locking pieces (arrows)



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 40: Identifying 5th Gear Synchro-Ring With Cast Locking Pieces
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drive on 5th gear synchro-hub

NOTE:

When driving make sure synchro-ring is free to move.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

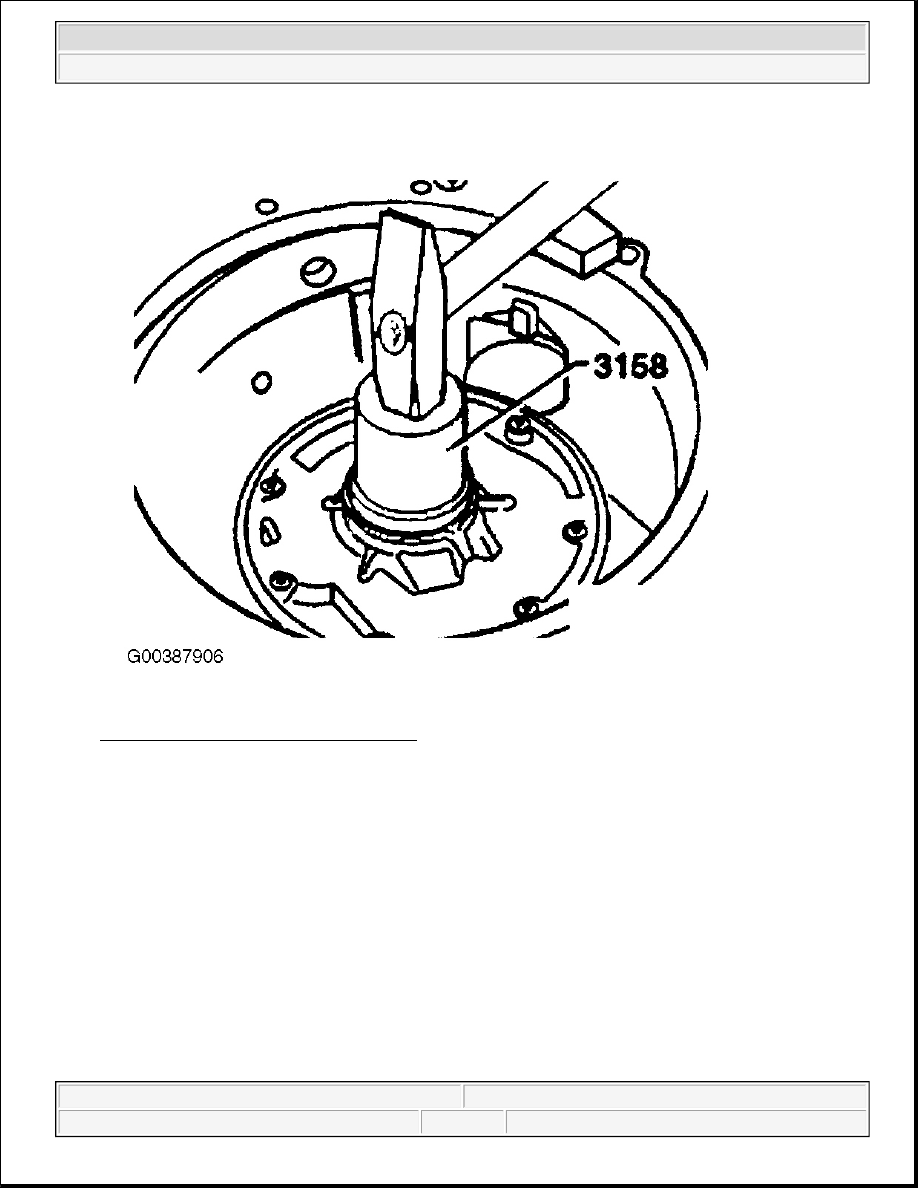

Fig. 41: Installing 5th Gear Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Screw-in securing bolts for synchro-hub and 5th gear wheel.

Installation position of dished spring for gear wheel and 5th gear synchro-hub securing bolts:

The outer diameter (concave side -arrows-) faces 5th gear.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
