shim (1.70 mm) and adding a constant for pressing (0.20 mm).

Example:

DETERMINING SHIM THICKNESS (OUTPUT SHAFT FOR 5TH, 6TH AND REVERSE GEAR,
EXAMPLE)


z

Determine thickness of shim from table. See SHIM TABLE .

z

Remove transmission housing and pull tapered roller bearing outer race out of housing.

A. Counter support, e.g. Kukko 22/2

B. Internal puller 46 to 58 mm, e.g. Kukko 21/7

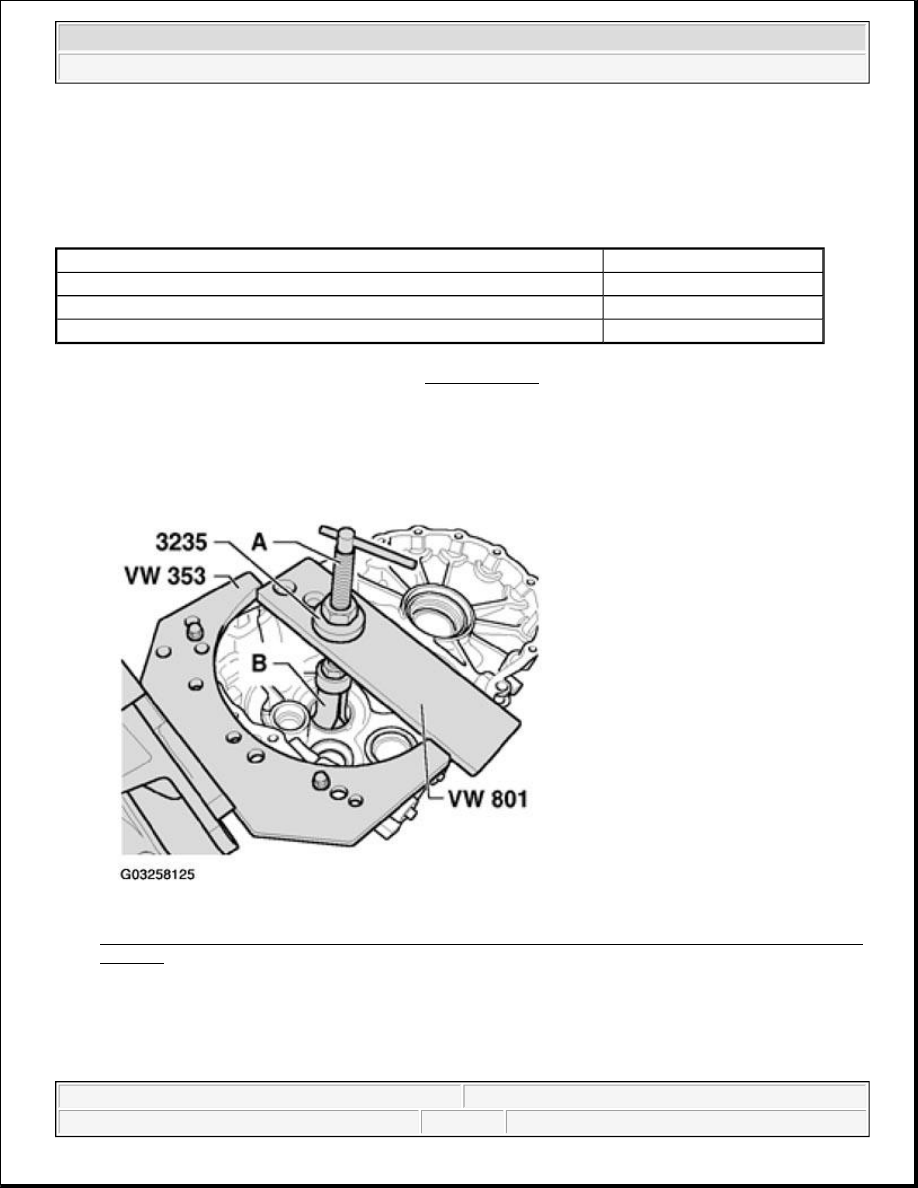

Fig. 156: Removing Transmission Housing And Pulling Tapered Roller Bearing Outer Race Out Of
Housing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove inserted shim (1.70 mm thick) from clutch housing.

Shim table

Inserted shim

1.70 mm

- Measured value

0.27 mm

+ Preloading (constant)

0.20 mm

Shim thickness

1.63 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



SHIM SELECTION (OUTPUT SHAFT FOR 5TH, 6TH AND REVERSE GEAR)

Varying tolerances make it possible to obtain the exact shim thickness required.

z

Press in tapered roller bearing outer race together with determined shim (in Example 1.65 mm) while
supporting transmission housing with thrust piece 2050 directly under bearing support.

Perform check measurement

z

Determined shim installed.

{

Install measuring tools. Put washers with a total thickness of 8 mm on bolt -arrow- securing
installation tool VW 792 to clutch housing.

Size (mm)

Part No.

1.40

084 409 383 AF

1.45

084 409 383 AG

1.50

084 409 383 AH

1.55

084 409 383 AJ

1.60

084 409 383 AK

1.65

084 409 383 AL

1.70

084 409 383 AM

1.75

084 409 383 AN

1.80

084 409 383 AP

1.85

084 409 383 AQ

1.90

084 409 383 AR

1.95

084 409 383 AS

2.00

084 409 383 AT

2.05

084 409 383 BA

2.10

084 409 383 BB

2.15

084 409 383 BC



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



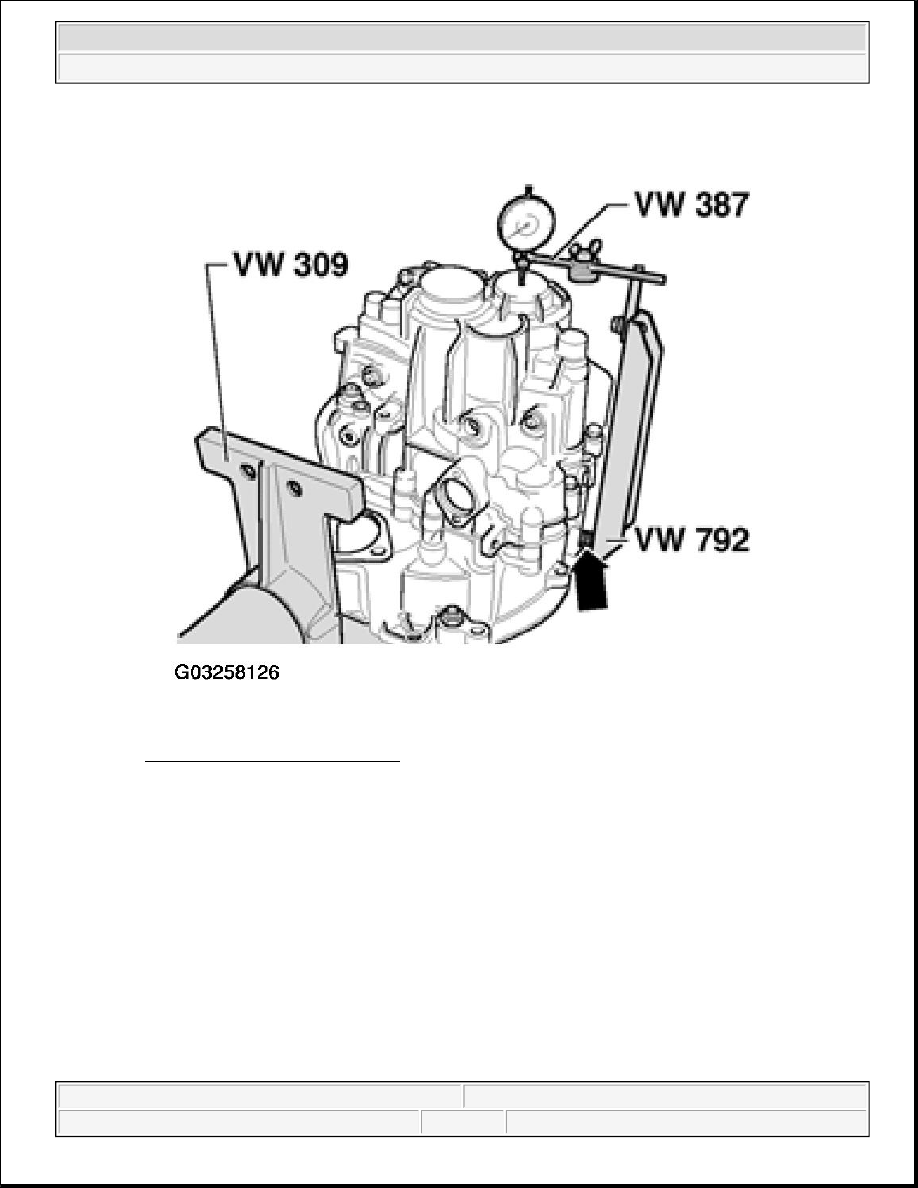

Fig. 157: Install Measuring Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

{

Set dial gauge (3 mm measuring range) to zero with 1 mm preload.

{

Loosen clutch housing/transmission housing securing bolts diagonally until output shaft moves
freely in transmission.

{

If correct shim has been selected, dial gauge will indicate a value of 0.15 mm to 0.25 mm.

FINAL DRIVE, DIFFERENTIAL

OIL SEALS FOR FLANGED SHAFTS, REPLACING

Transmission in vehicle

Oil seal for left flanged shaft, replacing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Special tools and equipment

z

VW 771 Multipurpose tool

z

VW 771/37 Puller hooks

z

3303 Press piece

z

V.A.G 1331 Torque wrench

z

V.A.G 1332 Torque wrench
