Volkswagen New Beetle. Manual - part 241







2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

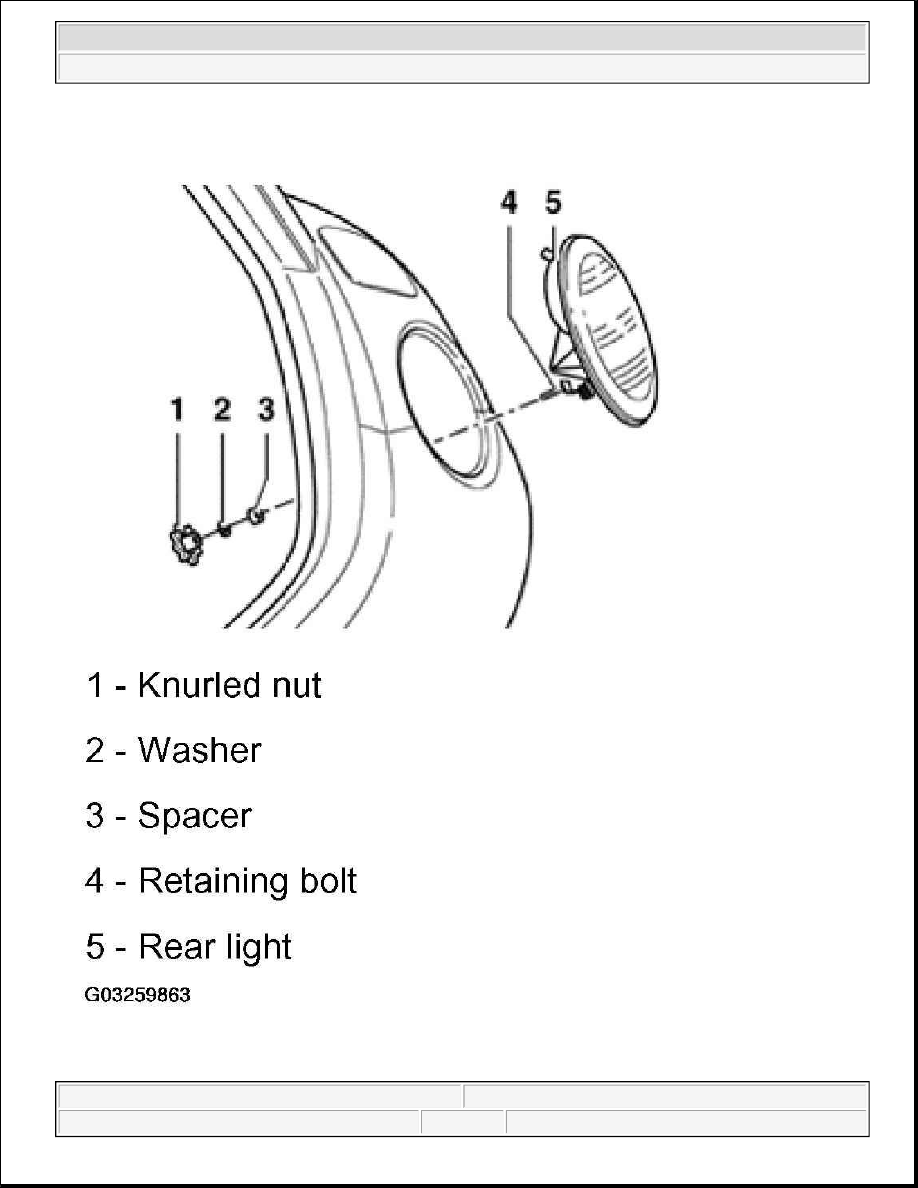

Fig. 77: Rear Light Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove rear striker mount cover.

See LOAD AND LUGGAGE AREA TRIMS .

z

Reach behind respective quarter panel trim and unscrew knurled nut -1-. Make sure washer -2- and spacer
-3- do not fall down. See Fig. 77 .

z

Remove rear light -5- and disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Insert rear light housing into body opening.

z

Insert retaining bolt -4- into body opening.

z

Insert rear light into cutout -arrow-.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

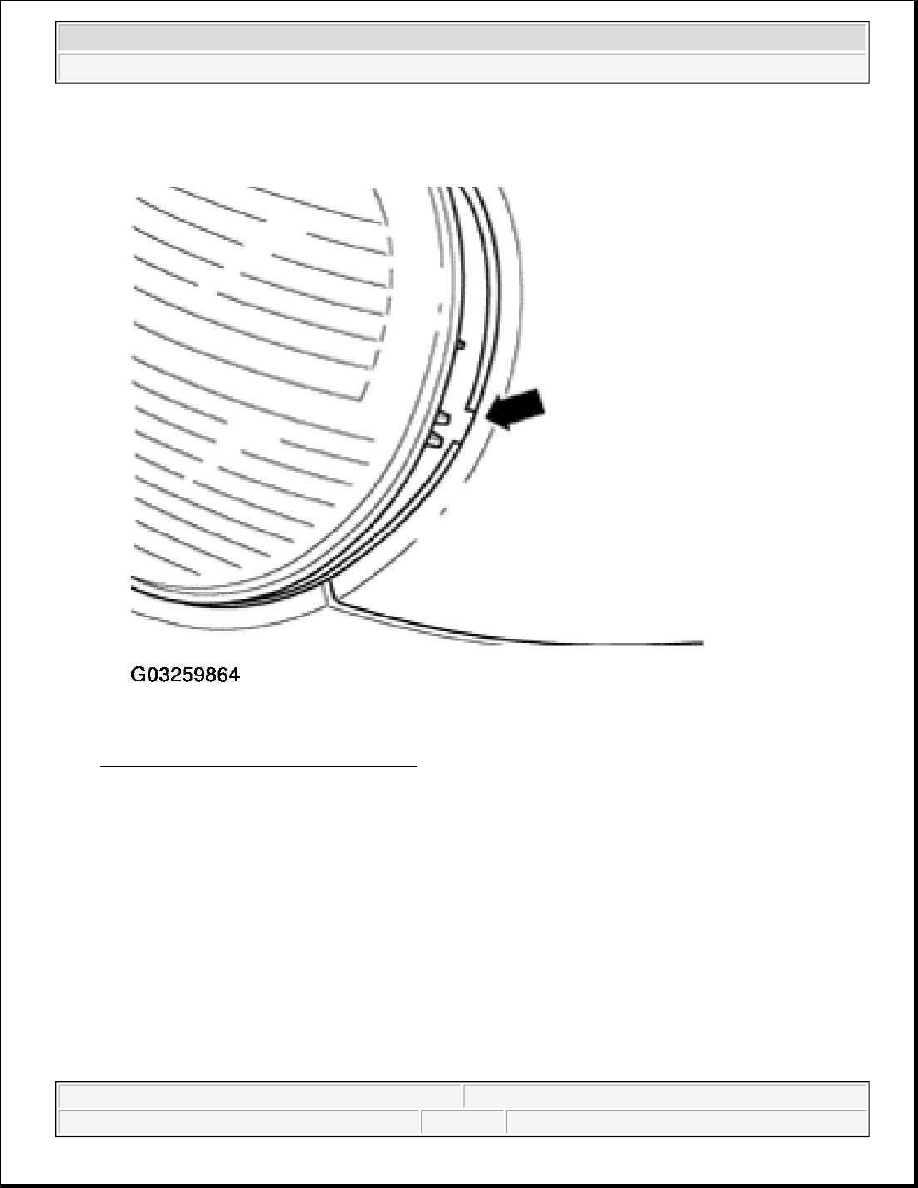

Fig. 78: Inserting Rear Light Into Cutout
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Slide spacer -3- and washer -2- onto retaining bolt -4-, attach knurled nut -1- and tighten by hand.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

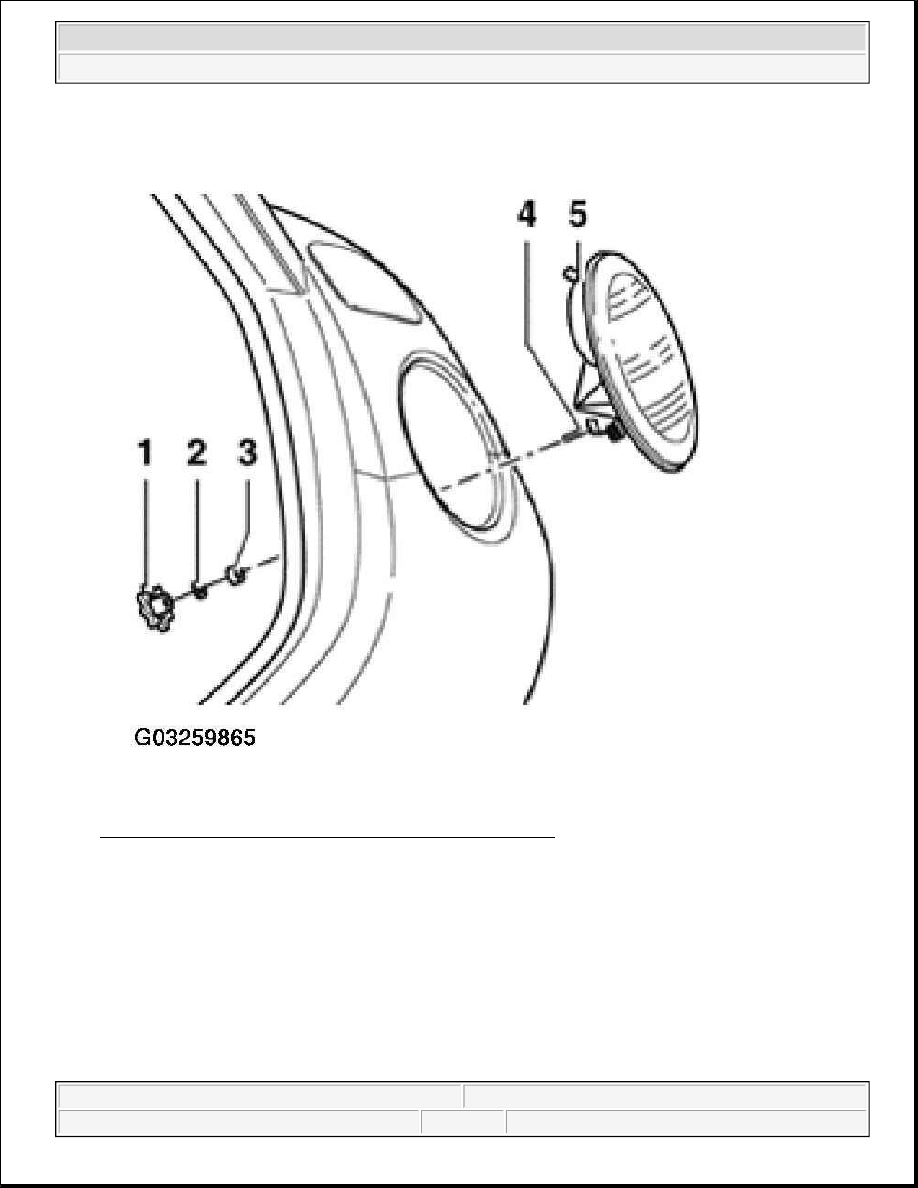

Fig. 79: Installing Spacer And Washer Onto Retaining Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REAR LIGHT BULBS, REPLACING

The procedure for removing and installing turn signal light bulbs is the same as that for brake light and taillight
bulbs.

Only the procedure for brake light and taillight bulbs is described here.

Removing

z

Remove rear light. See REAR LIGHT HOUSING, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
