Volkswagen New Beetle. Manual - part 240

See MIRROR HOUSING, REMOVING AND INSTALLING .

z

Remove screw -1-.

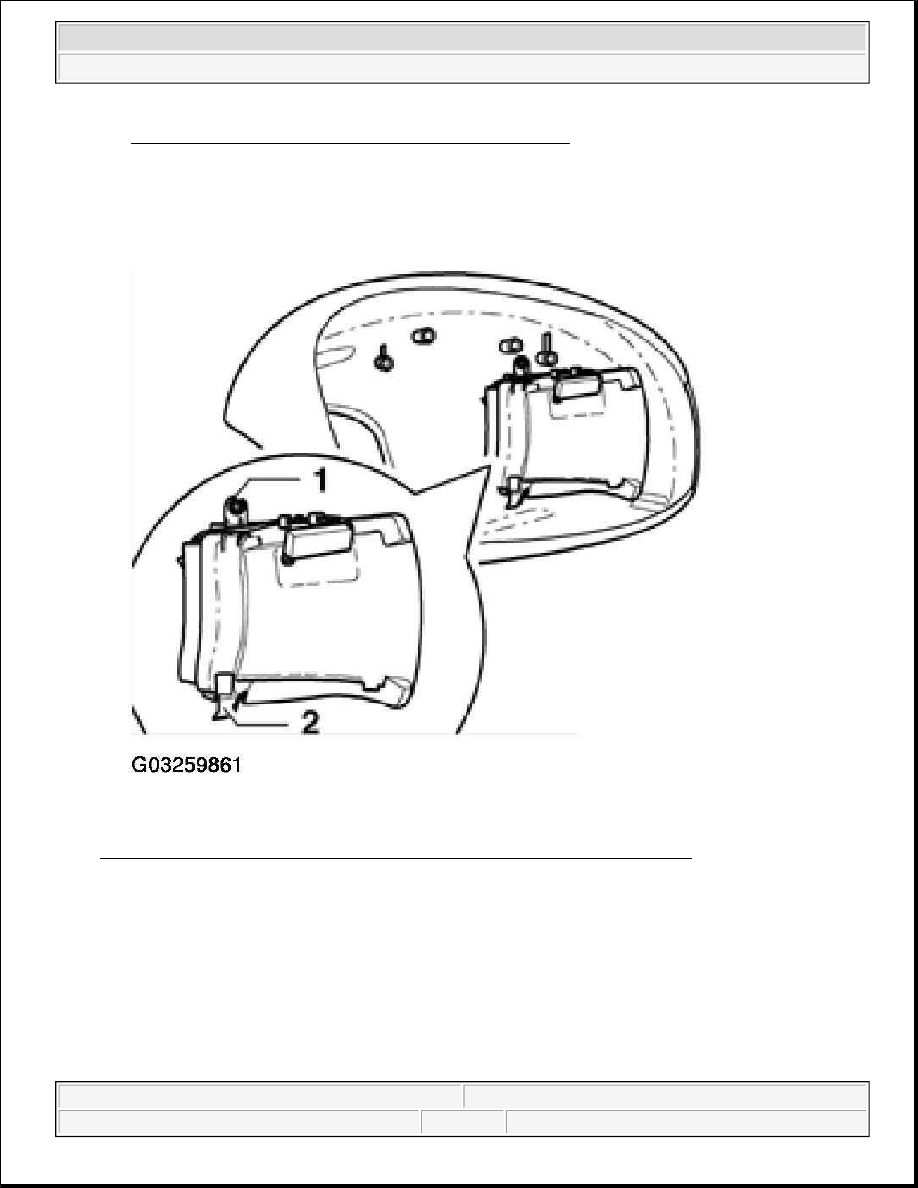

Fig. 75: Removing Side Mounted Turn Signals In Rear View Mirror Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Unlock securing latch -2- manually by pushing it gently upwards.

z

Remove turn signal by pushing it in towards the mirror housing.

Installing

Install in reverse order of removal.

NOTE:

In case of damaged mirror housing and/or turn signals, both can be found as



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



REAR LIGHTS

REAR LIGHTS, ASSEMBLY

1. Housing

z

Replace if gasket is faulty

z

Removing and installing. See REAR LIGHT HOUSING, REMOVING AND INSTALLING .

2. Turn signal bulb

12V/21W

3. O-ring

z

Replace if damaged

4. Bulb holder for turn signal

z

Removing and installing. See REAR LIGHT BULBS, REPLACING .

5. Bulb holder for brake light and taillight

z

Removing and installing. See REAR LIGHT BULBS, REPLACING .

6. Dual filament bulb for brake light and taillight

12V/21W/5W

separate spare parts.

NOTE:

The following list refers to items in Fig. 76 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

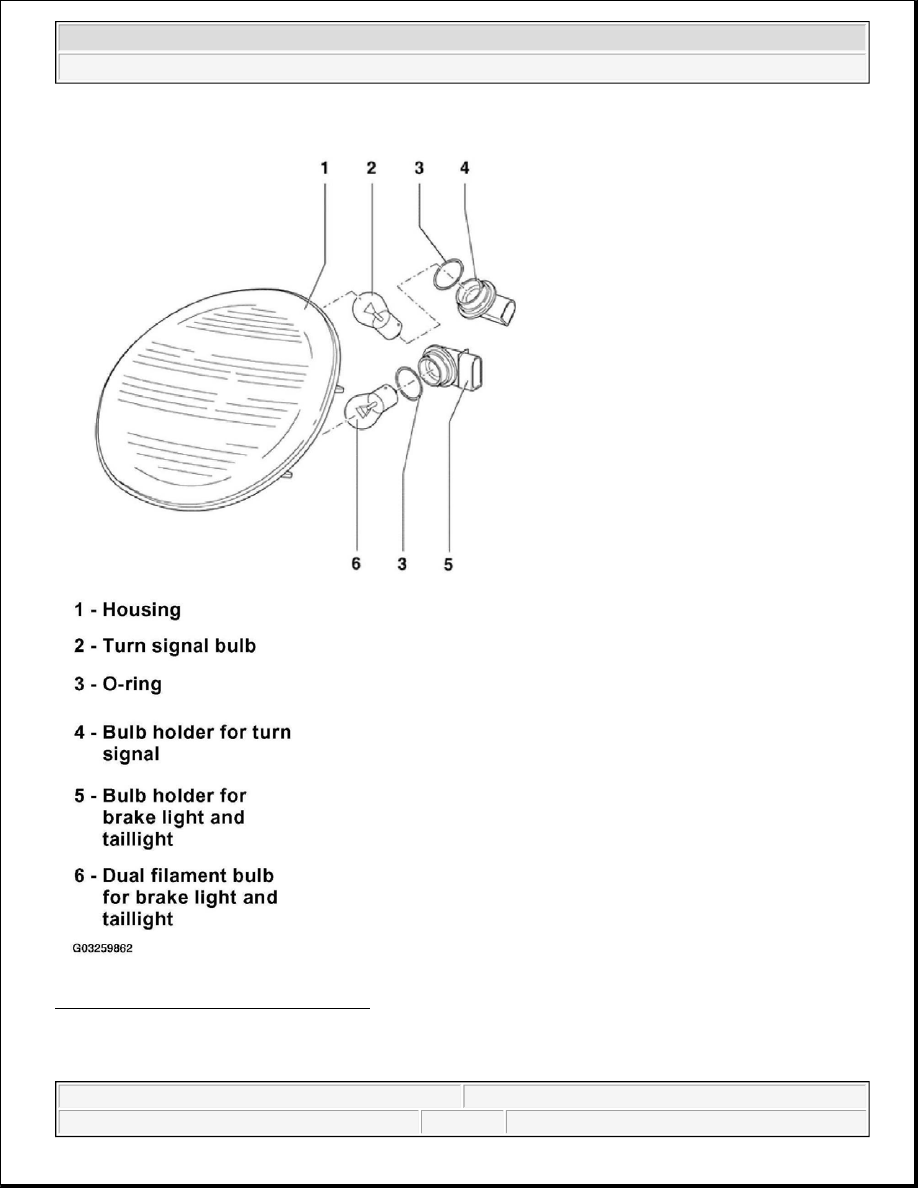

Fig. 76: Identifying Rear Light Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REAR LIGHT HOUSING, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Removing

1. Knurled nut

2. Washer

3. Spacer

4. Retaining bolt

5. Rear light

NOTE:

The following list refers to items in Fig. 77 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
