Volkswagen New Beetle. Manual - part 2401





Fig. 85: Identifying Special Tools And Equipment (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

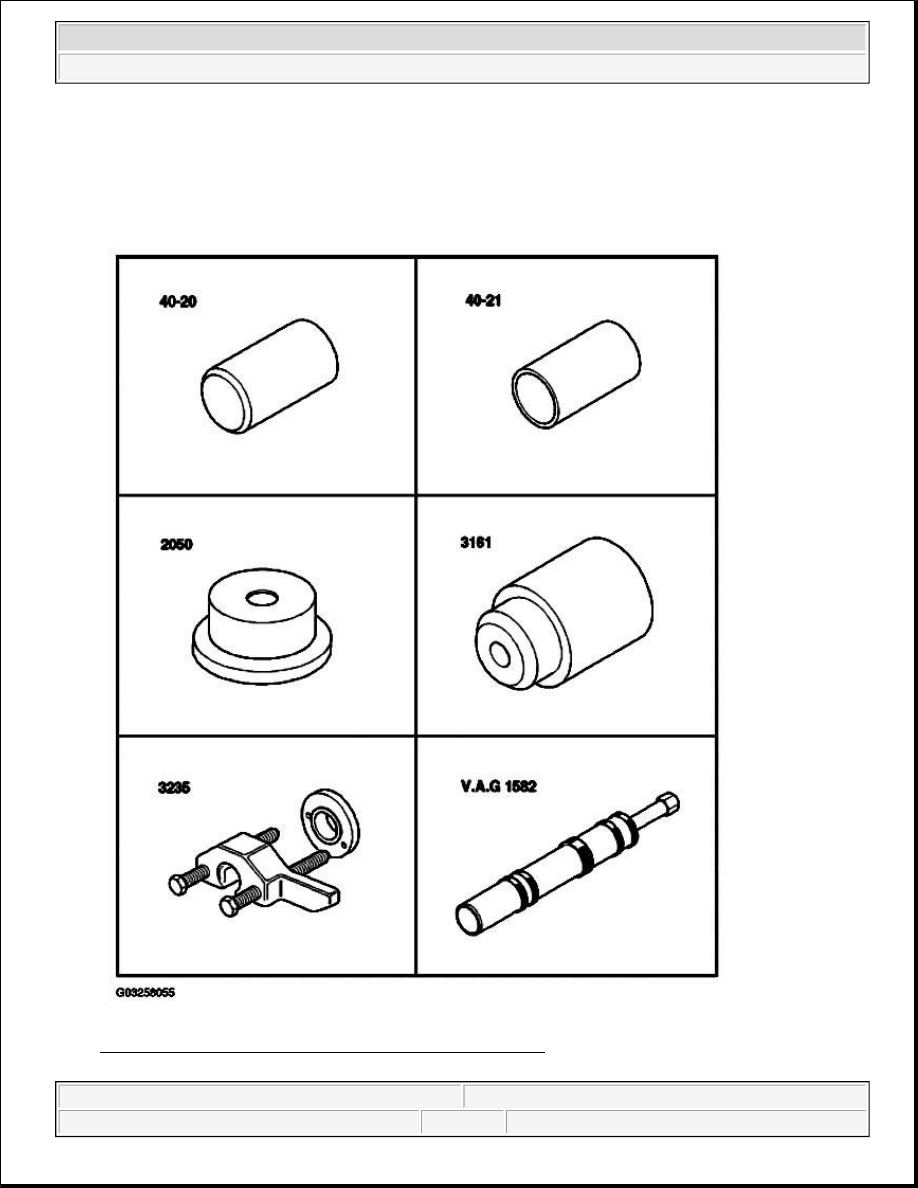

40-20 Press tool

z

40-21 Press tool

z

2050 Thrust piece



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

3161 Extension

z

3235 Press

z

V.A.G 1582 Tapered roller bearing puller

Fig. 86: Identifying Special Tools And Equipment (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

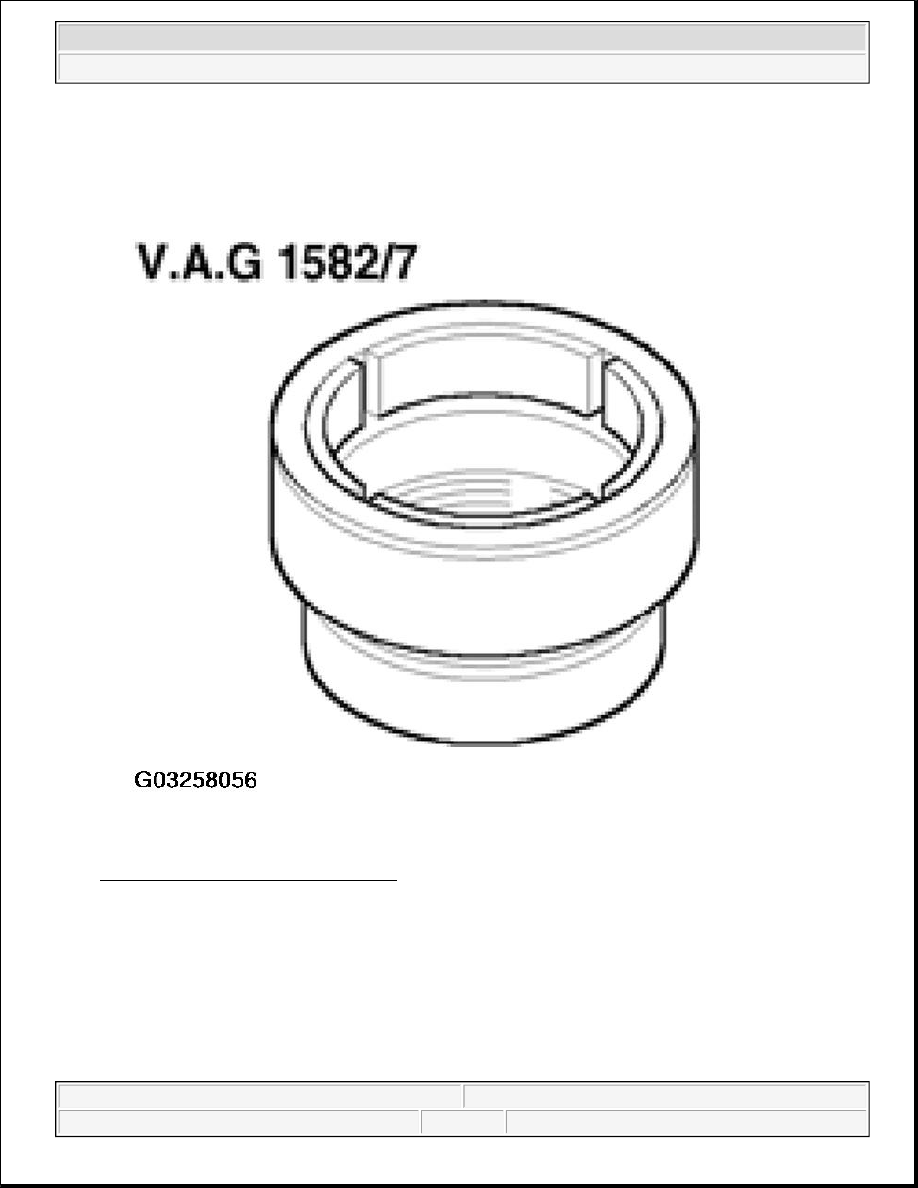

V.A.G 1582/7 Grip

Fig. 87: Identifying V.A.G 1582/7 Grip
Courtesy of VOLKSWAGEN OF AMERICA, INC.

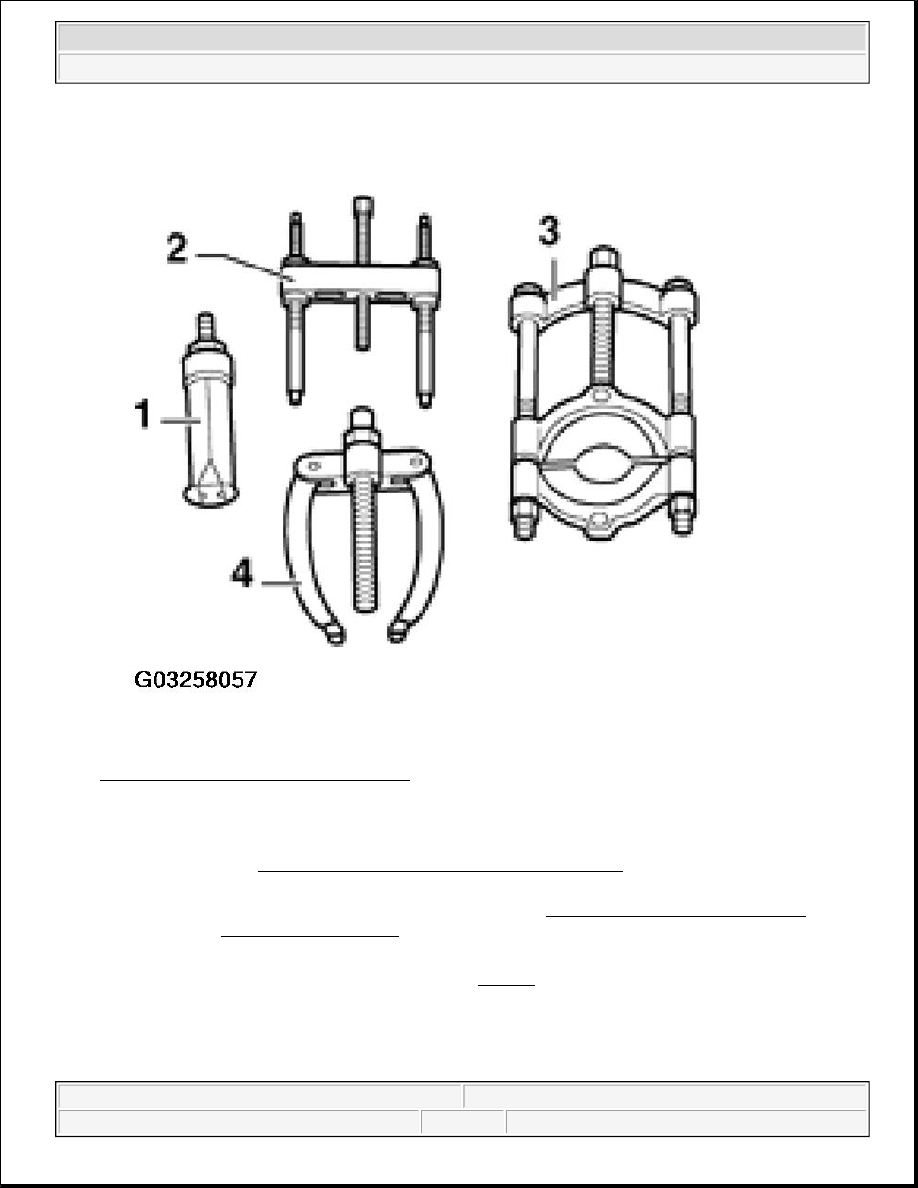

z

1 - Kukko 21/7 Internal puller

z

1 - Internal puller Kukko 21/8

z

2-Kukko 18/2 Puller

z

3 - Kukko 17/2 Separating device

z

4 - Kukko 22/2 Counter support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 88: Identifying Special tools - Puller
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Clutch housing

2. Oil deflector ring

3. Dished washer

NOTE:

z

When installing new gears or a new output shaft consult technical data.
See Code letters, application, ratios, capacities .

z

If the output shaft or tapered roller bearings have been replaced then
perform output shaft adjustment. See OUTPUT SHAFT FOR 1ST-4TH
GEARS, ADJUSTING .

NOTE:

The following list refers to items in Fig. 89 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
