Volkswagen New Beetle. Manual - part 2387

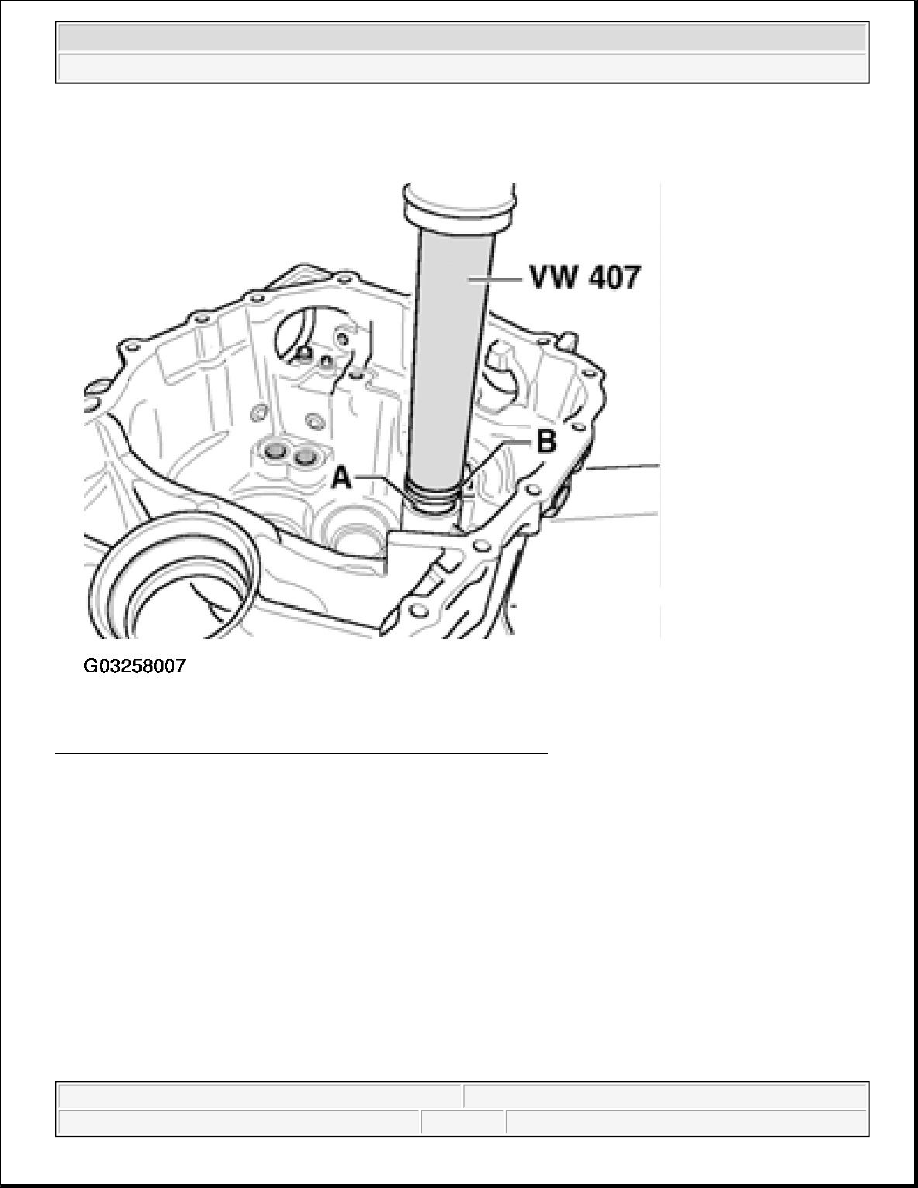

Fig. 38: Pressing Needle Bearing -A- Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CLUTCH HOUSING, SERVICING

Special tools and equipment

z

VW 407 Press tool

z

30-21 Sleeve

z

3176 Centering mandrel

z

T40008 Press piece

z

1 - Kukko 21/2 Internal puller

z

1 - Kukko 21/4 Internal puller

z

4 - Kukko 22/1 Counter support

z

4 - Kukko 22/2 Counter support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

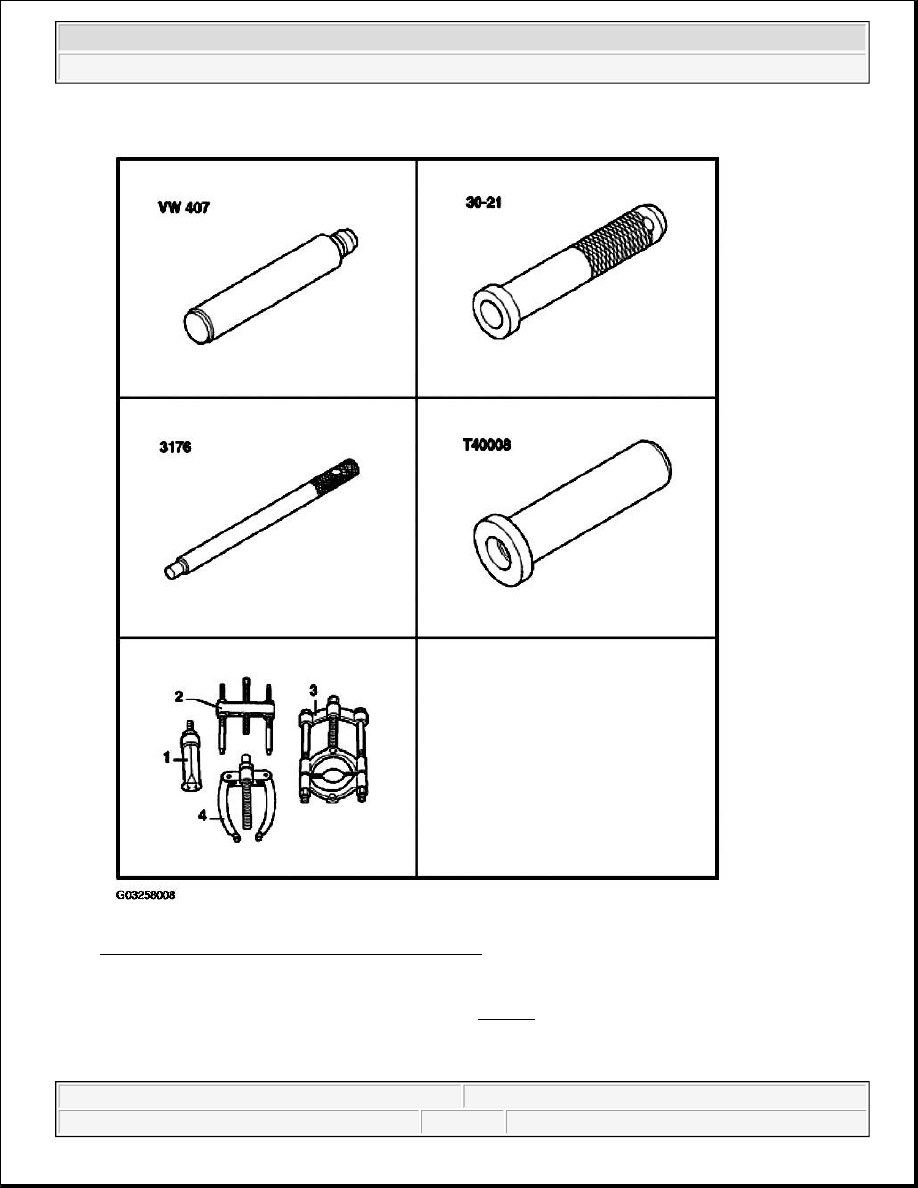

Fig. 39: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Bushing

NOTE:

The following list refers to items in Fig. 40 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

For selector rods

z

Replace each time after removing

z

Pulling out. See Pulling Out Selector Rod Bushing

z

Driving in. See Driving Selector Rod Mounting Bushing In Flush

2. Reverse gear selector fork axle

z

Axle cannot be removed with workshop tools

z

Pressing axle into clutch housing. See Pressing Reverse Gear Selector Fork Shaft Into Clutch
Housing
 .

3. Needle bearing

z

Replace each time after removing

z

Pulling out. See Pulling Needle Bearing Out Of Clutch Housing .

z

Pressing in. See Pressing Needle Bearing -A- Into Clutch Housing .

4. Dowel sleeve

z

Qty. 2

5. Clutch housing

z

If replaced: See Adjustment overview. See Adjustment overview .

6. Input shaft oil seal

z

Removing. See Removing Input Shaft Oil Seal .

z

Installing. See Driving In Input Shaft Oil Seal Flush .

7. Oil seal

z

Replace. See OIL SEALS FOR FLANGED SHAFTS, REPLACING .

8. Shim

z

For differential

z

Always 0.65 mm thick

9. Outer race/tapered roller bearing

z

For differential

z

Removing and installing. See from Differential, disassembling and assembling .

z

If replaced: adjust differential. See Differential, adjusting .

10. Oil deflector ring

z

Installation position: shoulder on drilling faces output shaft

11. Outer race/tapered roller bearing

z

For 1st-4th gear output shaft

z

Removing and installing. See Pulling tapered roller bearing outer race out of transmission
housing


z

If replaced: adjust 1st-4th gear output shaft. See Output shaft for 1st-4th gears, adjusting .

12. Outer race/tapered roller bearing

z

For 5th, 6th and reverse gear output shaft

z

Removing and installing. See Output shaft for 5th, 6th and reverse gear, disassembling and



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



assembling .

z

If replaced: adjust 5th, 6th and reverse gear output shaft. See Output shaft for 5th, 6th and
reverse gear, adjusting
 .

13. Shim

z

For output shaft

z

Always 0.65 mm thick

14. Outer race/tapered roller bearing

z

For input shaft

z

Removing and installing. See Input shaft, disassembling and assembling .

z

If replaced: adjust input shaft. See Input shaft, adjusting .

15. Magnet

z

Held in place by housing joint surface

16. Protective cap



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
