I. Disassembling and assembling transmission housing and selector mechanism. See

TRANSMISSION HOUSING AND SELECTOR MECHANISM, REMOVING AND
INSTALLING
 .

II. Disassembling and assembling input shaft, output shafts, differential and selector rods. See INPUT

SHAFT, OUTPUT SHAFTS (PINION SHAFTS), DIFFERENTIAL AND SELECTOR RODS,
DISASSEMBLING AND ASSEMBLING

NOTE:

The following list refers to items in Fig. 8 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

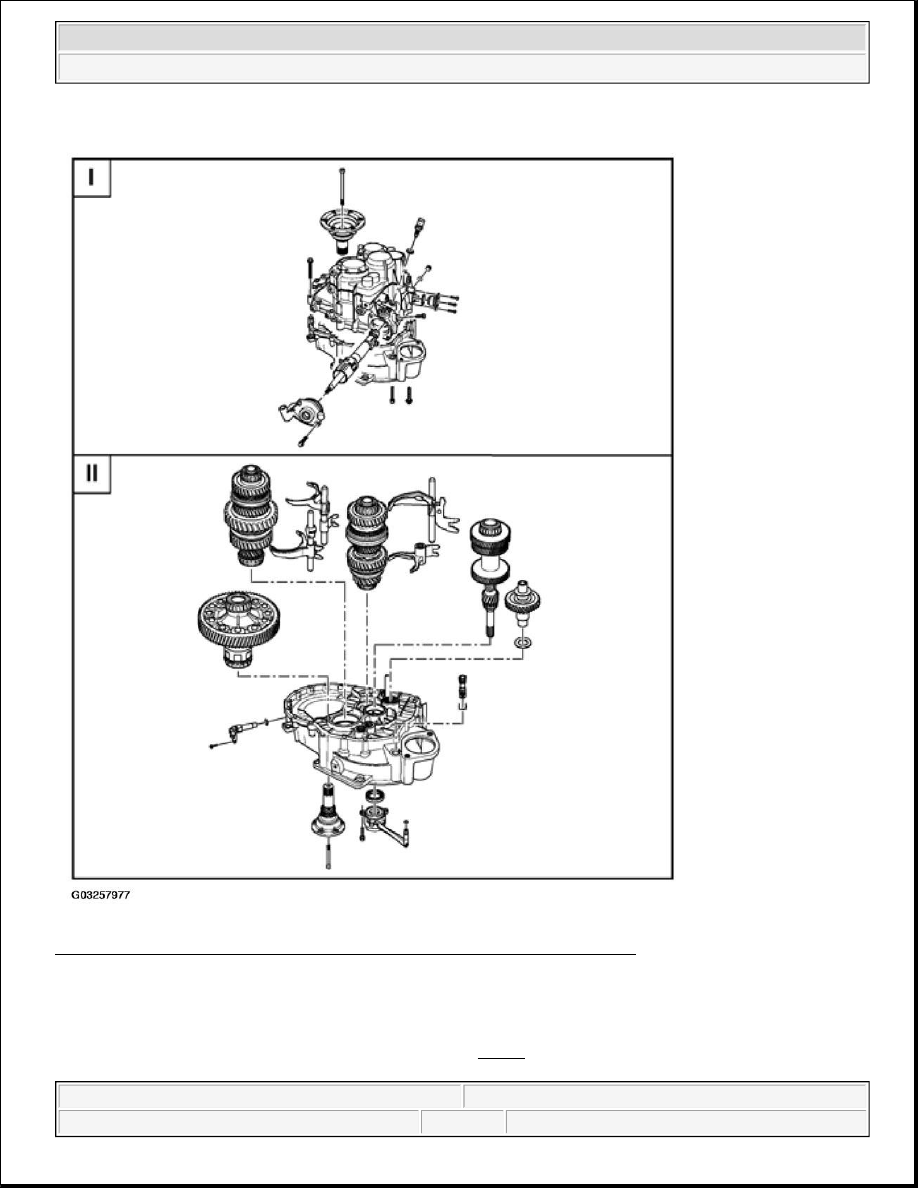

Fig. 8: Transmission Housing And Selector Mechanism Assembly Overview
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Transmission housing and selector mechanism, removing and installing

NOTE:

The following list refers to items in Fig. 9 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



1. Countersunk head bolt, 25 N.m

2. Flanged shaft with spring

z

Removing and installing. See OIL SEALS FOR FLANGED SHAFTS, REPLACING

z

Assembling. See Differential, disassembling and assembling

3. Back-up light switch, 20 N.m

4. Oil seal

z

Always replace

5. Oil drain plug, 30 N.m

z

Always replace

6. Oil seal

z

Always replace

7. Cover plate

8. Hex bolt, 20 N.m

z

Always replace

9. Hex bolt, 20 N.m

z

For selector shaft - item 14 - to cover plate

z

Always replace

10. O-ring

z

Always replace

z

Insert in groove in cover plate

11. Locking bolt, 15 N.m

z

For selector shaft gate

z

Always replace

z

Insert with locking fluid D 000 600 A2

12. Hex bolt, 25 N.m and turn 45° further

z

With attached washer

z

Always replace

13. Hex bolt, 25 N.m and turn 45° further

z

Without washer

z

Always replace

14. Selector shaft

z

Disassembling and assembling. See TRANSMISSION SELECTOR MECHANISM,
DISASSEMBLING AND ASSEMBLING
 .

15. Hex bolt, 20 N.m

z

Always replace

16. Selector mechanism cover

z

Disassembling and assembling. See TRANSMISSION SELECTOR MECHANISM,
DISASSEMBLING AND ASSEMBLING



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



17. Clutch housing

z

Servicing. See CLUTCH HOUSING, SERVICING .

18. Transmission housing

z

Servicing. See TRANSMISSION HOUSING, SERVICING
