Volkswagen New Beetle. Manual - part 236

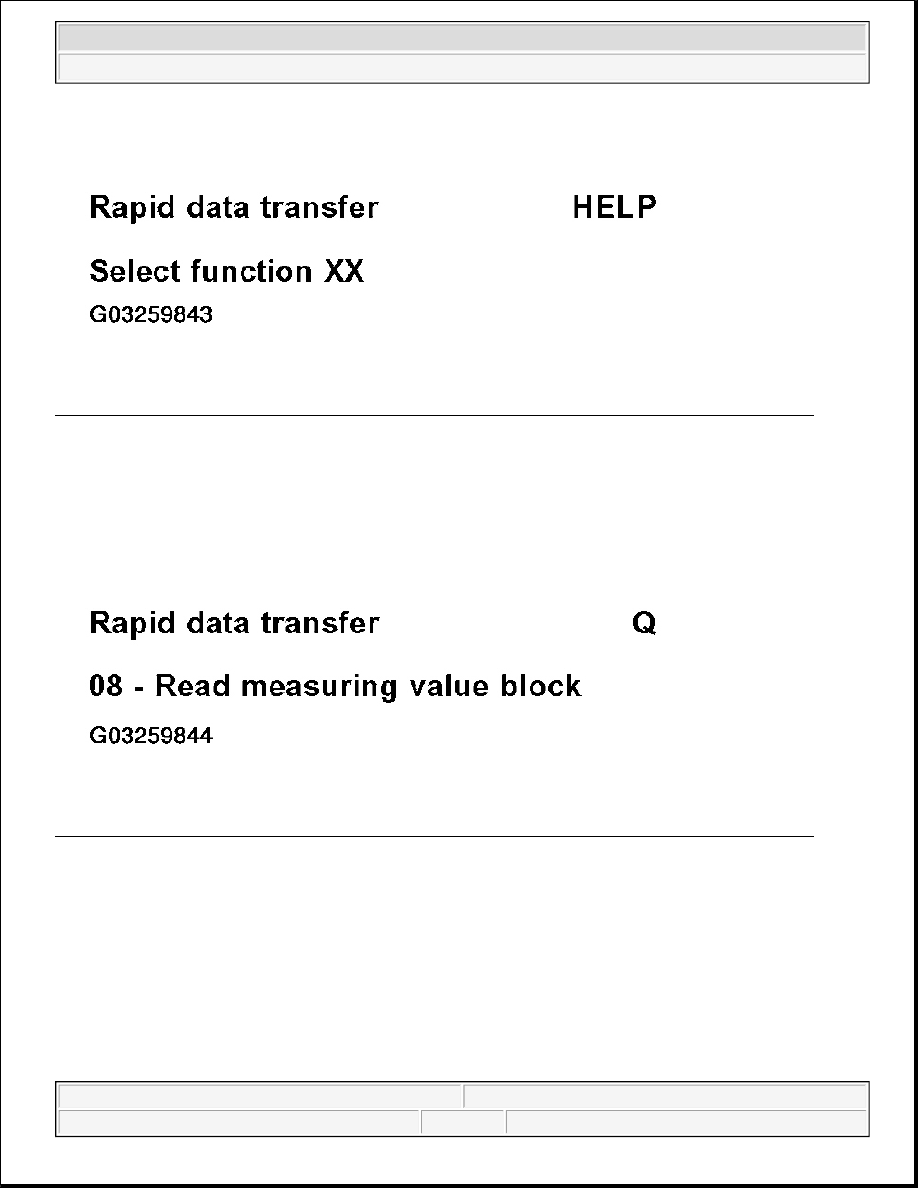

Fig. 57: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -8- to select "Read measuring value block" address word 08.

Indicated on display:

Fig. 58: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

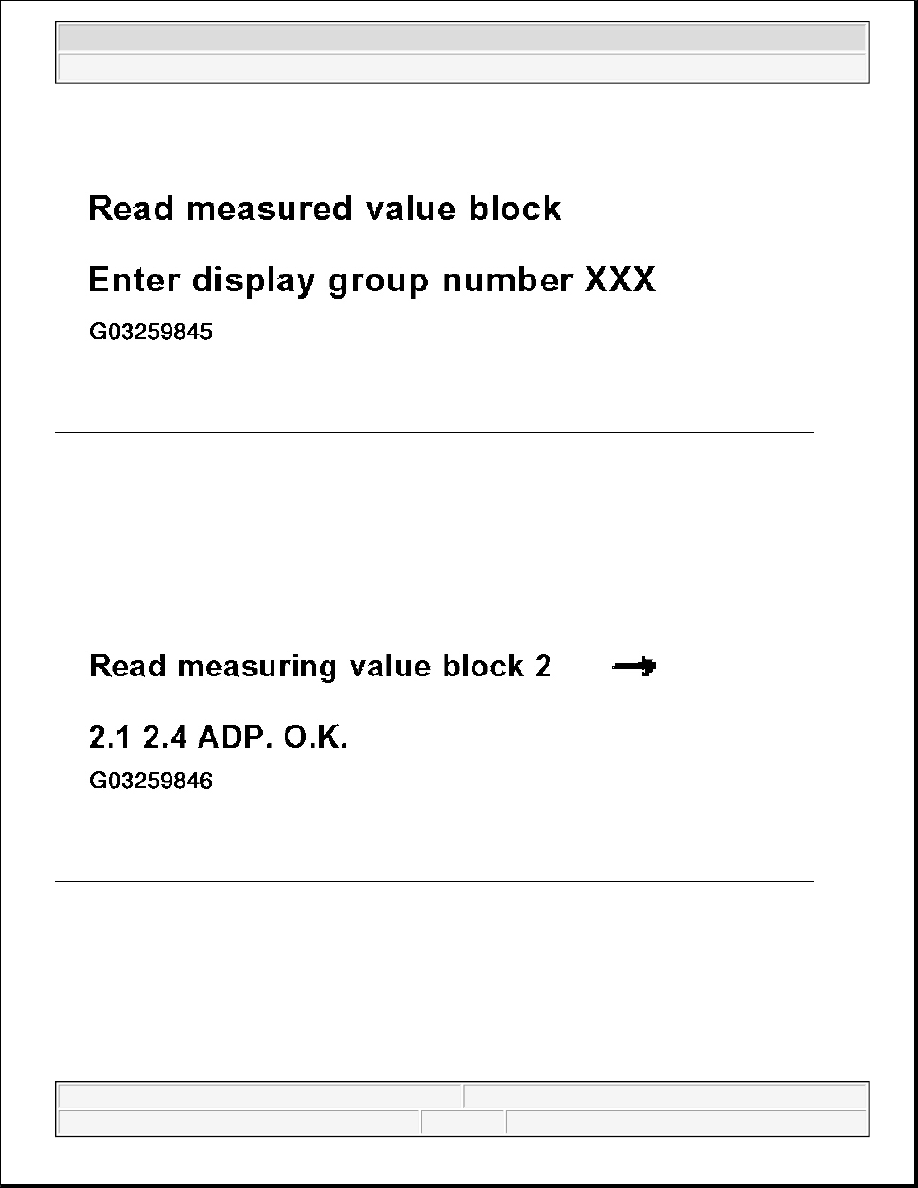

Fig. 59: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press key 0 twice and press key 2 once to select display group number 002.

z

Press -Q- button to confirm input.

Indicated on display:

Fig. 60: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Specification for rear level control system sensor, shown in display zone 2,
must lie between 2.0 - 3.5 Volt.

NOTE:

If voltage is outside specified tolerances, then check for the following:

z

sensor is not loose in it's mounting.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



If malfunctions cannot be located in the above items, then perform troubleshooting using the Automatic
Headlight Range Control On Board Diagnostic (OBD) program.

See On Board Diagnostic (OBD), function .

z

Press --> key.

Indicated on display:

Fig. 61: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys 0 and 6 to select "End output" function 06.

Indicated on display:

z

sensor coupling rod is not bent.

z

electrical connections are correctly connected, free from corrosion and
are locked in position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

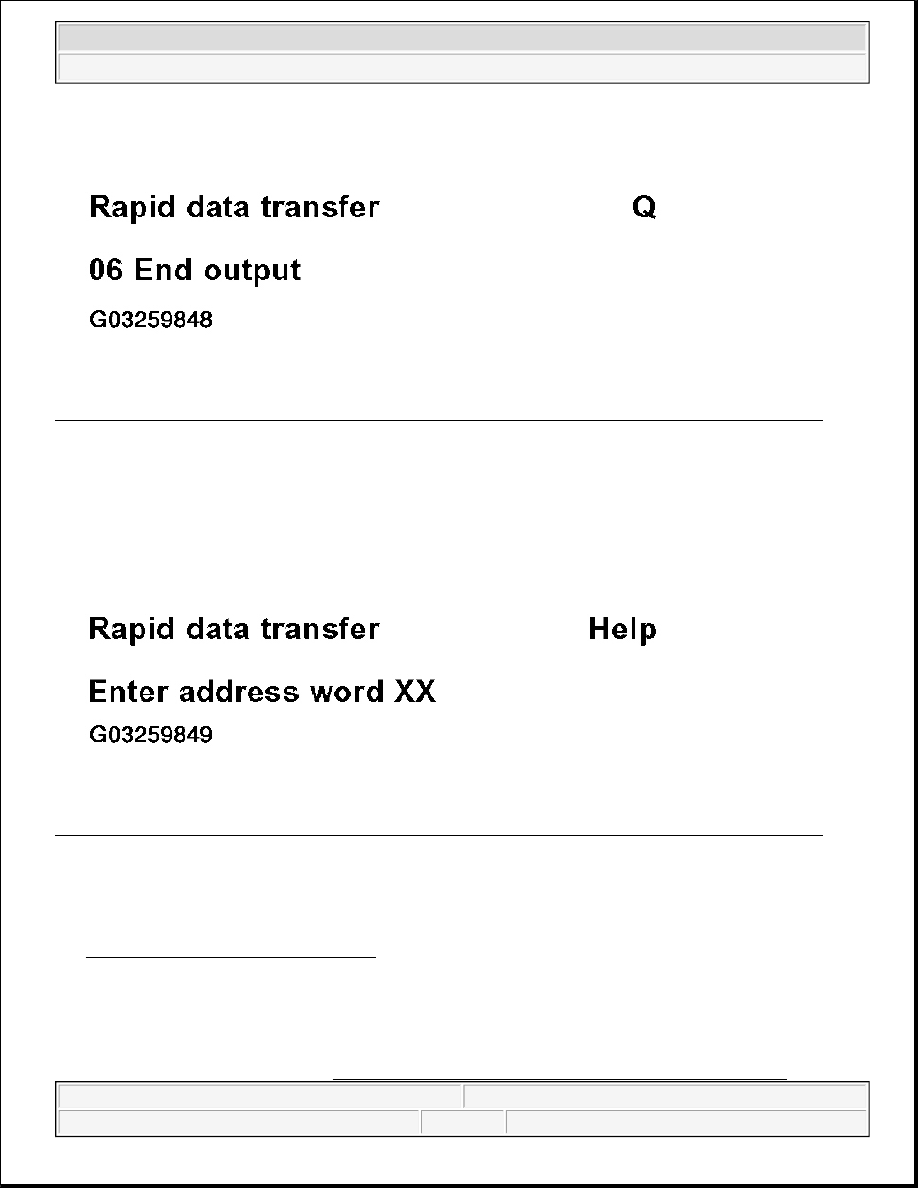

Fig. 62: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:

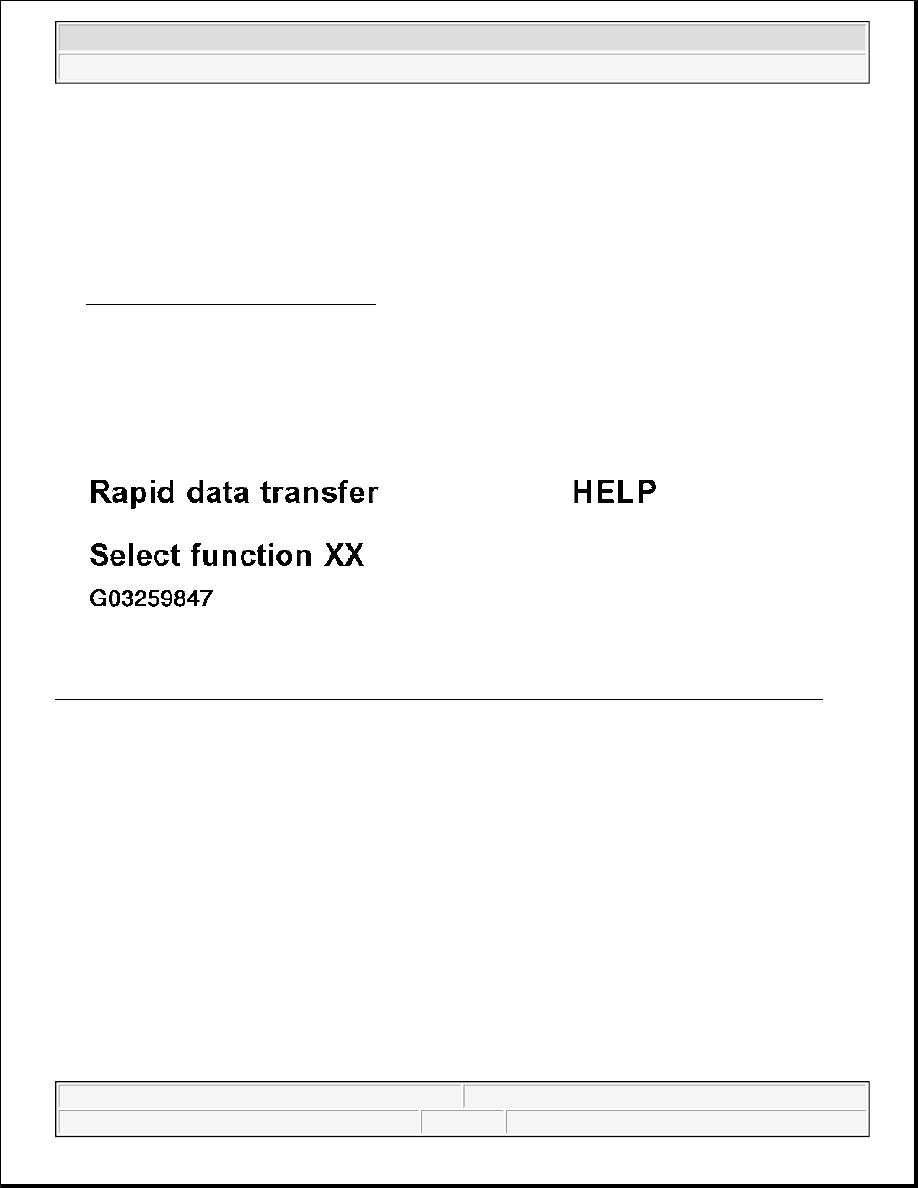

Fig. 63: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (12 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After checking the adjustment of the coupling rod, the related electrical components must adjusted to the
revised settings. Perform basic settings of the automatic headlight range control to adjust to the revised settings.

See On Board Diagnostic (OBD), function .

HEADLIGHT BEAM ADJUSTING MOTOR -V48- / -V49-, REMOVING AND INSTALLING

Removing

z

Remove headlight housing. See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
