Volkswagen New Beetle. Manual - part 235

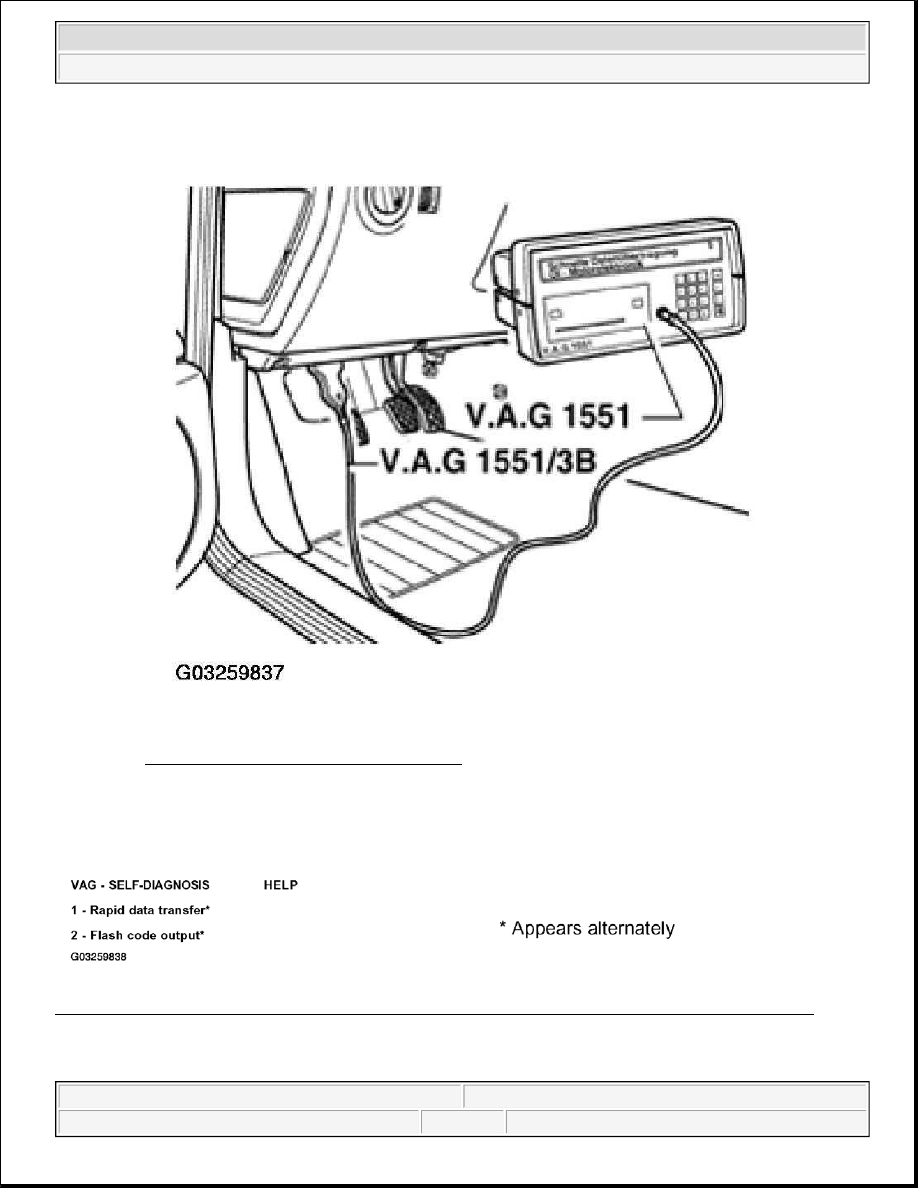

Fig. 51: Connecting VAG 1551 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 52: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (1 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

* Appears alternately



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Switch ignition on.

z

Switch printer on with the Print key (warning lamp in the key will light up).

z

Press key 1 for "Rapid data transfer" operating mode.

Indicated on display:

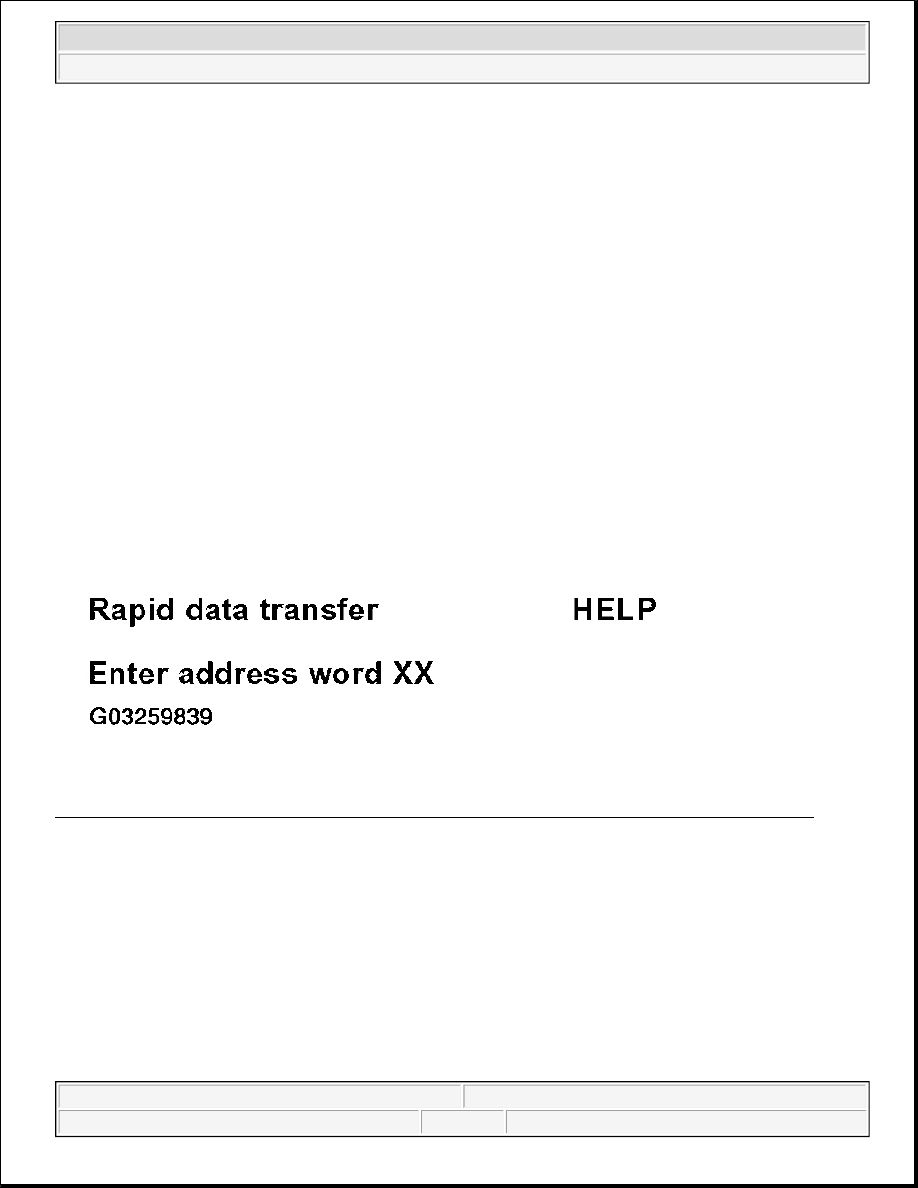

Fig. 53: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (2 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -2- and -9- to select "Light control, left" address word "29".

Indicated on display:

NOTE:

z

If display remains blank, check VAG 1551 voltage supply according to
wiring diagram.

See SYSTEM WIRING DIAGRAM article.

z

Additional operating instructions can be called up with the scan tool HELP
key.

z

The --> key advances the program sequence.

z

In operating mode 1 "Rapid data transfer" function 00 "Automatic test
sequence" can be carried out. The DTC memory of all vehicle control units
is checked automatically with function 00.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

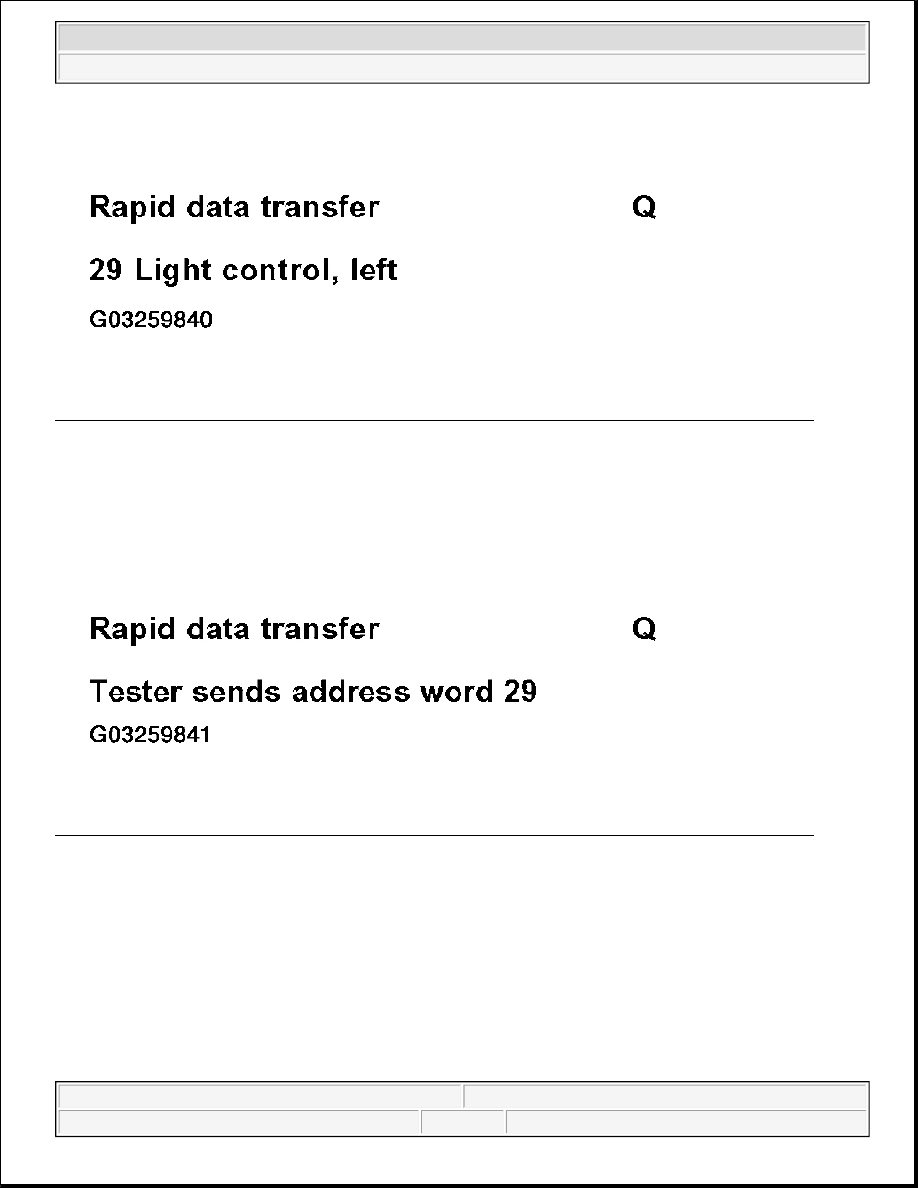

Fig. 54: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (3 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:

Fig. 55: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

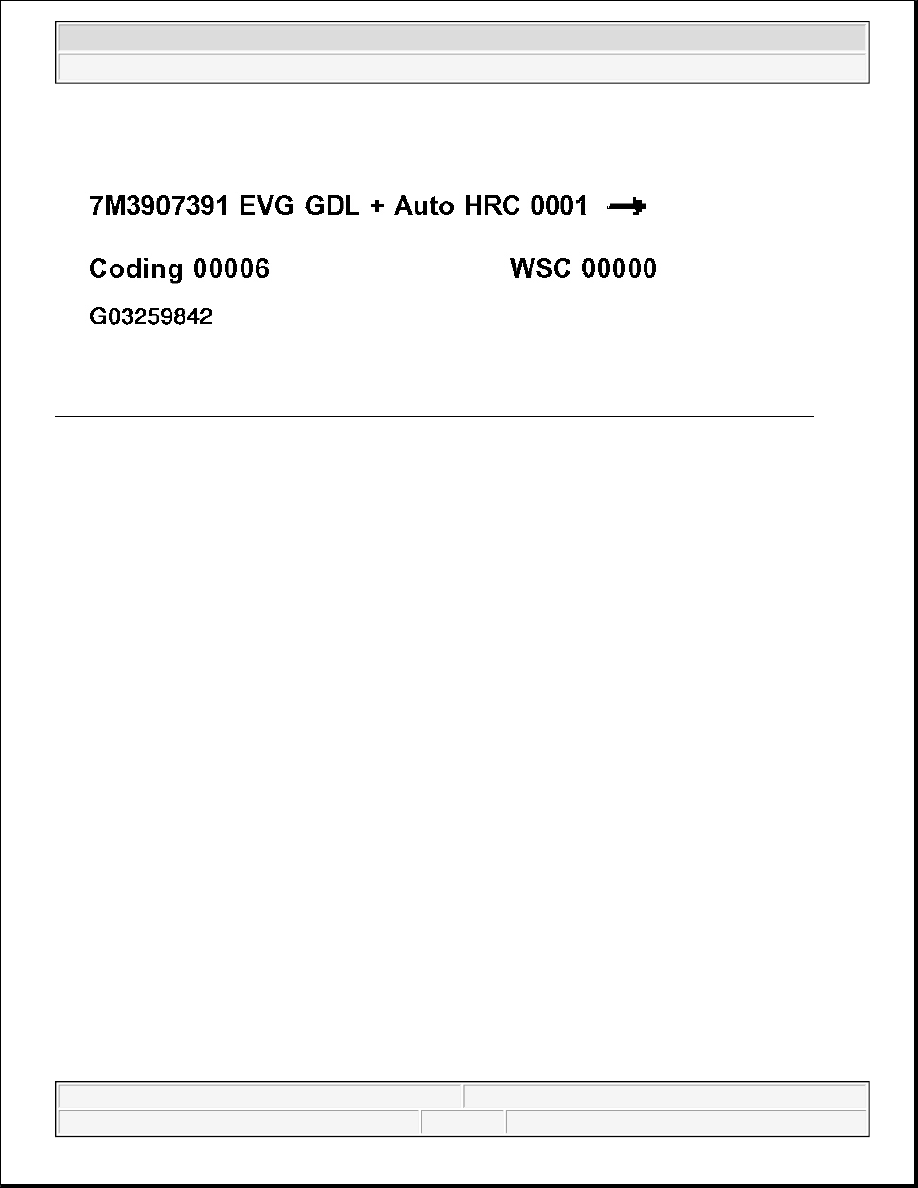

Fig. 56: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Upper line:

z

Part No. of control module (Part and version numbers illustrated here are examples only)

z

System designation (headlight range control)

z

Version number (Part and version numbers illustrated here are examples only)

Bottom line:

z

Coding number (Dependent on type of drive.)

z

Dealership number

z

Press --> key.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
