Volkswagen New Beetle. Manual - part 2338





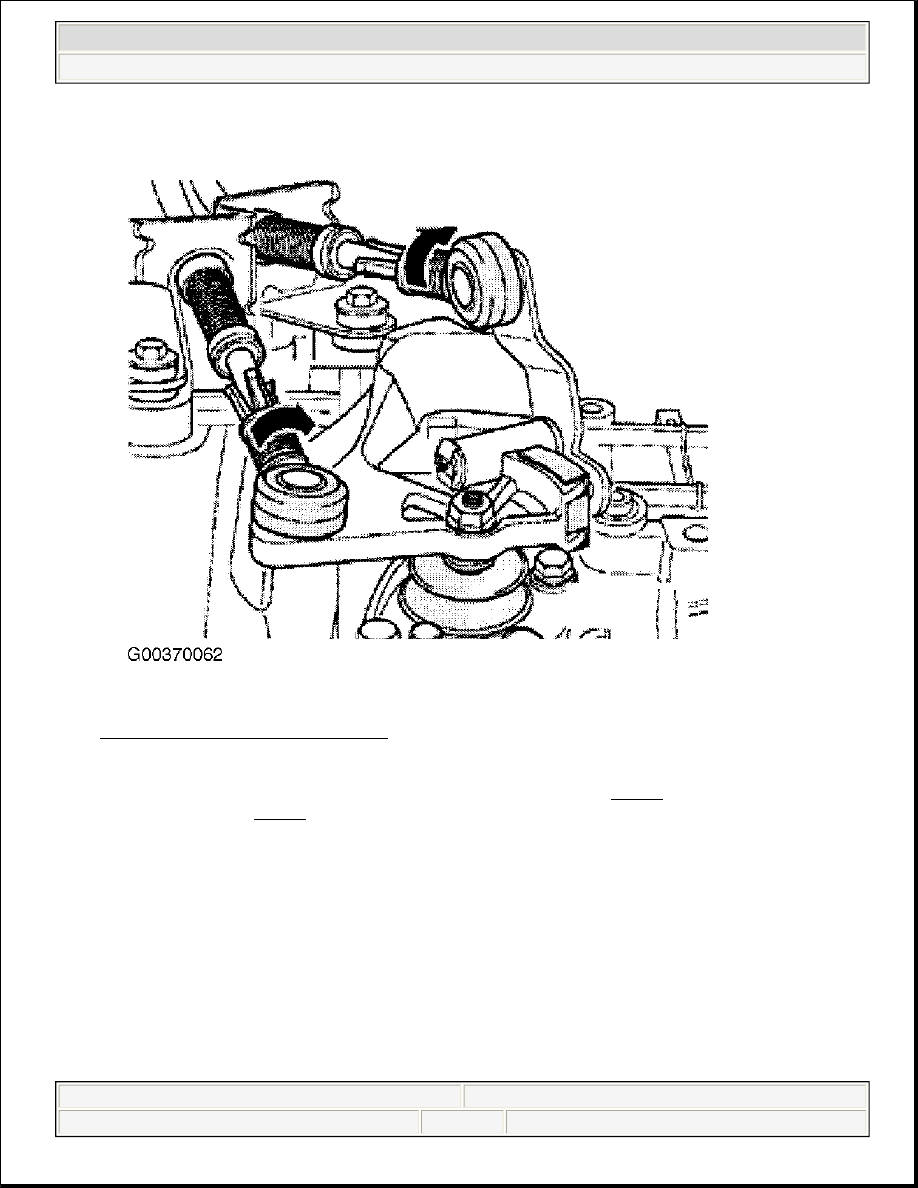

Fig. 11: Turning Locking Mechanism
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Pull locking pin (A) back to original position (direction of arrow). See Fig. 12 . Pull pin (T10027) out of

holes (A and B). See Fig. 10 . Clip cover to frame.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

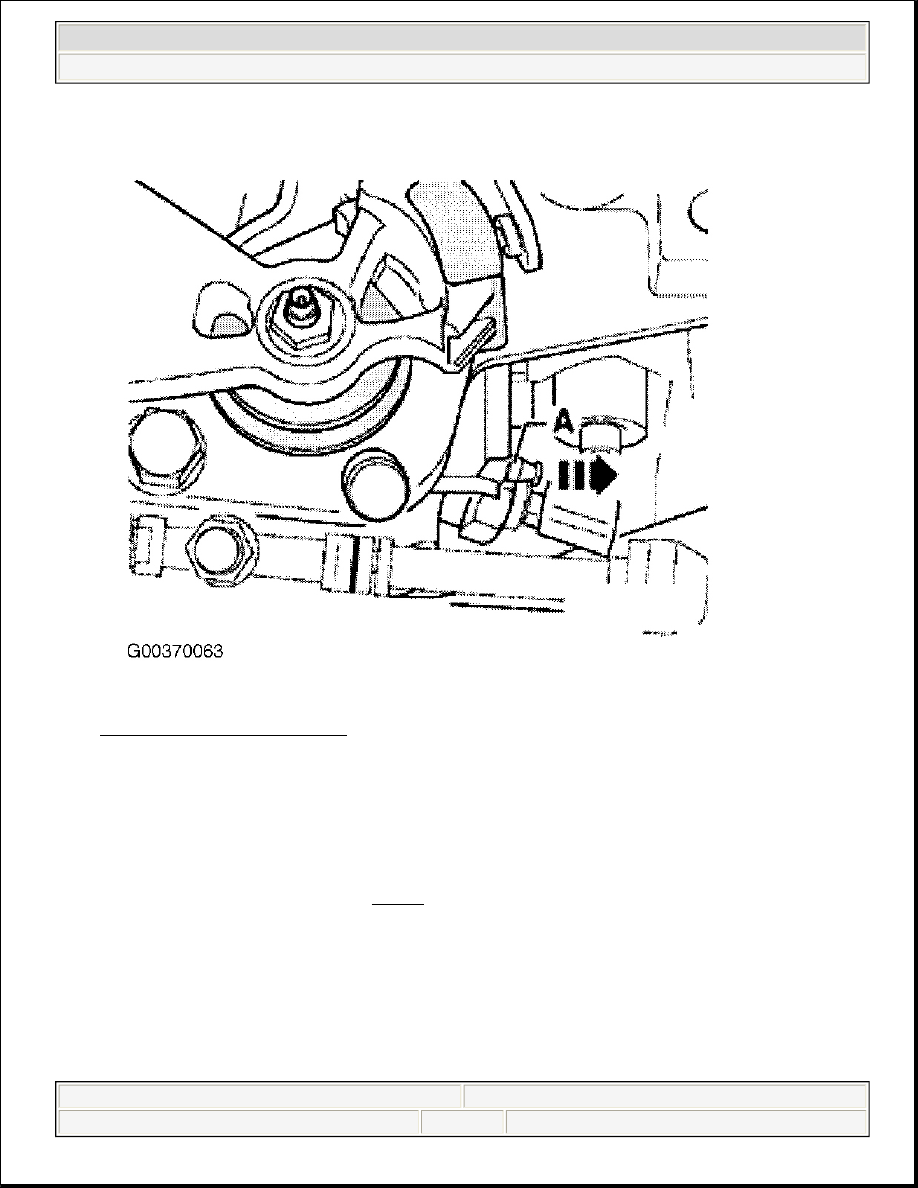

Fig. 12: Positioning Locking Pin
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7.

Operate clutch. Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection of 1st, 2nd, 5th or 6th gear, selector shaft
must move downward (arrow 1). See Fig. 13 . If shift mechanism is correctly adjusted, locking pin (A)
can now be pushed into transmission (direction of arrow). With aid from a second technician selector
shaft gate can be pushed into transmission. If not, repeat adjustment.

NOTE:

Gear shift lever must rest in 3rd/4th gear gate with transmission in Neutral.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

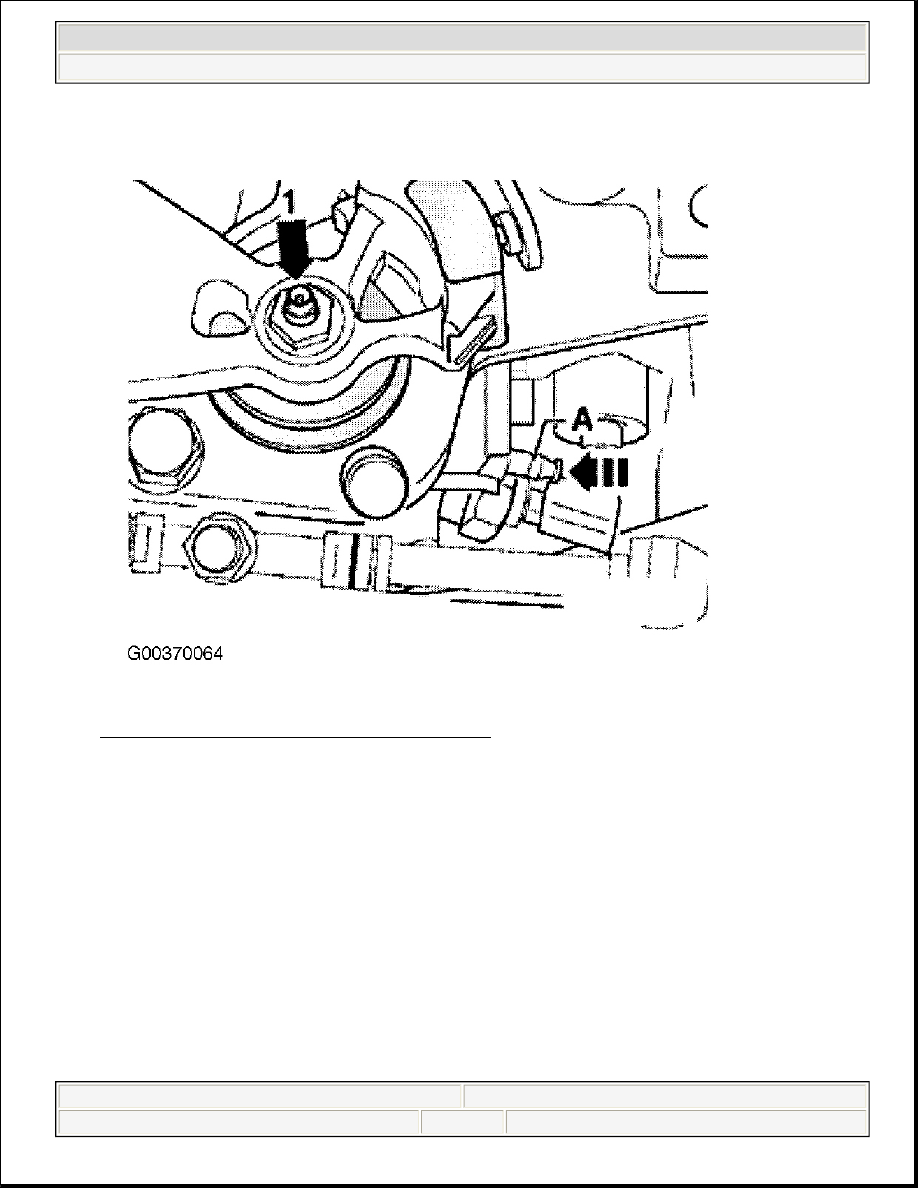

Fig. 13: Checking Selector Mechanism Adjustment
Courtesy of VOLKSWAGEN UNITED STATES, INC.

BATTERY DISCONNECT PRECAUTIONS

ECM

If connector is disconnected from ECM or the battery is disconnected, all adaptation values in control module
are erased. DTC memory content will remain intact however. If engine is started after this, a rough, uneven idle
can result. In this case, engine must be allowed to run at idle for a few minutes or a longer road test must be
performed until adaptation procedure has been completed.

CAUTION: Turn ignition switch to OFF position. Before disconnecting negative

battery terminal, obtain anti-theft radio security code. Disconnect negative
battery terminal. After reconnecting battery, re-code and check operation
of anti-theft radio.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.

Once battery has been connected, check operation of radio, clock and convenience electronics. Completely open
and close all power windows.

REMOVAL & INSTALLATION

CLUTCH ASSEMBLY

Removal

Remove transmission. See TRANSMISSION . Install flywheel holder (3067) on flywheel. Remove pressure
plate bolts, evenly in stages and alternating in a diagonal pattern. Supporting clutch disc, remove pressure plate
and disc. See Fig. 14 .

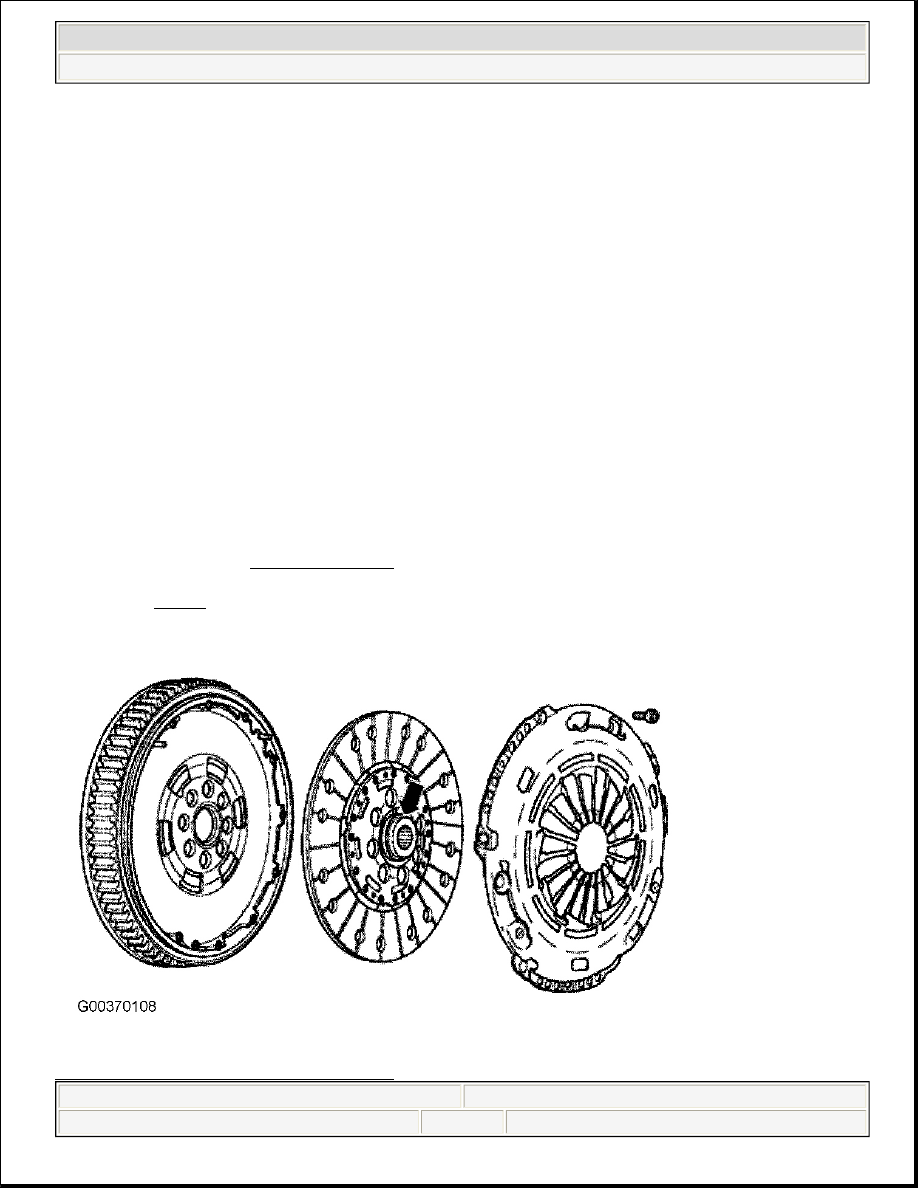

Fig. 14: Exploded View Of Clutch Assembly

NOTE:

Vehicles with On Board Diagnostics (OBD) II must have readiness code for
Electronic Control Module (ECM) re-generated after battery has been
disconnected. See appropriate SELF-DIAGNOSTICS article in ENGINE
PERFORMANCE.

CAUTION: Radio/cassette or radio/CD player is equipped with an anti-theft protection

circuit. Whenever battery is disconnected, radio will go into anti-theft
mode. When battery is reconnected, radio will display CODE, and will be
inoperative until proper code number is entered. Obtain security code
before disconnecting battery.
