Volkswagen New Beetle. Manual - part 2322





1. Remove selector lever handle. Remove cover with cover strip. On vehicles with program switch, pull

connector off program switch. On all models, remove center console. Loosen cable anchorage screw (a).
See Fig. 29 .

2. Remove locking cable out of locking lever and pull out of cable anchor. Remove steering wheel and

ignition switch trim. Press locking cable clip out of ignition switch support bracket and remove locking
cable from ball head. Remove locking cable.

3. When installing locking cable, ensure cable is properly routed. Install locking cable into vehicle. See Fig.

17 . Mount locking cable eye (1) on locking lever (a). See Fig. 30 . Install locking cable in cable anchor.
Do not tighten anchorage screw (a) until after adjusting locking cable. See Fig. 29 .

4. Mount locking cable clip on locking cable. Press locking cable onto ball head. Press locking cable with

clip into ignition switch support bracket. See Fig. 31 .

5. Route locking cable along steering column. See Fig. 32 . Adjust locking cable on cable anchor of selector

lever. Install center console. Install cover with indicator and selector lever handle. Attach trim pieces of
ignition switch. Install steering wheel. After installation, adjust locking cable. See 01M TRANSAXLE
(CABRIO)
under LOCKING CABLE in ADJUSTMENTS.

NOTE:

In the following procedures, letters and numbers in parenthesis are shown in
illustrations.

NOTE:

Ensure locking cable is not kinked during installation.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

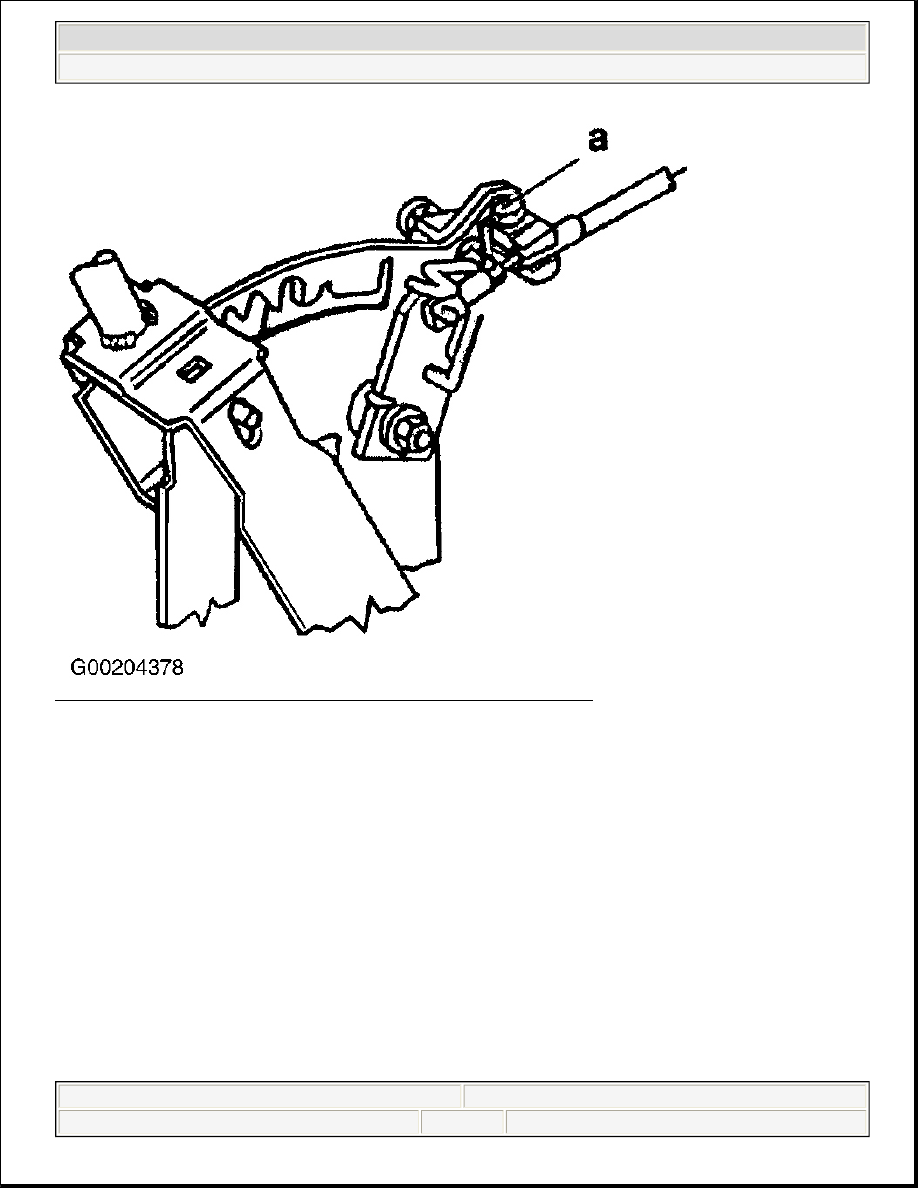

Fig. 29: Loosening Locking Cable Screw (a) (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 35

© 2004 Mitchell Repair Information Company, LLC.

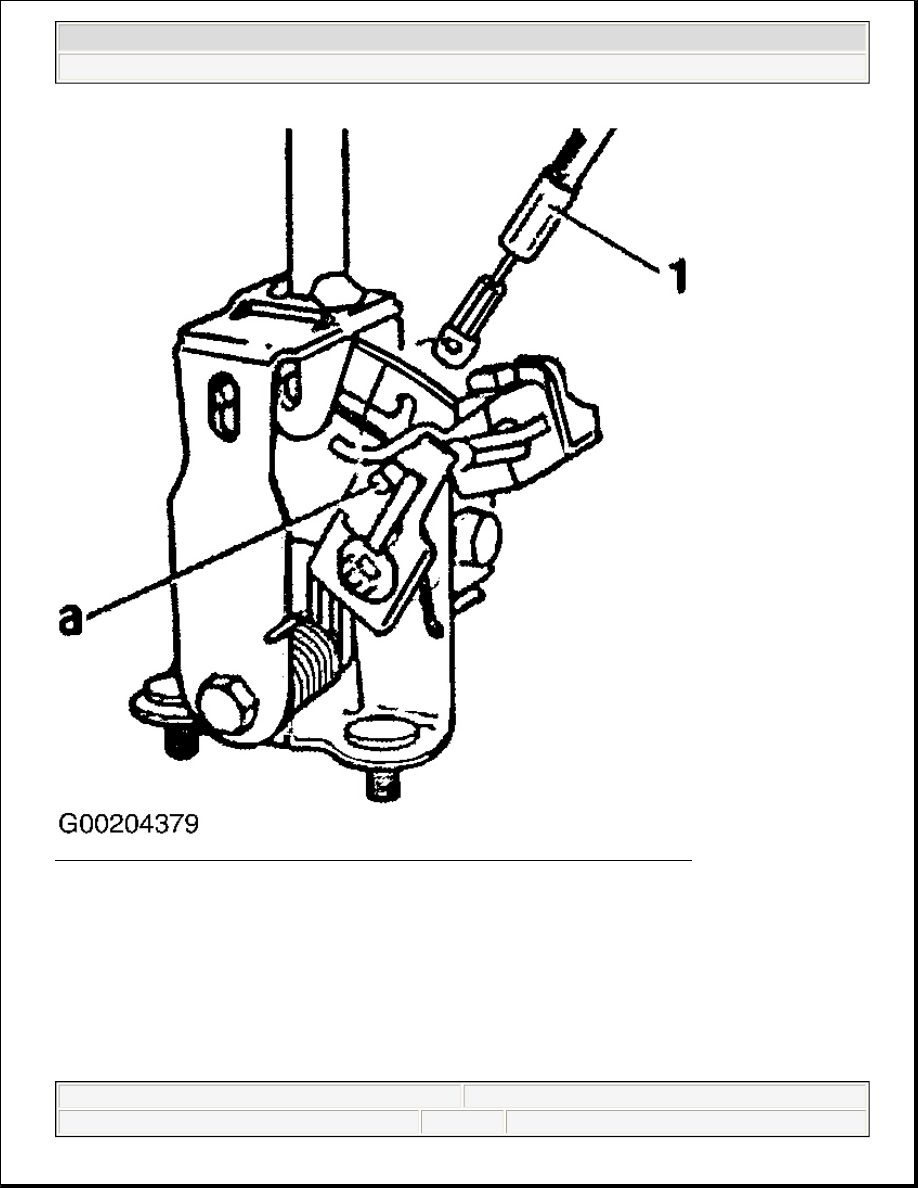

Fig. 30: Mounting Locking Cable Eye On Locking Lever (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

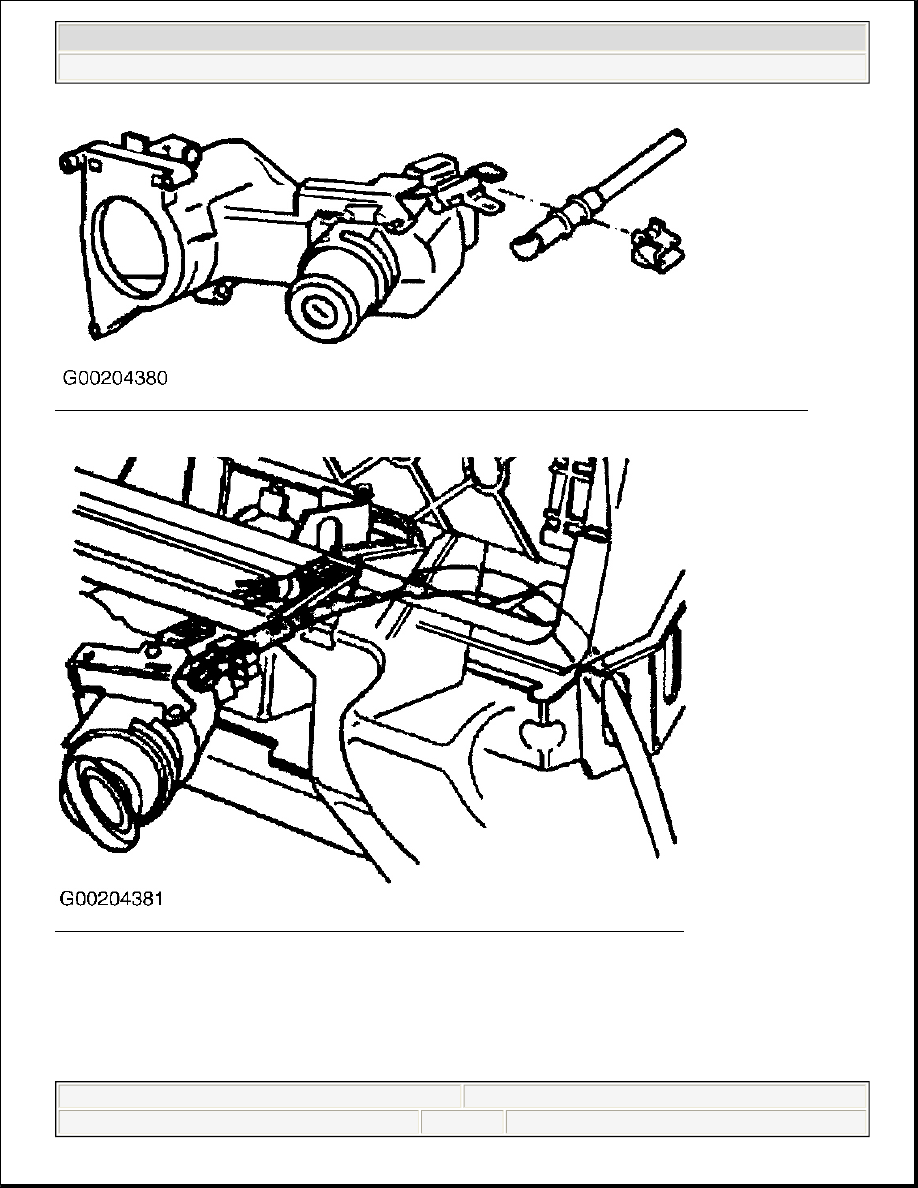

Fig. 31: Installing Locking Cable Onto Ignition Switch Support Bracket (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 32: Routing Locking Cable Along Steering Column (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (01M Transaxle - Golf, GTI, Jetta & New Beetle)

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.
When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.
