Volkswagen New Beetle. Manual - part 2320





01M Transaxle (Cabrio)

1. To check cable, remove selector lever cable bolt (27) from selector lever shaft. See Fig. 23 . Move

selector lever from "P" to "1" position. Ensure selector lever mechanism moves freely. If necessary,
replace selector lever cable or check selector lever mechanism. Always replace selector lever locking
washer (28) at transaxle lever after disassembling.

2. To adjust cable, place selector lever in "P" position. Loosen selector lever cable bolt on selector lever

shaft. See Fig. 23 . Shift selector lever/shaft to "P" position. Parking lock should apply and it should not
be possible to turn front wheels in same direction. Tighten bolt to 18 ft. lbs. (25 N.m).

NOTE:

In the following procedures, numbers in parenthesis are shown in illustration.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

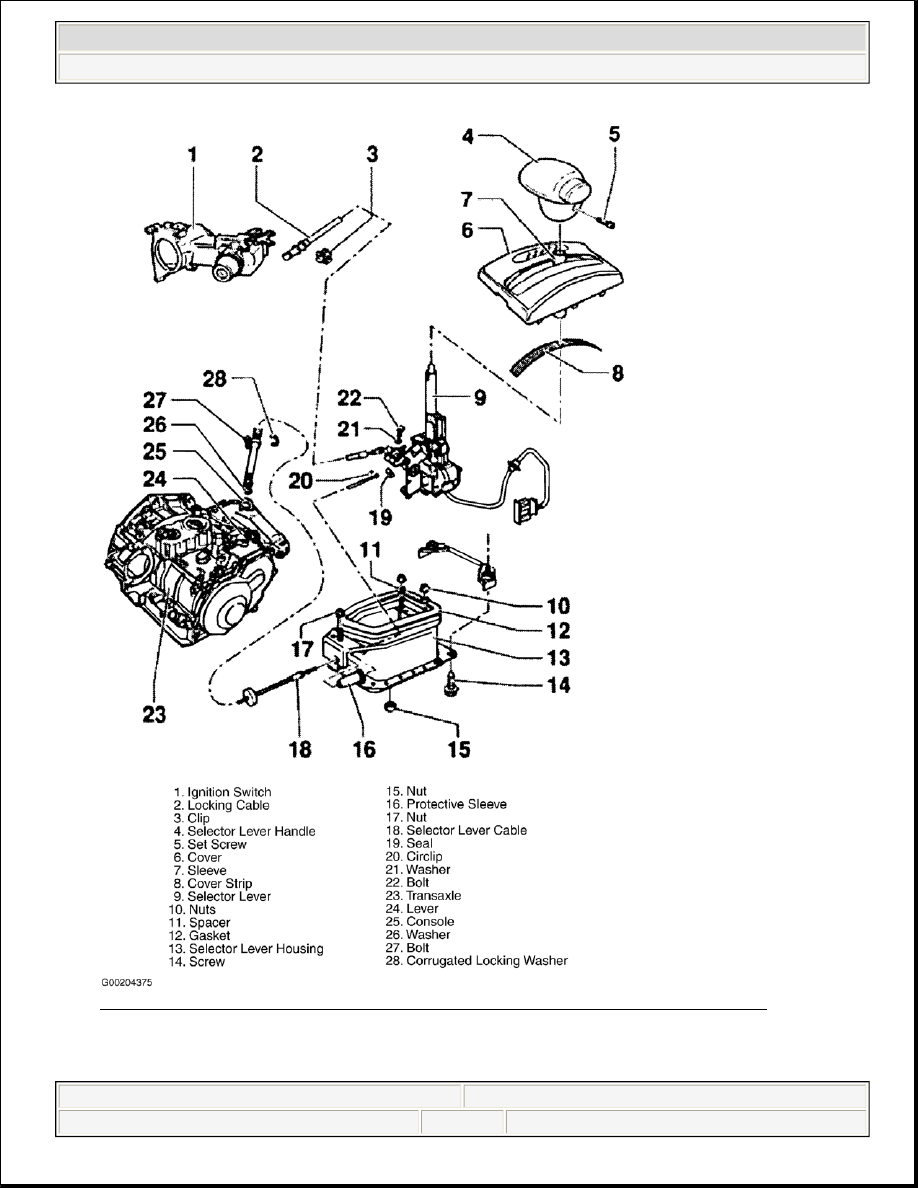

Fig. 23: Exploded View Of Selector Mechanism Components (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

01M Transaxle (Golf, GTI, Jetta & New Beetle)



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

1. To check cable, shift selector lever into "P" position. Pry selector lever cable off lever/selector shaft (4)

and route so that end is free to move. See Fig. 24 . Do not bend or kink the selector lever cable. Move
selector lever from "P" to "1" position. Check front protective sleeve on selector lever cable for damage,
and replace cable (if necessary). Shift selector lever into "P" position. Selector lever mechanism and
selector lever cable must move freely. Replace selector lever cable or service selector lever mechanism, if
necessary. Press on selector lever cable.

2. To adjust cable, shift selector lever into "P" position. Loosen bolt (2) at selector lever cable front ball

mounting (1). See Fig. 24 . Bring selector shaft lever into "P" position on transaxle. Locking lever must
engage in park lock wheel, and both front wheels are blocked (cannot be turned together in same
direction). Tighten bolt (2) to 71 INCH lbs. (8 N.m). Replace circlip (3) if it has been removed. See Fig.
24
 .

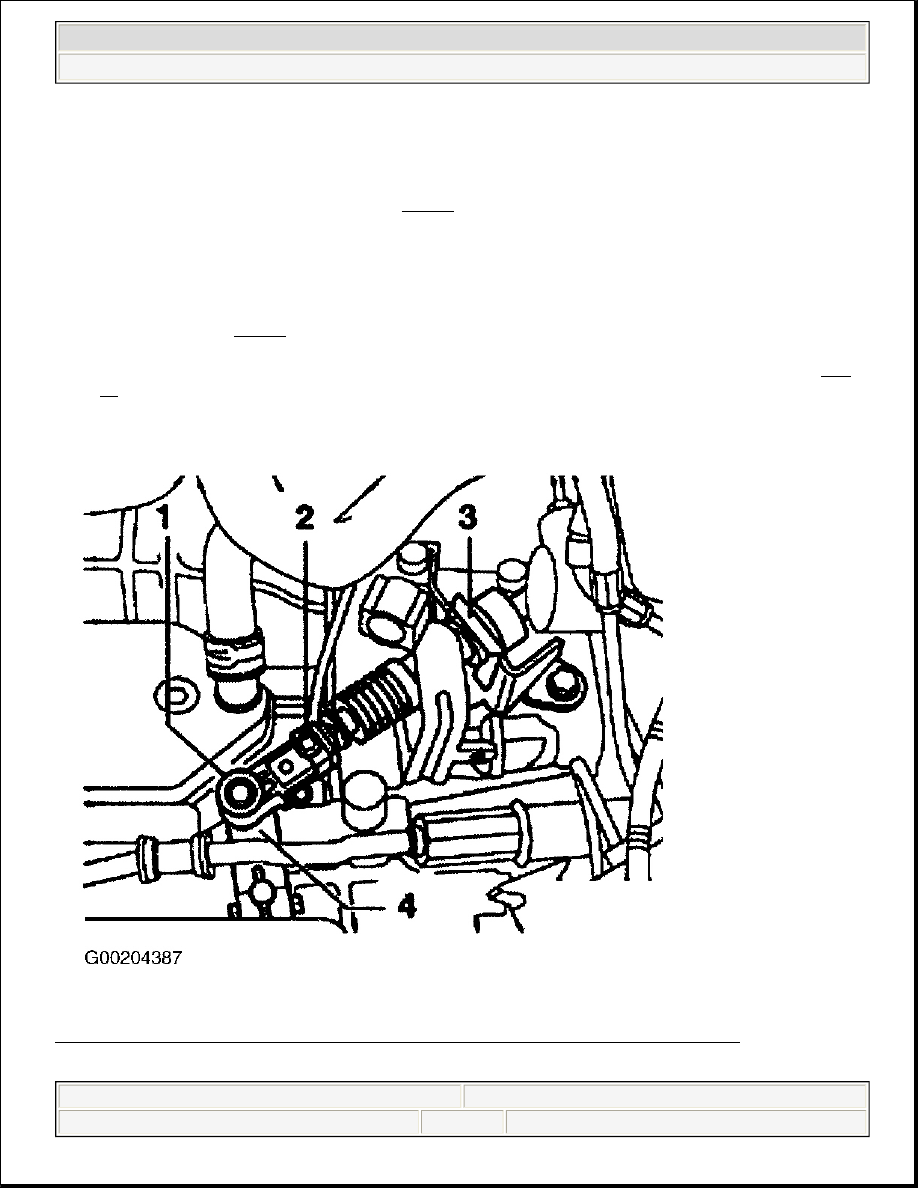

Fig. 24: Adjusting Selector Lever Cable (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustration.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

01V Transaxle

1. To check cable, shift selector lever to "P" position. Raise and support vehicle. Remove noise insulation

tray. See Fig. 25 . On vehicles with V6 engine, remove front exhaust system with catalytic converter.
Remove selector lever cable protective plate. On all models, remove left hand transaxle bracket.

2. Using a pry bar, remove selector lever cable from selector shaft lever (arrow). See Fig. 40 . Shift selector

lever from "P" to "2" position. Selector lever mechanism and selector lever cable must move freely.
Replace selector lever cable or service selector lever mechanism as necessary. Shift selector lever to "P"
position.

3. Bring selector shaft lever on transaxle to "P" position. Locking lever must engage in park lock wheel, and

both front wheels should be blocked (cannot be turned together in a direction). It should be possible to
push the selector lever cable onto the selector shaft lever. Adjust selector lever cable (if necessary).

4. Using a pair of pliers, carefully push the selector lever cable onto the selector shaft lever. When doing

this, take care not to bend the selector shaft lever, otherwise the selector mechanism will not be able to be
adjusted correctly.

5. To adjust cable, ensure selector lever cable is disconnected from selector shaft lever. Shift selector lever

into "P" position. Bring selector shaft lever on transaxle to "P" position. Locking lever must engage in
park lock wheel, and both front wheels should be blocked (cannot be turned together in a direction).

6. Loosen bolts (arrows) securing support bracket to transaxle. See Fig. 26 . Using a pair of pliers, carefully

push the selector lever cable onto the selector shaft lever. When doing this, take care not to bend the
selector shaft lever, otherwise the selector mechanism will not be able to be adjusted correctly. Align
selector lever cable, free of stress, on the support bracket using the oblong holes.

7. Tighten securing bolts for support bracket to 17 ft. lbs. (23 N.m). Check selector lever mechanism

operation. Install left hand transaxle bracket. On vehicles with V6 engine, install selector lever cable
protective plate. Tighten bolts to 17 ft. lbs. (23 N.m). Install front exhaust system with catalytic converter.
On all vehicles, install noise insulation.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.
