Volkswagen New Beetle. Manual - part 230





The (master) control module is located in the left front wheel housing.

Removing

z

Remove left front wheel housing liner. See FRONT WHEEL HOUSING LINER, ASSEMBLY
OVERVIEW
 .

z

Remove nuts/bolts -1- for control module.

z

Disconnect electrical connection -2-.

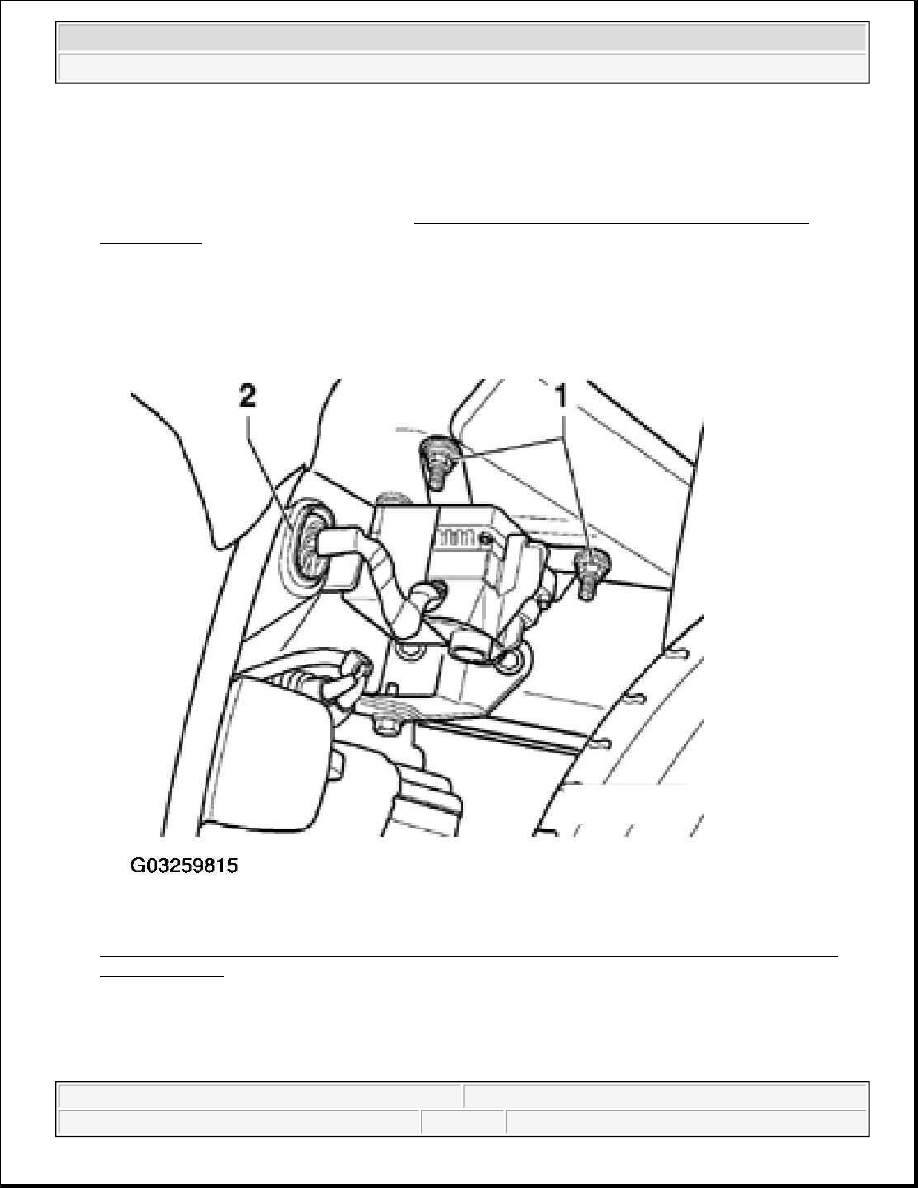

Fig. 29: Locating Nuts/Bolts For Left High Intensity Gas-discharge Lamp (With Range Control)
Control Module

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check headlight function.

z

Code control module (function 07) using On Board Diagnostic program. See ON BOARD
DIAGNOSTIC (OBD), FUNCTION
 .

z

Perform headlight basic setting (function 04) using On Board Diagnostic program. See ON BOARD
DIAGNOSTIC (OBD), FUNCTION
 .

RIGHT HIGH INTENSITY GAS-DISCHARGE LAMP (WITH RANGE CONTROL) CONTROL
MODULE -J568-, REMOVING AND INSTALLING

The (slave) control module is located on the right/front inner long member.

Removing

z

Remove front bumper cover.

See BUMPERS .

z

Remove bolts -arrows- on module retainer.

WARNING:

z

HIGH VOLTAGE!

z

Always disconnect negative (-) battery terminal prior to servicing
any parts of the HID lamp system marked with the yellow "HIGH
VOLTAGE!"symbol.

z

After disconnecting battery, briefly turn headlights on and off in
order discharge any residual voltage.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

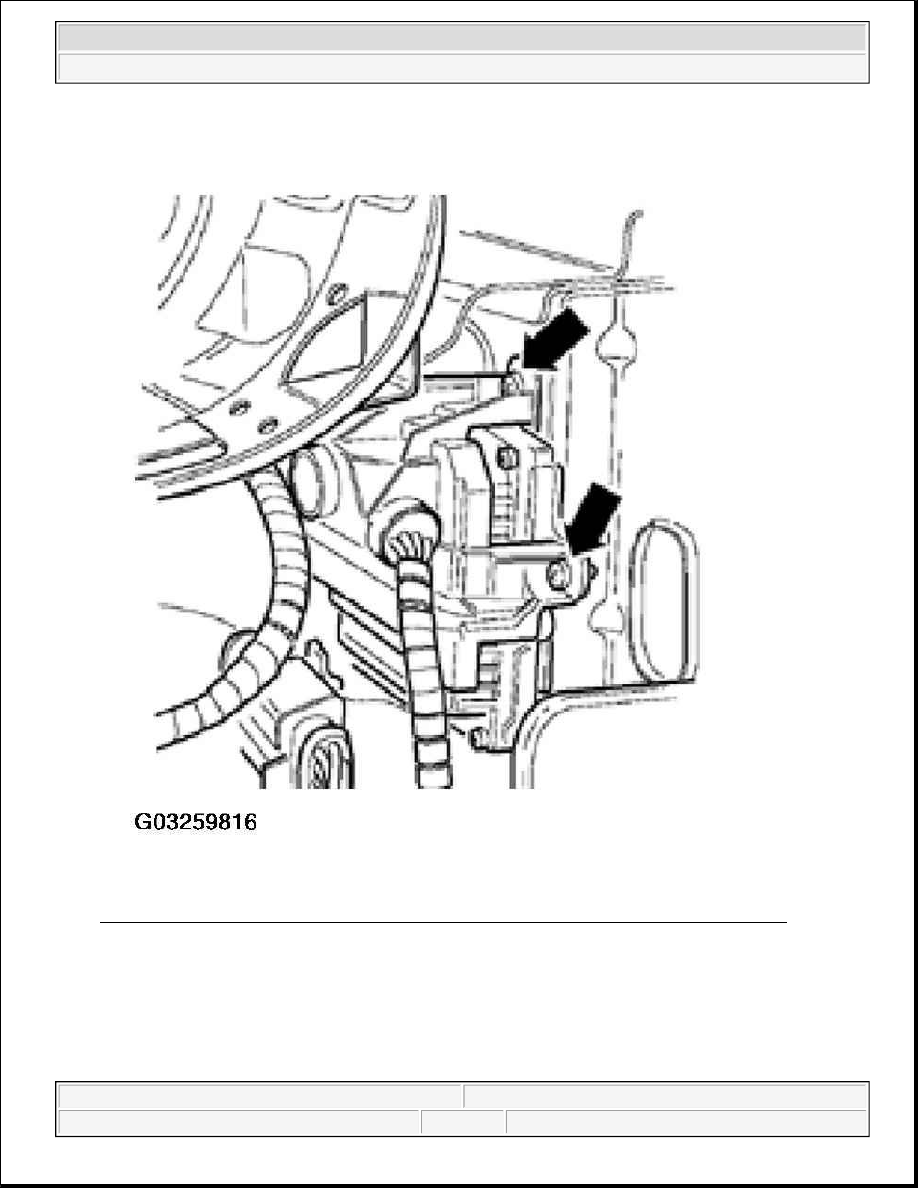

Fig. 30: Right High Intensity Gas-discharge Lamp (With Range Control) Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove retainer and module together.

z

Disconnect electrical connection from module.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

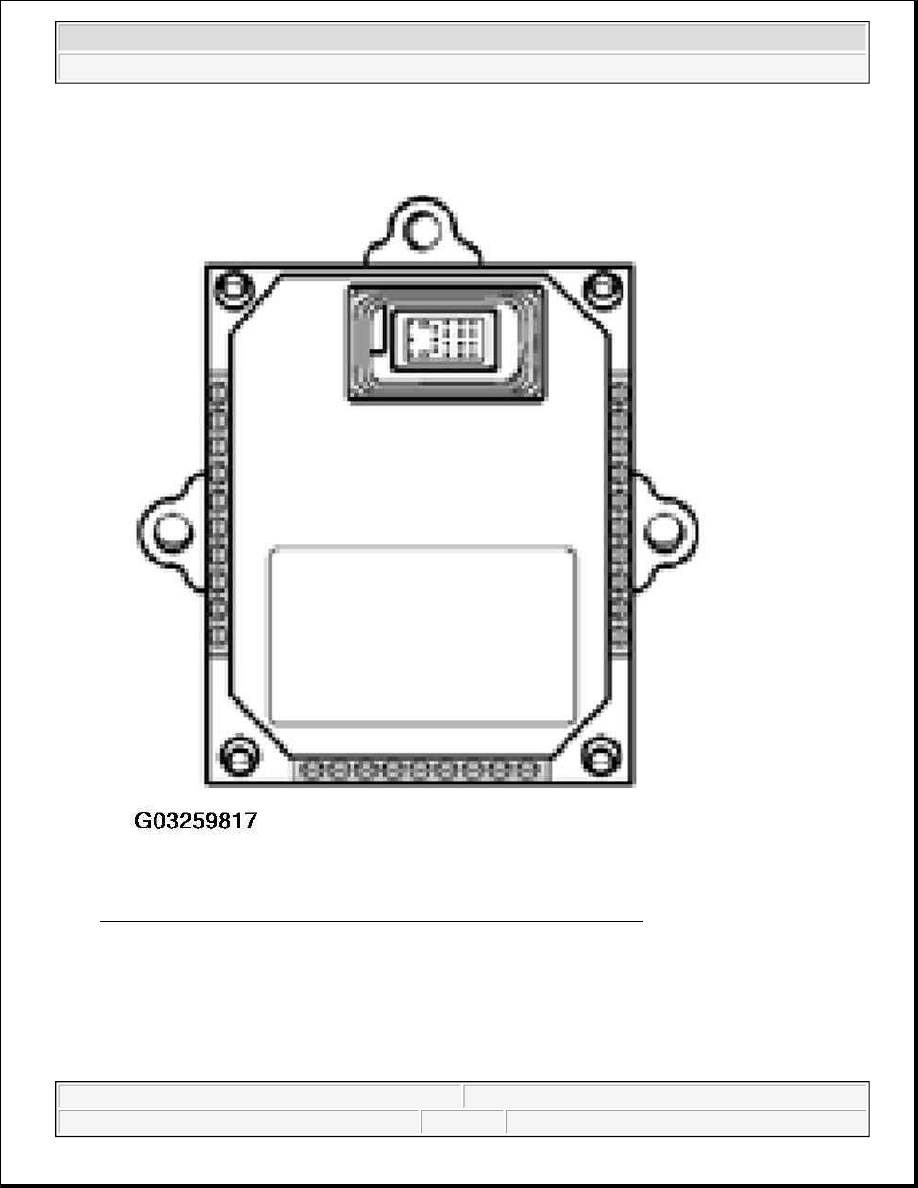

Fig. 31: Removing Module Screws To Separate Module From Retainer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove screws and separate module from retainer.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
