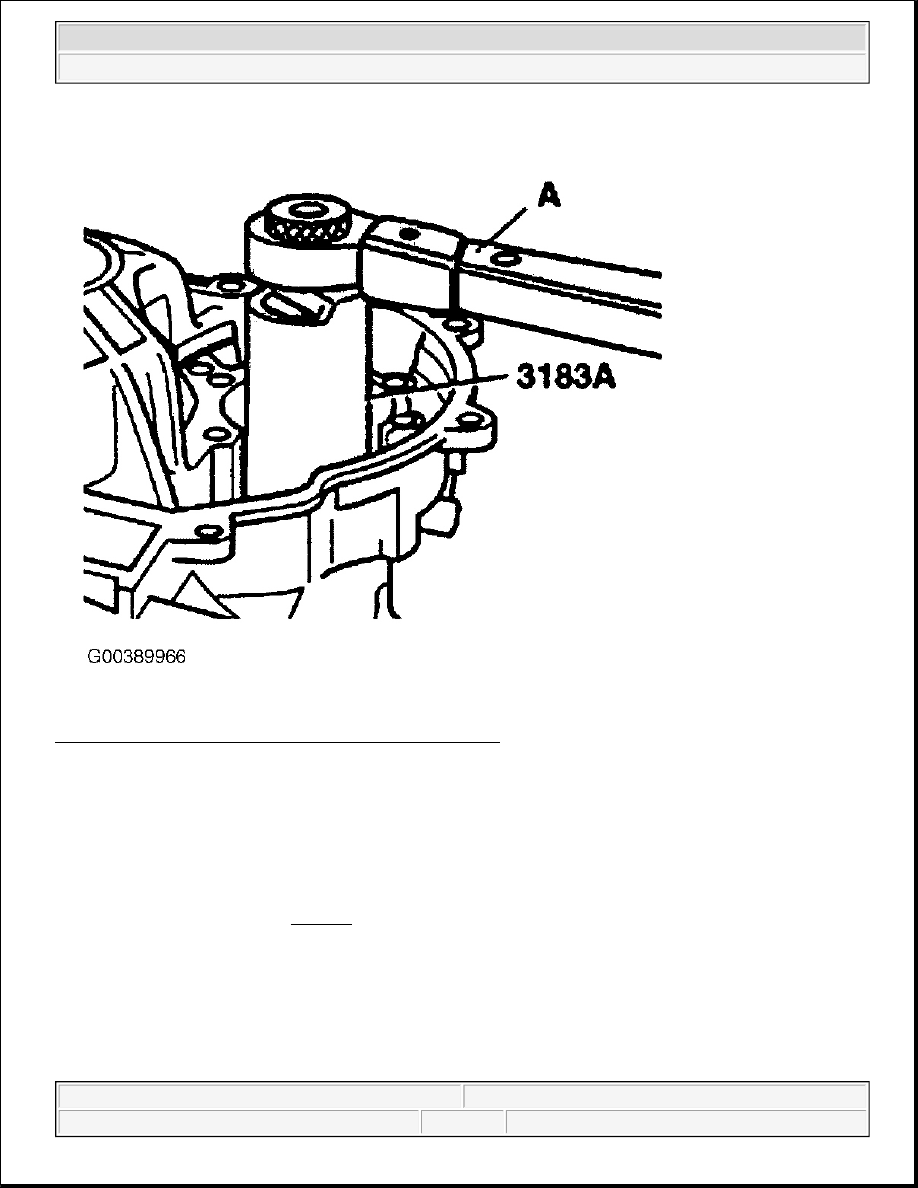

Fig. 174: Removing & Installing Bearing Supporting Ring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Torque wrench

Tighten bearing supporting ring to 200 Nm and secure with locking screw. Insert screw with AKD 456 000 01.

Bearing Supporting Ring W/Seal For Drive Pinion

Installation position of seal: See Fig. 175 .

Open side (arrow) faces tapered roller bearing outer race.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



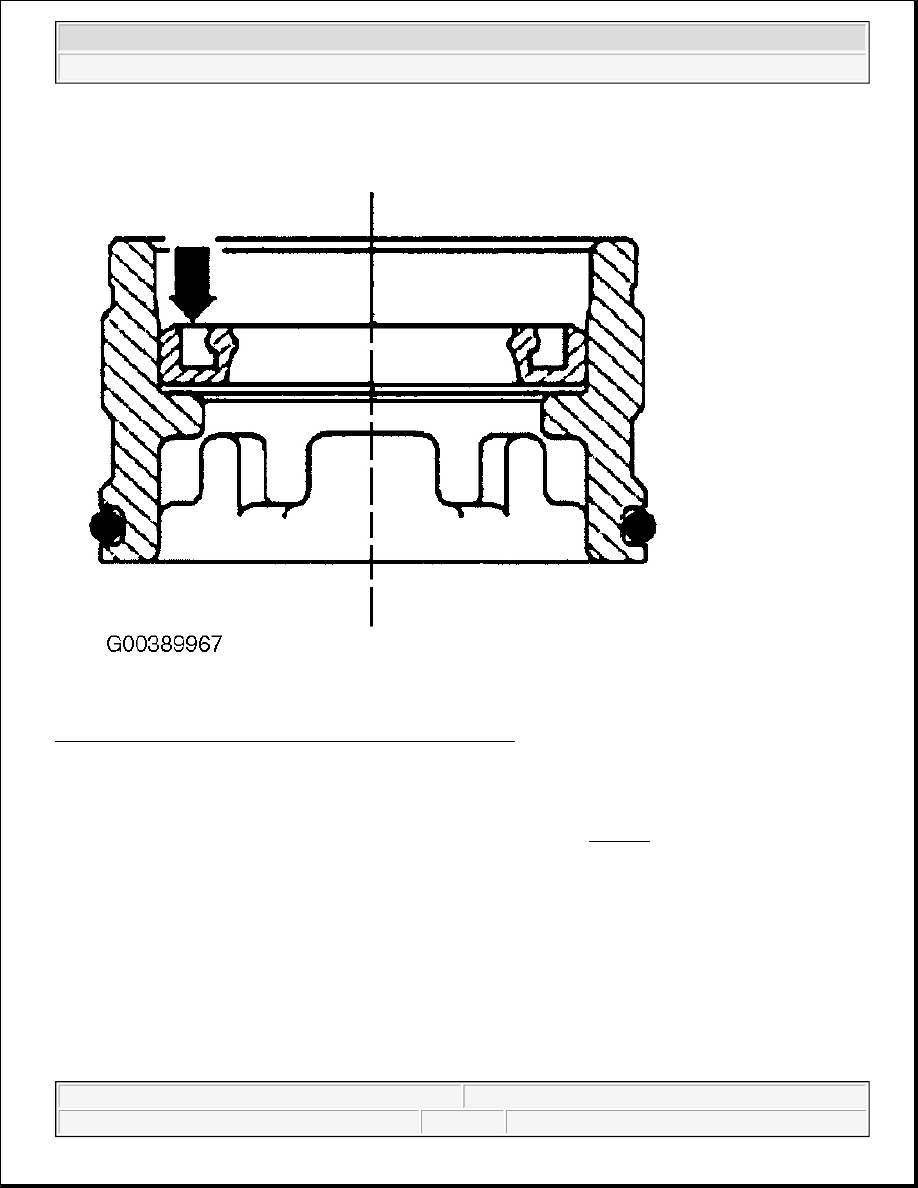

Fig. 175: Bearing Supporting Ring W/Seal For Drive Pinion
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driving In Drive Pinion Oil Seal

Insert oil seal so that sealing lip faces outward to special tool 30-204. See Fig. 176 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



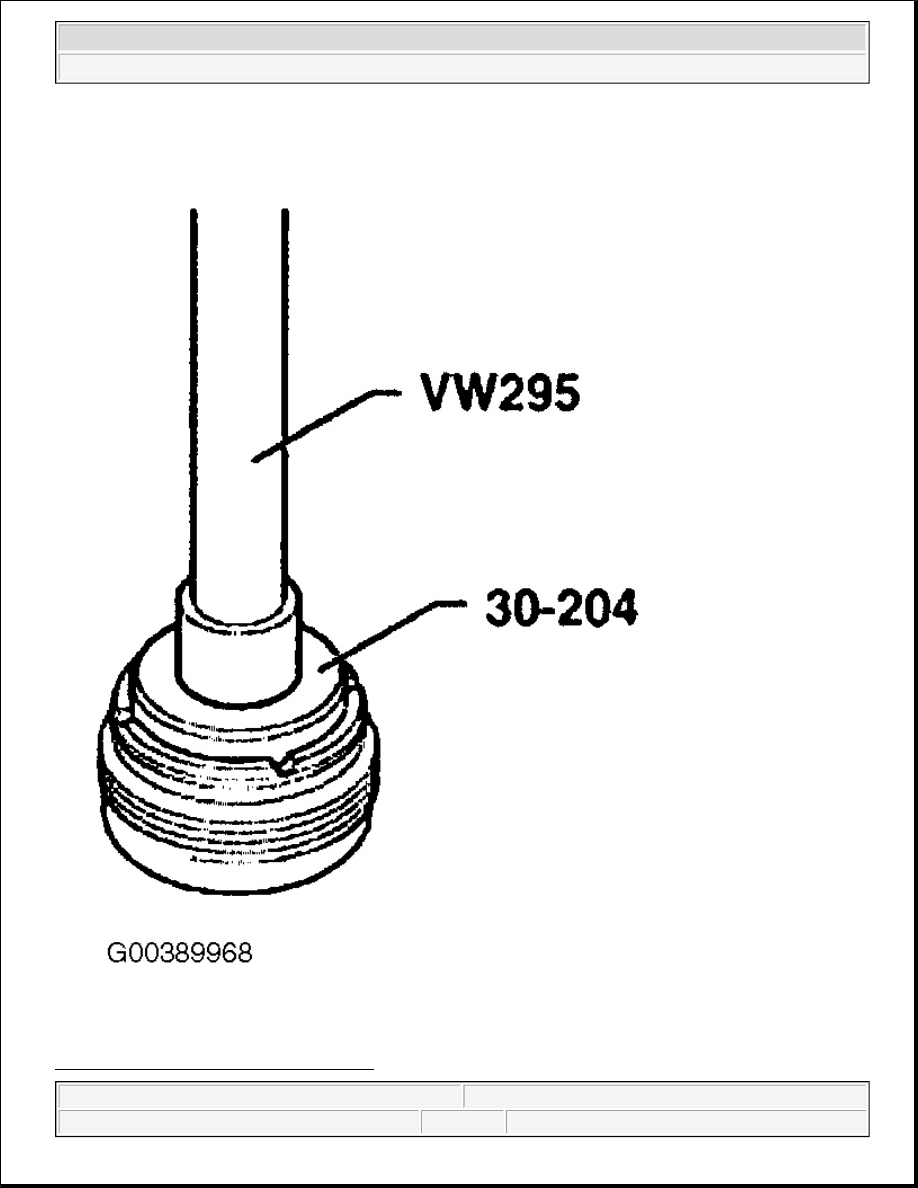

Fig. 176: Driving In Drive Pinion Oil Seal



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing Drive Pinion

A - Ring spanner 32 mm. See Fig. 177 .

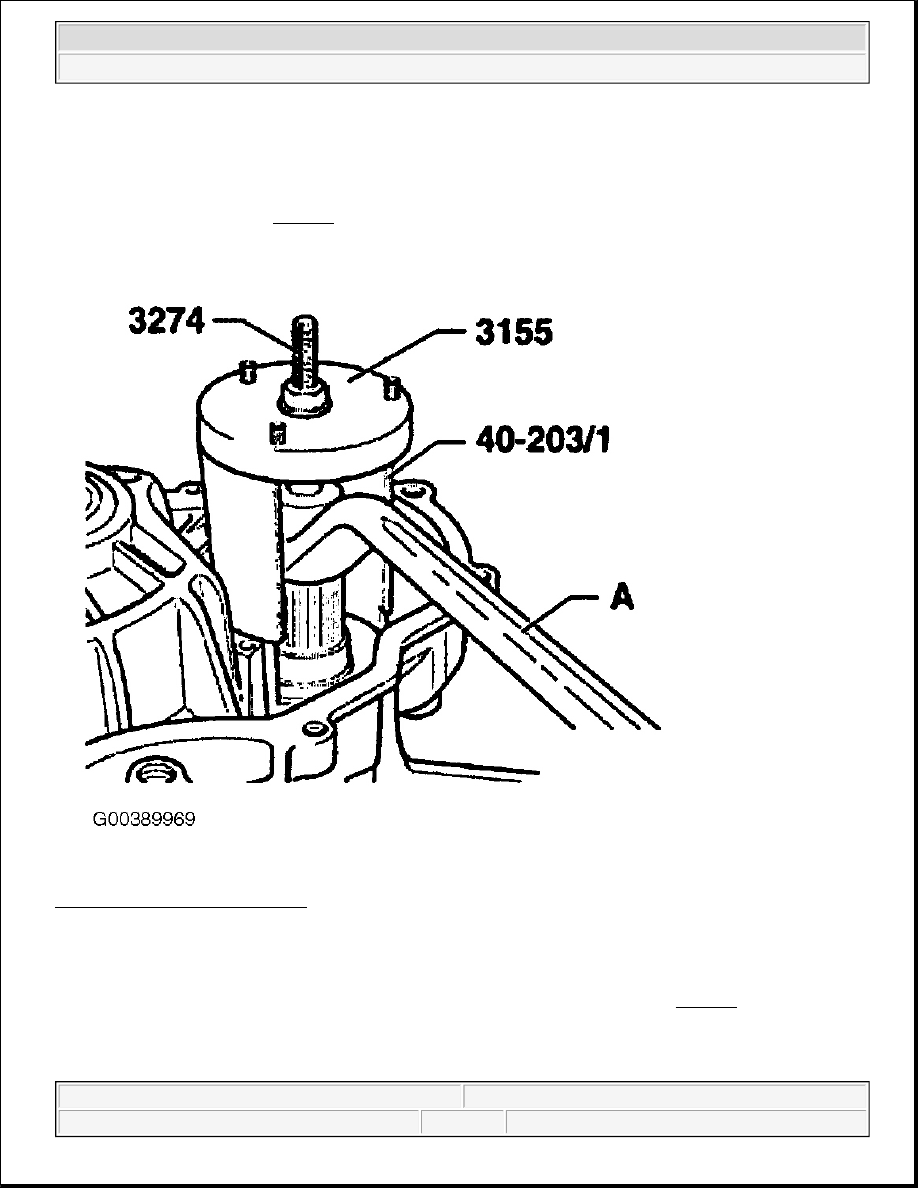

Fig. 177: Removing Drive Pinion
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driving In Tapered Roller Bearing Outer Race

Insert drive pinion with tapered roller bearing inner race, then drive in outer race. See Fig. 178 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
