Volkswagen New Beetle. Manual - part 2269

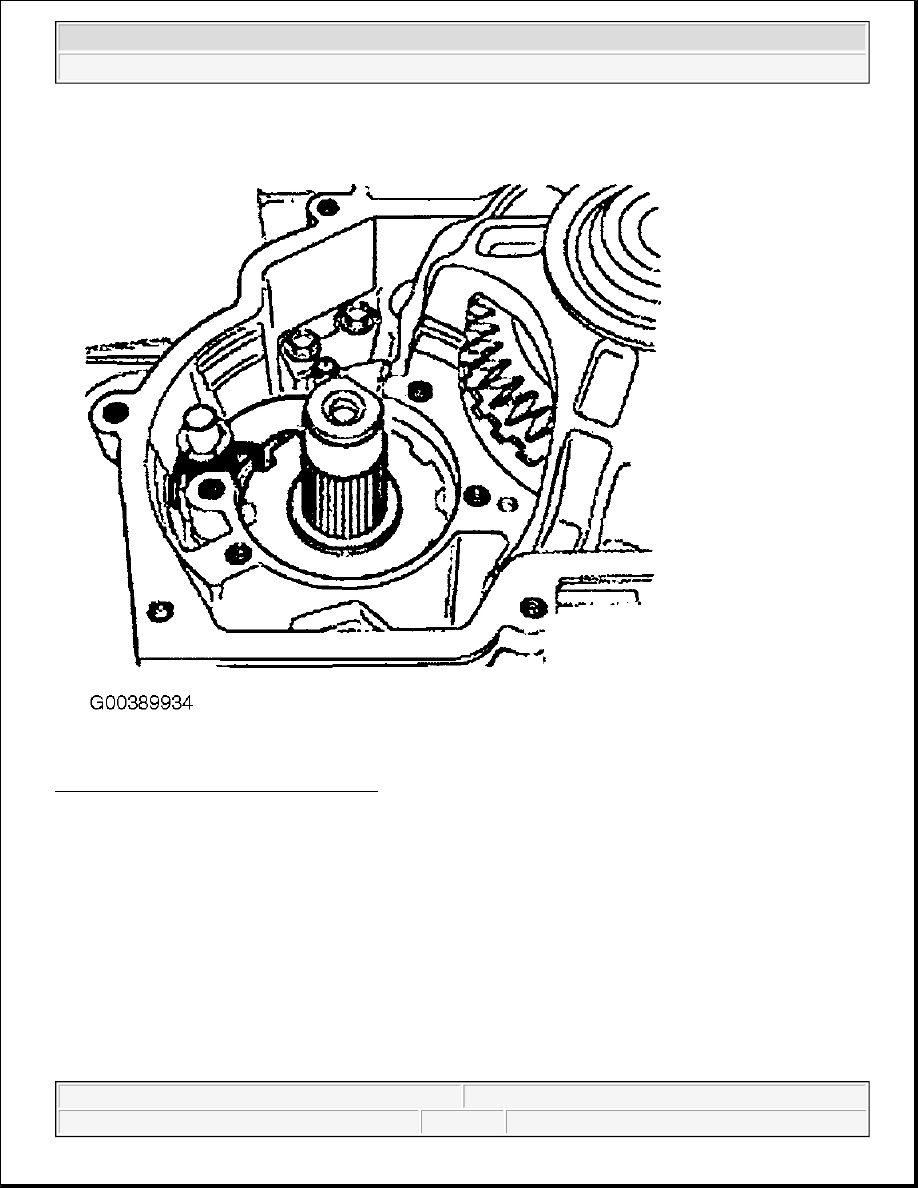

Fig. 149: Inserting Pawl W/Return Spring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pulling Out Starter Bushing



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

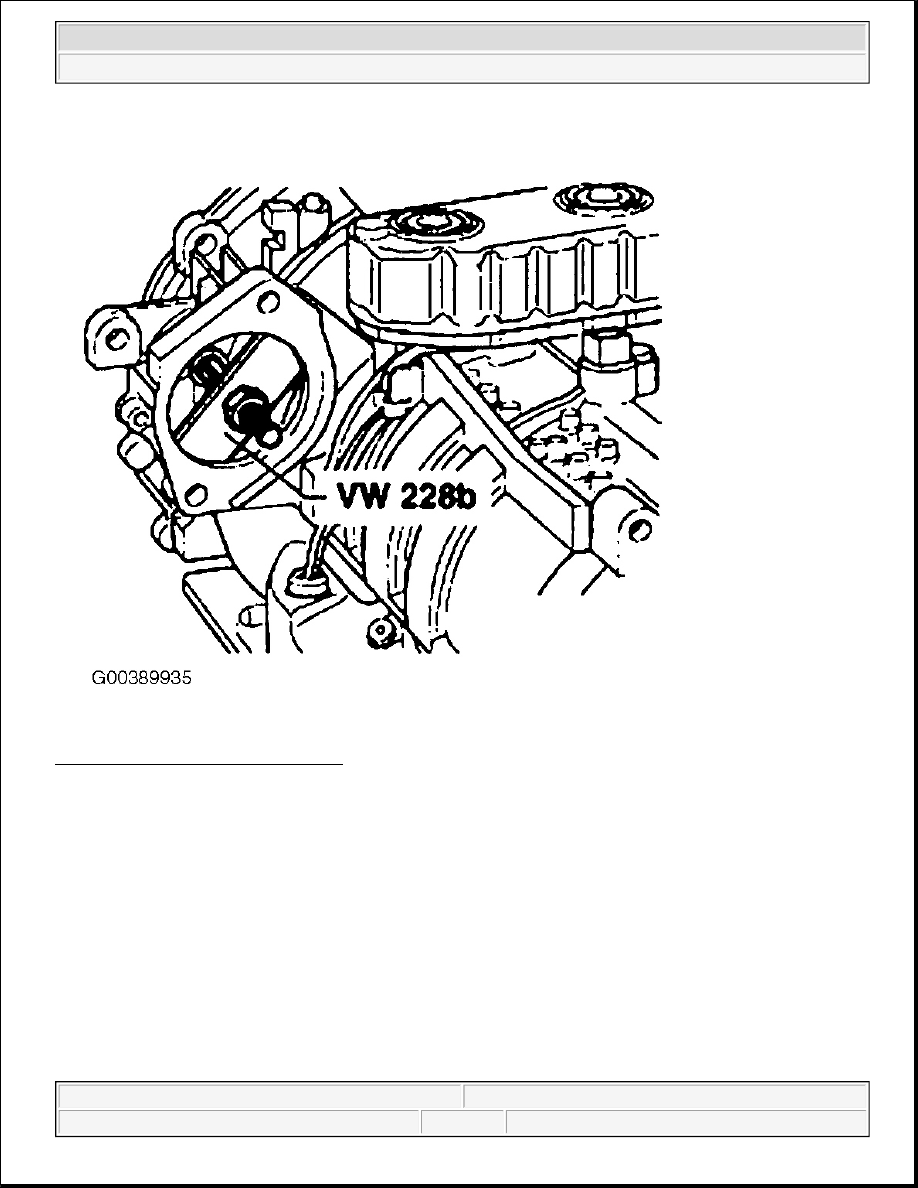

Fig. 150: Pulling Out Starter Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driving In Starter Bushing

Lubricate bushing mounting before driving in.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

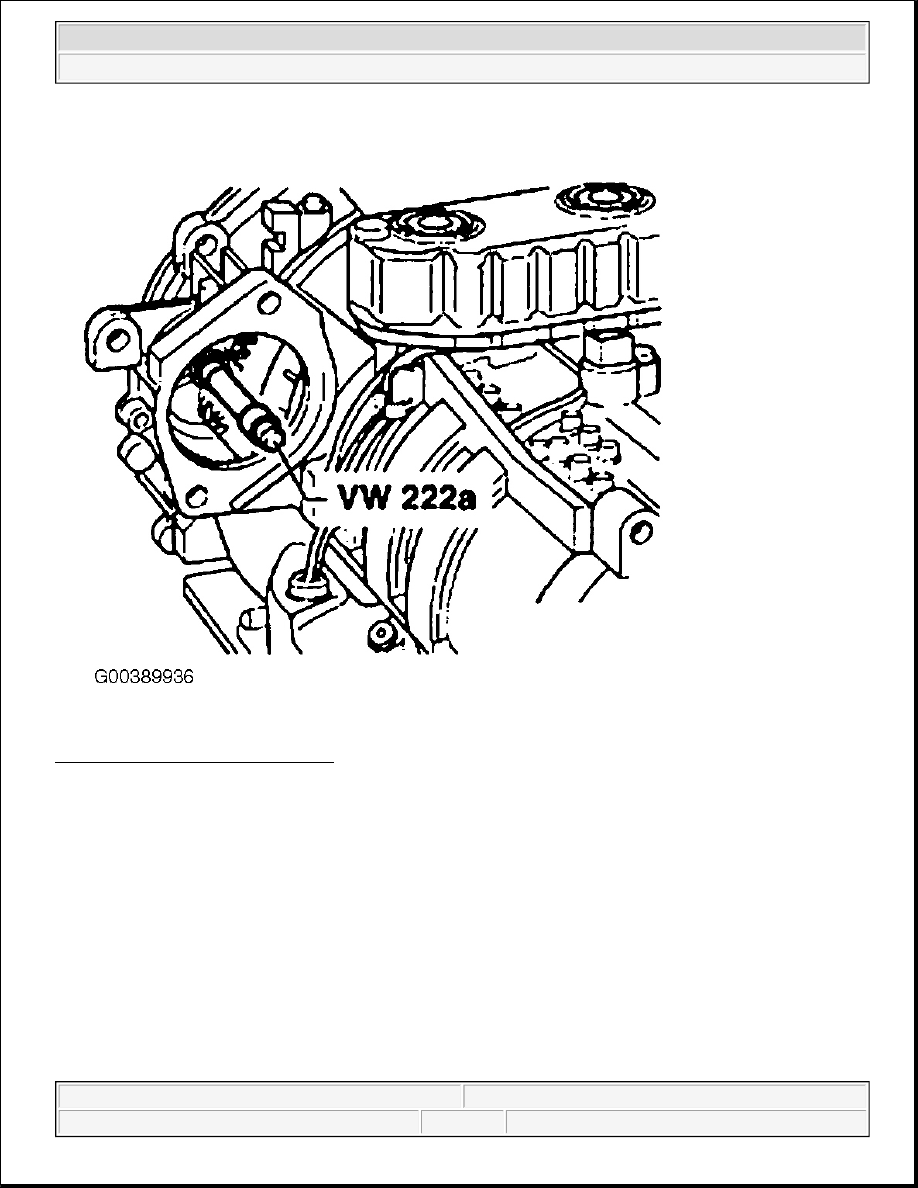

Fig. 151: Driving In Starter Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing And Installing Multi-Function TR Switch

Location: The multi-function TR switch is located on rear of the transmission.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

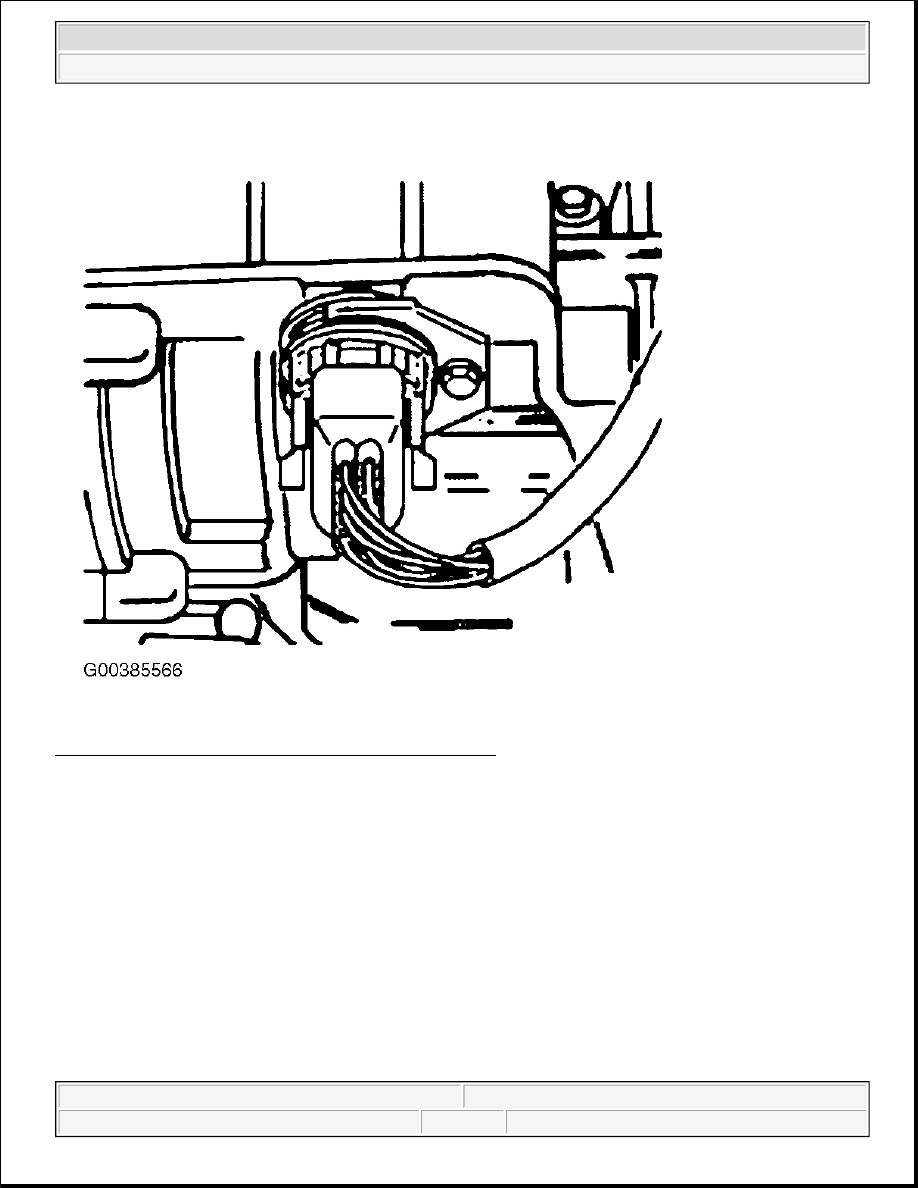

Fig. 152: Identifying Multi-Function Transmission Range
Courtesy of AUDI OF AMERICA, INC.

Switch ignition off, open hood.

Pull connector off multi-function TR switch.

Remove bolt and retainer.

Remove multi-function TR switch.

Replace seal.

Installation is performed in the reverse order of removal.

Insert switch so that each pin rests on a slope of detent segment.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
