SPECIAL TOOLS

Use following illustrations to identify special tools. See Fig. 38 -Fig. 40

Stabilizer Bar Link-To-Control Arm Bolt

33 (45)

Stabilizer Bar-To-Link Nut

(1)

22 (30)

Stabilizer Bar Link-To-Strut

(1)

 ,

(3)

Step 1

37 (50)

Step 2

Additional 90° Turn

Steering Gear-To-Subframe Bolt

(1)

Step 1

15 (20)

Step 2

Additional 90° Turn

Strut Piston Rod Nut

(1)

44 (60)

Strut-To-Body Mounting Nut

(1)

44 (60)

Strut-To-Wheel Bearing Housing Bolt/Nut

(1)

Step 1

44 (60)

Step 2

Additional 90° Turn

Subframe Bolt

(1)

Rear Bolt (M14 x 1.5 x 63)

Step 1

74 (100)

Step 2

Additional 90° Turn

Front Bolt (M14 x 1.5 x 95)

Step 1

74 (100)

Step 2

Additional 90° Turn

Tie Rod End Nut

(1)

33 (45)

Wheel Lug Bolt

89 (120)

Wiper Arm Nut

(2)

15 (20)

(1)

Always replace fastener with NEW part.

(2)

New Beetle only.

(3)

For vehicles with modified stabilizer bar mounting. Stabilizer bar link connects to
stabilizer bar and on strut housing, below coil spring.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:52 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

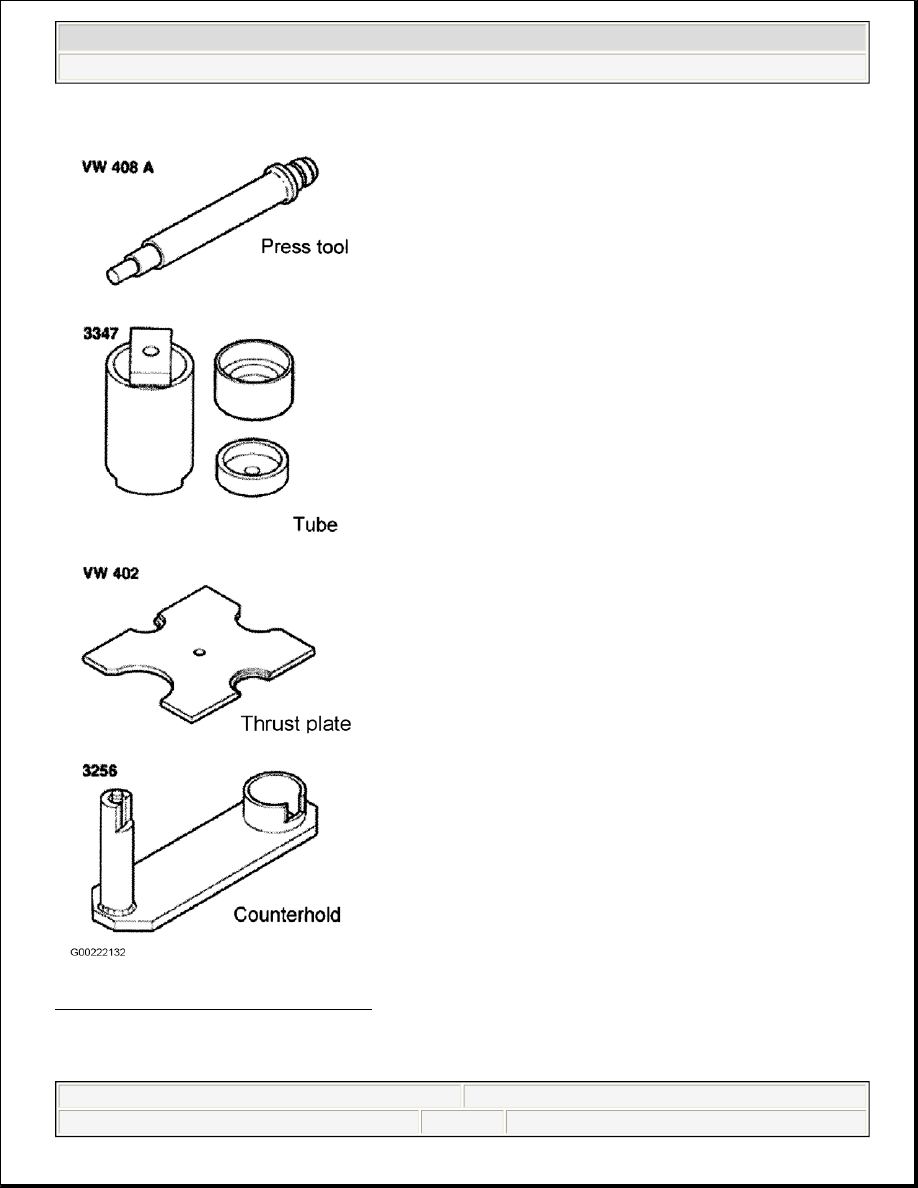

Fig. 38: Identifying Special Tools (1 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:52 AM

Page 53

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:52 AM

Page 54

© 2004 Mitchell Repair Information Company, LLC.

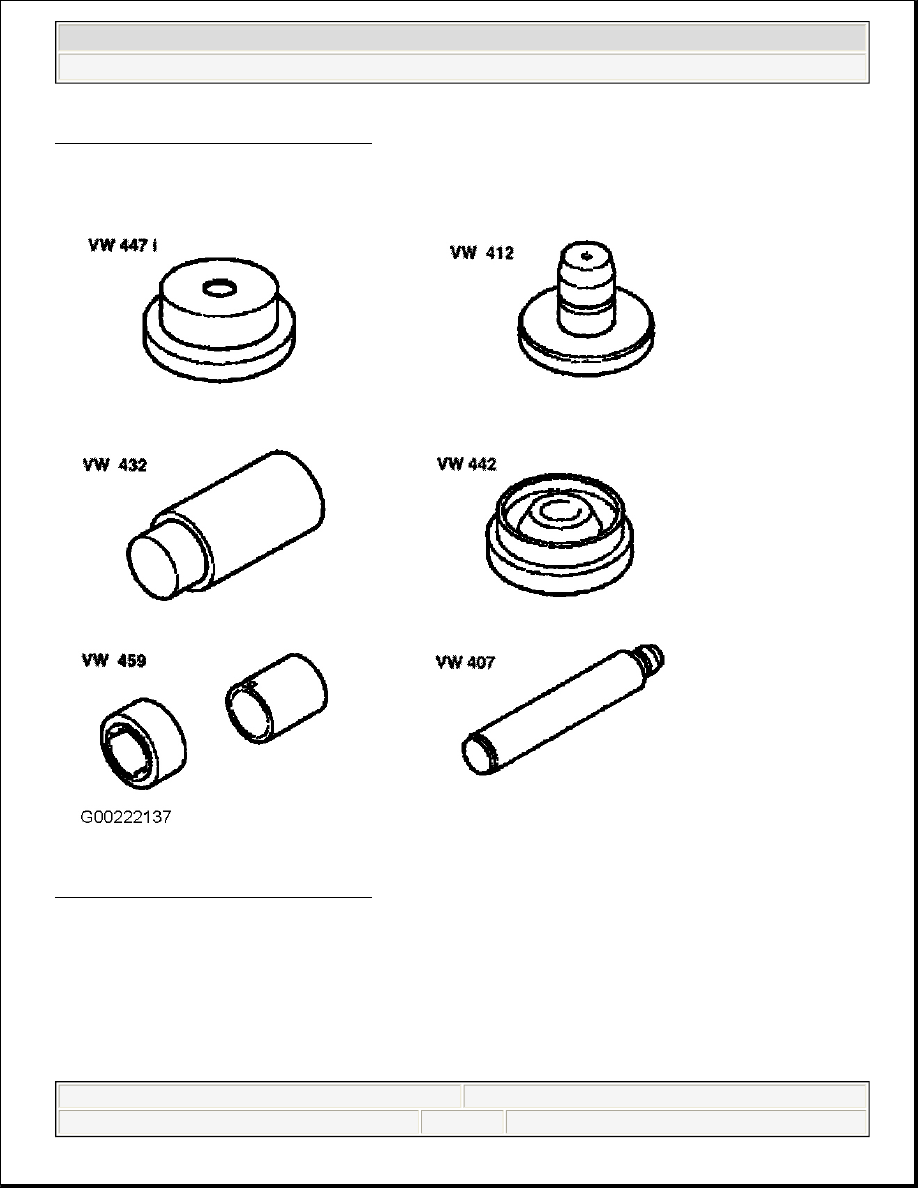

Fig. 39: Identifying Special Tools (2 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

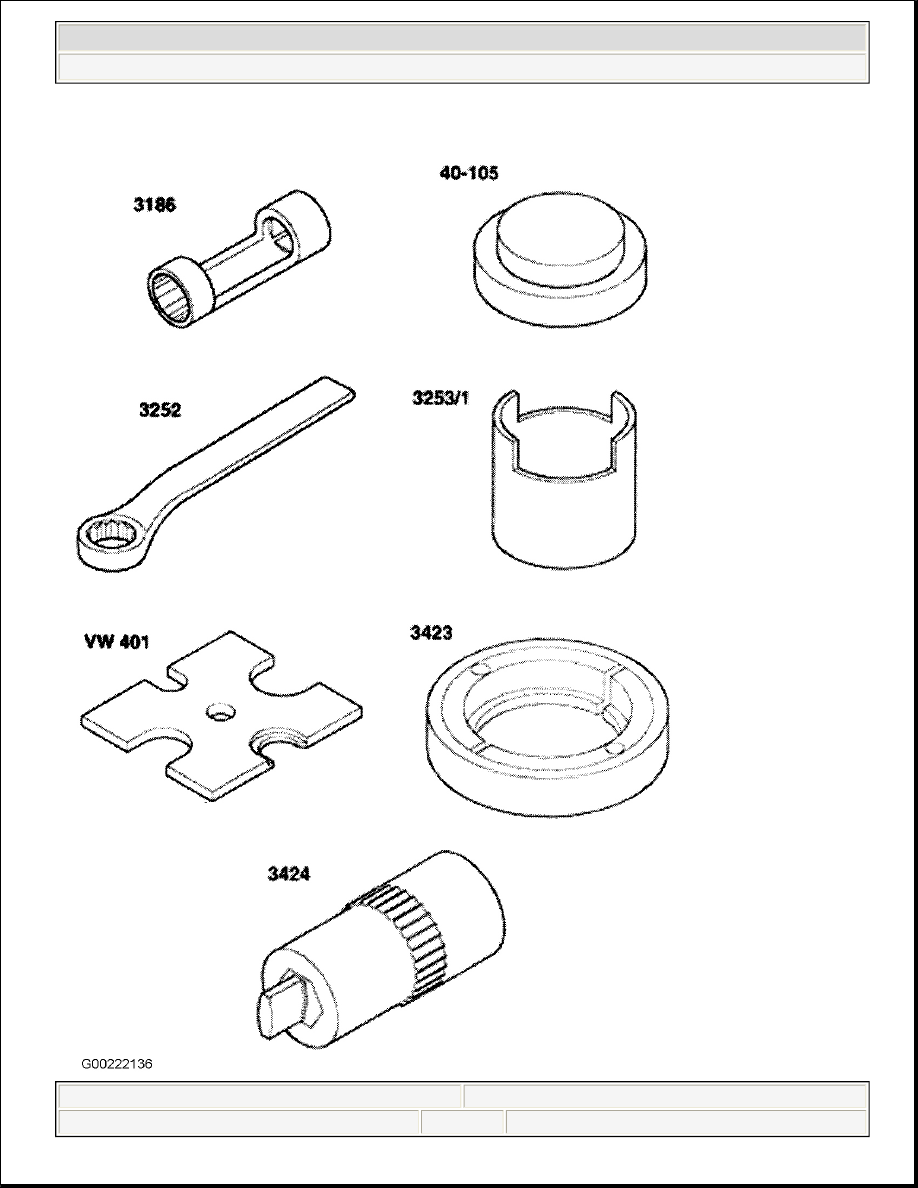

Fig. 40: Identifying Special Tools (3 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
