Make sure that the coil spring is properly seated in spring holder V.A.G1752/4. See Fig. 35 .

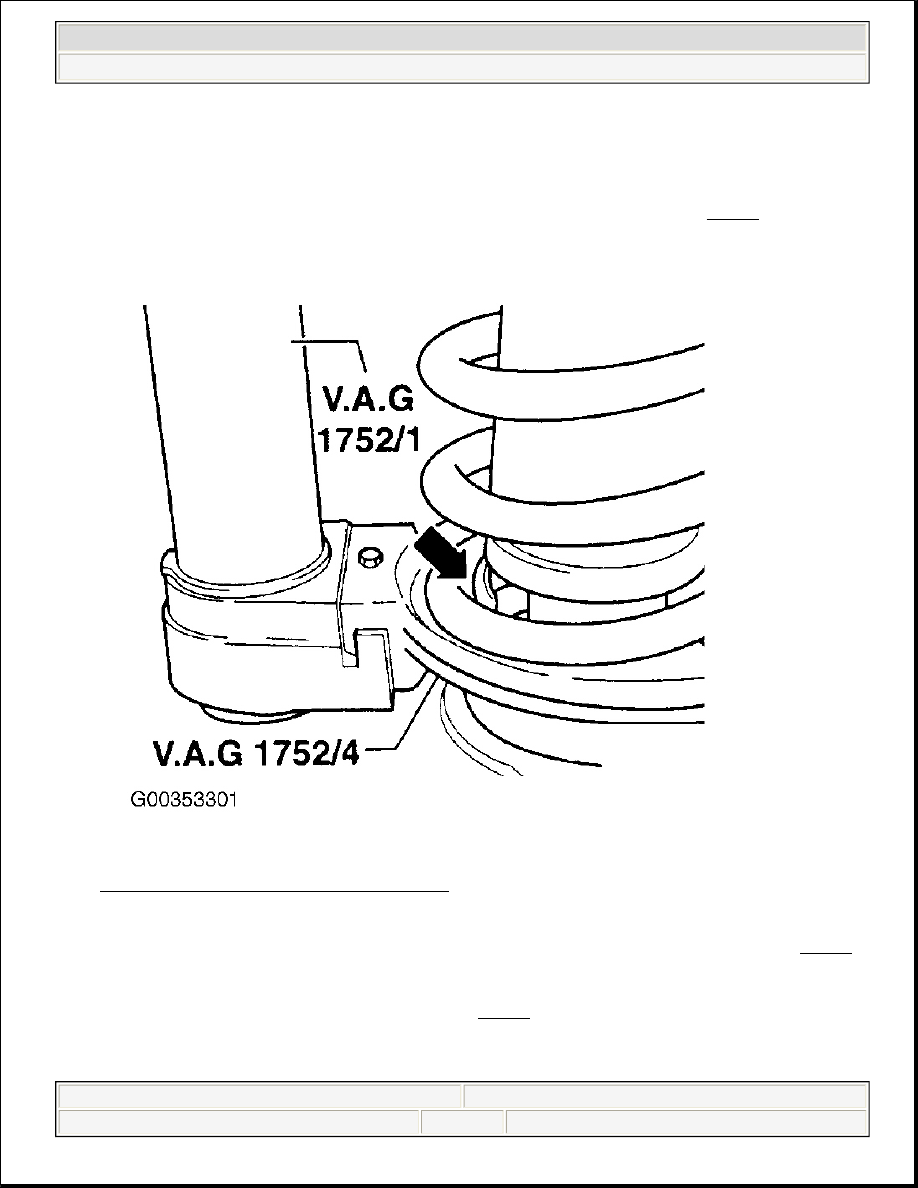

Fig. 35: Seating Coil Spring In Spring Holder
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Slowly release tension on spring and remove upper strut mount, spring plate and coil spring. See Fig. 37

Remove protective sleeve and buffer stop.

4. Remove old strut from holder or vise. Place new strut into holder or vise. Install coil spring. Verify that

coil spring rests against lower spring plate stop. See Fig. 36 . Install buffer stop and protective sleeve.

CAUTION: First compress the spring until the upper spring plate is no longer

under load.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

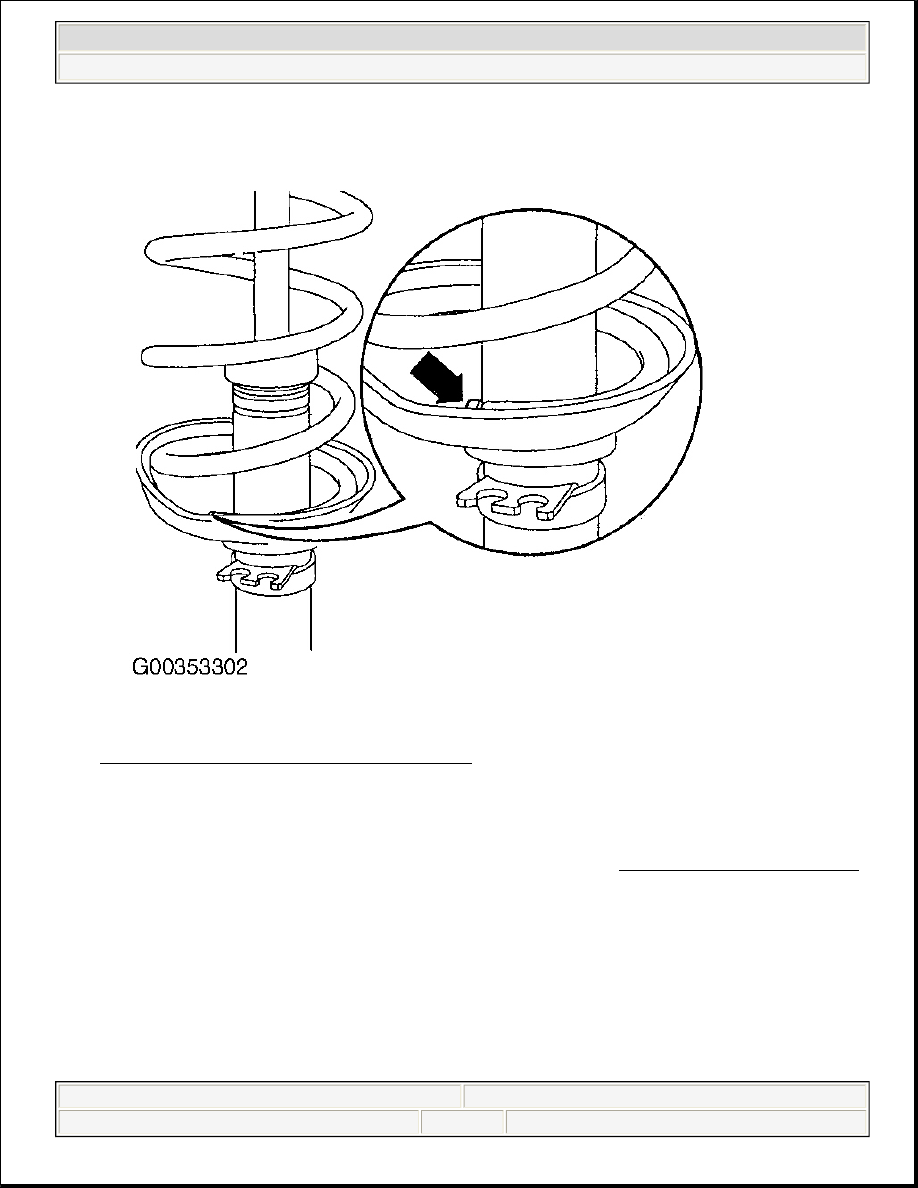

Fig. 36: Seating Coil Spring Against Spring Stop
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Compress coil spring. Install spring plate and upper strut mount. Top end of coil spring must rest against

stop of spring plate.

6. Install NEW piston rod nut. Tighten piston rod nut to specification. See TORQUE SPECIFICATIONS



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

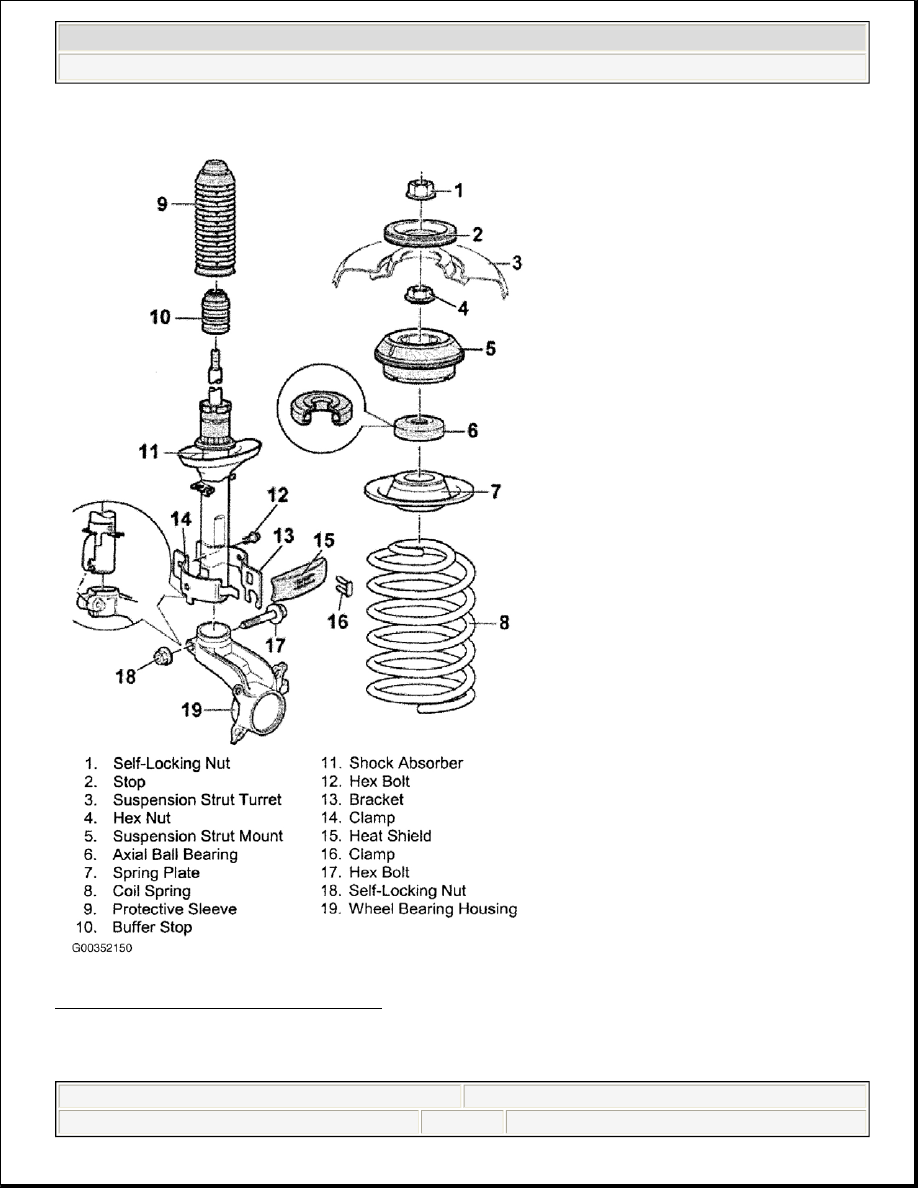

Fig. 37: Exploded View Of Strut Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Axle Shaft Nut (12 Point)

(1)

Step 1

148 (200)

Step 2

Loosen Nut 1/2 Turn

Step 3

Turn Hub 180 Degrees

Step 4

37 (50)

Step 5

Additional 60° Turn

Axle Shaft Bolt (GTI)

(1)

Step 1

184 (250)

Step 2

Additional 90° Turn

Step 3

Loosen Nut 1/2 Turn

Step 4

Turn Hub 180 Degrees

Step 5

184 (250)

Step 6

Additional 90° Turn

Axle-To-Drive Flange Bolt

(1)

M8 x 18, M8 x 28 & M8 x 48

30 (40)

M10 x 20 & M10 x 48

59 (80)

Ball Joint Nut

(1)

33 (45)

Ball Joint-To-Control Arm Bolt

(1)

Step 1

15 (20)

Step 2

Additional 90° Turn

Caliper Guide Pin Bolt

21 (28)

Caliper-To-Wheel Bearing Housing Bolts

92 (125)

Lower Control Arm-To-Subframe Front Bushing Bolt

(1)

Step 1

52 (70)

Step 2

Additional 90° Turn

Lower Control Arm-To-Subframe Rear Bushing Bolt

(1)

Step 1

52 (70)

Step 2

Additional 90° Turn

Pendulum Support Bolt

(1)

To-Subframe (M8 x 48)

Step 1

15 (20)

Step 2

Additional 90° Turn

To-Transmission (M10 x 30 & M10 x 70)

Step 1

30 (40)

Step 2

Additional 90° Turn

Stabilizer Bar Clamping Bolt

18 (25)



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.
