Removal

1. Remove wheel bearing housing/hub assembly.

2. Using hydraulic press and appropriate wheel hub press tools, press wheel hub from wheel bearing. See

Fig. 26 . See SPECIAL TOOLS . Using appropriate puller, remove inner race from hub.

NOTE:

Wheel bearing MUST be replaced if removed, as removal will damage it. During
any removal and installation procedure, if axle nut/bolt is removed or installed,
do so with vehicle resting on floor at full curb weight. Always replace axle shaft
self-locking nut/bolt with NEW.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

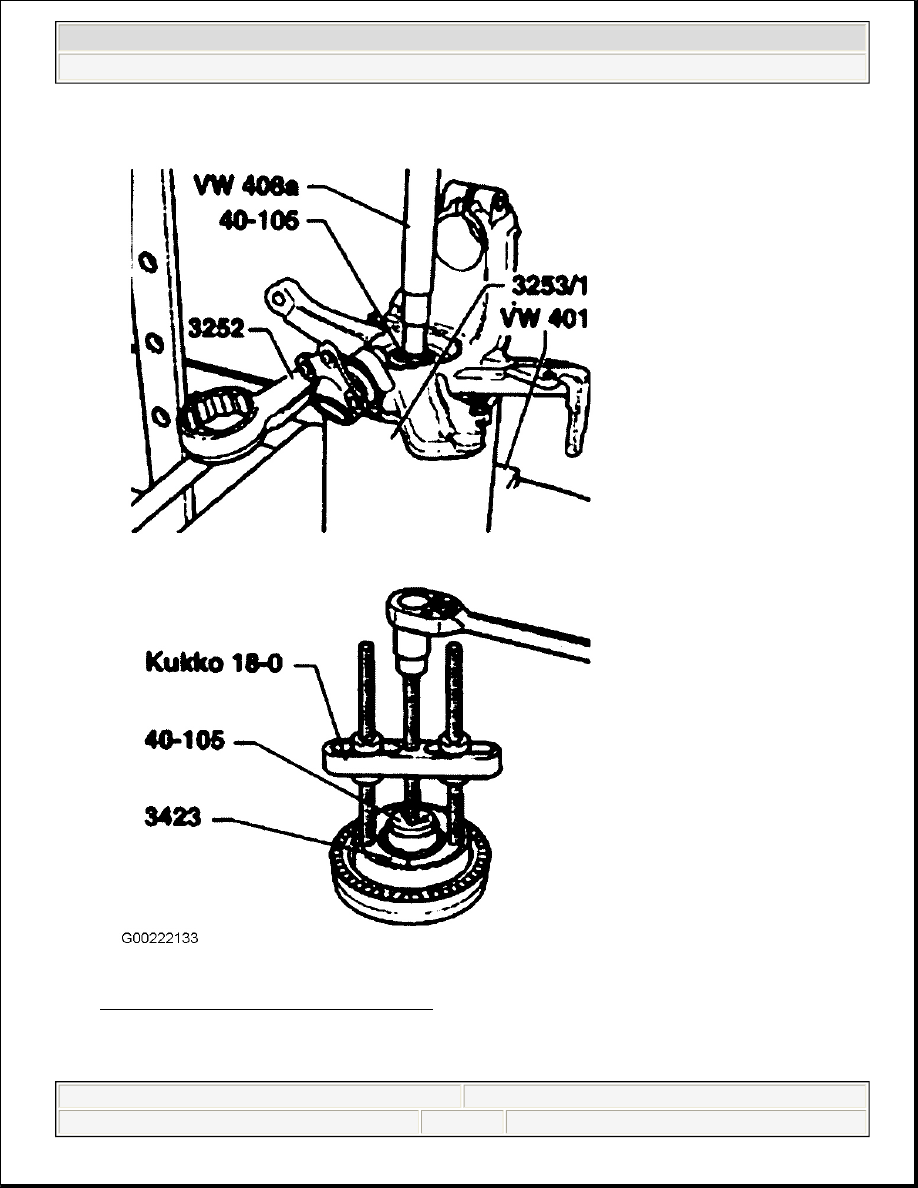

Fig. 26: Pressing Wheel Hub From Bearing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Remove wheel bearing circlip. Using appropriate wheel bearing press tools, press wheel bearing out of



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

steering knuckle. See Fig. 27 .

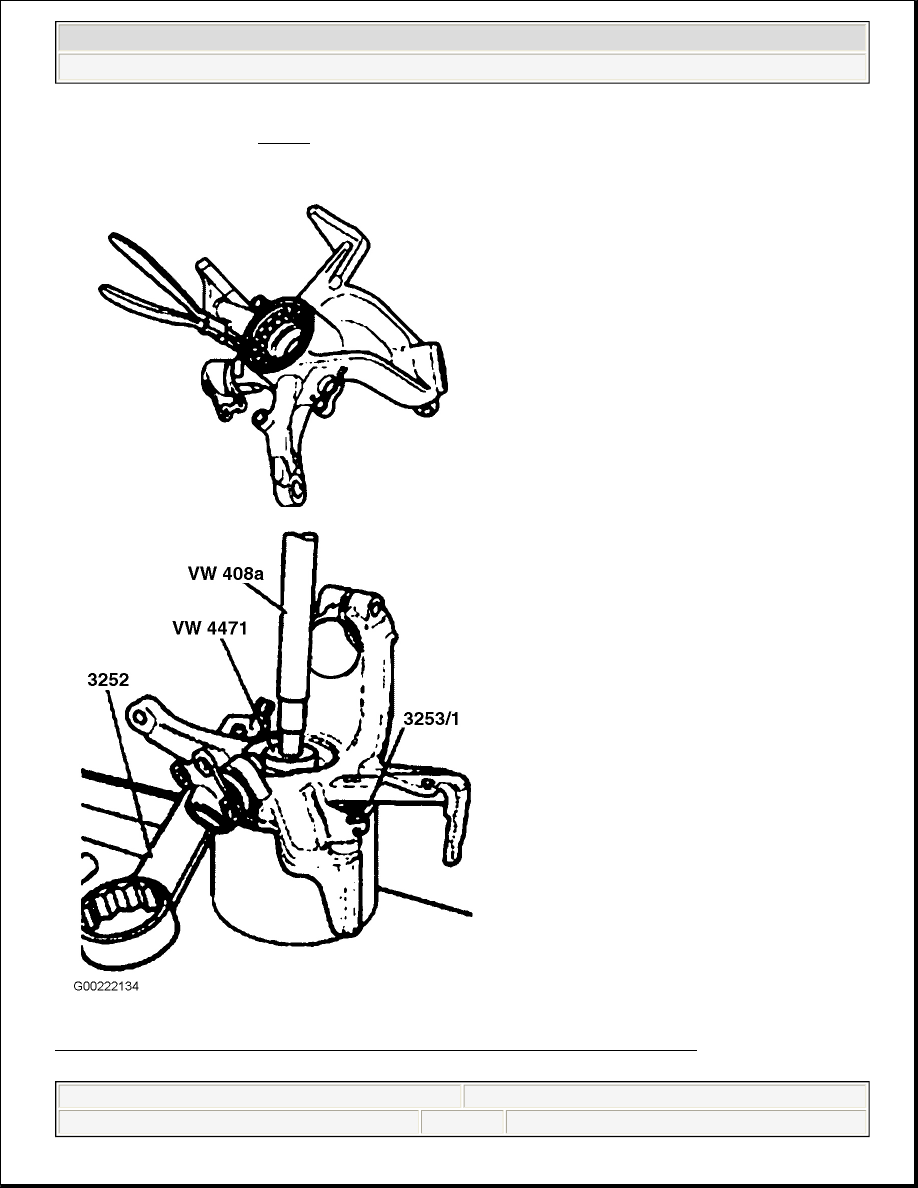

Fig. 27: Removing Wheel Bearing From Housing (Housing Removed From Vehicle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

Installation

1. Coat inside of wheel bearing housing with Molykote Grease (723 00). Using appropriate press tools,

press new wheel bearing onto housing from outboard side. See Fig. 28 . Install wheel bearing circlip.

2. Using same installer and adapter, press wheel hub into steering knuckle.

NOTE:

When installing hub, ensure press adapter contacts inner bearing race only.
