2. Further installation is in reverse order. After installing, check position of steering wheel during a test

drive. If steering wheel is not in straight ahead position the front axle alignment must be checked.

3. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . Check wheel alignment.

See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

Removal (New Beetle)

1. Lift vehicle until load on front axle is relieved. Loosen right-side 12-point axle shaft nut. Remove wheel.

For vehicles with 1.9L TDI engine, remove noise insulation panel. See Fig. 23 . Remove left-side noise
insulation panel. See Fig. 24 .

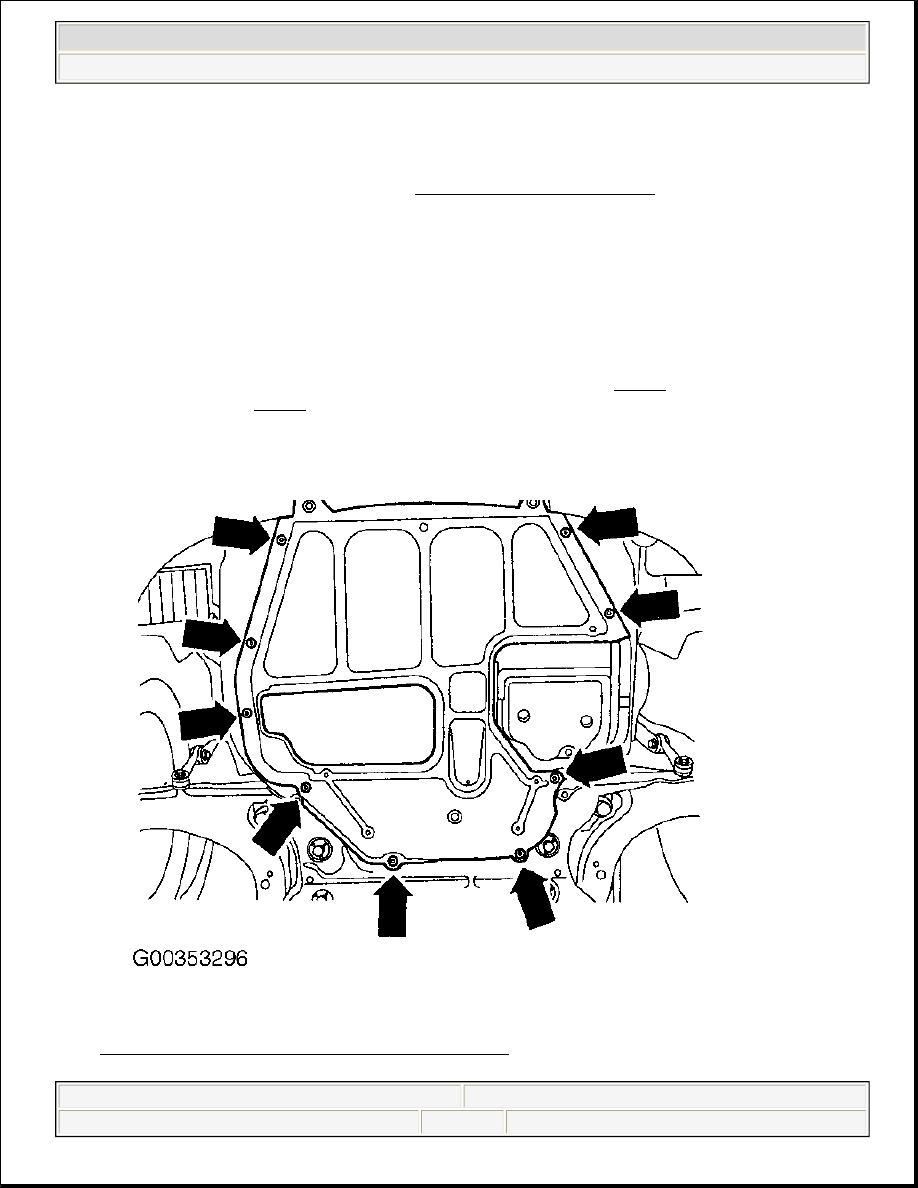

Fig. 23: Locating Noise Insulation Panel (New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: The vehicle must be standing on its wheels when loosening or tightening

the 12-point nut. Otherwise there is risk of an accident.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

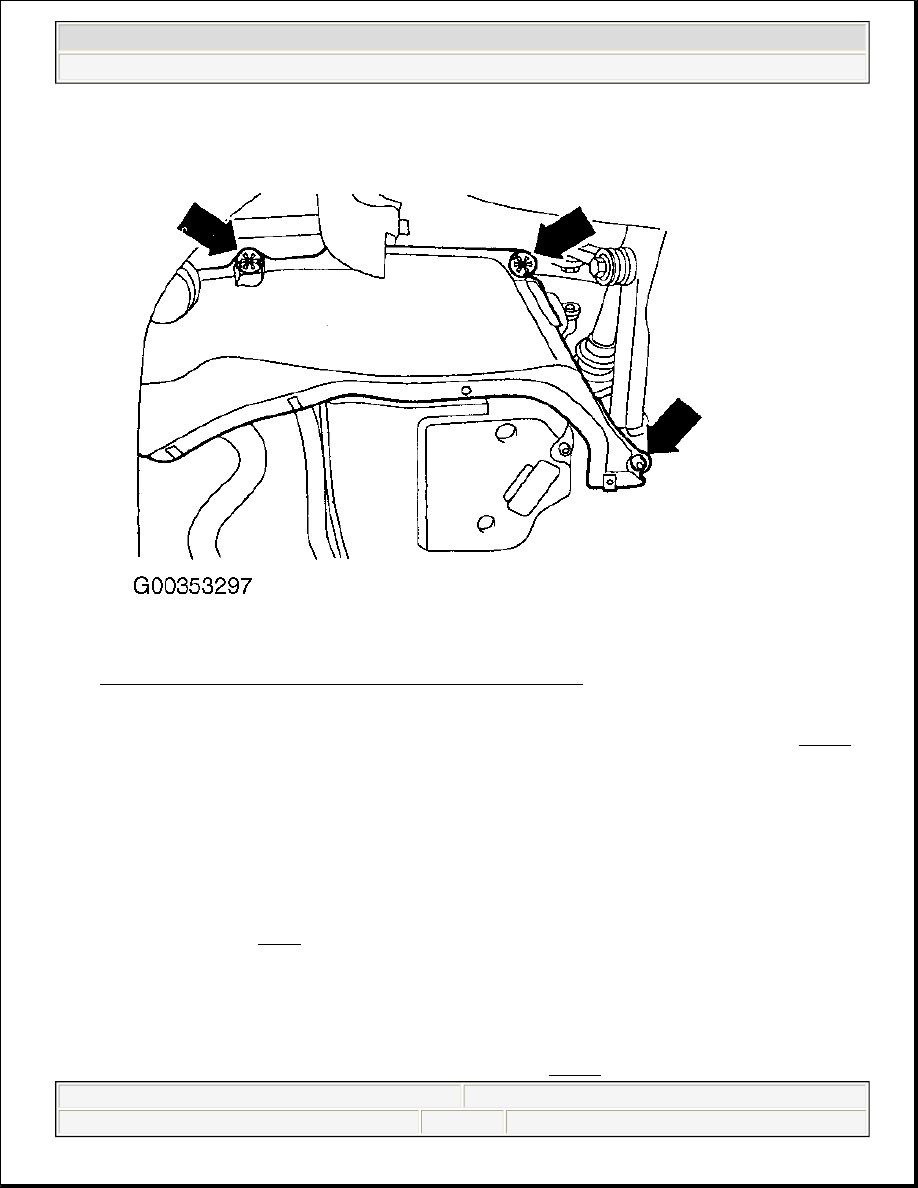

Fig. 24: Locating Left Side Noise Insulation Panel (New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. On vehicles with 1.8L turbo and 2.0L engines, remove center, left and right insulation trays. See Fig. 20 .

On vehicles with 1.9L TDI and 1.8L turbo engines, remove intake air duct between charge air cooler and
turbocharger.

3. Continuation for all vehicles, remove right-side noise insulation. Mark installation position of ball joint

bolts on control arm. Remove ball joint-to-control arm bolts.

4.

Install tool 3283. See Fig. 5 . Press axle shaft out of hub. Pull wheel bearing housing together with ball
joint out from control arm. Swing suspension strut outward and hold away from body with a piece of
wood. To do this pull the drive shaft out from wheel bearing.

5. Secure drive axle to body with wire. The drive axle must not hang down by inner CV or triple rotor joint.

Do not flex inner CV or triple-rotor joint more than 25 degrees from its original angle. The inner joint
will otherwise be damaged through overflexing.

6. Remove pendulum support-to-subframe bolts (1) and (2). See Fig. 21 . Remove steering gear bolts (5).

NOTE:

When pressing drive axle out make sure that sufficient clearance is
available.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

Remove stabilizer bar link rod nuts (7). On vehicles equipped with 1.9L TDI engines, remove exhaust
system bolts (6).

7. Support suspension assembly with transmission jack. Remove subframe bolts (3) and (4). Lower

subframe and remove from vehicle.

Installation (New Beetle)

1. Before inserting bolts for subframe, position steering gear on subframe and insert bolts for steering gear.

The threaded sleeve (1) must seat in subframe hole. See Fig. 22 .

2. Further installation is in reverse order. After installing, check position of steering wheel during a test

drive. If steering wheel is not in straight ahead position the front axle alignment must be checked.

3. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . Check wheel alignment.

See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

SUBFRAME BUSHINGS

Removal & Installation

1. Remove subframe. See SUBFRAME . Using hydraulic press and appropriate bushing press tools, press

bushing from subframe. See Fig. 25 . See SPECIAL TOOLS .

2.

Coat new bushings with Bushing Lubricant (G 294 421). Using appropriate press tools, press NEW
bushings into control arm.

CAUTION: Never use grease as a lubricant for bushings.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

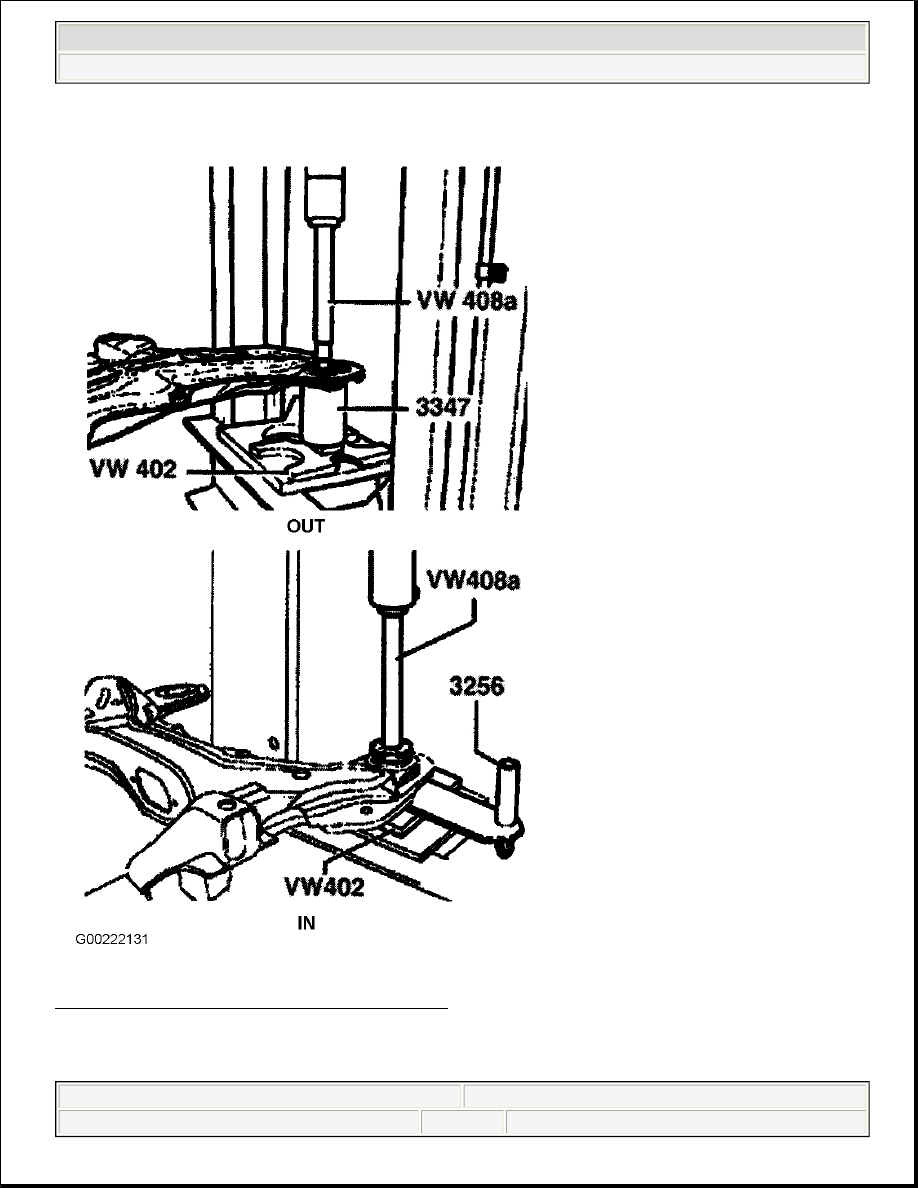

Fig. 25: Removing & Installing Subframe Bushings
Courtesy of VOLKSWAGEN UNITED STATES, INC.

WHEEL BEARING (WHEEL BEARING HOUSING REMOVED FROM VEHICLE)



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 35

© 2004 Mitchell Repair Information Company, LLC.
