z

Tighten screws and seal securing holes with sealant D2.

z

Connect multi-pin connector to ignition/starter switch.

z

Install steering column switches and steering wheel trim.

IGNITION/STARTER SWITCH, CONNECTOR ASSIGNMENTS

Connector, 8 pin

1. Terminal 50

2. Terminal 75

3. Terminal 30

4. Terminal P

5. Terminal 50b

6. Terminal 15

7. Terminal 30

8. Terminal 86s



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

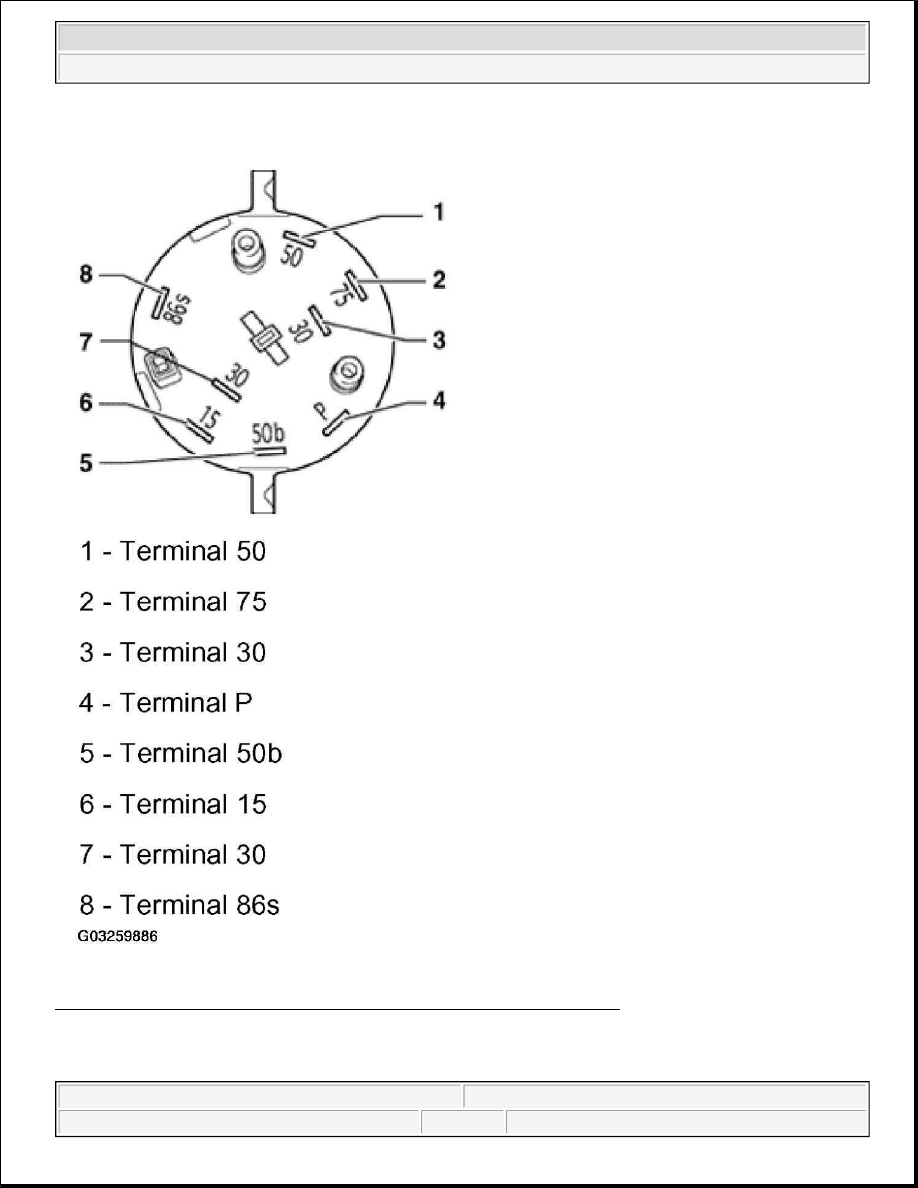

Fig. 100: Identifying Ignition/Starter Switch Connector (8-Pin) Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

Instruments - New Beetle

INSTRUMENT CLUSTER

GENERAL INFORMATION

The instrument cluster contains an electronic speedometer, tachometer and analog fuel level gauge.

A liquid crystal (LCD) display for odometer, trip odometer and gear indicator display (for automatic
transmission model) is centrally located within the speedometer face.

Control and warning lamps are situated around the peripheral area of the instrument cluster.

Notes on replacing instrument cluster

z

Do not disassemble instrument cluster.

z

Instrument clusters contain no field serviceable components. All malfunctions require replacement of
instrument cluster.

z

When the replacement of a malfunctioning instrument cluster is necessary, follow exchange part
procedures.

z

Complete report form and return together with instrument cluster and always use the original packaging
from the new cluster when returning modules.

z

The odometer reading must be matched to the new/exchange instrument cluster using an On Board
Diagnostic (OBD) program

z

Where applicable instrument cluster must be adapted for anti-theft immobilizer functions using an OBD
program

Additional information:

z

Complaint/symptom based repairs ("Service Fixes")

See Technical Bulletins

z

Instrument cluster, On Board Diagnostic (OBD)

See ON BOARD DIAGNOSTIC (OBD) .

See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and
Service System in mode Guided Fault Finding.

ON BOARD DIAGNOSTIC (OBD), FUNCTION

The instrument cluster is controlled by an internal microprocessor with On Board Diagnostic (OBD) capability.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Instruments - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Instruments - New Beetle



If malfunctions occur in monitored sensors and components, Diagnostic Trouble Codes (DTC) will be stored in
memory.

If OBD recognizes instrument cluster malfunctions related to the:

z

odometer

z

distance impulse number (K number)

z

speedometer calibration

the trip odometer display will change to show "dEF.".

In this case, replace speedometer, See INSTRUMENT CLUSTER, REMOVING AND INSTALLING .

Other malfunctions recognized by OBD will not cause the trip odometer display to change as described above.

However, before performing any troubleshooting or inspection, always begin by checking for DTCs using the
On Board Diagnostic (OBD) program. DTCs stored in memory are retrieved/checked with either VAG
1551/1552 Scan Tools

See ON BOARD DIAGNOSTIC (OBD) .

or

See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and
Service System in mode Guided Fault Finding.

ADDITIONAL INFORMATION, INSTRUMENT CLUSTERS FROM M.Y. 2000

Instrument clusters from m.y. 2000 are integrated into the vehicle CAN Data Bus network (may also be known
as "CAN-Bus" or "Data-Bus").

The Data Bus On Board Diagnostic Interface -J533- (which is integrated into the instrument cluster) enables
data to be exchanged between the vehicle CAN Data-Bus network and the Data Link Connector (DLC) "K-
wire".

The Data Bus On Board Diagnostic Interface -J533- has specific On Board Diagnostic (OBD) capabilities.

OBD from m.y. 2000

See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and
Service System in mode Guided Fault Finding.

Notes on replacing instrument cluster

z

In addition to the normal service procedure of coding the instrument cluster and adapting the odometer
reading, the Data Bus On Board Diagnostic Interface -J533- must also be separately coded according to



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Instruments - New Beetle
