Volkswagen New Beetle. Manual - part 205





1. Open

2. Switch for CCS - On/Off

3. Switch for CCS - Set / accelerate

4. Switch for CCS - Reset / Resume

5. Switch for CCS - Reset / Resume

6. Switch for CCS - On/Off

7. Switch for CCS

8. Open

9. Open

10. Open

NOTE:

The following list refers to items in Fig. 96 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

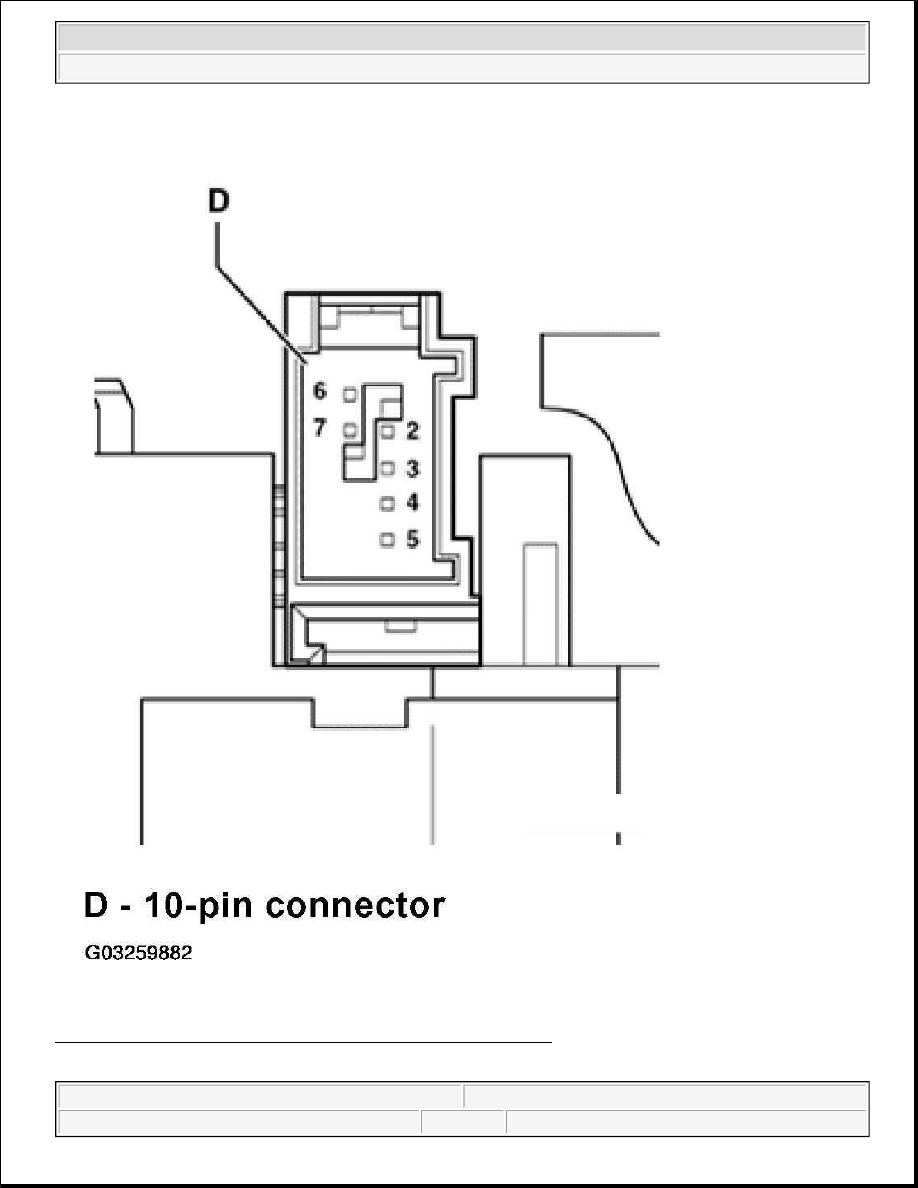

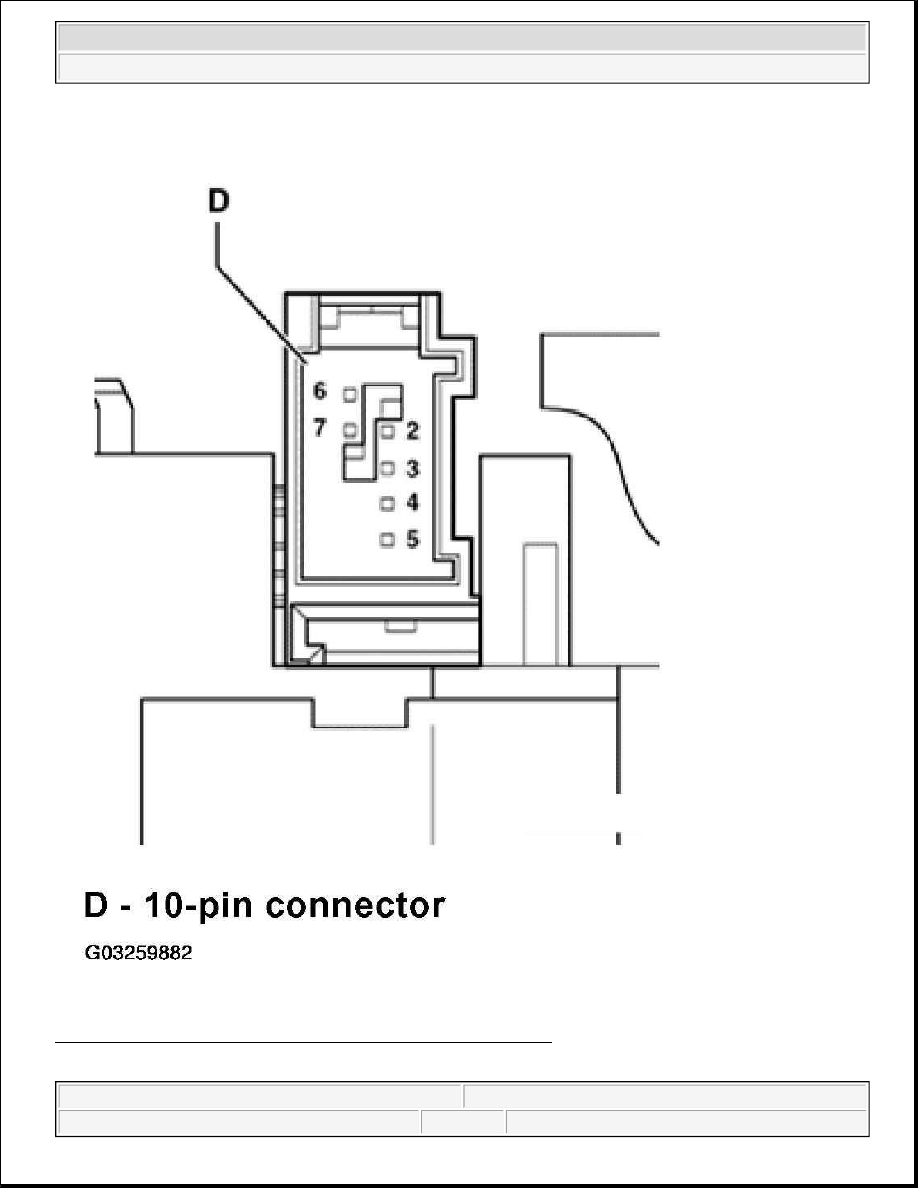

Fig. 96: Identifying Cruise Control System Connector D (10-Pin)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



IGNITION/STARTER SWITCH AND LOCK CYLINDER

LOCK CYLINDER, REMOVING AND INSTALLING

Special tools and equipment

Steel wire, 1.2 mm (0.047 in.) thick

Removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Remove upper and lower steering column switch trim. See STEERING COLUMN SWITCHES .

z

Insert ignition key in lock cylinder.

z

Turn to "Drive" position.

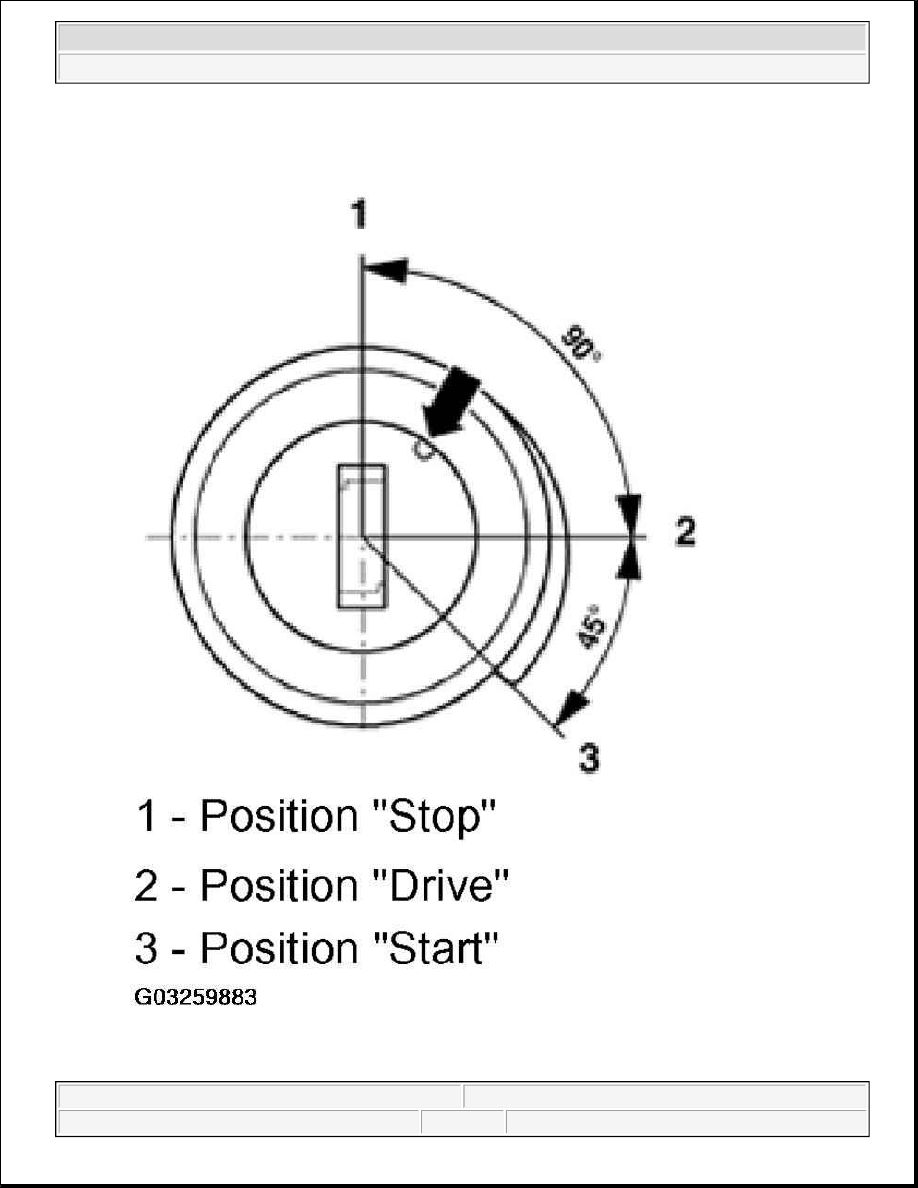

Position of key in lock cylinder:

1. Position "Stop"

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch off ignition and remove ignition key.

z

Disconnect negative ( - ) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified. See BATTERY, DISCONNECTING AND RECONNECTING .
