Volkswagen New Beetle. Manual - part 1991

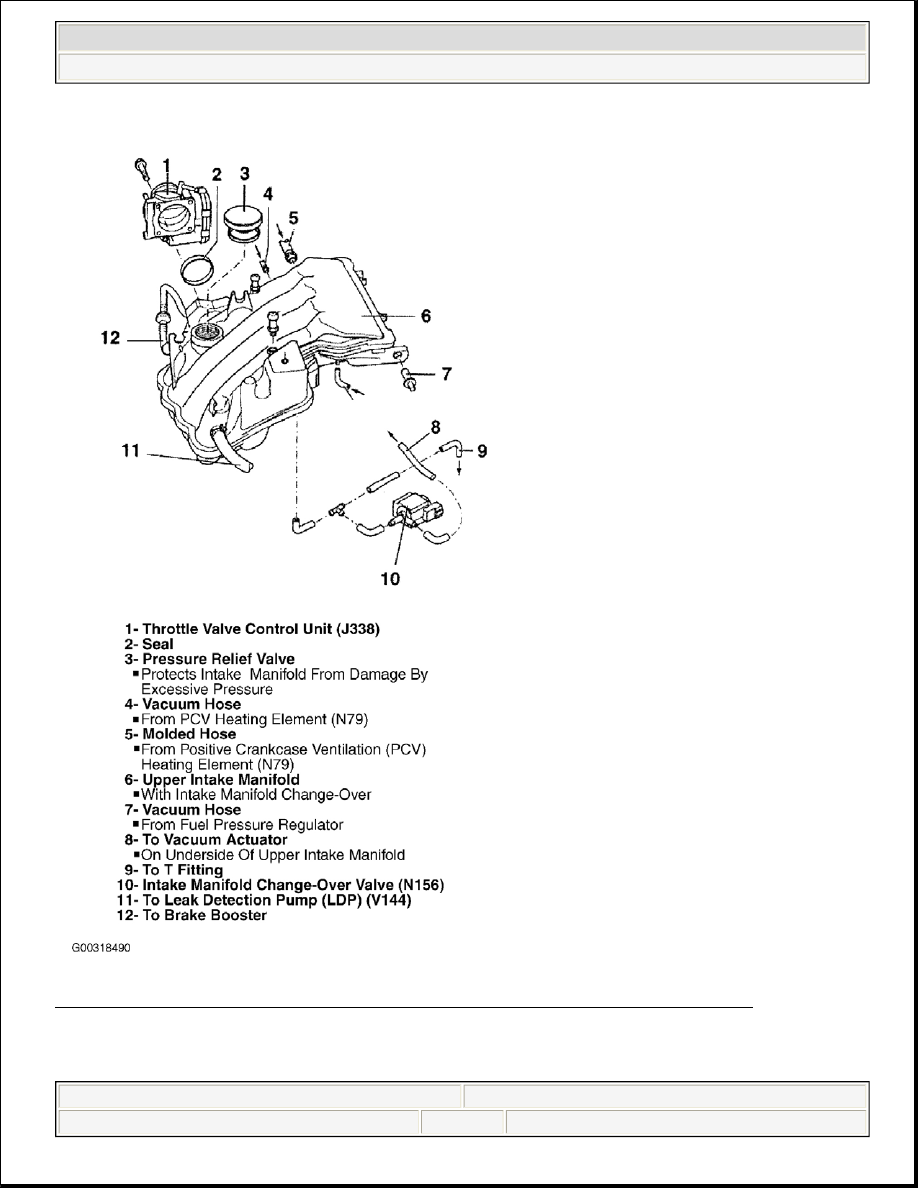

Fig. 7: Vacuum Diagram Intake Manifold, Upper Section (Beetle: 2.0L, Engine Code BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

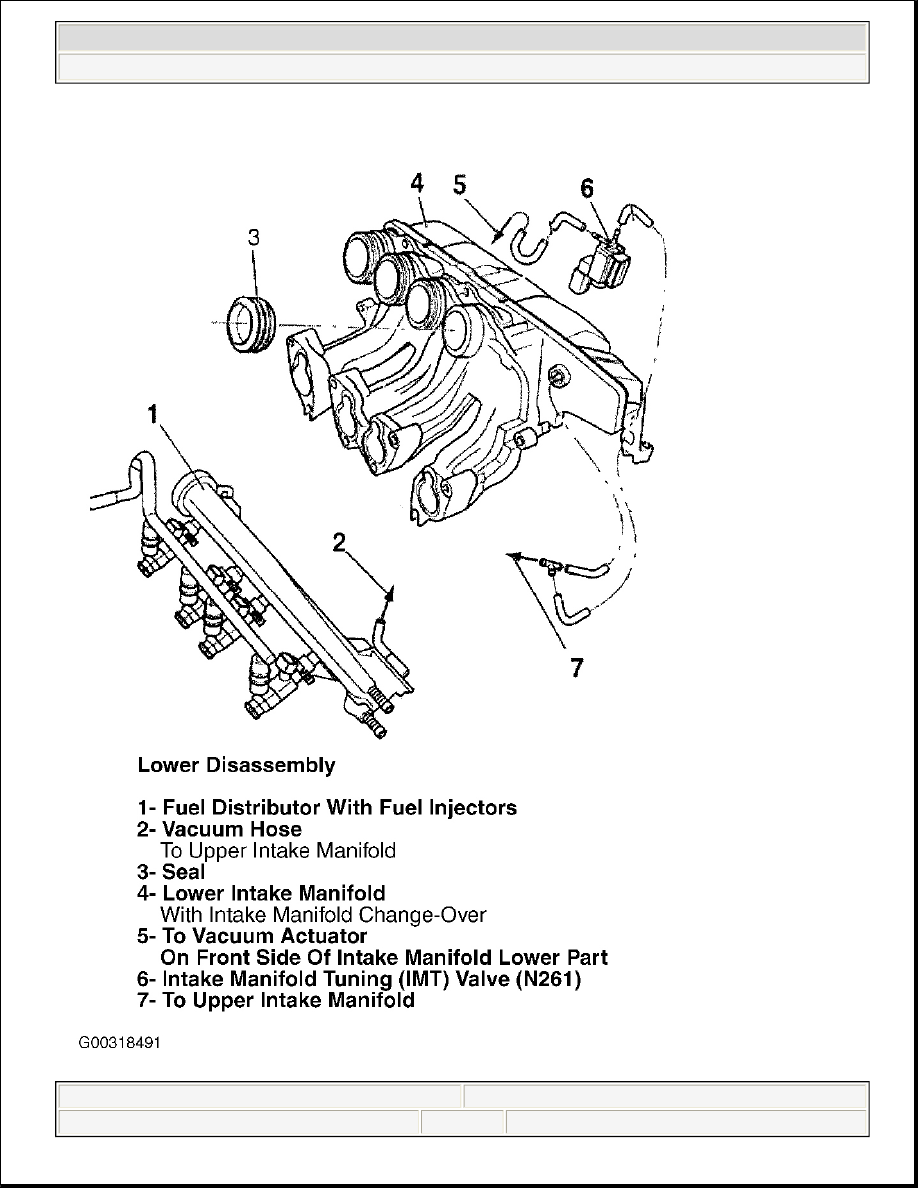

Fig. 8: Vacuum Diagram Intake Manifold, Lower Section (Beetle: 2.0L, Engine Code BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

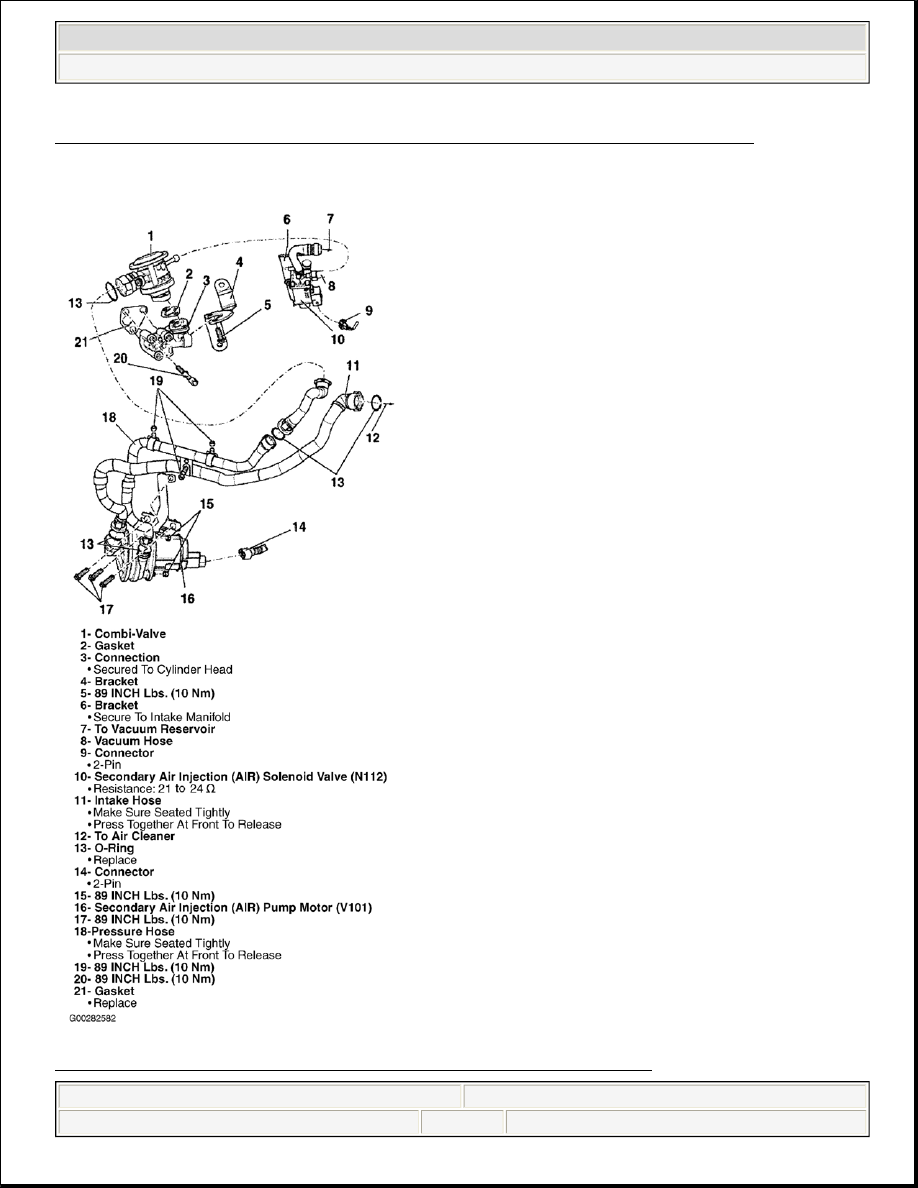

Fig. 9: Vacuum Diagram Secondary Air Injection System (GTI & Jetta: 1.8L)



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

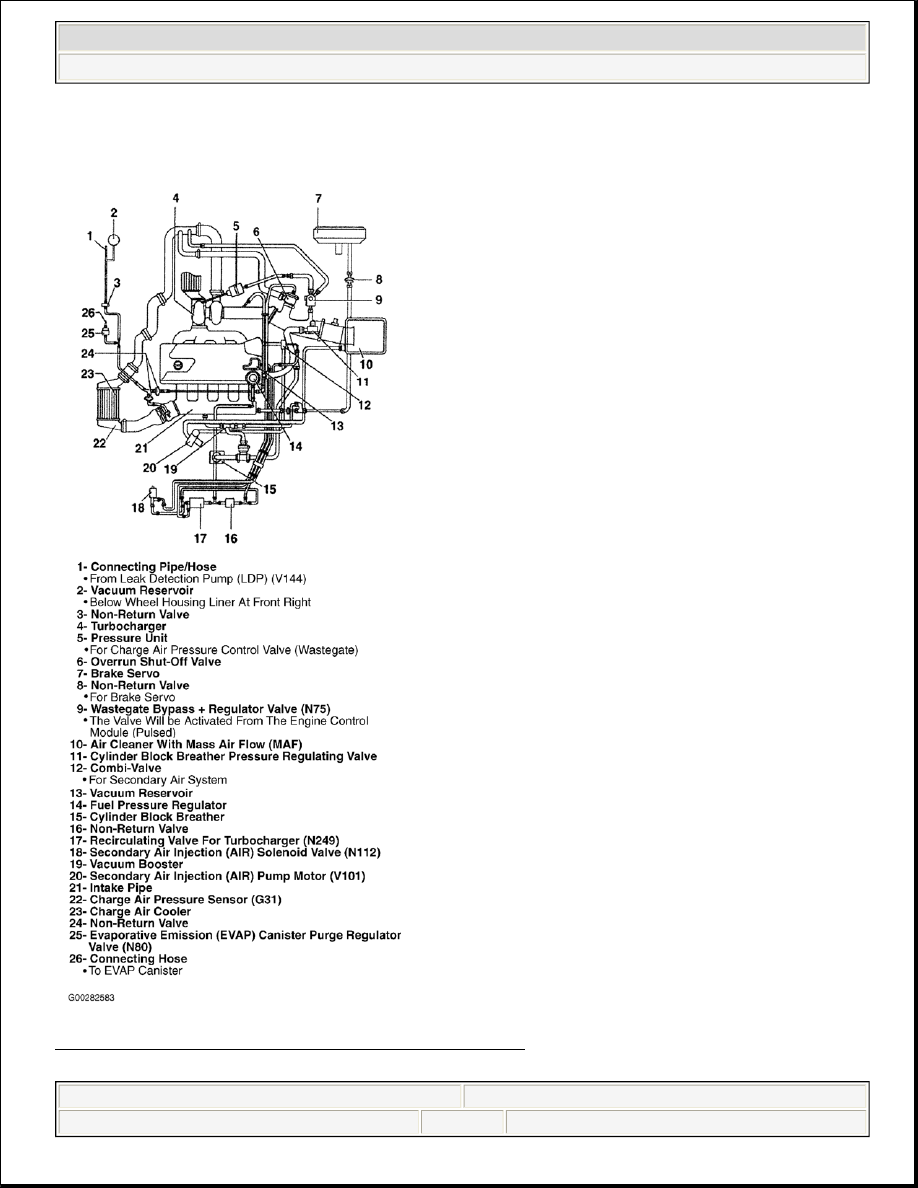

Fig. 10: Vacuum Diagram Turbo System (GTI & Jetta: 1.8L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.
